Technical Tip: Converting FortiAuthenticator tcpdump to Wireshark pcap files

This article describes how to convert a tcpdump file captured on FortiAuthenticator to a readable format for Wireshark.

FortiAuthenticator.

This method is one option to capture packets on FortiAuthenticator if GUI access is not available.

Note that alternatively, 'tcpdumpfile' will create a PCAP file that can be downloaded with https://fac-ip/debug/pcap-dump  after it has been stopped with CTRL-C.

First, it is necessary to have Python software installed in the workstation where the conversion is performed.

The attached script is used for the first stage of conversion.

fac_tcpdump2text2pcap_cli.py

Python 3.9 is used in this example.

Next, capture the file using the following command with the filters:

exec tcpdump -xxs 0

Run the script to convert the captured file to a supported format for later conversion:

python fac_tcpdump2text2pcap_cli.py fac_capture.txt

A new file will be generated: fac_capture.txt.new.

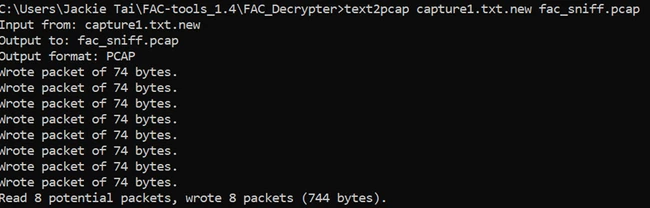

Finally, convert the new file using the text2pcap file attached (for Wireshark):

text2pcap fac_capture.txt.new fac_sniff.pcap

The converted file fac_sniff.pcap can then be used with Wireshark.
