Technical Tip: Configuring SAML SSO for SSL VPN with FortiAuthenticator as an SAML IdP

This article describes how to configure SSL VPN login using FortiAuthenticator as an SAML IdP.

FortiGate v6.4.8, FortiAuthenticator v6.4.2.

A FortiGate can act as SAML-SP (Service Provider) requesting authentication from an SAML IdP (identity provider), FortiAuthenticator.

When a FortiGate is configured as a service provider (SP), it is possible to create an authentication profile that uses SAML for SSL-VPN web portal authentication as well as tunnel mode.

Go under SSL-VPN -> FortiGate(SP) -> FortiAuthenticator (IdP)(local user database).

Related documents:

FortiGate SSL VPN with FortiAuthenticator as SAML IdP

Configuring SAML IdP settings

Configuring SP settings on FortiAuthenticator

SAML SP for VPN authentication

1. Configure the FortiGate SP to be a SAML user:

config user saml

    edit "fac-firewall"

        set entity-id "http://[FGT_IP_or_FQDN]:port/remote/saml/metadata/"

        set single-sign-on-url "https://[FGT_IP_or_FQDN]:port/remote/saml/login/"

        set single-logout-url "https://[FGT_IP_or_FQDN]:port/remote/saml/logout/"

        set idp-entity-id "http://[FAC_IP_or_FQDN]/saml-idp/[SP-name]/metadata/"

        set idp-single-sign-on-url "https://[FAC_IP_or_FQDN]/saml-idp/[SP-name]/login/"

        set idp-single-logout-url "https://[FAC_IP_or_FQDN]/saml-idp/[SP-name]/logout/"

        set idp-cert "REMOTE_Cert_3" <----- Certificate downloaded from IdP (FortiAuthenticator) and imported on FortiGate.

        set user-name "username"

        set group-name "group"

    next

end

[SP-name] - Value of "SP name" field in the FAC's Service Provider page.

2. Add the SAML user to the user group (group matching may also be configured):

config user group

    edit "saml_sslvpn"

        set member "fac-sslvpn"

    next

end

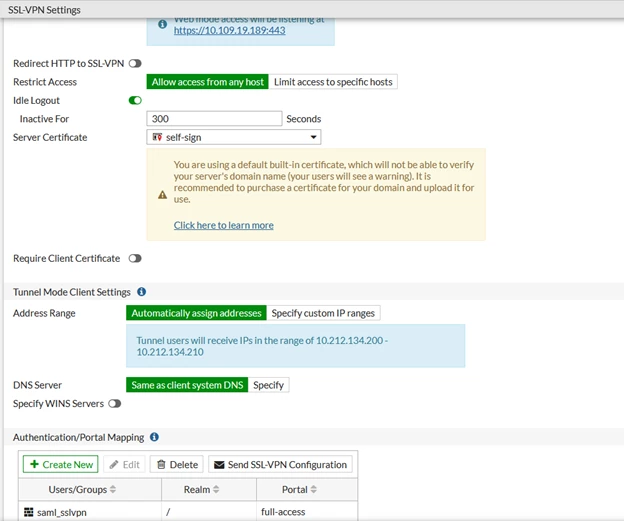

3. Configure SSL VPN:

config vpn ssl settings

    set servercert "self-sign"

    set tunnel-ip-pools "SSLVPN_TUNNEL_ADDR1"

    set tunnel-ipv6-pools "SSLVPN_TUNNEL_IPv6_ADDR1"

    set port 443

    set source-interface "port1"

    set source-address "all"

    set source-address6 "all"

    set default-portal "web-access"

        config authentication-rule

            edit 1

                set groups "saml_sslvpn"

                set portal "full-access"

            next

        end

end

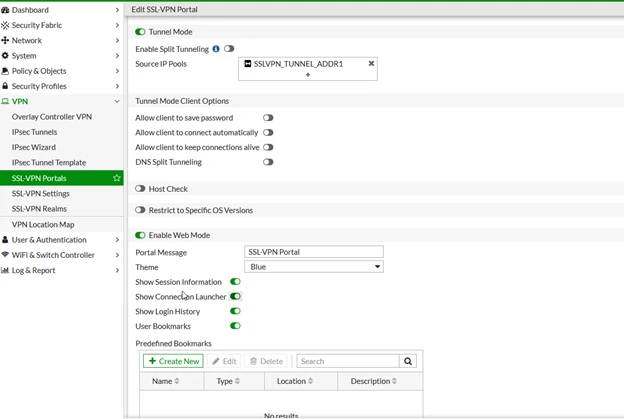

     4. Configure the SSL VPN portal:

config vpn ssl web portal

    edit "full-access"

        set tunnel-mode enable

        set ipv6-tunnel-mode enable

        set web-mode enable

        set ip-pools "SSLVPN_TUNNEL_ADDR1"

        set split-tunneling disable

        set ipv6-pools "SSLVPN_TUNNEL_IPv6_ADDR1"

            config bookmark-group

                edit "gui-bookmarks"

                next

            end

    next

    edit "web-access"

        set web-mode enable

    next

end

5. Add the SAML user group to a firewall policy:

config firewall policy

    edit 1

        set name "FAC-SAML"

        set srcintf "ssl.root"

        set dstintf "port3"

        set srcaddr "all"

        set dstaddr "all"

        set action accept

        set schedule "always"

        set service "ALL"

        set logtraffic all

        set groups "saml_sslvpn"

        set nat enable

    next

end

6. Configure the remote authentication timeout value as needed:

config system global
    set remoteauthtimeout 120
end

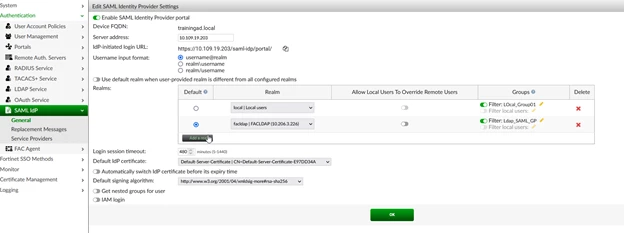

7. Configure the FortiAuthenticator IDP as needed.  Configure SAML IdP settings: Go to Authentication -> SAML IdP -> General.

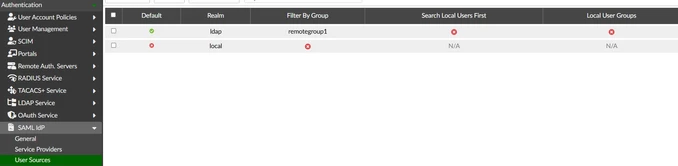

From FortiAuthenticator version 6.6.3, realms are not provided under Authentication -> SAML IdP -> General. and is moved to Authentication -> SAML IdP -> User Sources.

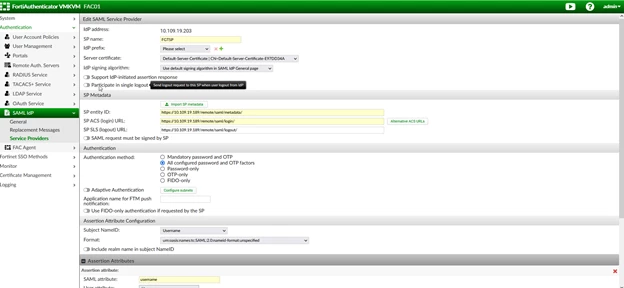

8. Configure SP settings on FortiAuthenticator: Go to Authentication -> SAML IdP -> Service Providers and create a new reference for the service provider that will be used as the SAML client.

9. Create a local user and group on the FortiAuthenticator under Authentication -> User Management -> Local User.

10. Create a User group: Local_Group01.

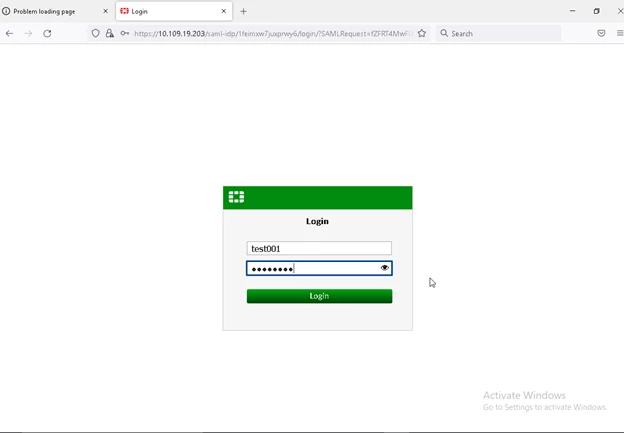

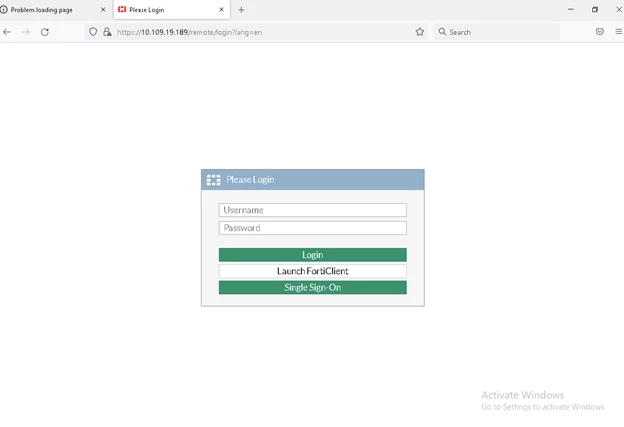

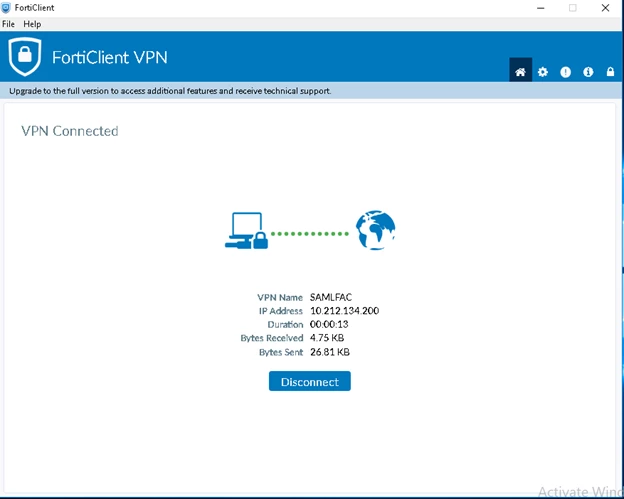

11. Run SSL VPN web mode authentication for a remote user. The SAML login page will appear:

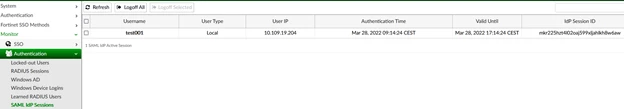

Troubleshooting commands to run on FortiGate:

diagnose debug reset

diagnose debug application sslvpn -1
diagnose debug application samld -1
diagnose debug application fnbamd -1

diagnose debug console timestamp enable

diagnose debug enable

Note:
In v7.6.3, the SSL VPN tunnel mode will no longer be supported, and SSL VPN web mode will be called 'Agentless VPN' as explained in Technical Tip: Upcoming changes on SSL VPN modes starting from v7.6.3
