Technical Tip: Changes in SAML settings after upgrade FortiAuthenticator v8.0.2 version that affects Service Provider

Description

This article describes changes in SAML settings after upgrading FortiAuthenticator to version v8.0.2 and above, which also affect the Service Provider side.

Scope

FortiAuthenticator.

Solution

After a FortiAuthenticator upgrade to v8.0.2 and above, the next error can occur on the Service Provider side.

Example from FortiManager:

invalid_response: Invalid issuer in the Assertion/Response (expected http://10.10.10.10/saml-idp/7f0y8xpr42juhl92/metadata/, got https://10.10.10.10/saml-idp/7f0y8xpr42juhl92/metadata/).

Or in FortiClient EMS:

FortiClient EAP: Other Error

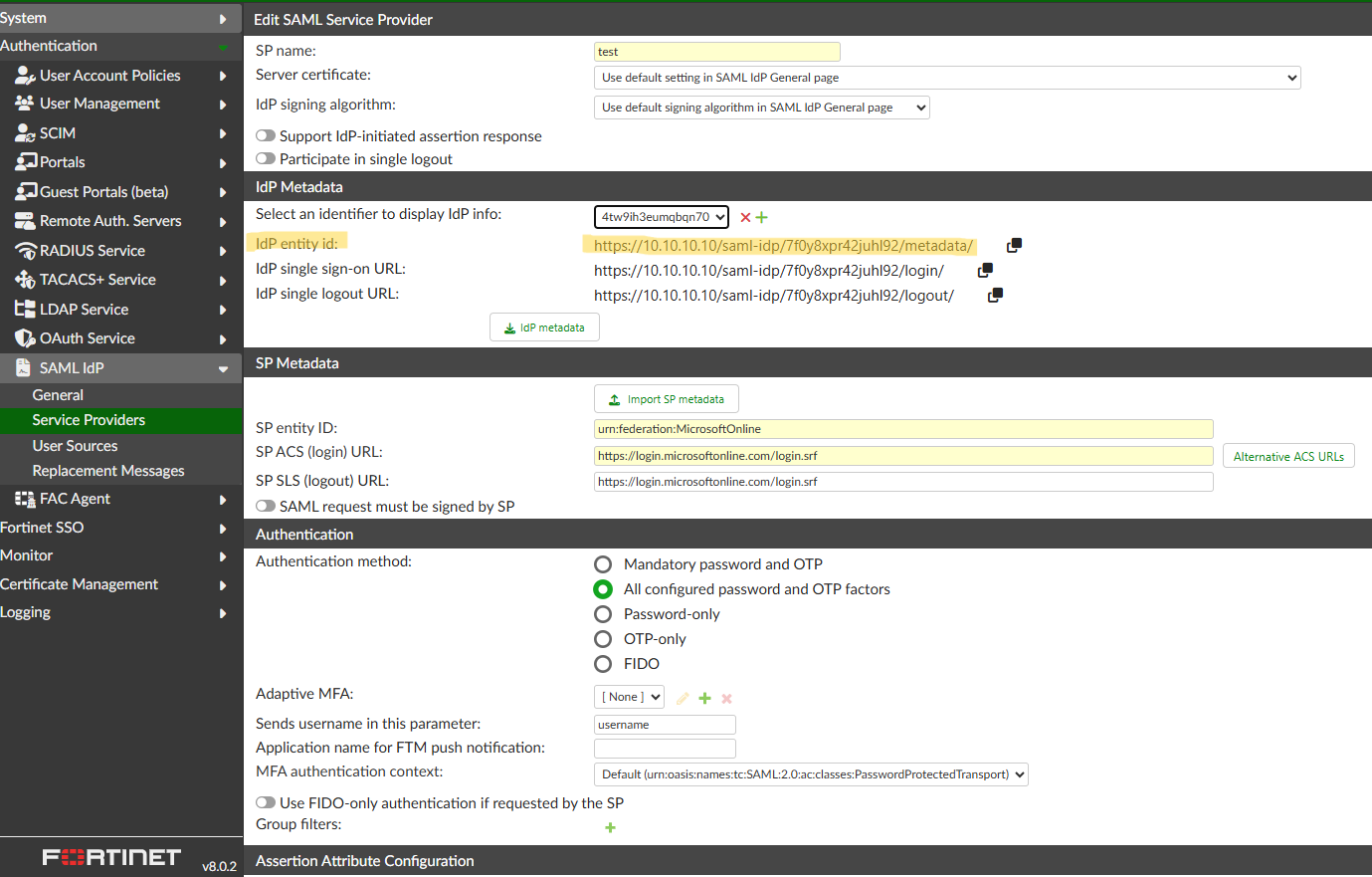

Here is what changed after the upgrade:

The previous setting for 'IdP entity id' was http.
From this version, it is https:

The solution to fix this error on the Service Provider side is to change the idp-entity-id URL and use https from now on.

Example from FortiGate:

config user saml
    edit <>
        set idp-entity-id "https://10.10.10.10/saml-idp/7f0y8xpr42juhl92/metadata/"
    next
end

Related document:
Resolved Issues 8.02
