Technical Tip: Cannot contact LDAP server after upgrading to v6.6.x

After upgrading to v6.6, the following error can appear in the RADIUS_Authentication log:

facauth: ERROR: fac_ldap_connect() failed: ldap_simple_bind_s failed: Can't contact LDAP server error:0A000086:SSL routines::certificate verify failed (CA signature digest algorithm too weak).

facauth: Remote LDAP user authentication failed

facauth: ERROR: fac_ldap_connect() failed: fac_ldap_connect() failed: all servers have cached state: down

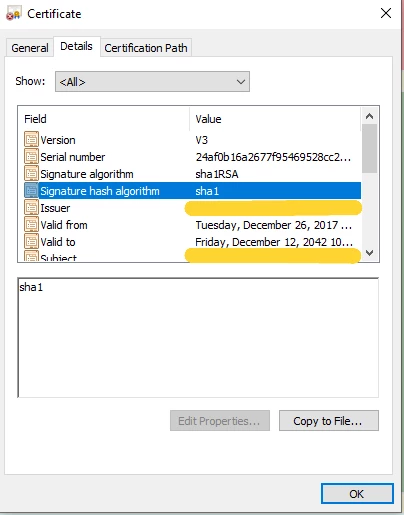

The signature hash algorithm can be checked directly in the certificate. In the below example, it is SHA-1 (Secure Hashing Algorithm):

Or with the openssl command:

openssl x509 -in certificate-name.crt -noout -text | grep "Signature Algorithm"
Signature Algorithm: sha1WithRSAEncryption
Signature Algorithm: sha1WithRSAEncryption

Solution:

This is because the SHA-1 cryptographic algorithm is not supported in v6.6.x because of security reasons. It is recommended to use SHA-2 or above to avoid this error.

A new certificate should be created for LDAP/LDAPS with a higher hash algorithm, import the RootCA to FortiAuthenticator, and check the connection again. If this is not possible in the environment, then the previous version should be used.

Note:

The chain of trust should also not contain weaker algorithms, which include intermediate certificates and root certificates

Taking a packet capture will help to verify the chain of trust. Below is the snippet for example:

Frame 27:  2436 bytes on wire (19488 bits), 2436 bytes captured (19488 bits)

Ethernet II, Src: ___

Internet Protocol Version ___

Transmission Control Protocol, Src Port: 585, Dst Port: 33626, Seq: 1, Ack: 328, Len: 2382

signature (sha1WithRSAEncryption) --->
issuer: rdnSequence (0)
validity
subject: rdnSequence (0)
subjectPublicKeyInfo
extensions: 10 items
algorithmIdentifier (sha1WithRSAEncryption)
