Technical Tip: Understanding FortiAP LAN Port Bridging: Bridge to LAN vs Bridge to SSID

FortiAPs can operate their LAN ports in two main modes:

• Uplink Only: The port is solely used for the FortiAP’s uplink (Ethernet to the network).

• Uplink & Bridge: The port provides both uplink and the ability to connect wired devices (bridging functionality).

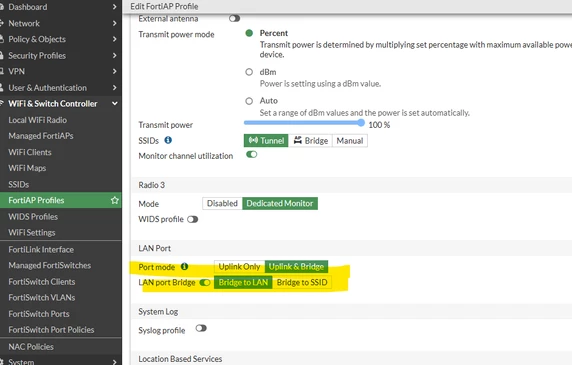

Once Uplink & Bridge is enabled, there are two choices for LAN port bridging:

Option 1: Bridge to LAN.

Function: The LAN port acts like a switch port, bridging wired clients directly to the wired LAN (uplink). Use case: Connect wired devices like IP phones, printers, or desktops to the same VLAN/subnet as the AP’s uplink.

Traffic behavior: Wired device traffic is bridged to the same network that the AP is using for its uplink.

Option 2: Bridge to SSID.

Function: The LAN port bridges the wired client’s traffic into the wireless SSID’s VLAN.

Use case: Use this when the wired devices need to behave like wireless clients connected to a specific SSID (e.g., guest devices).

Traffic behavior: Traffic from the wired port is tagged and tunneled to the controller as if it is part of the wireless SSID.

Note: For this functionality to work correctly, the WAN-LAN functionality must be activated from the CLI of the FortiAPs individually.

For F and G series APs (e.g., FortiAP-xxxF, FortiAP-xxxG, FortiAP-xxxK):

cfg -a WANLAN_MODE=WAN-LAN

cfg -c

For FortiAP-U models:

cfg -a FAP_ETHER_TRUNK=3

cfg -c

If these commands are not run in the FortiAP CLI, any device connected to the FortiAP's secondary LAN will connect to the FortiAP's management VLAN (direct bridge to port 1).
