Technical Tip: AirPlay different configuration modes

AirPlay allows that Apple broadcast through the Wireless medium content like Video, Audio, Photos to Smart TVs using screen mirror, there are different use cases available to use under FortiGate along with FortiAP.

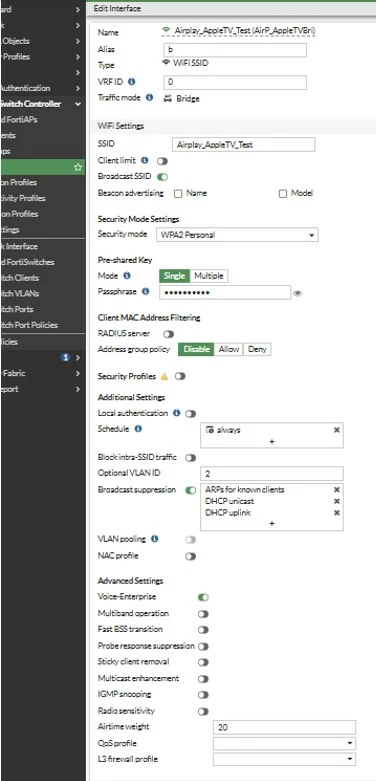

Case 1: Smart TV and Apple device should be connected under the same SSID Bridge, there are no firewall rules for Multicast on this mode, the default SSID configuration is enough:

Case 2: Smart TV and Apple device are connected each one with its own Bridge SSID, this example shows Smart TV connected on the Bridge SSID Airplay_AppleTV using VLAN2 with segment 192.2.1.0/24, the Apple device is connected to AirAppleTVIphone Bridge SSID using segment with VLAN3 192.3.1.0/24:

1. Configure the bonjour AP-Profile to the FortiAP which is broadcasting the wireless service. The intention is to include the VLANs that each Bridge SSID is using, on this case VLAN2 and VLAN3:

FortiGate # config wireless-controller bonjour-profile

FortiGate (bonjour-profile) #

FortiGate (bonjour-profile) # show full-configuration

config wireless-controller bonjour-profile

    edit "BonjourTest"

        config policy-list

            edit 1

                set description "From_vlan2AppleTV_to_vlan3iPhone"

                set from-vlan "2"

                set to-vlan "3"

                set services airplay

end

5. Assign a Bonjour profile to FortiAP by using the serial number:

FortiGate # config wireless-controller wtp

FortiGate (wtp) # edit FP431FXXXXXXXX

FortiGate (FP431FXXXXXXXX) # sho fu | grep bonjour

    set bonjour-profile "BonjourTest"

end

Case 3: Smart TV is connected to Bridge SSID and Apple device connected to Tunnel SSID, at this point all steps done previously are necessary; in order to allow AirPlay communication successful on this case, the firewall policy must be created with bidirectional communication between the Tunnel SSID and Bridge SSID, also multicast configuration should be considered:

1. FortiGate multicast configuration:

FortiGate # config system settings

FortiGate (settings) # show full-configuration | grep multicast

    set multicast-forward enable

    set multicast-ttl-notchange enable

end

2. FortiGate multicast policies:

FortiGate # config firewall multicast-policy

FortiGate (multicast-policy) # show full-configuration

config firewall multicast-policy

    edit 1

        set status enable

        set logtraffic enable

        set srcintf "Test normal"   <-----Tunnel SSID

        set dstintf "AirP_AppleTVBri"  <----- Bridge SSID

        set srcaddr "all"

        set dstaddr "all"

        set snat disable

        set dnat 0.0.0.0

        set action accept

        set protocol 17

        set auto-asic-offload enable

        set start-port 1

        set end-port 5353

    next

    edit 2

        set status enable

        set logtraffic enable

        set srcintf "AirP_AppleTVBri"  <----- Bridge SSID.

        set dstintf "Test normal"   <----- Tunnel SSID.

        set srcaddr "all"

        set dstaddr "all"

        set snat disable

        set dnat 0.0.0.0

        set action accept

        set protocol 17

        set auto-asic-offload enable

        set start-port 1

        set end-port 5353

    next

3. Disable multicast routing from FortiGate:

FortiGate # config router multicast

FortiGate # show full-configuration | grep multicast

config router multicast

    set multicast-routing disable

end

4. Firewall policies creation:

FortiGate # config firewall policy

FortiGate (policy) # edit "73"

FortiGate (73) # show

config firewall policy

config firewall policy

    edit 72

        set name "AppleTVToTunnelSSID"

        set srcintf "AirPlaySegmApTV"

        set dstintf "Test normal"

        set action accept

        set srcaddr "all"

        set dstaddr "all"

        set schedule "always"

        set service "ALL"

        set logtraffic all

    next

    edit 73

        set name "TunnelSSIDtoAirAppleTV"

        set srcintf "Test normal"

        set dstintf "AirPlaySegmApTV"

        set action accept

        set srcaddr "all"

        set dstaddr "all"

        set schedule "always"

        set service "ALL"

        set logtraffic all

end

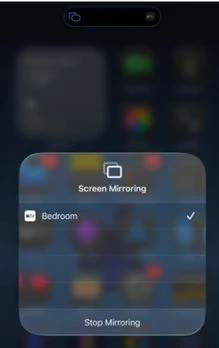

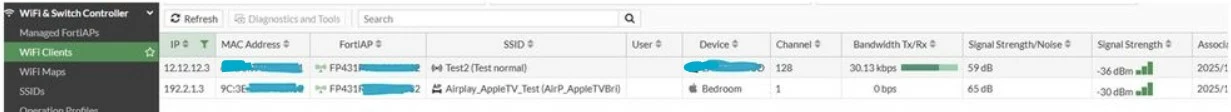

The final result under 3 cases is successful. Screen mirroring works as expected:

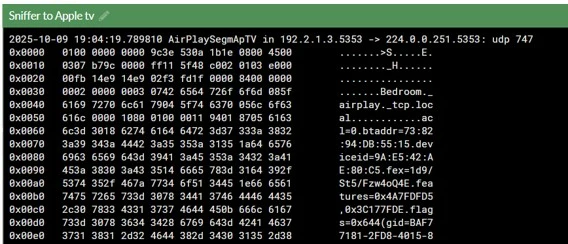

From a troubleshooting perspective, it is often useful to validate AirPlay traffic. With a sniffer from the FortiGate side pointing to port 5353 dedicated for Multicast mDNS, two-way communication must be observed:

FortiGate # diagnose sniffer packet any 'host 192.2.1.3 and port 5353' 6 0 a

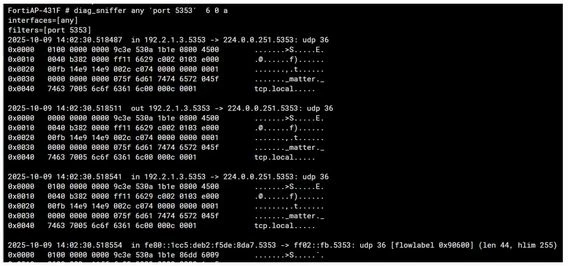

At the same time, one sniffer should be used from the FortiAP side using port 5353. With these two points of view, there is more visibility where mDNS traffic is not allowed or which direction it is not sending the traffic to:

FortiAP-431F # diag_sniffer any 'port 5353' 6 0 a
