Technical Note: EAP TLS wireless LAN deployment on Android using FortiGate and Windows server 2008

  • January 4, 2017
  • 0 replies
  • 12878 views
Purpose
This document discusses the Extensible Authentication Protocol Transport Layer Security (EAP-TLS) authentication protocol deployment in wireless networks.  It introduces the EAP-TLS architecture and discusses deployment steps.

Scope
Authenticated wireless access design based on Extensible Authentication Protocol – Transport Level Security (EAP-TLS) can use either smart cards or user and computer certificates to authenticate wireless access clients.  EAP-TLS provides stronger security than secure password authentication that is based on user credentials (user name and password) to authenticate wireless access clients.

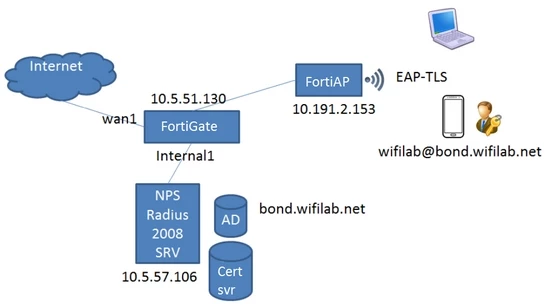

Diagram

Expectations, Requirements
Ability to achieve a secure reliable and convenient environment for the end user as they do not need to enter any username or password.

Configuration


  • Server side configuration

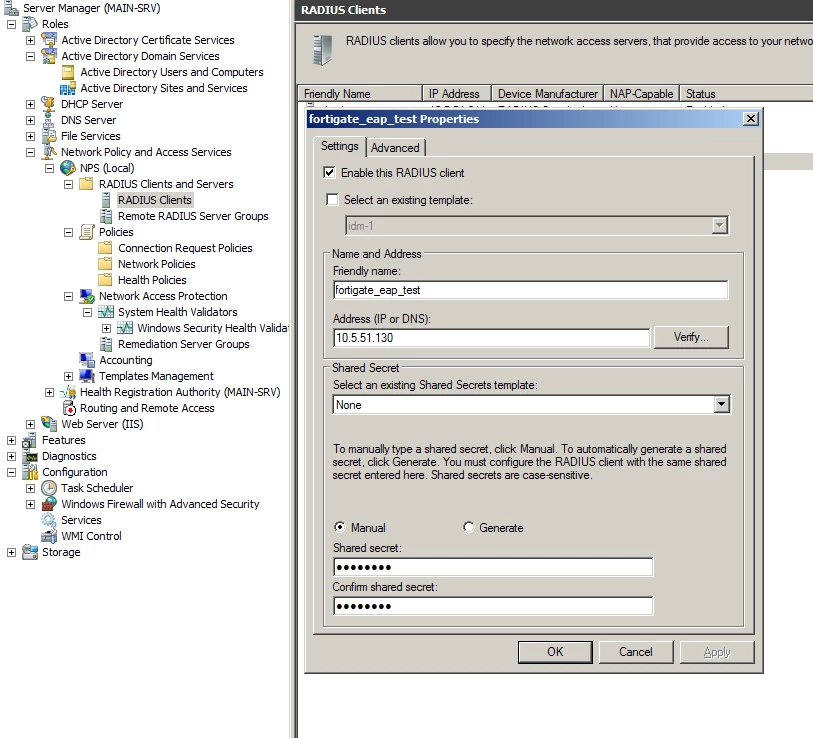

Configure the radius client on the server:

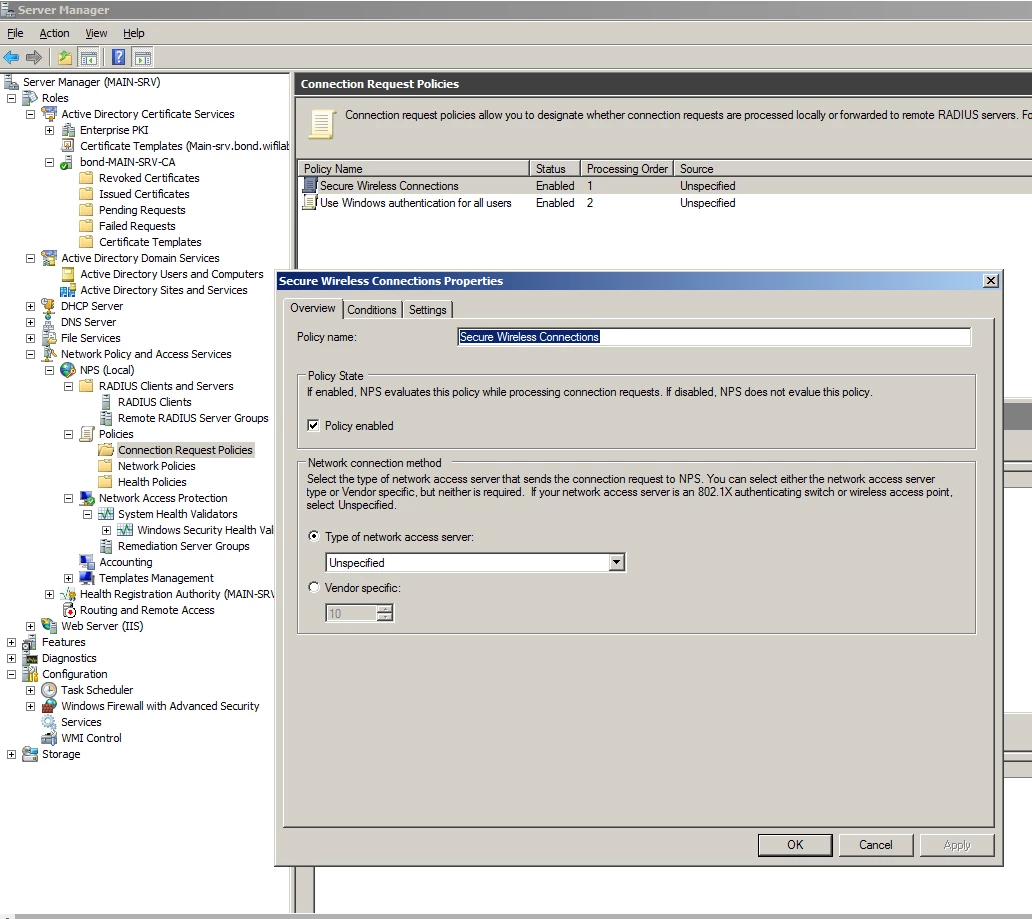

Connection request Policy “Overview”:


mdeparisse_FD40058_connection request policy.png

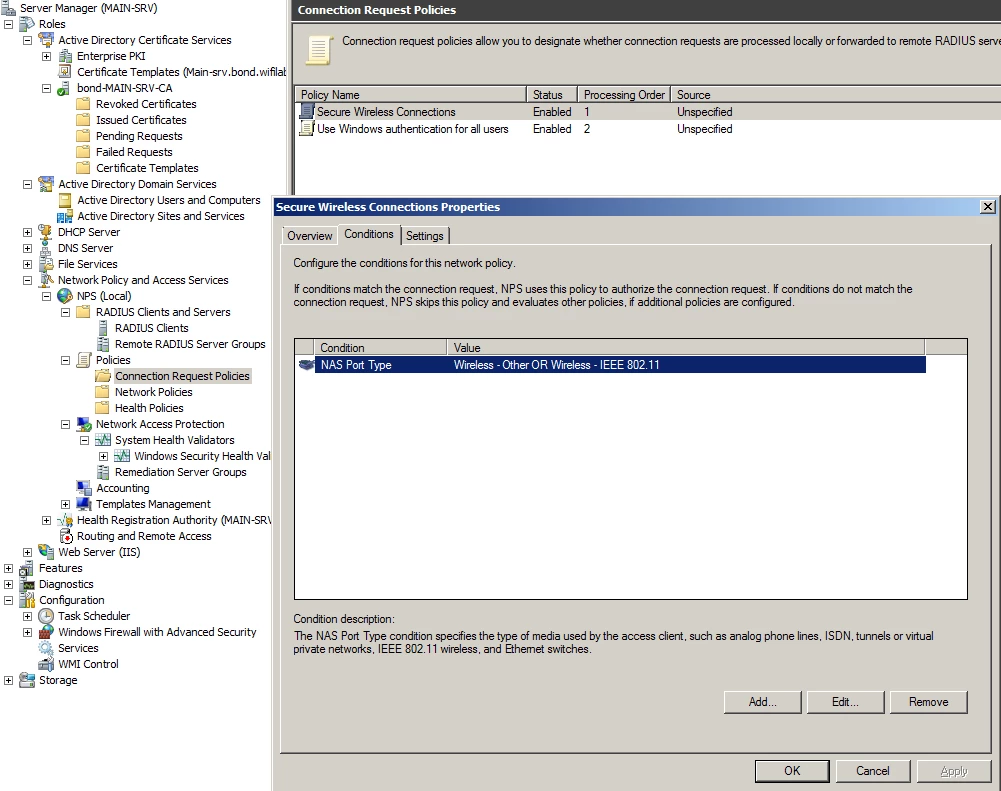

Configure the connection request Policy conditions:


mdeparisse_FD40058_connection request policies condition.png

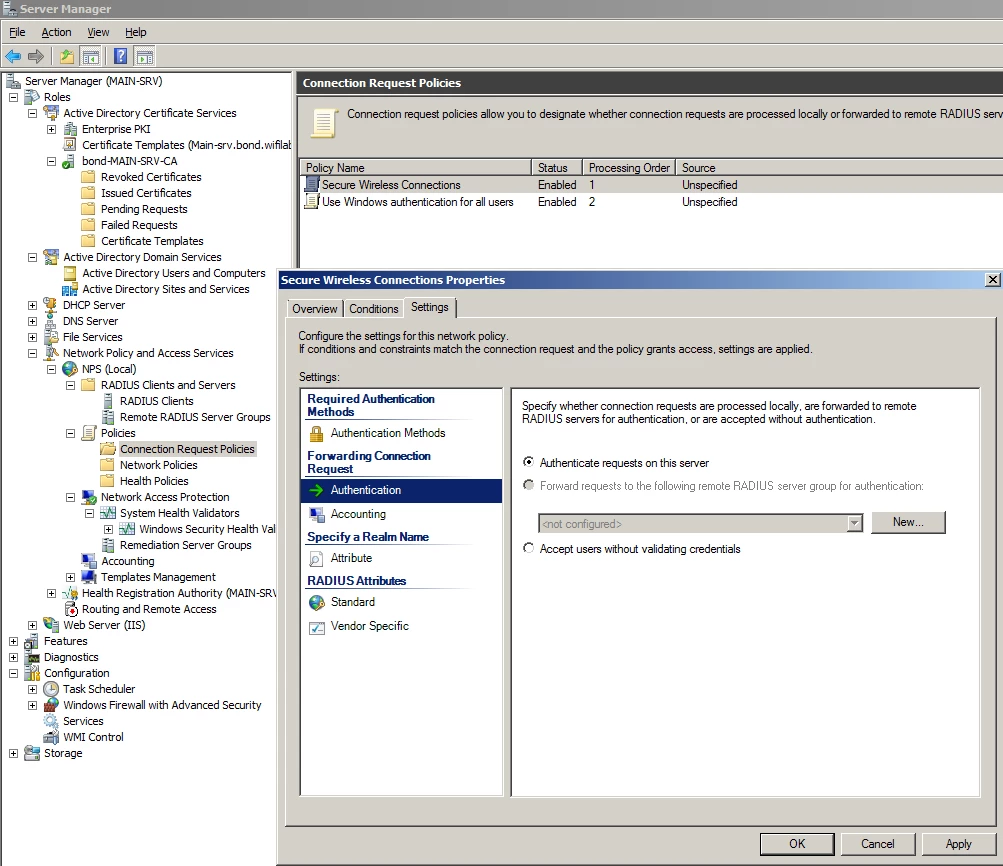

Configure the connection request Policy Settings

mdeparisse_FD40058_authentication on this server.png

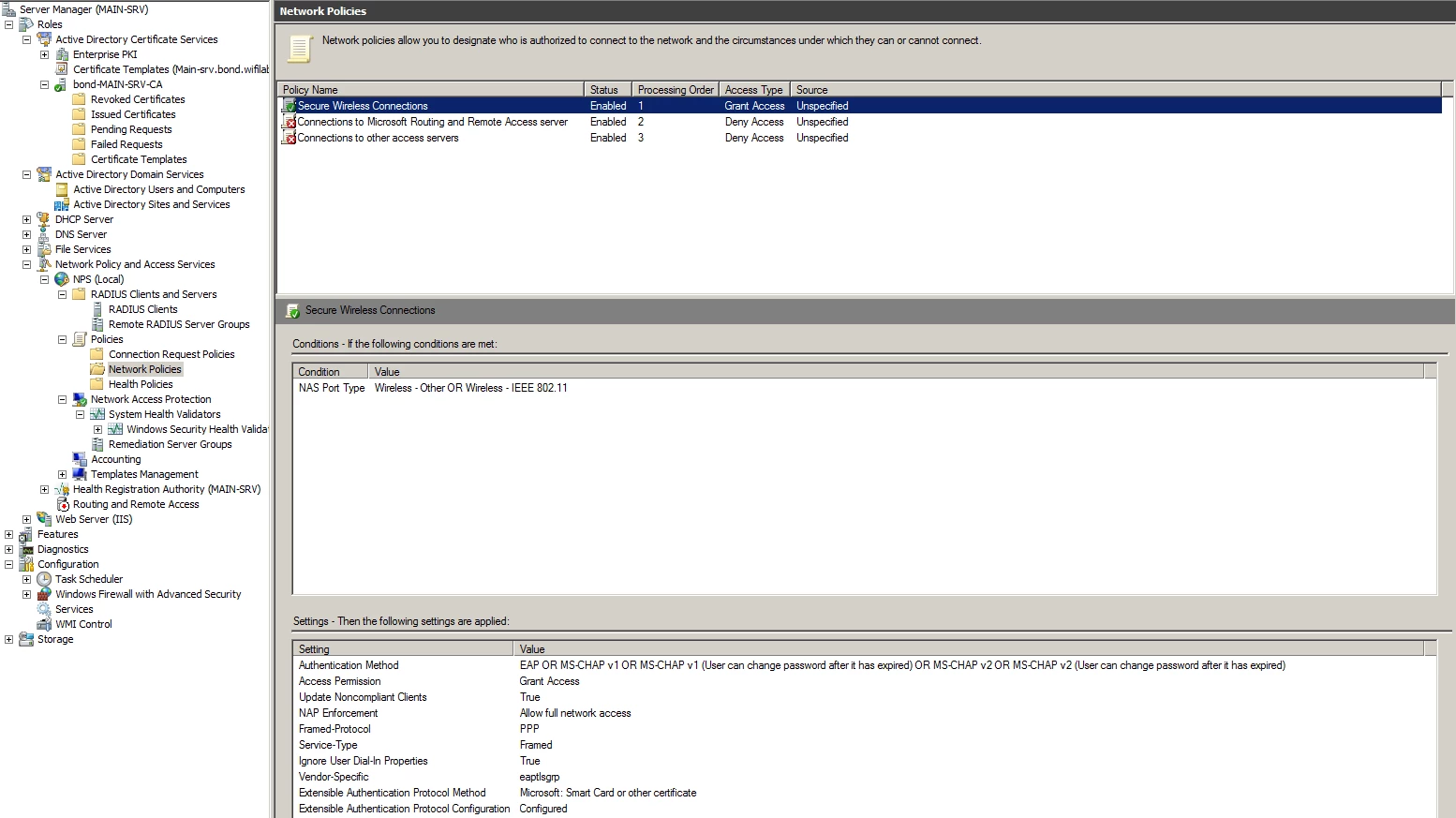

Network policies Overview:


mdeparisse_FD40058_Network Policies.png

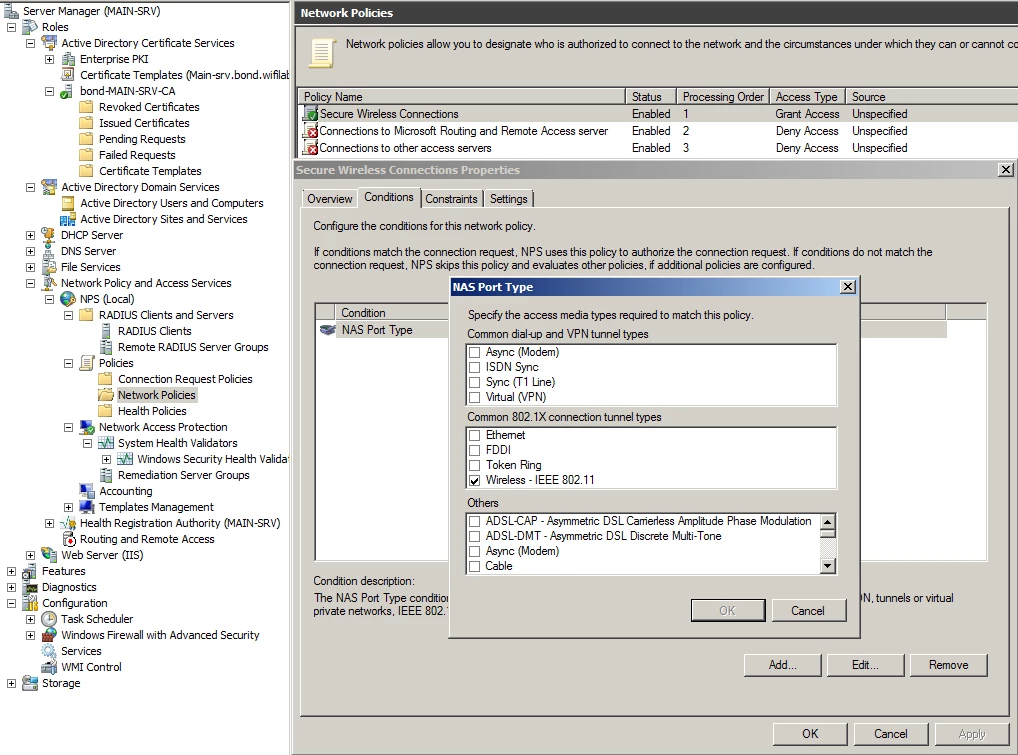

Configure the connection Networks Policy Conditions


mdeparisse_FD40058_Network Policies Condition.png

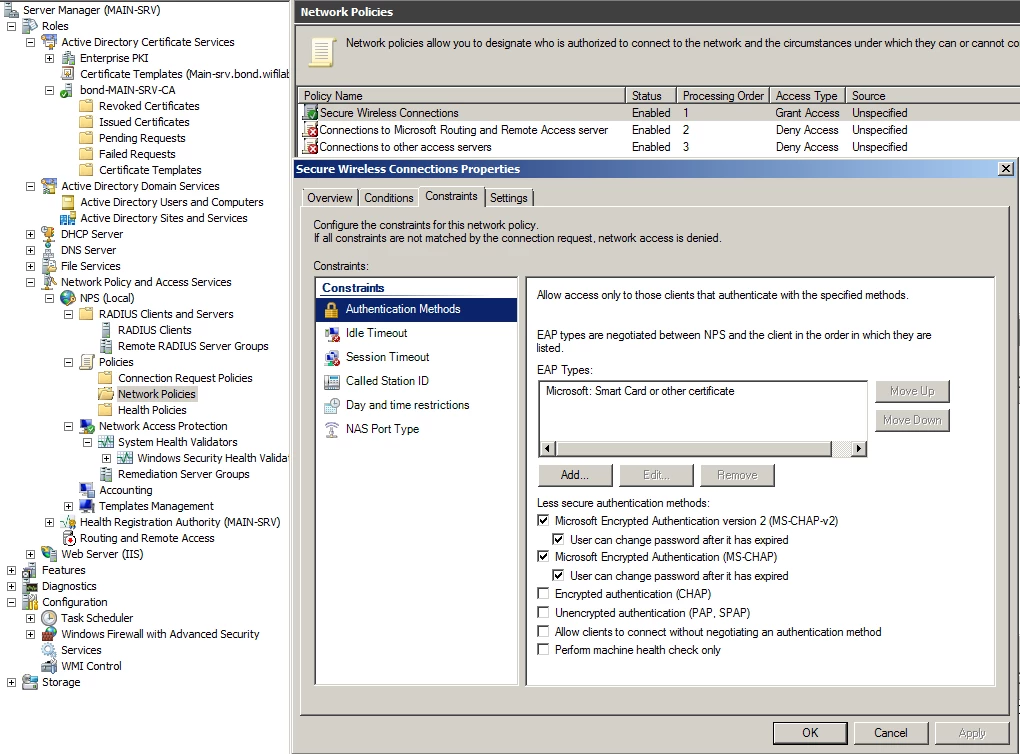

Configure the Networks Policy Constraints

mdeparisse_FD40058_Constraints Network Policy.png

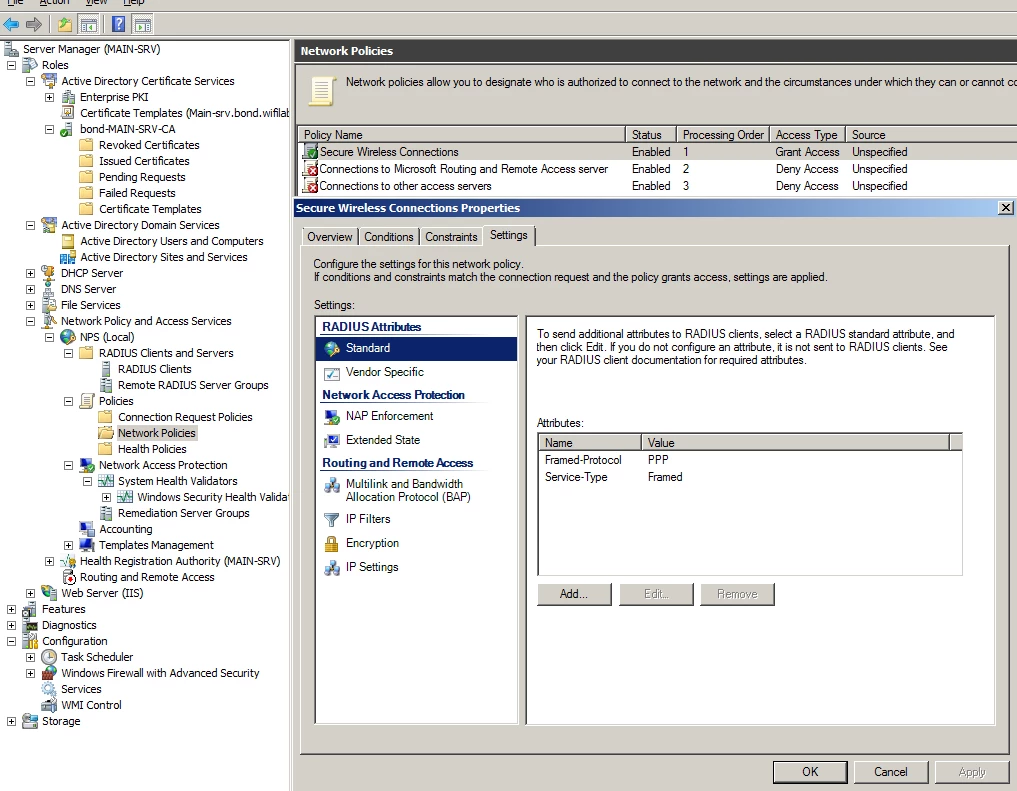

Configure the Networks Policy settings:


mdeparisse_FD40058_Network Policy Settings1.png

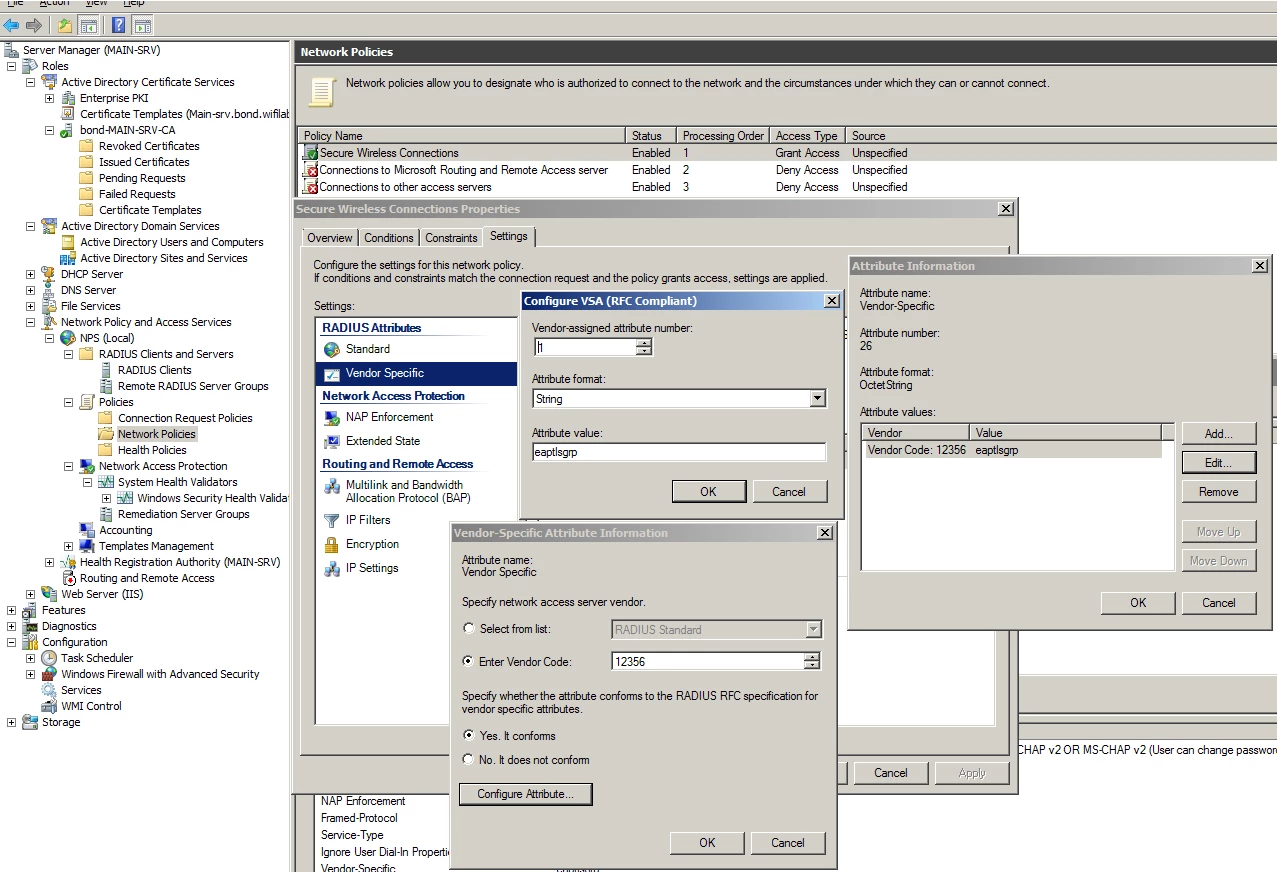

Configure the Networks Policy VSA (vendor ID 12356)

mdeparisse_FD40058_radius network policy VSA.png



  • FortiGate :

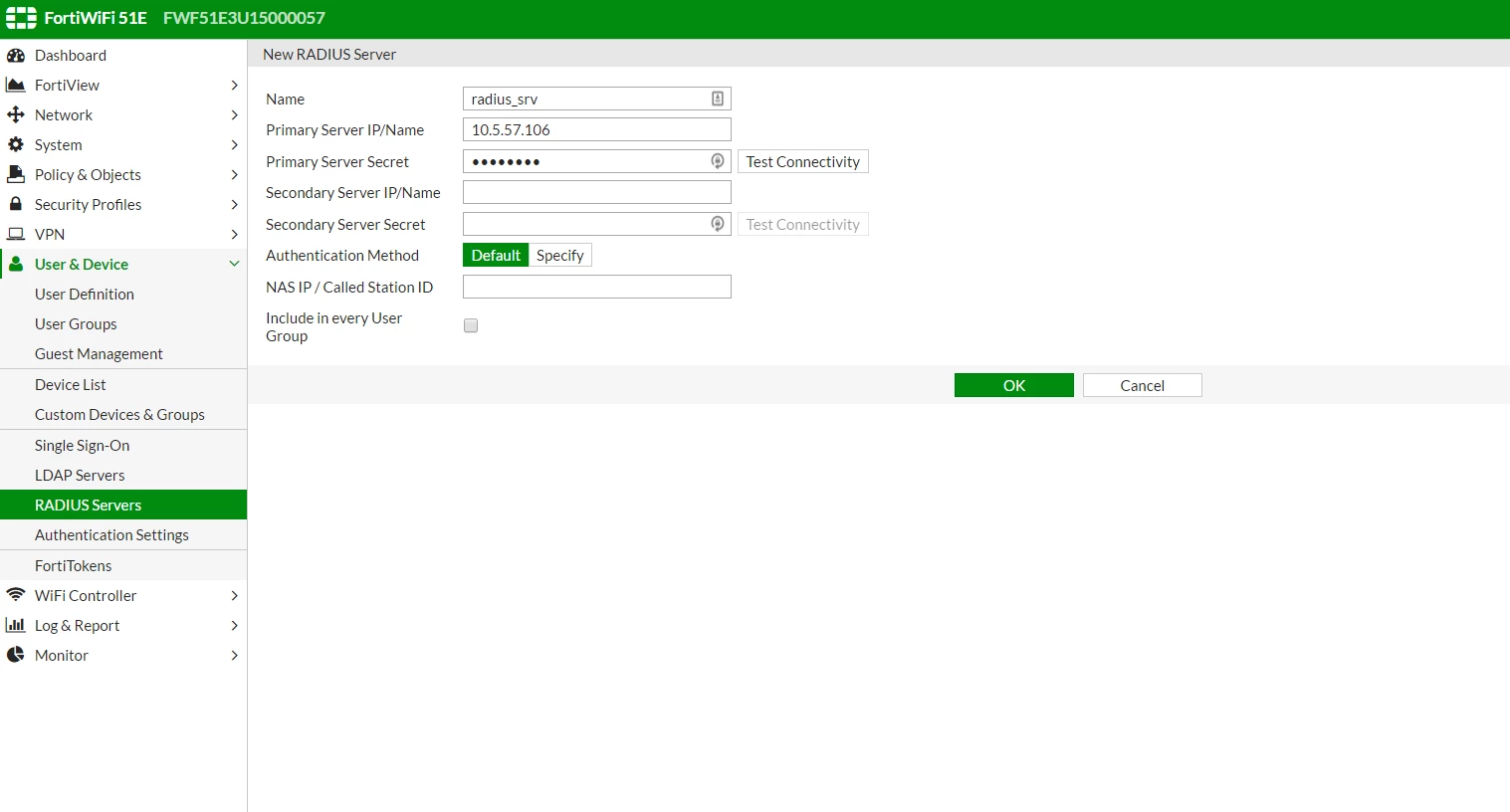

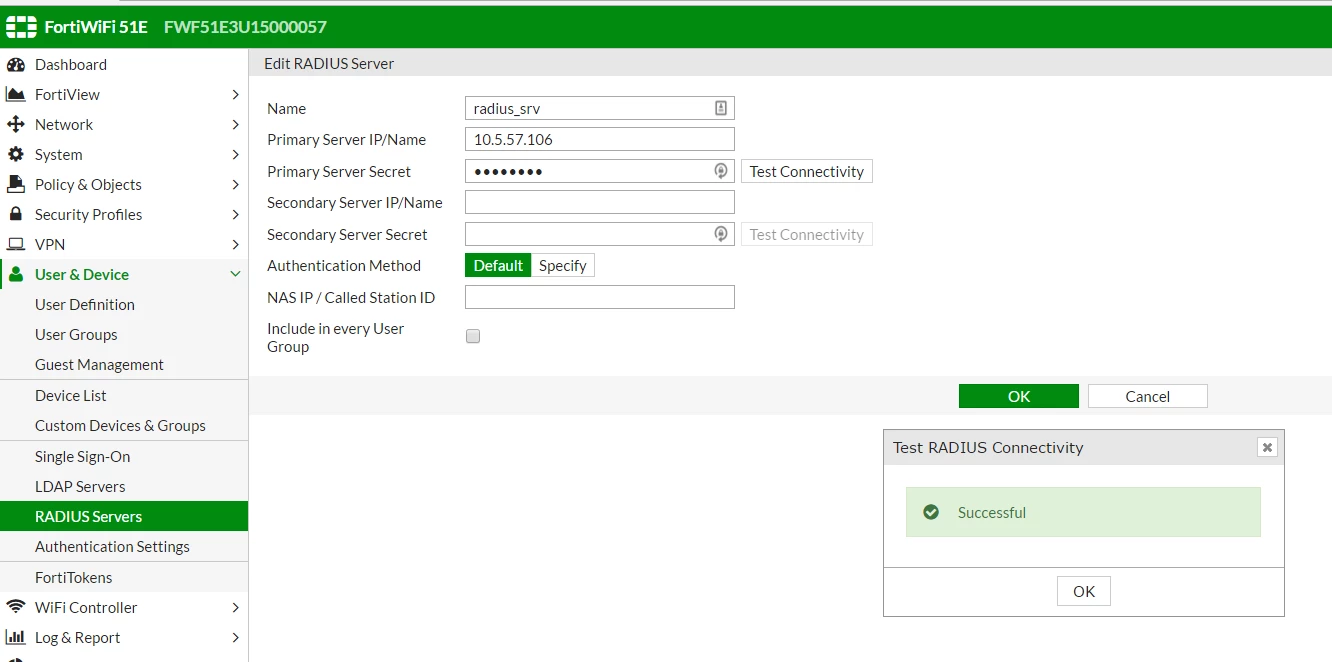

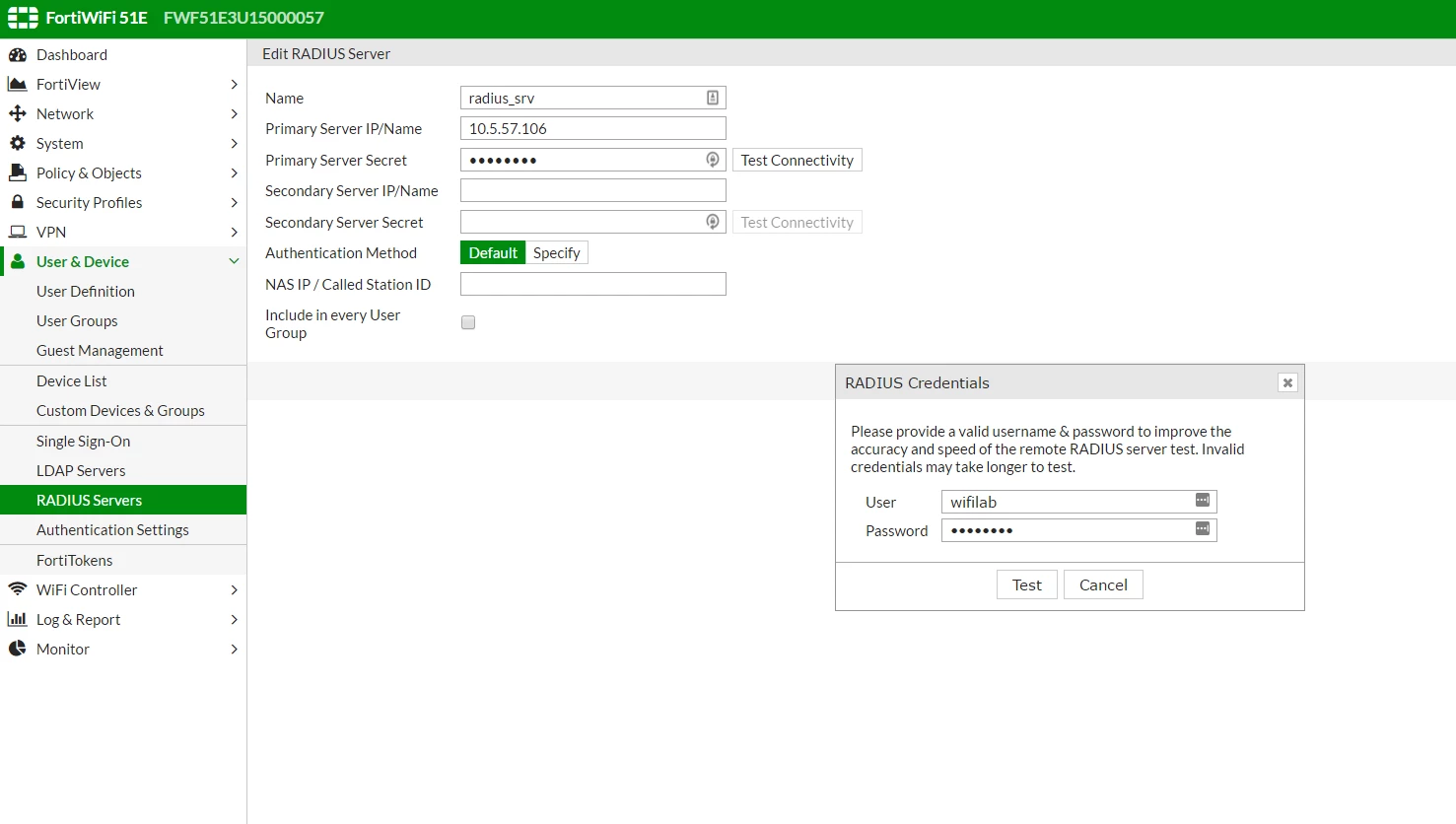

Configure the radius server on the FortiGate


Test the connection (be aware that you are testing radius connectivity and not the user authentication so you can type anything)

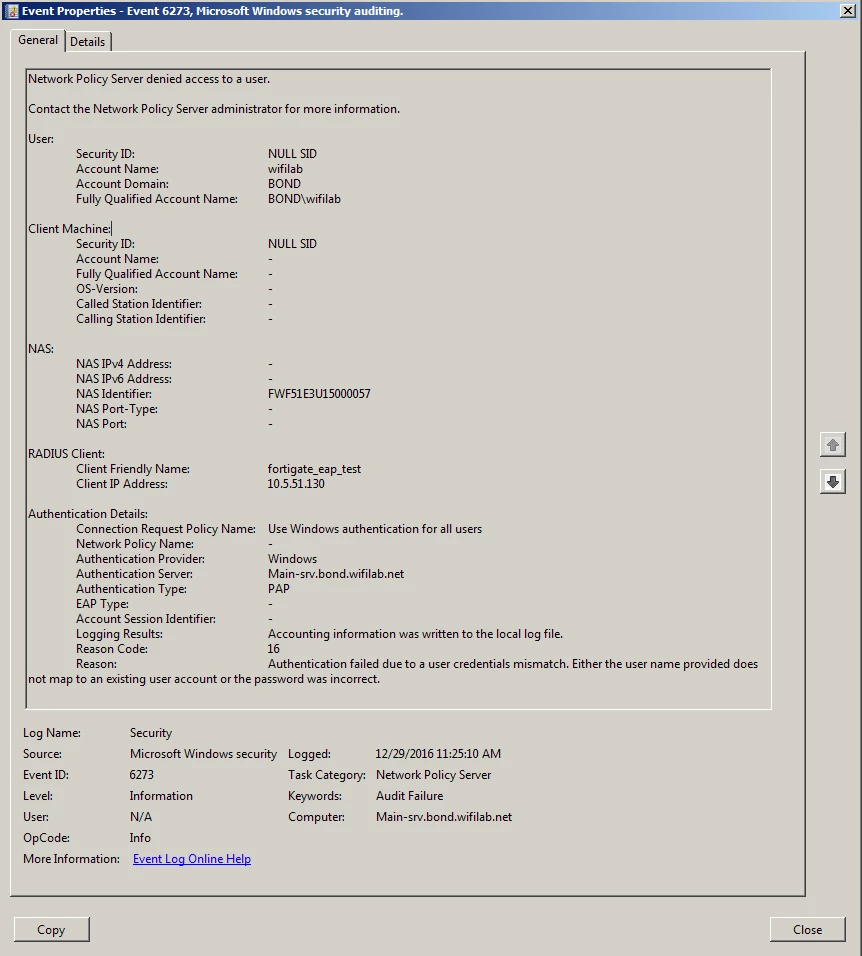

As you can see you may have a success but in the event log of the server you can also see an authentication failure which will also result on a success window on FortiGate as this is only radius connectivity validation

mdeparisse_FD40058_example of autehntication failure.png

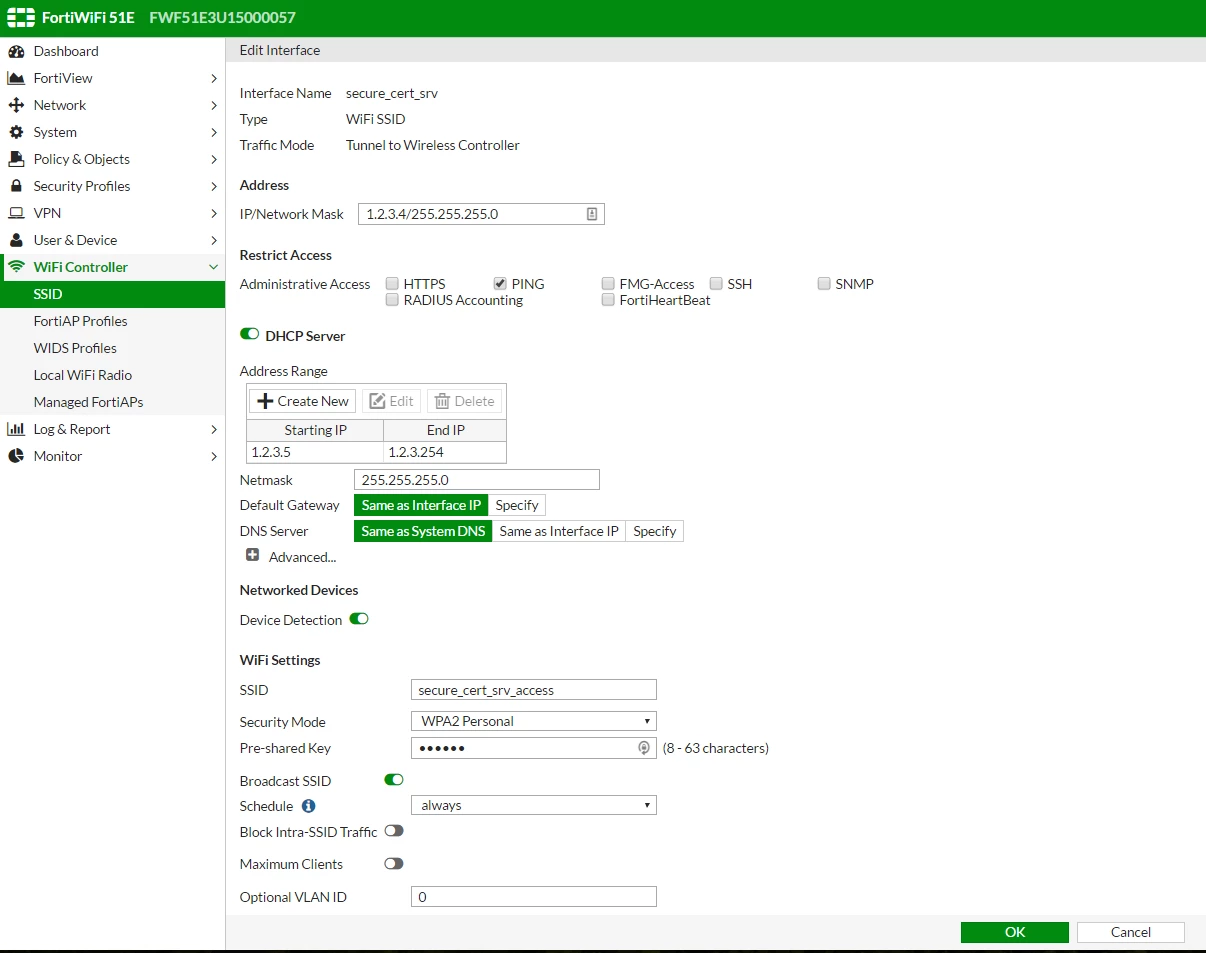

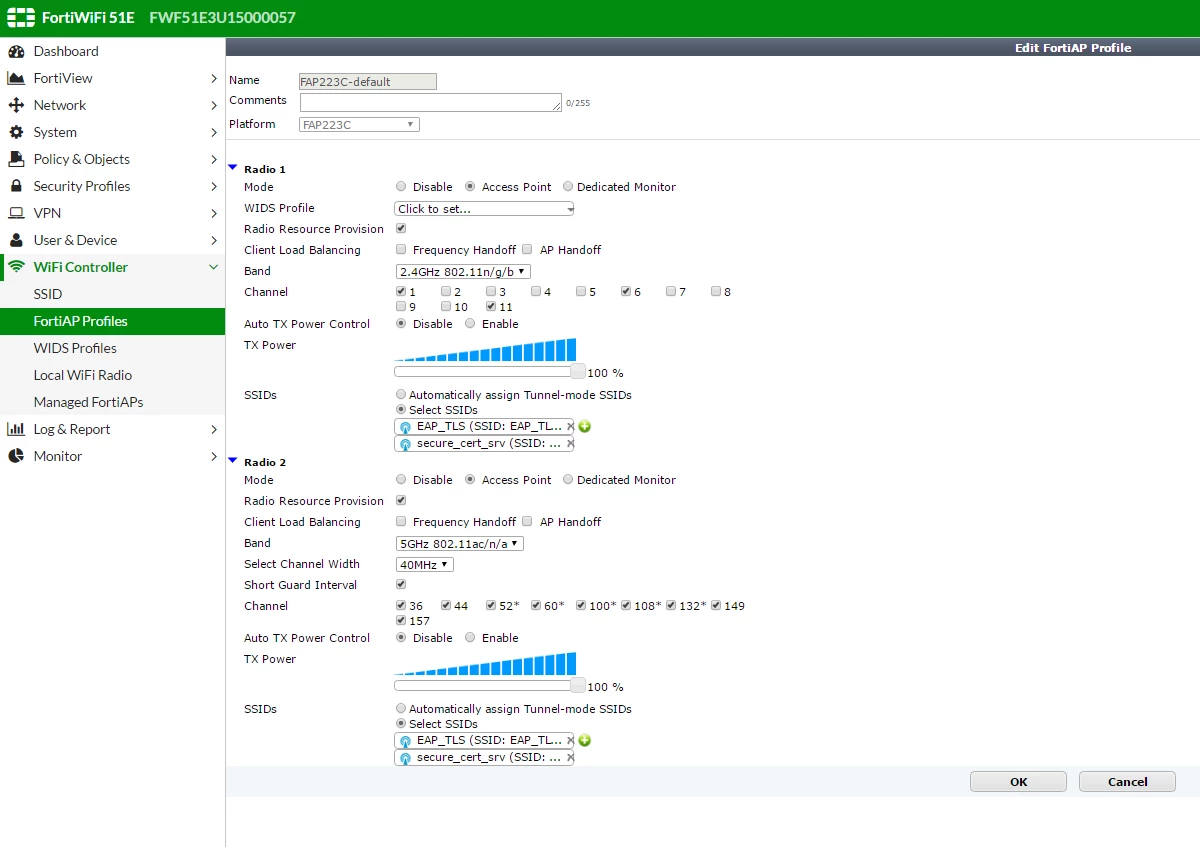

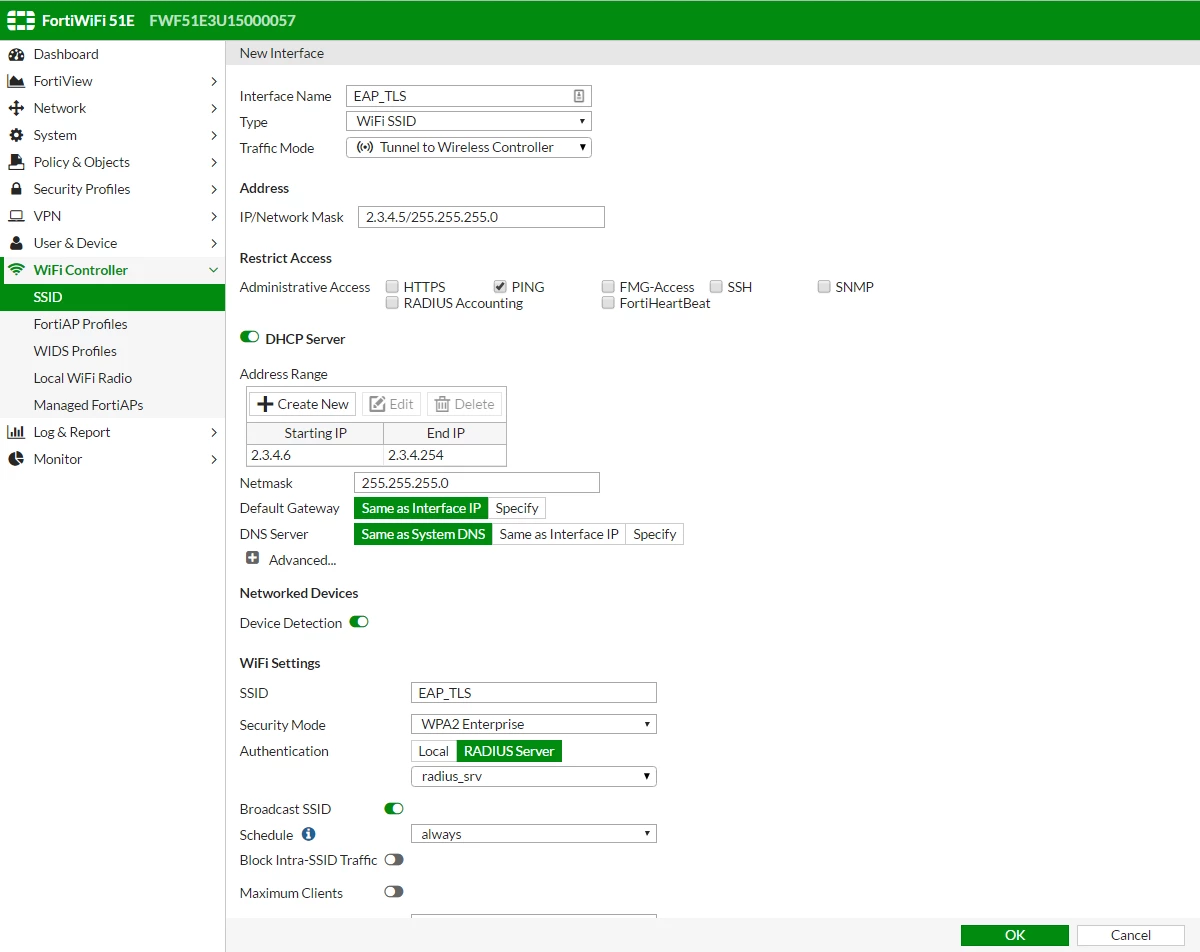

Configure Wireless SSID (one ”secure_cert_srv_access” wpa2_psk or wpa_PEAP ent for secure access to the certificate server and one “EAP TLS” secure access)

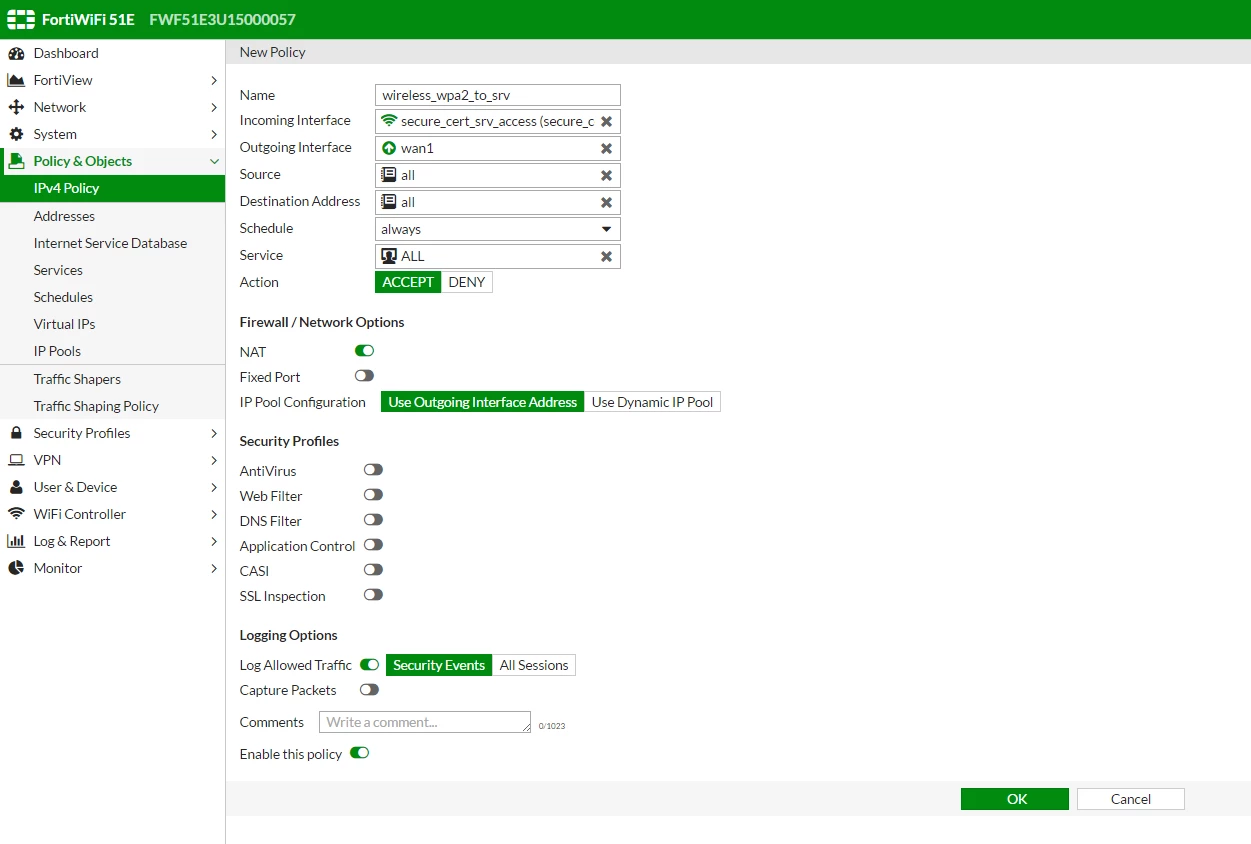

Allow the connection from wireless to the remote cert server using the FortiGate Policies:

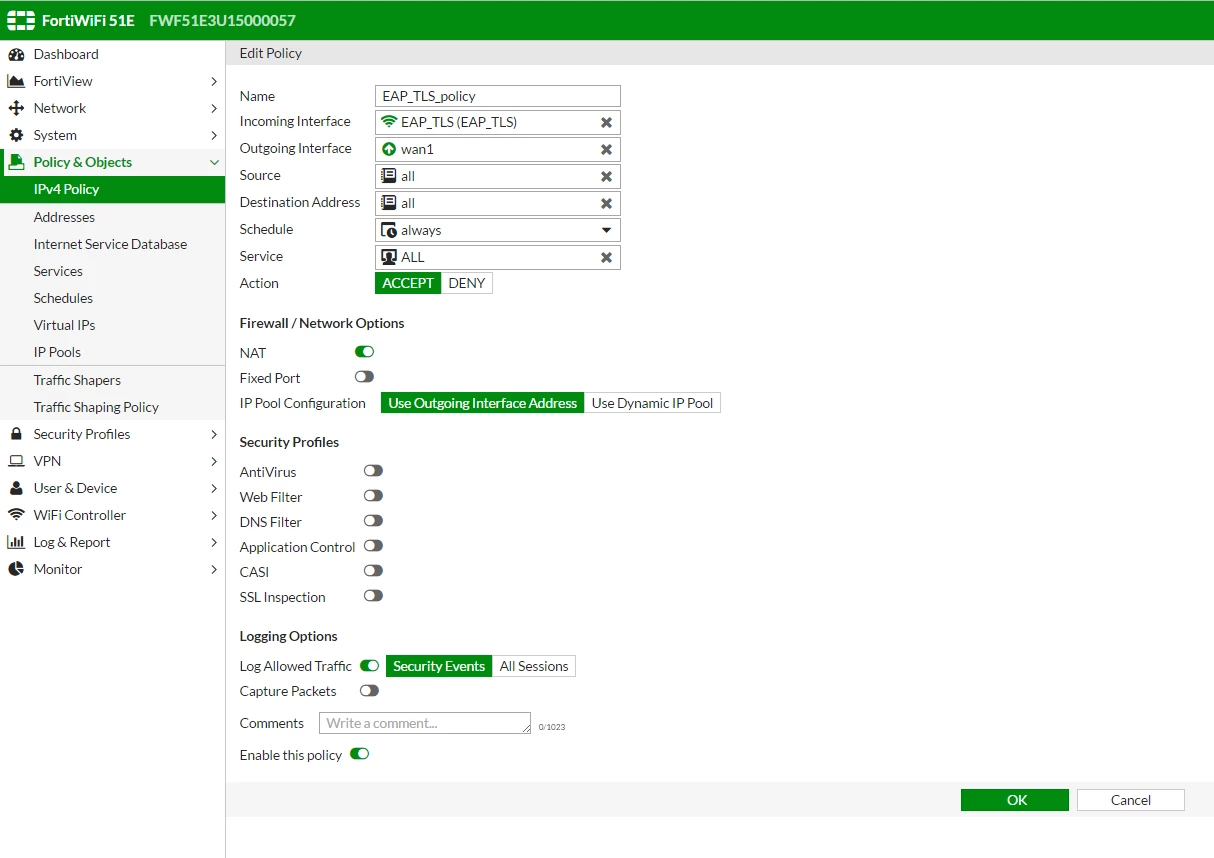

Create the EAP-TLS Policy. Here you can also use as a source the eaptls group that is sent by the server through the VSA.

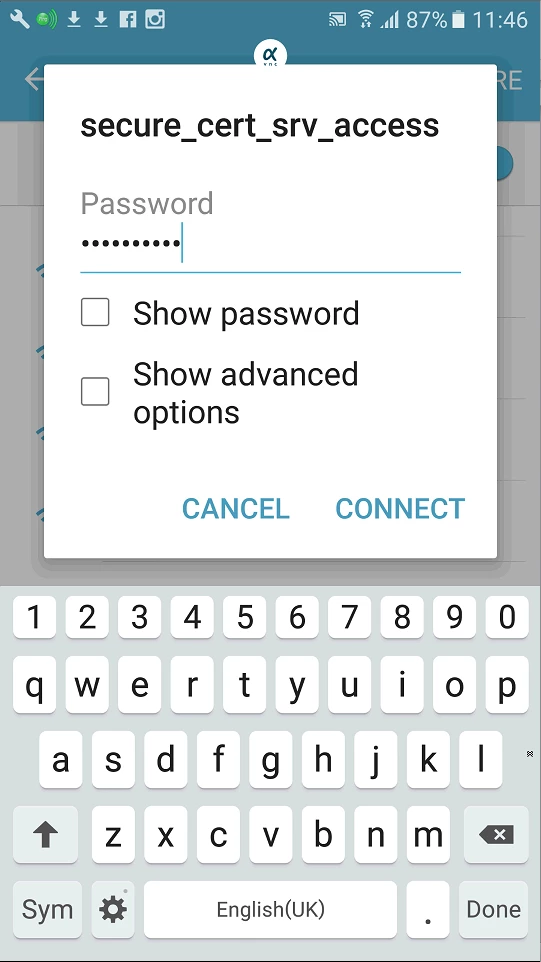

Connect the client to the “secure_cert_srv_access” SSID

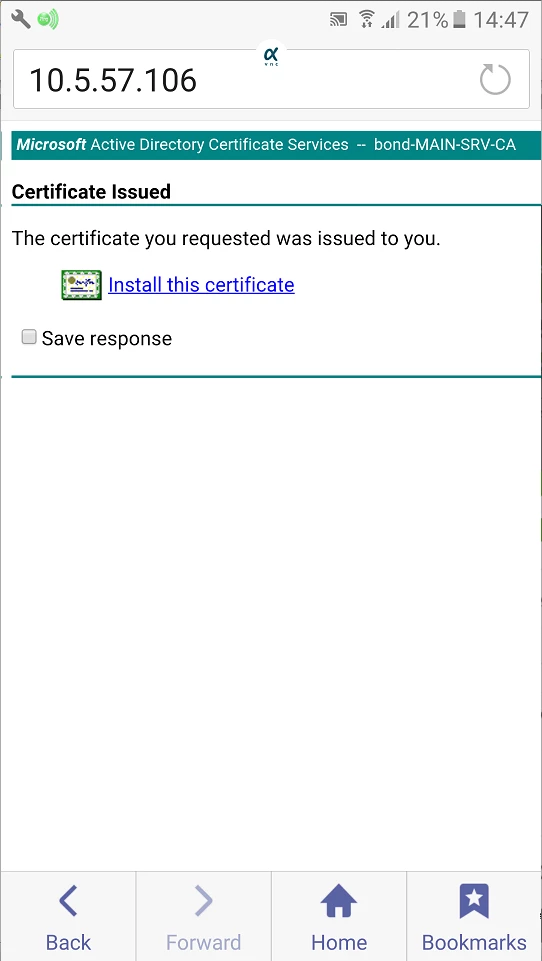

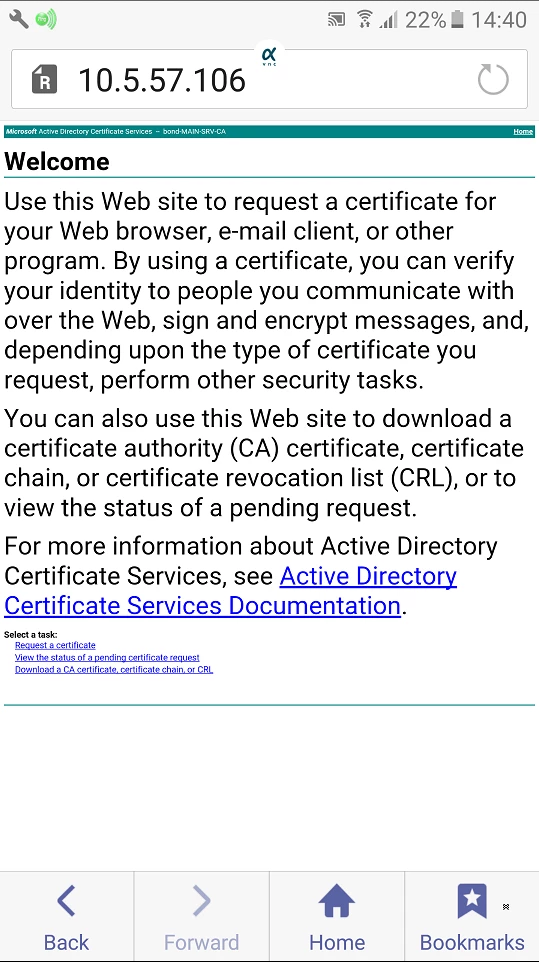

Connect to your certificate authority using the username credential and use the following process for User cert and ROOT CA download and install.

http://<ip of the cert srv>/certsrv

http://10.5.57.106/certsrv in the this example

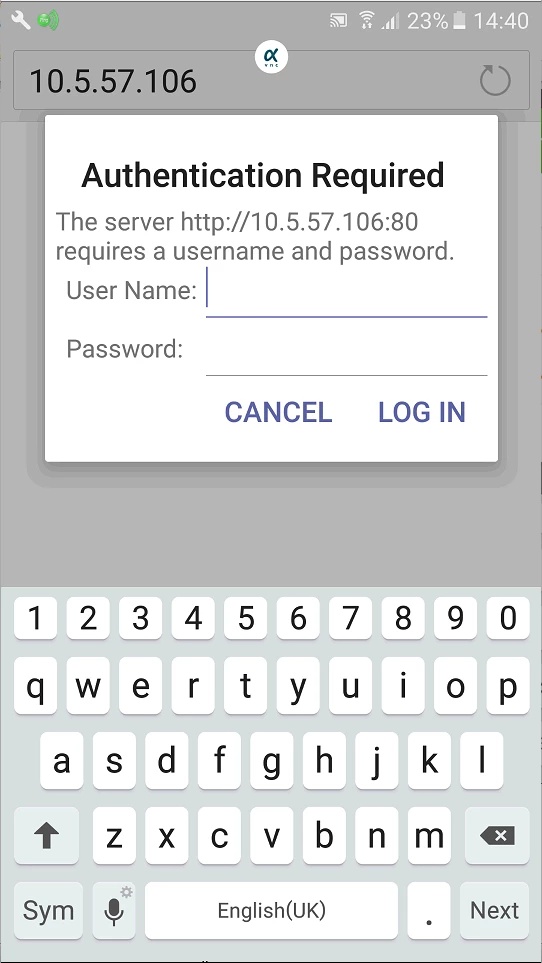

mdeparisse_FD40058_login to cert srv.png

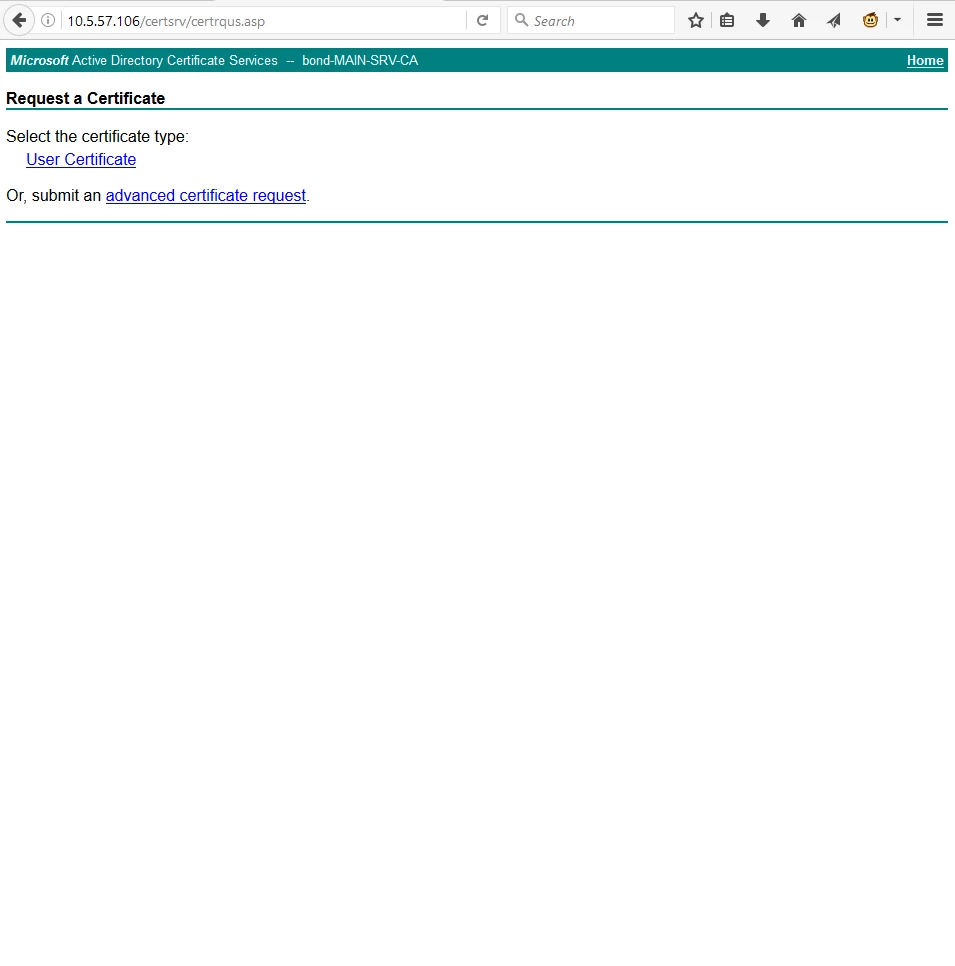

mdeparisse_FD40058_user cert request.png

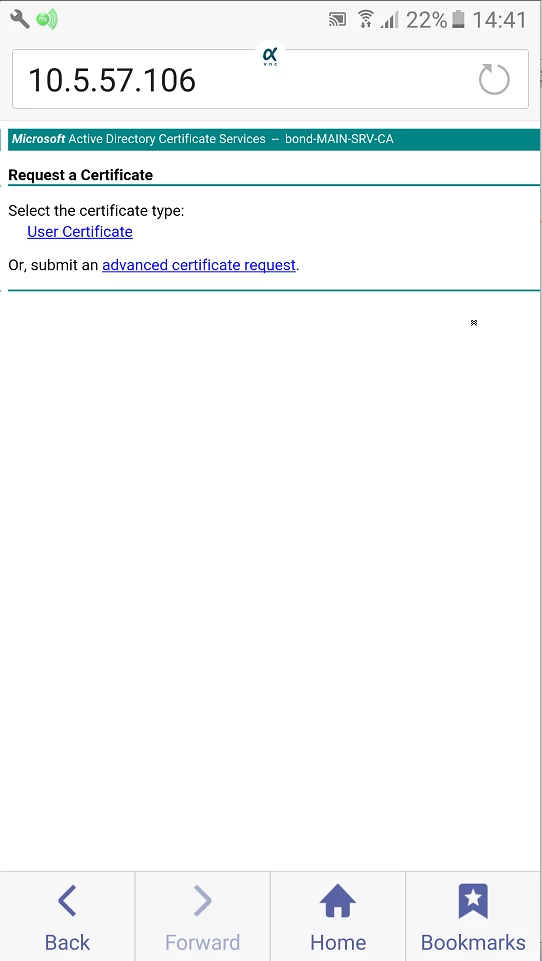

mdeparisse_FD40058_user cert link.png

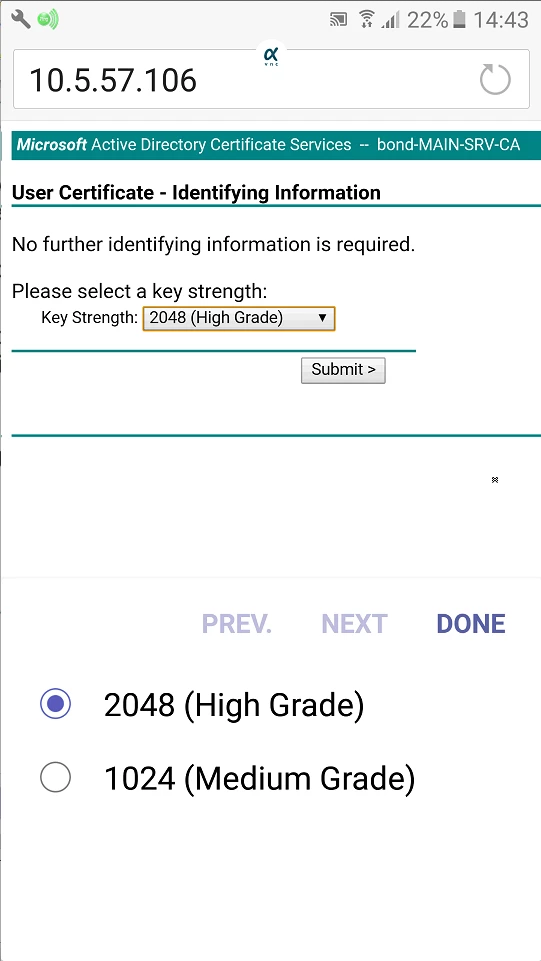

mdeparisse_FD40058_size of the cert choice page.png

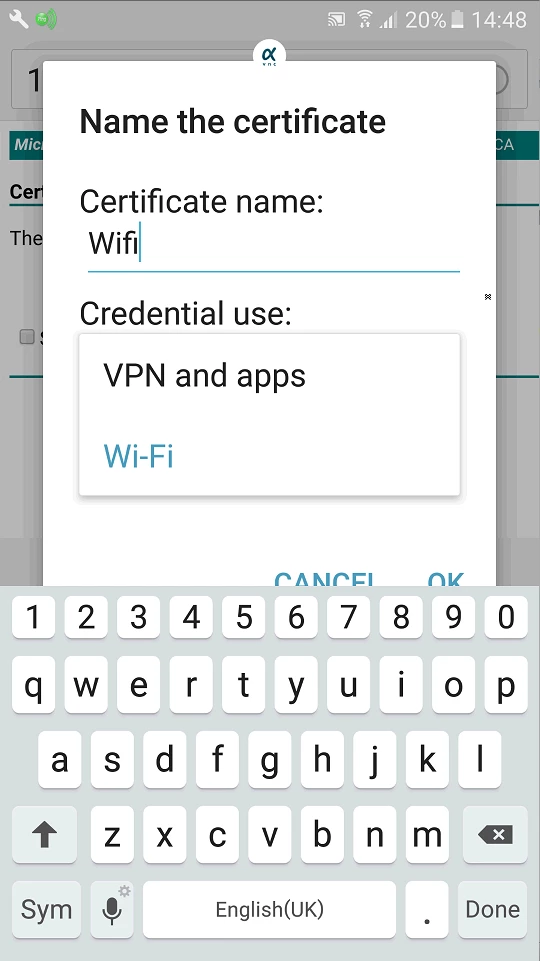

mdeparisse_FD40058_type of cert.png

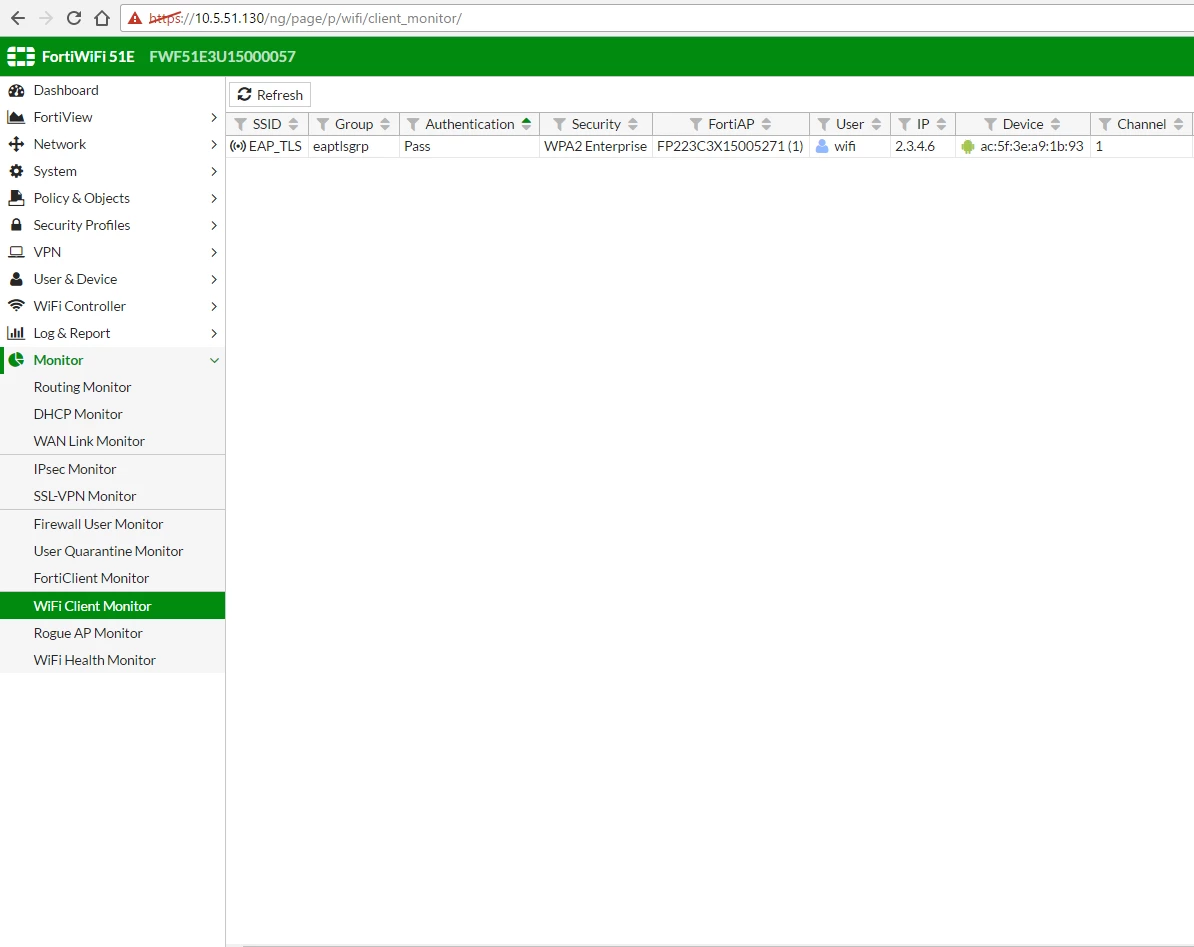

  •  On the FortiGate you will see the user logged in

     Wireless Client Monitor





Alternative way of cert deployment



In some cases the import of the user certificate might not work properly

If not, it is advised to generate the certificate on a PC and export it to the smartphone

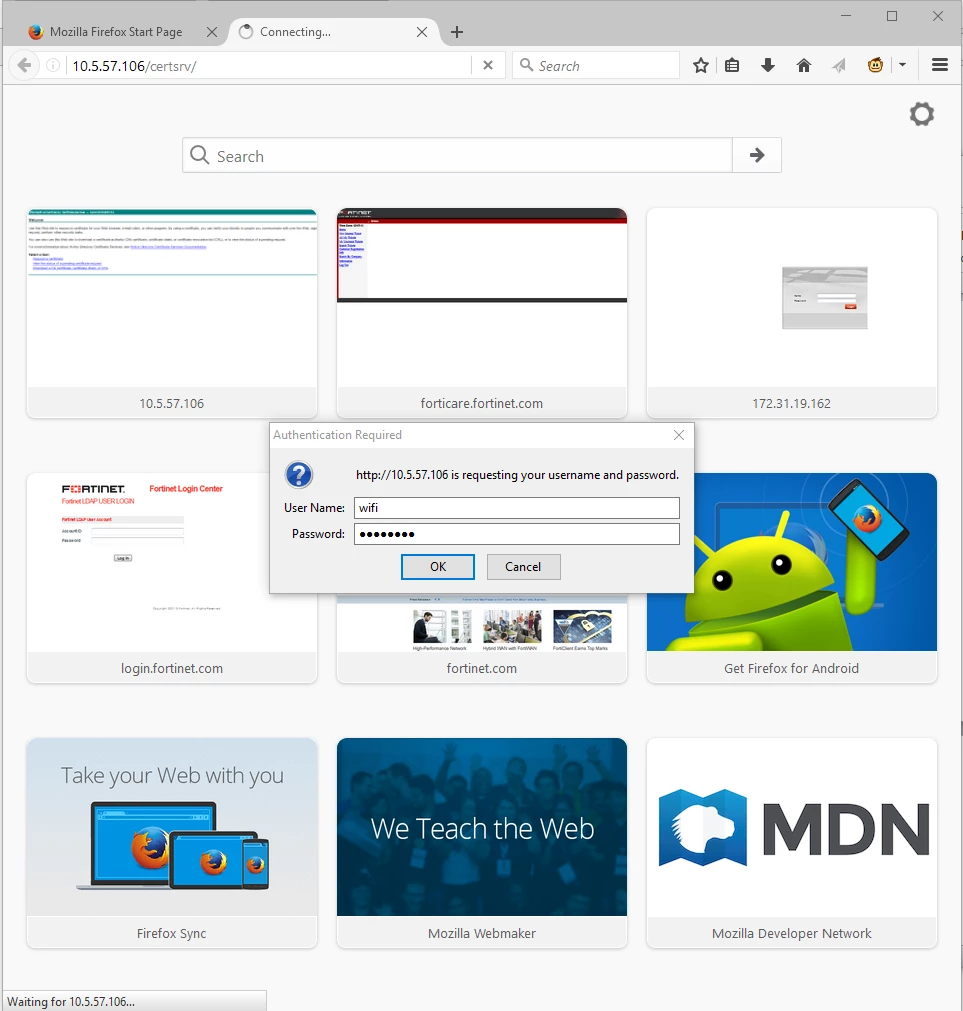

First open Firefox browser (advices one for the external cert repository)



Click to select user certificate

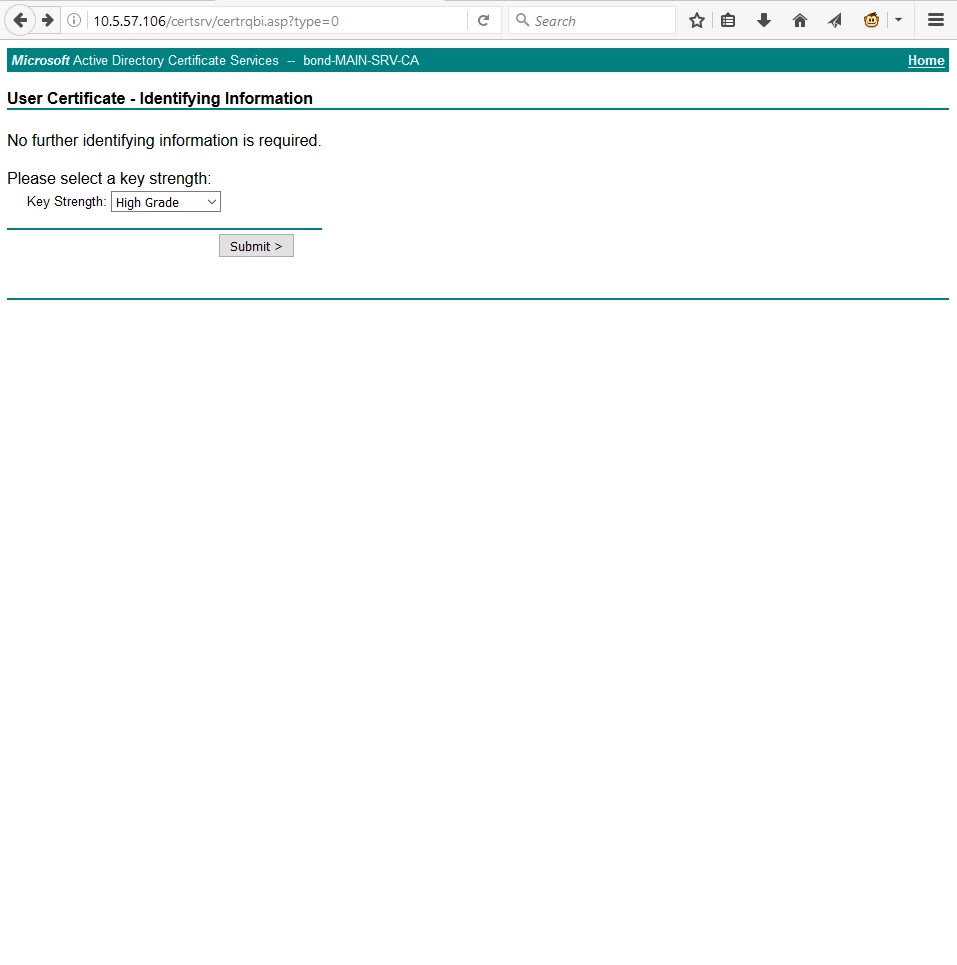

Select the Grade of the certificate.


mdeparisse_FD40058_certificate grade.png

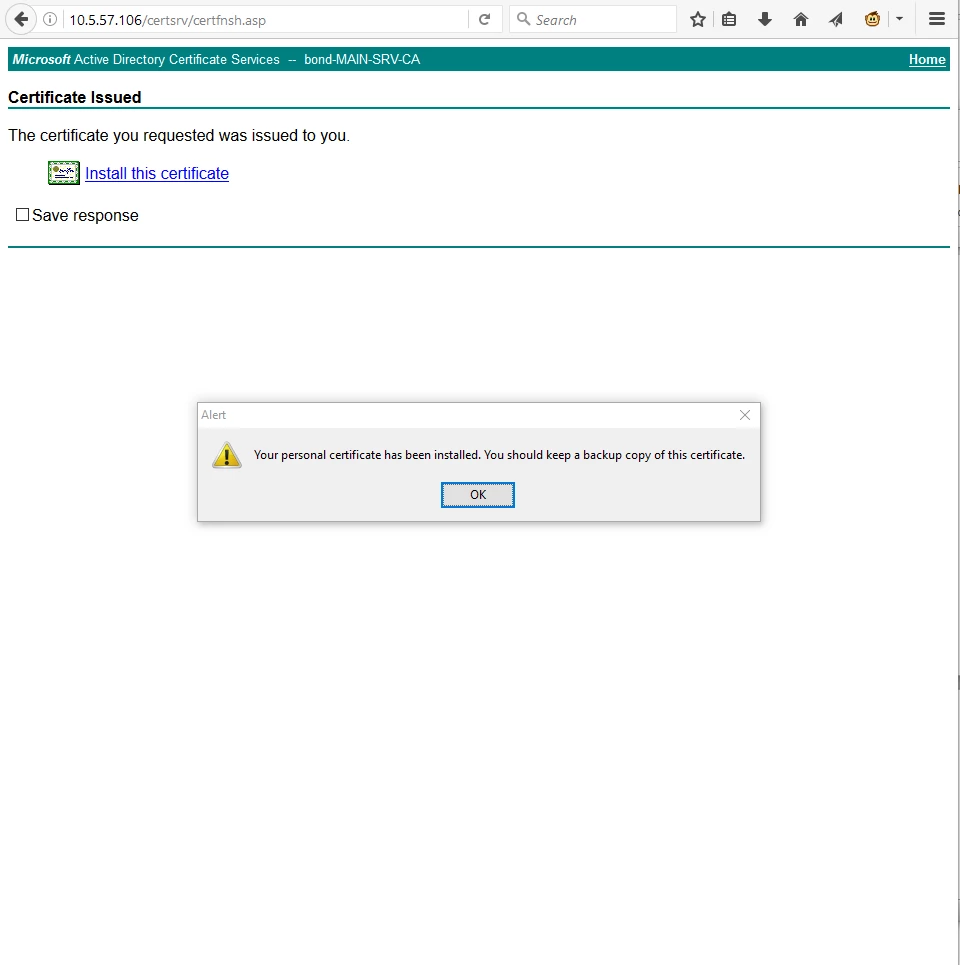

Personal certificate installation confirmation


mdeparisse_FD40058_certificate install succesful.png

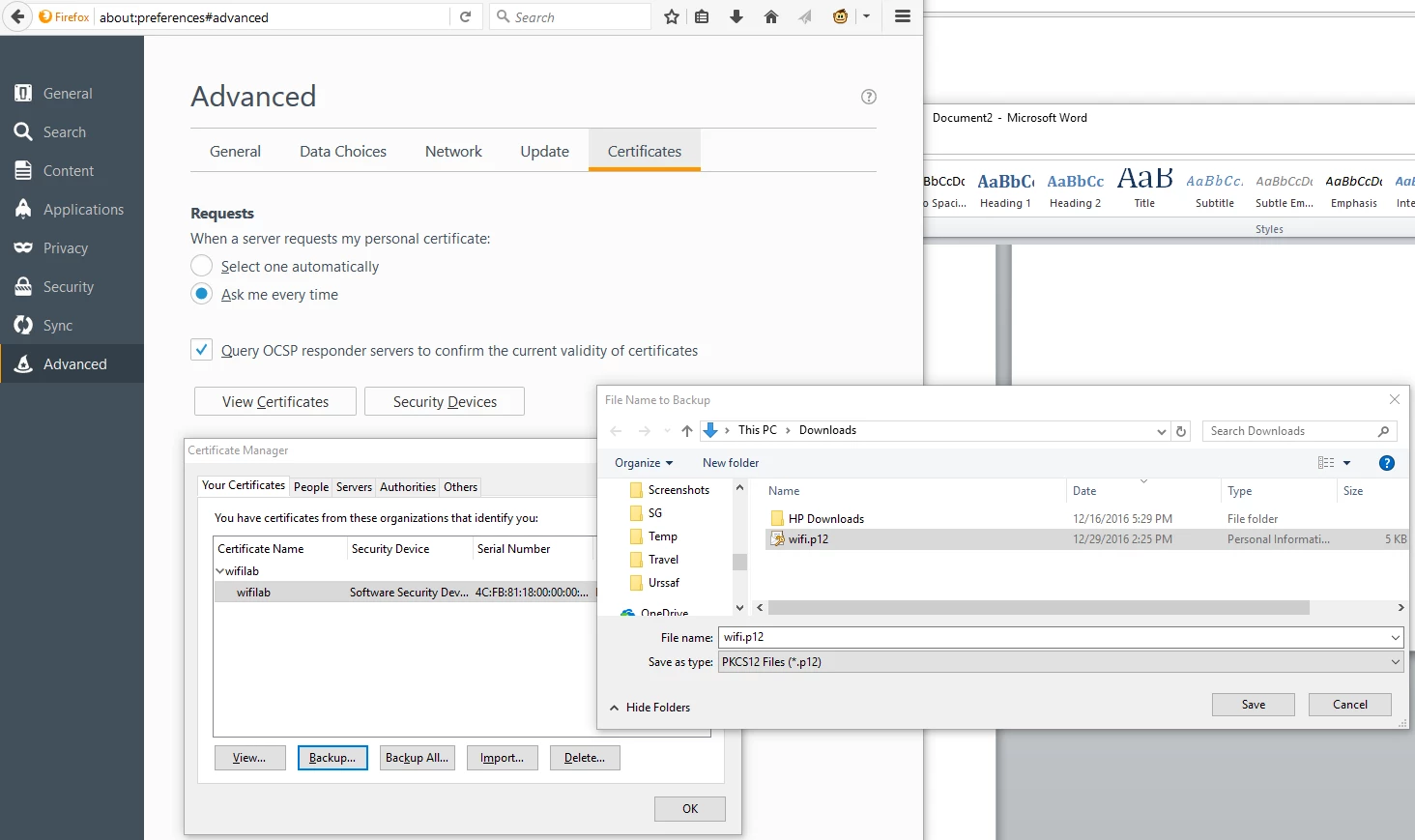

Go inside the cert repository and export the newly installed certificate

mdeparisse_FD40058_export of the certificate.png

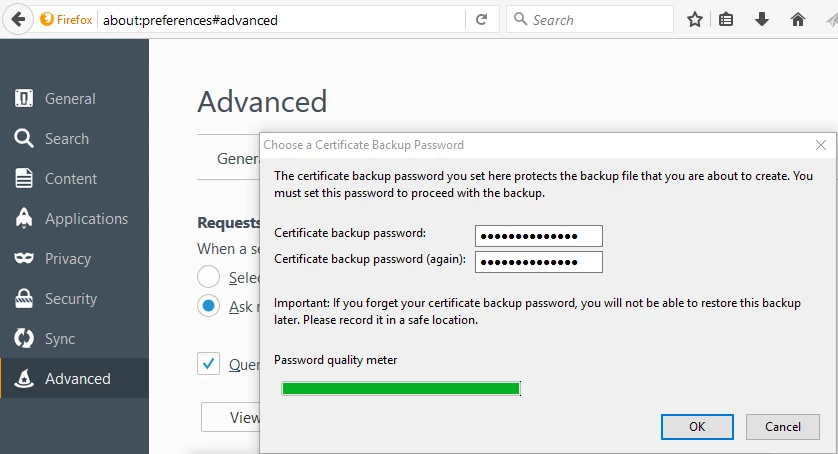

Export password

mdeparisse_FD40058_password of the cert export.png

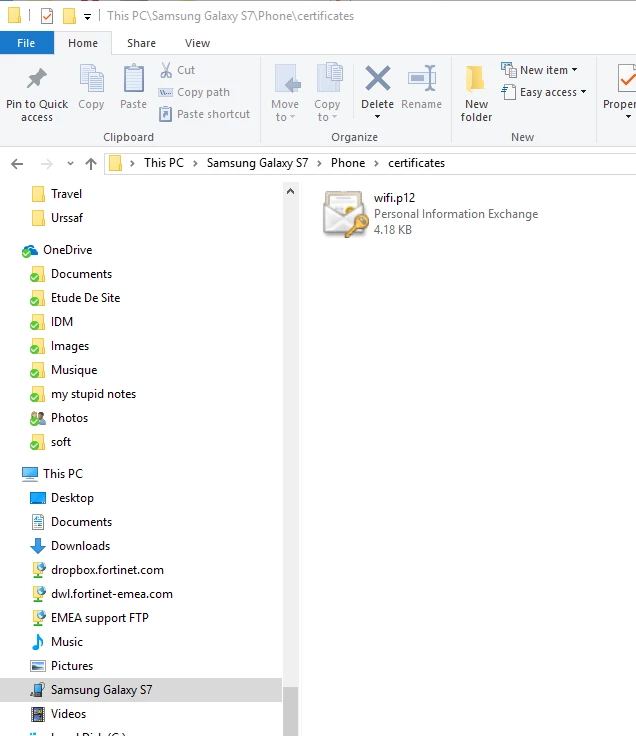

Inject the certificate in the SD of the smartphone

mdeparisse_FD40058_copy to the smarpthone SD.png

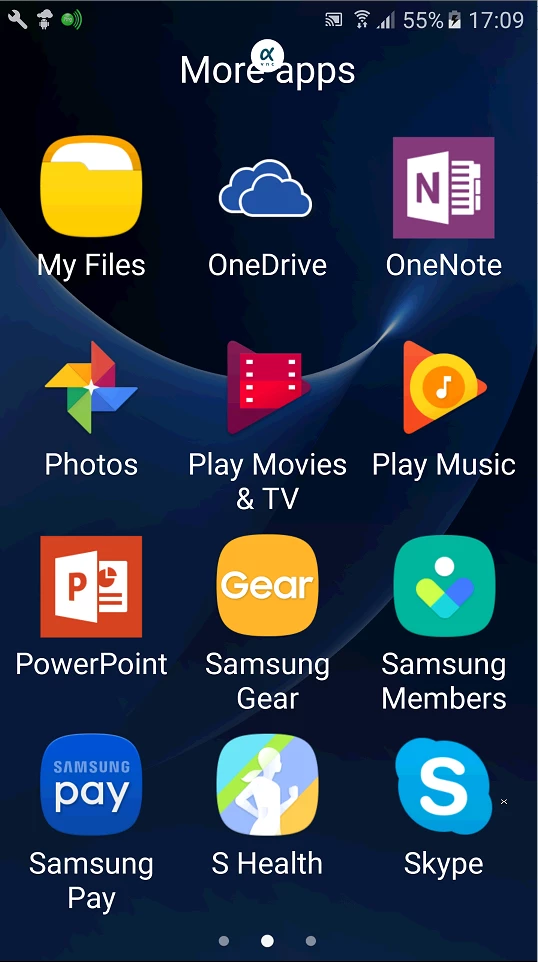

Select the file manager app in your smartphone




mdeparisse_FD40058_click to import in the local smartphone rep.png

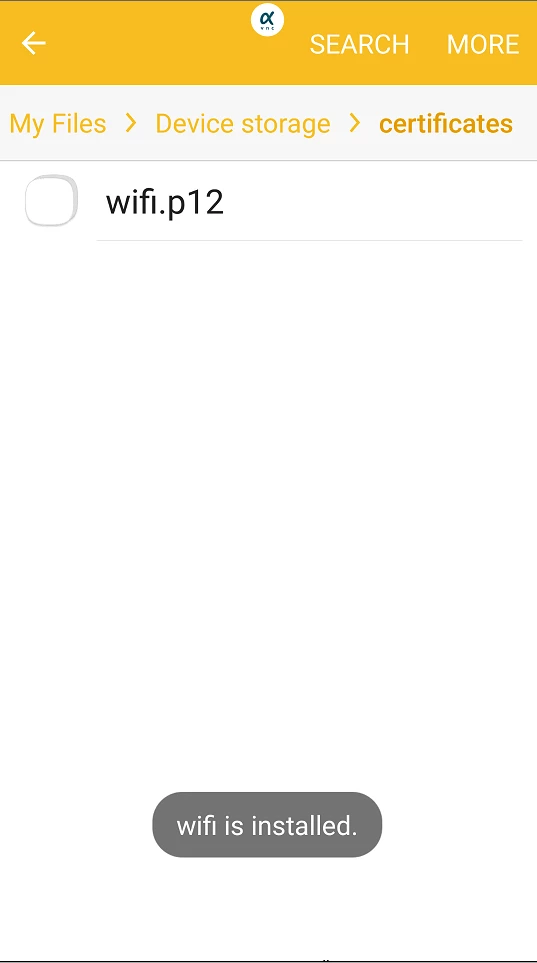

certificate install success



mdeparisse_FD40058_wifi installed.png

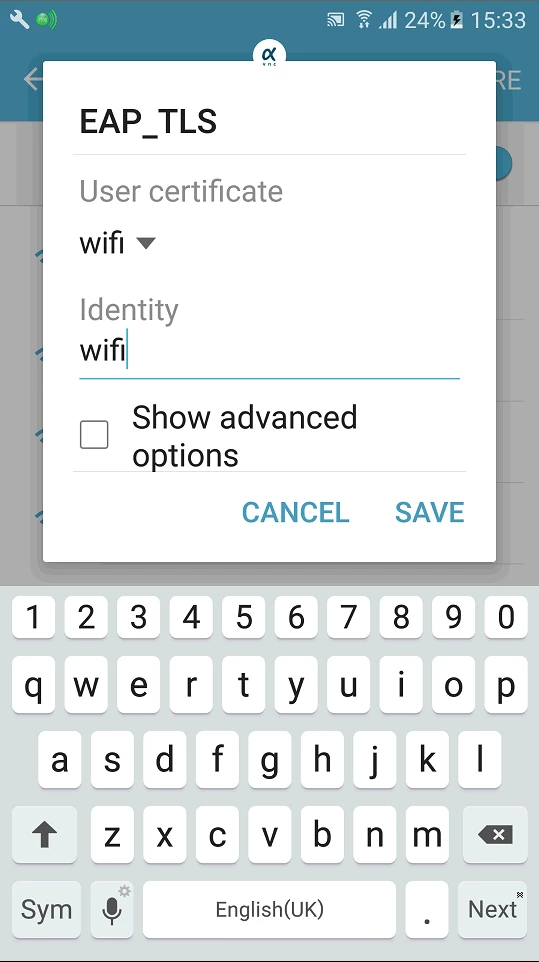

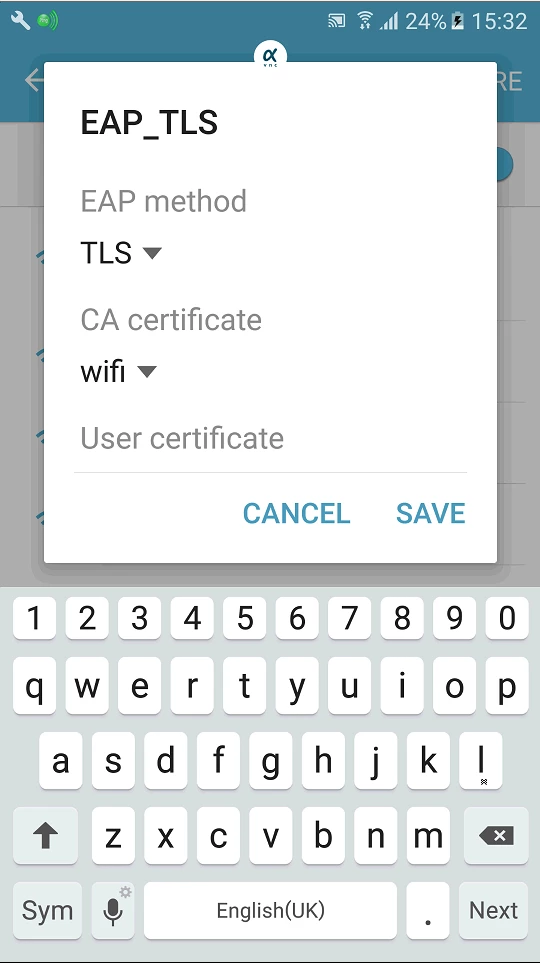

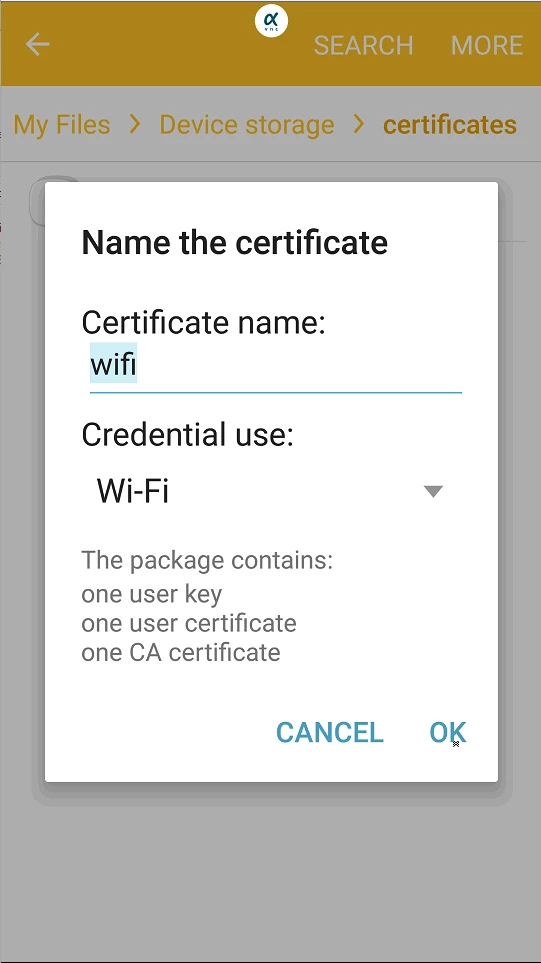

Select the name of the certificate and the usage

mdeparisse_FD40058_wifi cert import in smartphone.png







Verification
A successful connection verification can be seen using the CLI:
# diagnose wireless-controller wlac -d sta
vf=0 wtp=2 rId=2 wlan=EAP_TLS vlan_id=0 ip=2.3.4.7 mac=x:y:z:a:b:c:d vci= host=iPhone user=wifi@bond.wifilab.net group=eaptlsgrp signal=-48 noise=-95 idle=18 bw=0 use=4 chan=60 radio_type=11AC security=wpa2_only_enterprise encrypt=aes cp_authed=no online=yes mimo=2

Troubleshooting
If there are issues they are most likely to be on the server side.

The starting point may be to reinstall the Network policies as well as the Connection request policies.  The following article from Microsoft may be of help https://technet.microsoft.com/en-us/library/dd283091(v=ws.10).aspx
