Troubleshooting Tip: How to troubleshoot when File System status shows 'Unknown'

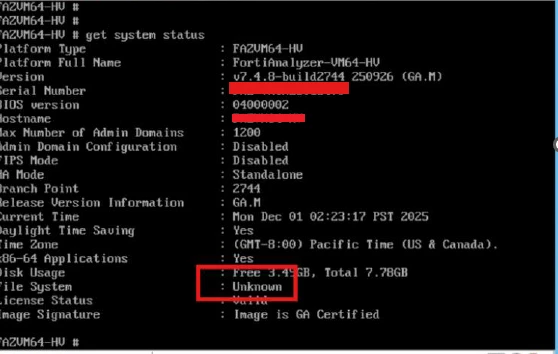

The picture below shows the File System status 'Unknown' when executing the CLI command:

get system status

This issue usually occurs when only a single virtual hard disk is configured in the FortiAnalyzer/FortiManager VM.

At least one extra virtual hard disk must be added (ideally over 500 GB) before starting the FortiAnalyzer/FortiManager VM.

Refer to the link below for the steps to know how to add new virtual disks and extend the logical volume:

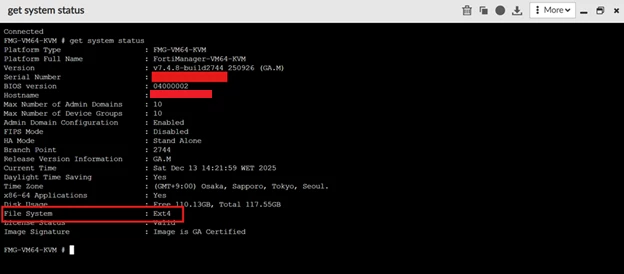

Once the step above is completed, run the command below again to confirm the File System Status:

get system status

Related documents:

Configuring hardware settings - FortiAnalyzer Private Cloud 7.6.0

Configuring hardware settings - FortiManager Private Cloud 7.6.0
