Troubleshooting Tip: High CPU usage caused by writer error of siemdb process
Description | This article describes the procedure to troubleshoot high CPU usage caused by a writer error of the siemdb process. |
Scope | FortiAnalyzer. |

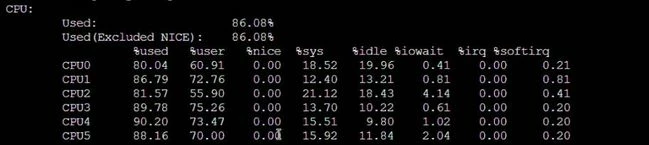

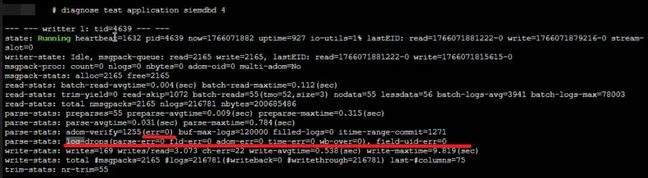

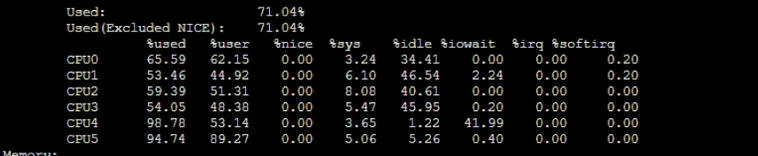

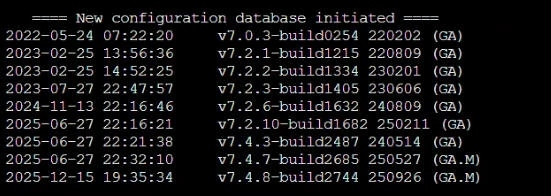

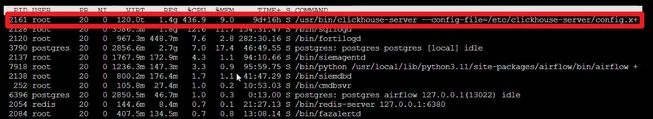

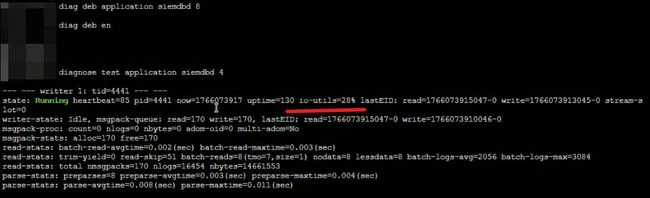

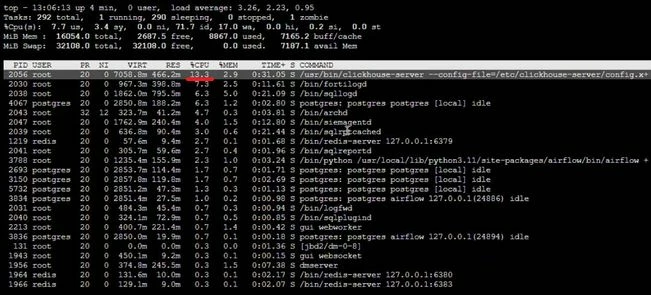

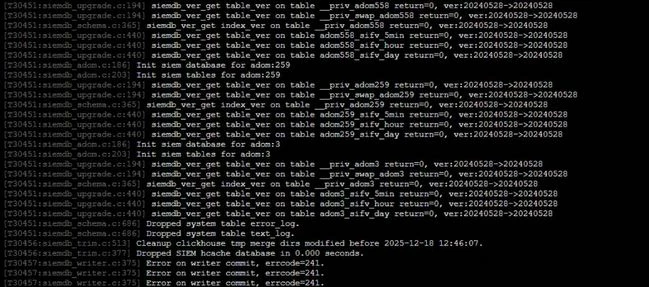

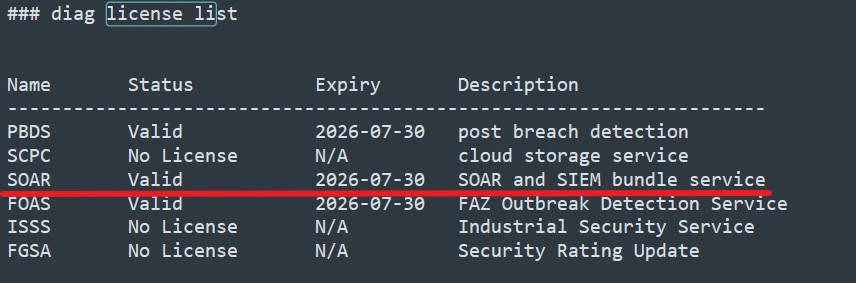

Solution | Currently, the FortiAnalyzer VM is in version 7.4.8, and it has a high CPU usage, but the log rate is low, which does not make sense of high CPU usage.       Validated the upgrade path to avoid errors in the procedure.    During validation it was identified a process consuming 436.9 % CPU usage. 'Clickhouse', the processes related to it (siembd and siemagent). The SIEM/SOAR license is active in the device, and siem module is being used, so it is not possible to disable it.       It was verified that the status of the siemdb process to identify errors in the statistics, but it only shows that the writers had low io-utils percentage and there were no counters of errors. Discarded errors in the crash log and klog.    Since there were no useful detail it was decided to monitor at debug level the siemdb process, and a record was identified that reported there was an error with a writer.    In order to resolve the error, a restart of the process was executed, but after rebooting, the error was still appearing.      In order to push normal behavior, it was necessary to clean the siem database.    After execute cleaning process, and FortiAnalyzer was rebooted, the CPU usage was normalized, and confirmed that the clickhouse process came back to normal CPU consumption.       The siemdb process was monitored again at debug level and confirmed that no errors appeared again.       Related documents: |
