Troubleshooting Tip: FortiOS Connector does not appear in FortiAnalyzer
| Description | This article describes a scenario where FortiOS Connector in FortiAnalyzer is not populated, and the configuration that can be checked on FortiGate to troubleshoot the issue. |
| Scope | FortiGate, FortiAnalyzer. |

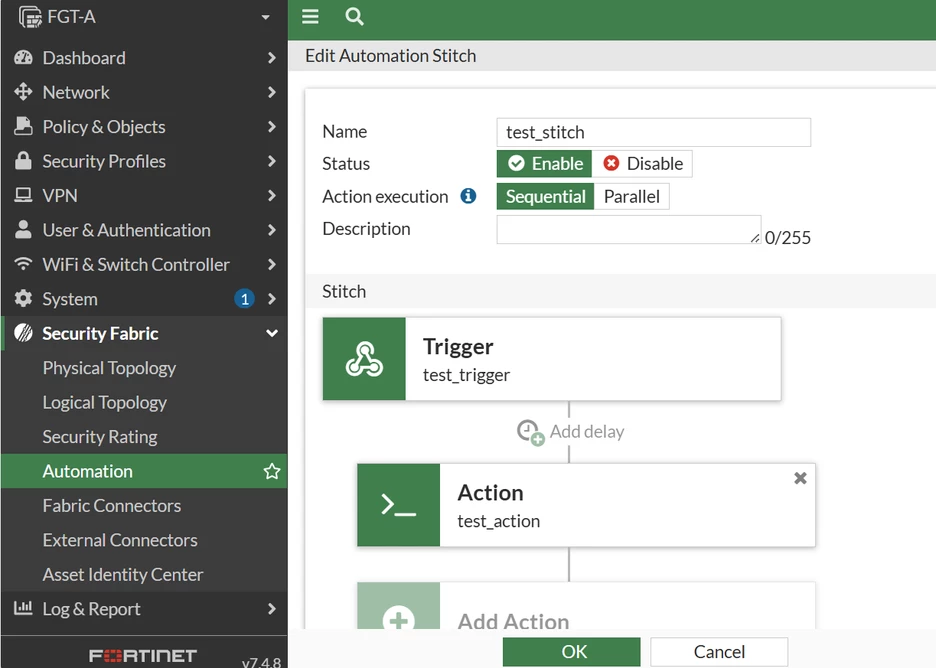

| Solution | From the image below, Automation Stitch with webhook trigger is already configured in FortiGate.

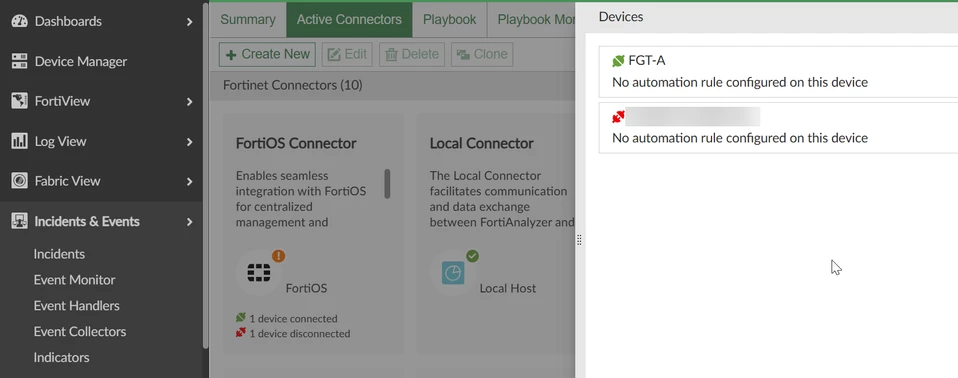

However, in FortiAnalyzer, the stitch is not seen.

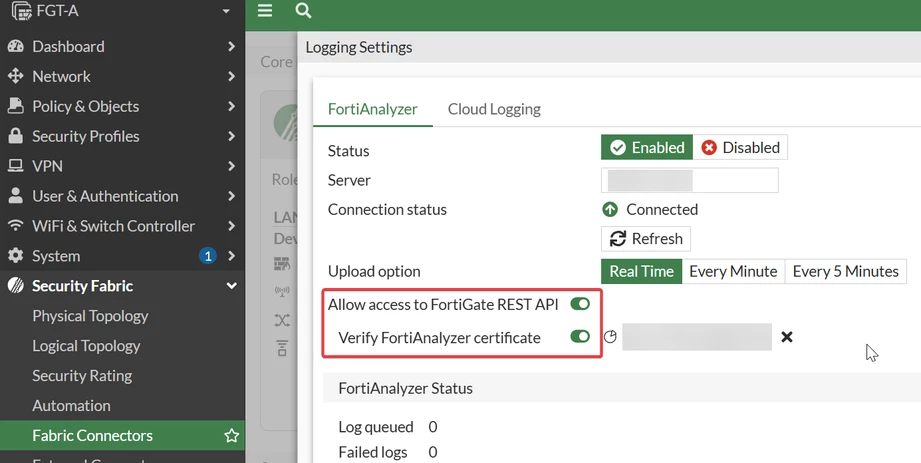

To troubleshoot this, check the Logging & Analytics configuration in FortiGate under Security Fabric -> Fabric Connectors > Logging & Analytics. Ensure the settings 'Allow access to FortiGate REST API' and 'Verify FortiAnalyzer certificate' are set to enable.

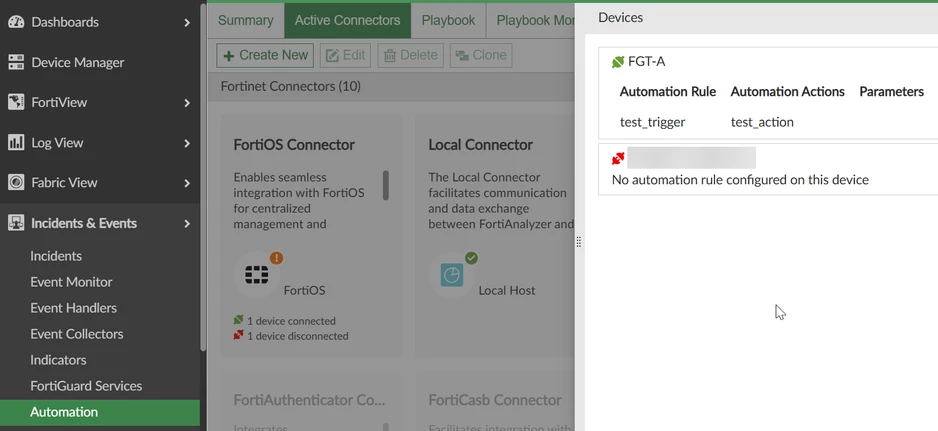

After a few minutes, the connector can be seen in FortiAnalyzer.
Related article: Troubleshooting Tip: Troubleshooting FortiOS connector red/disconnected status |
