Troubleshooting Tip: FortiAnalyzer Report/FortiView Kilobytes/Megabytes value is different from FortiGate Policy/FortiView Kilobytes/Megabytes value

At FortiAnalyzer run debug CLI commands as below:

diagnose debug disable <----- Use this command to stop any pre-running debugs.

diagnose debug reset

diagnose debug application fazvcd 255

diagnose debug enable

diagnose debug disable <----- Use this command to stop the debug.

From the FortiAnalyer debug CLI commands result it will show the value in Bytes format, then use the below links to convert it to Kilobytes/Megabytes:

https://www.gbmb.org/bytes-to-mb

https://www.gbmb.org/bytes-to-kb

This is because both FortiGate and FortiAnalyzer show the Kilobytes/Megabytes value in different formats.

• FortiGate FortiView: KB/MB in Decimal value format.
• FortiAnalyzer FortiView: KB/MB in Binary value format.

Below is the sample.

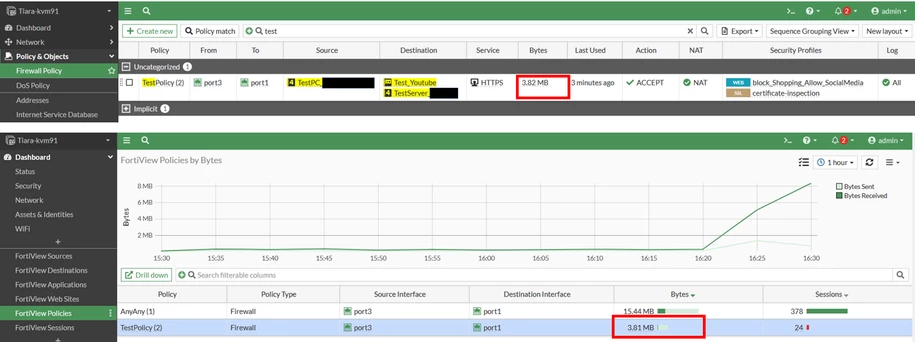

At FortiGate:

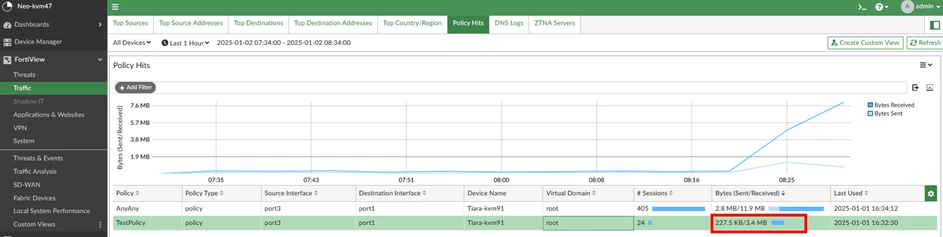

At FortiAnalyzer:

After FortiAnalyzer runs the above debug CLI command, refresh the page.

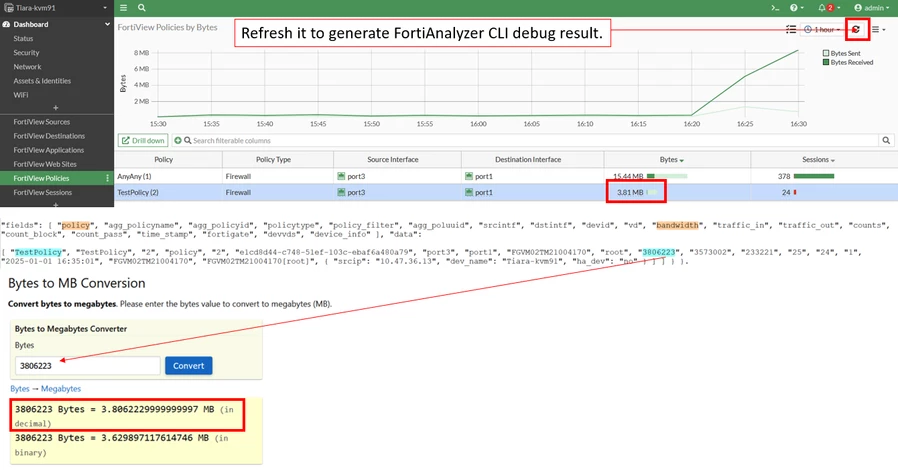

Refresh at FortiGate:

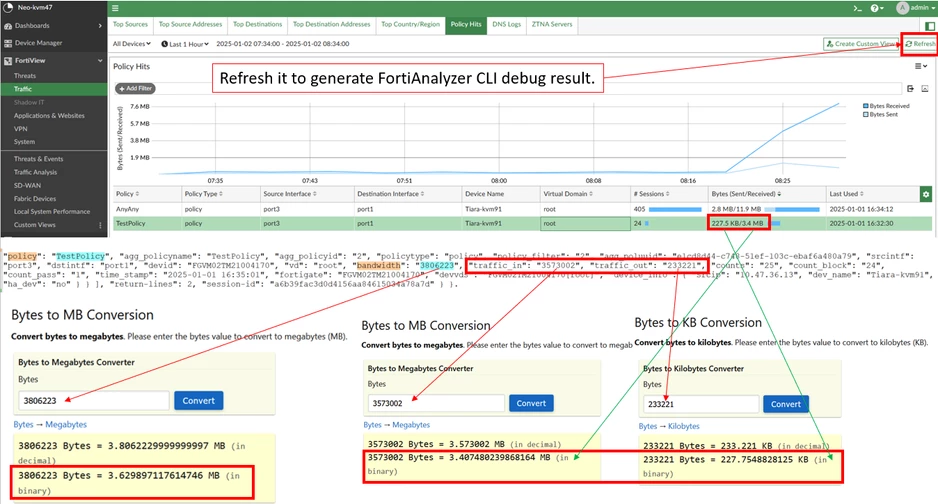

Refresh at FortiAnalyzer:

Related article:
Troubleshooting Tip: Empty Reports
