Technical Tip: Using FortiAnalyzer to detect activities related to Active Directory privilege escalation vulnerabilities

This article describes how to use a custom event handler in FortiAnalyzer to raise alerts for incident response related presence of Active Directory elevation of privilege vulnerabilities.

This escalation attack allows attackers to elevate their privilege to a Domain Admin once they compromise a regular user in the domain.

This vulnerability is assigned CVE-2021-42278 and CVE-2021-42287.

For more information about this attack, see the following FortiGuard Outbreak Alert FortiGuard Outbreak Alert - AD Privilege Escalation.

What is included in Fortinet_SOC-Active-Directory-Detection-v2.zip?
1. AD Privilege Escalation_event-handler.json

This event handler helps identify Active Directory privilege escalation exploit attempts detected in FortiClient and FortiGate IPS logs.

2. ad_privilege_escalation_report.dat

This report displays the findings on the Active Directory privilege escalation outbreak from FortiClient and FortiGate IPS logs.

3. fgt_AD Privilege Escalation_event-handler.json

The event handler for FortiGate ADOMs which is configured for FortiGate logs only.

4. fgt_Active Directory Privilege Escalation_report.dat

The report for FortiGate ADOMs which includes FortiGate charts only.

All screen shots provided below for illustration purposes are taken from FortiAnalyzer 7.0.2.
1. Download the Fortinet_SOC_Active-Directory-Detections.v2 file (contains 4 files)
2. Unzip Fortinet_SOC_Active-Directory-Detections.v2

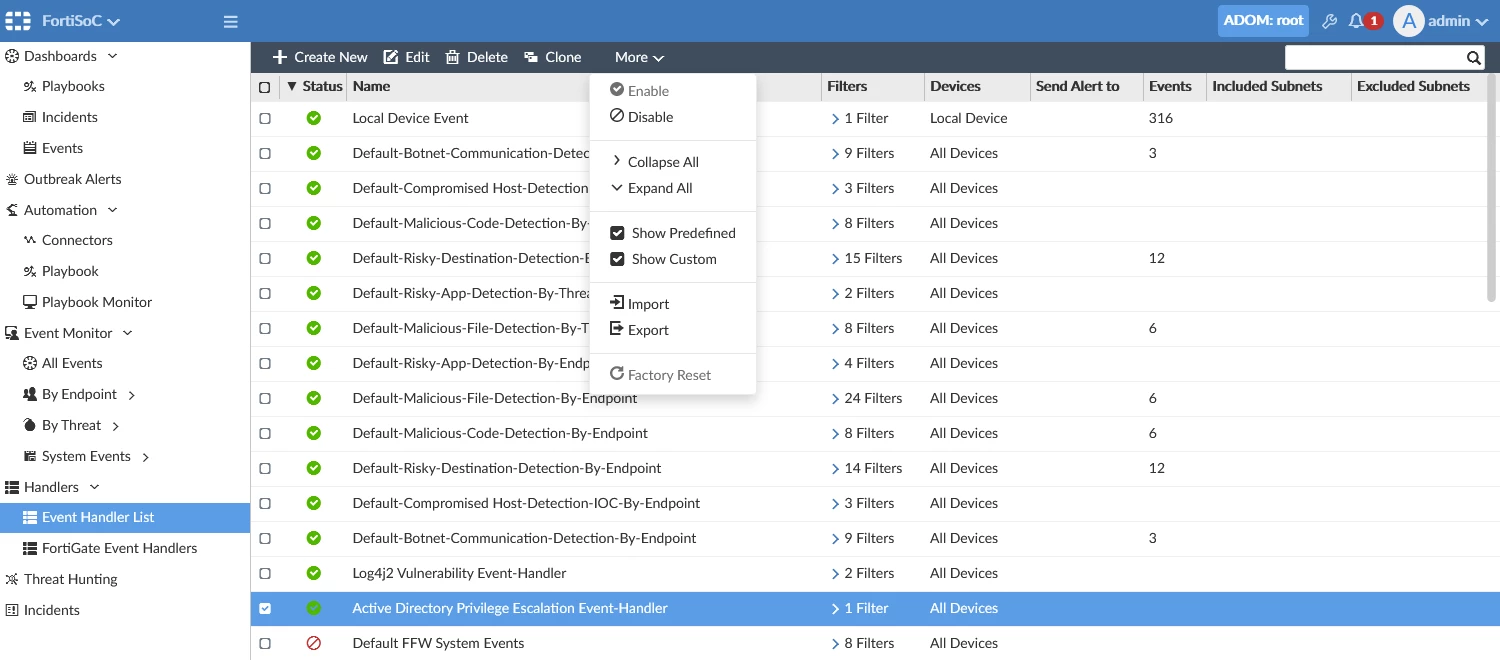

3. Use AD Privilege Escalation_event-handler.json or fgt_AD Privilege Escalation_event-handler.json to import into Event Handlers
- Choose an ADOM (if ADOMs are enabled). ADOM may be of type Fabric or FortiGate.
- Choose the FortiSOC module
- Select Event Handler List
- Select the Import option under "More"
- Select AD Privilege Escalation_event-handler.json for Fabric ADOMs or fgt_AD Privilege Escalation_event-handler.json for FortiGate ADOMs.

Result:

The event handler is enabled and will be triggered if the appropriate logs are received after the event handler was imported.

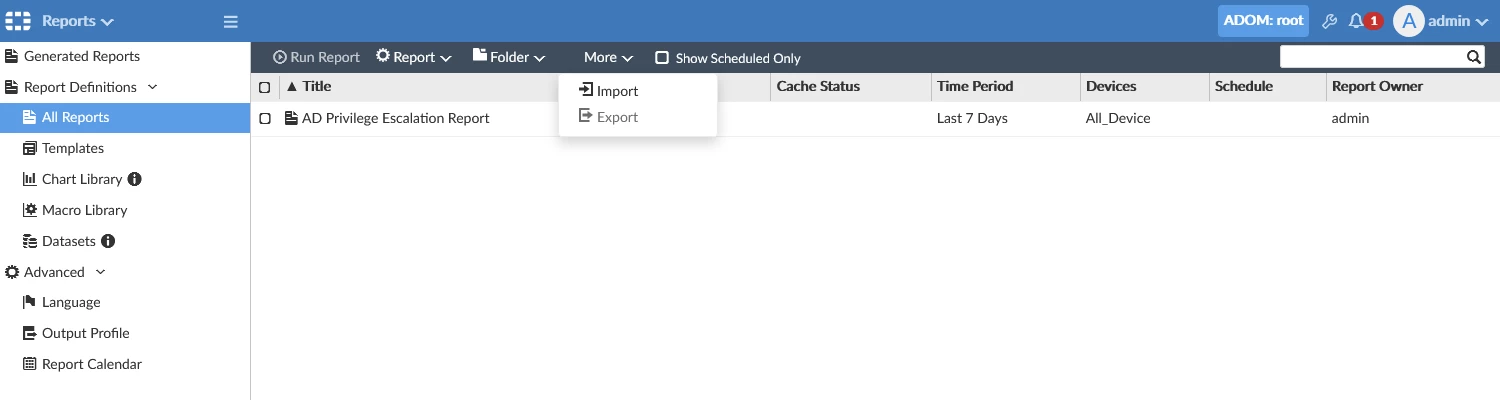

4) Use ad_privilege_escalation_report.dat or fgt_Active Directory Privilege Escalation_report.dat to import into Reports
- Choose an ADOM (if ADOMs are enabled). ADOM may be of type Fabric or FortiGate.
- Choose the Report module
- Select the Import option under "More"
- Select ad_privilege_escalation_report.dat for Fabric ADOMs or fgt_Active Directory Privilege Escalation_report.dat for FortiGate ADOMs.

Result:

‘AD Privilege Escalation Report’ can be run anytime as determined by an admin user.
