Technical Tip: Summary dashboard in Log View on FortiAnalyzer
| Description | The following article describes why the Summary dashboard in Log View on FortiAnalyzer does not show up. |
| Scope | FortiAnalyzer 7.2.0+. |
| Solution | Starting from FortiAnalyzer 7.2.0, one new feature called 'Summary dashboard for event logs' was introduced. See this link: Summary dashboard for event logs.
The Summary dashboard may not show up in Log View as expected.
This is because, by default, the root ADOM is Fabric type starting from FortiAnalyzer 7.2.0. If FortiGate in this Fabric type ADOM and the firmware version is older than 7.2.0, the Summary dashboard will not show up.

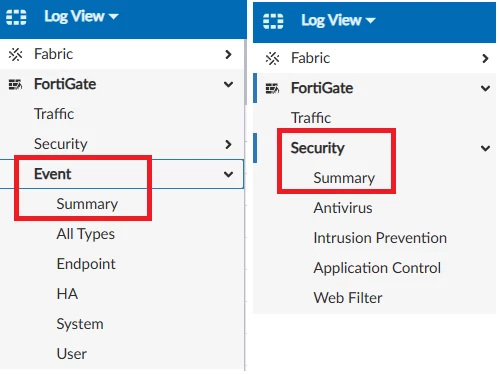

If ADOM is enabled and the type is FortiGate, the Summary dashboard will show up even if the firmware version of FortiGate in this ADOM is older than 7.2.0. But it will show up under Event only.
If ADOM is Fabric type, the Summary dashboard will show up only if the firmware version on FortiGate is newer than 7.2.0. And it will show up under both Security and Event.
|
