Technical Tip: Integrating FortiAnalyzer and PRTG (SNMPv2)
| Description | This article describes how to integrate FortiAnalyzer with the third party Monitoring tool, PRTG. |
| Scope | FortiAnalyzer. |

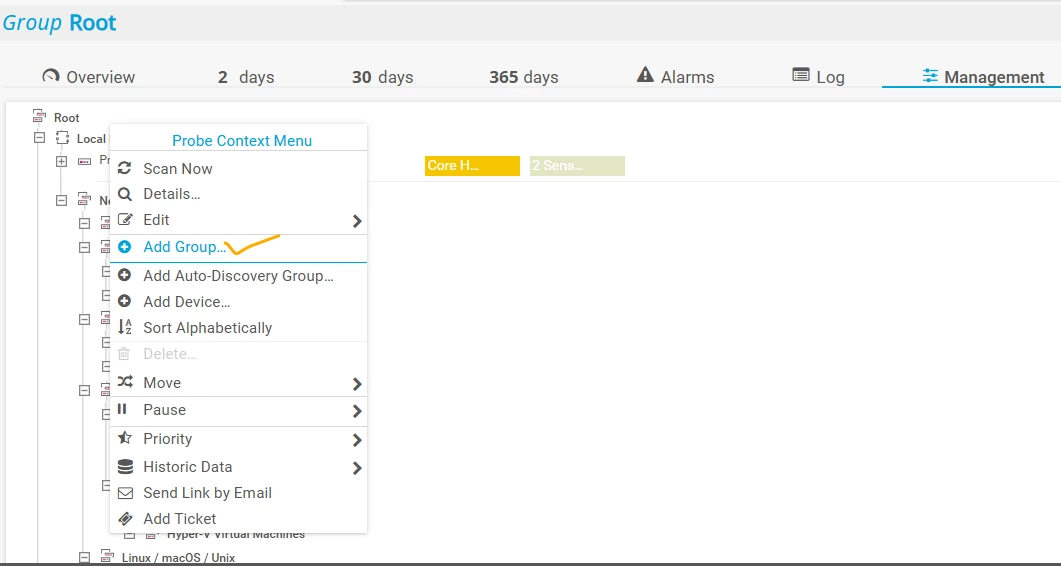

| Solution | To add FortiAnalyzer from PRTG, it is necessary to add a new group under Root:

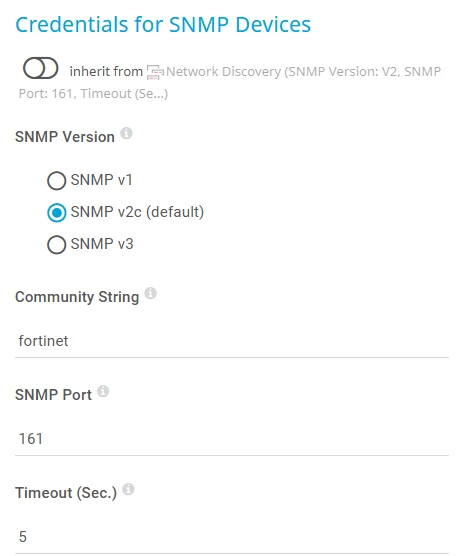

Assign the Group Name -> Community String -> SNMP Version -> SNMP Port.

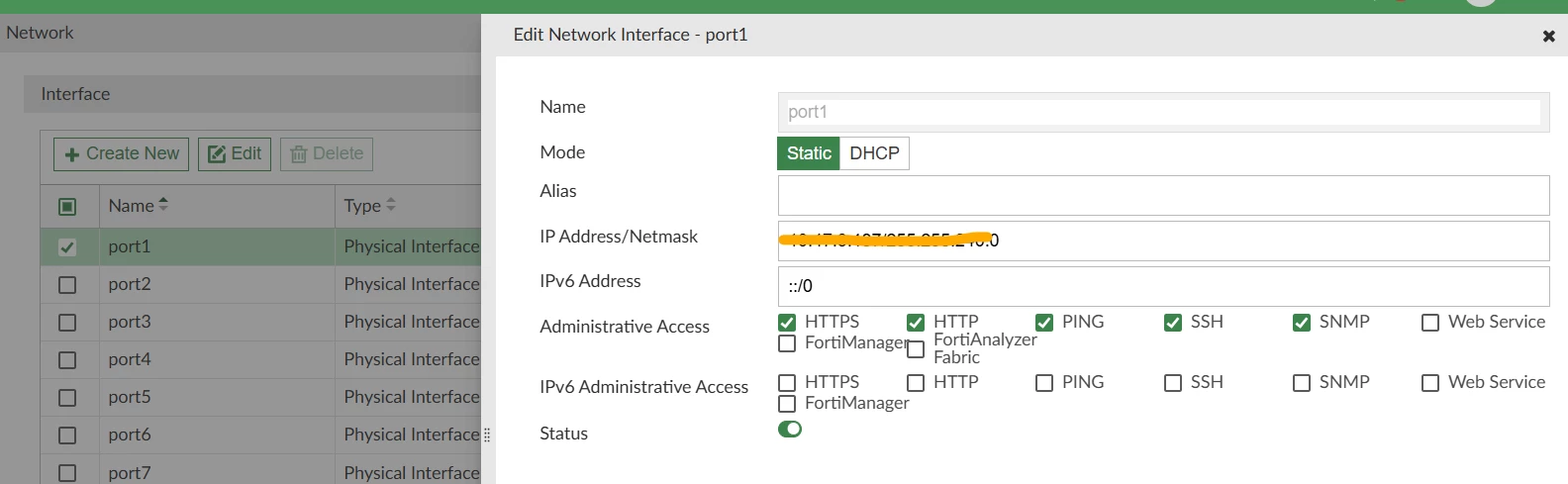

From FortiAnalyzer, enable the SNMP port from the interface.

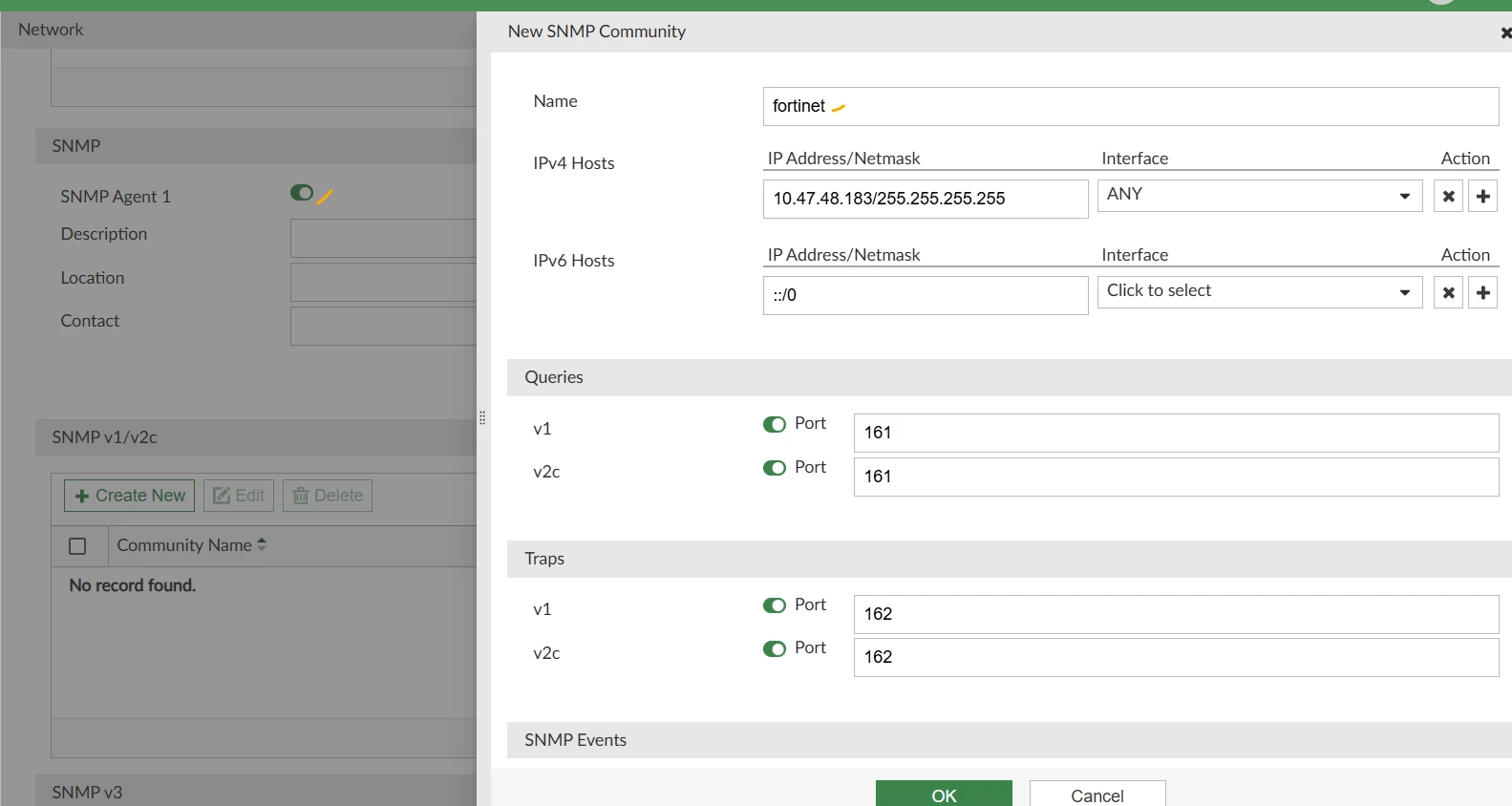

Enable the Agent SNMP and follow the community string from PRTG.

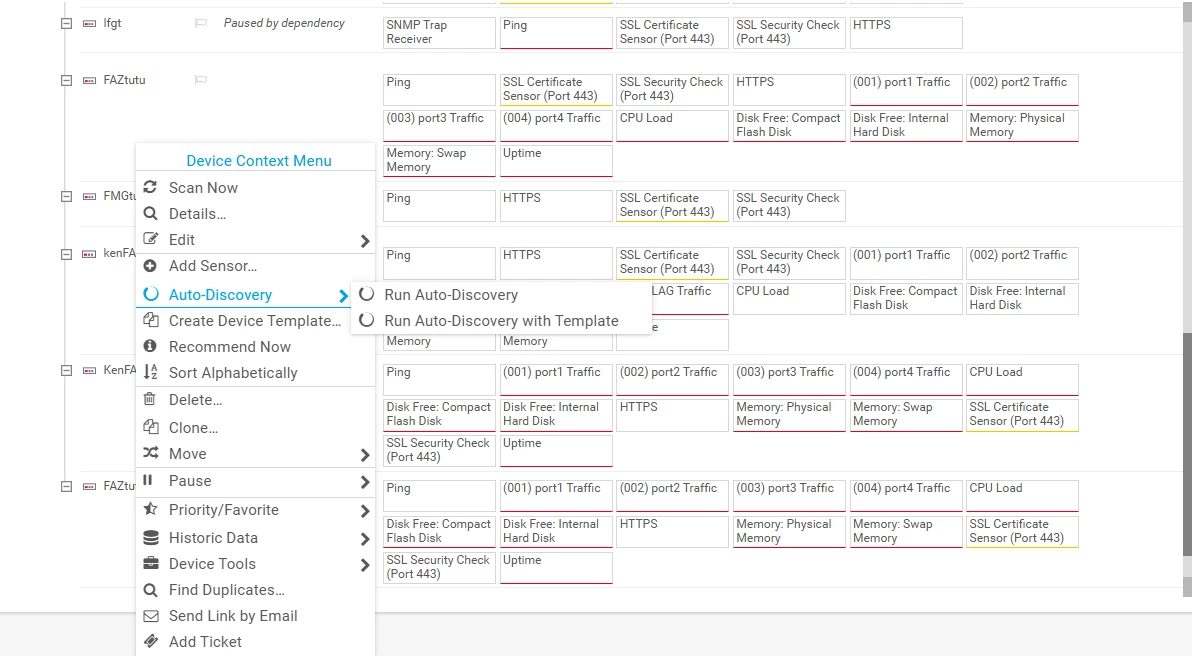

After, it is necessary to run 'Auto Discovery' from PRTG for FortiAnalyzer to send a Trap to monitoring tools.

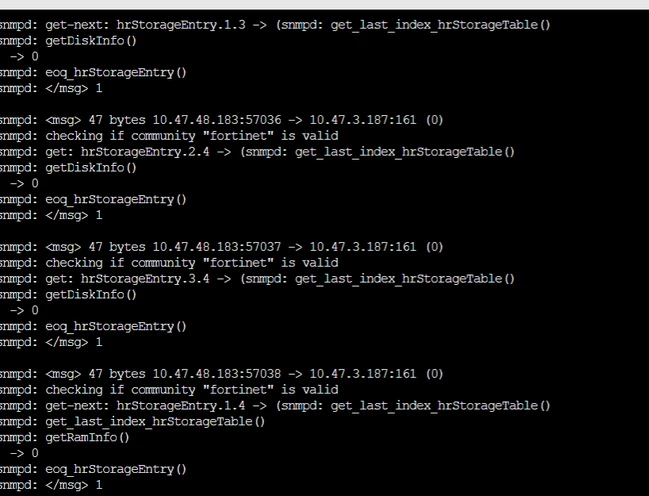

While the PRTG performs 'Auto Discovery', run a debug from FortiAnalyzer to ensure the trap was sent.
diagnose debug application snmpd -1 diagnose debug enable

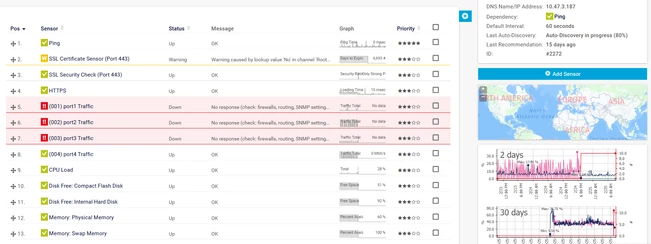

After completing 'Auto Discovery', PRTG will display the FortiAnalyzer Sensor.
Related article: Technical Tip: How to configure and test SNMPv3 and SNMPv2 config on FortiManager/FortiAnalyzer |
