Technical Tip: How to Integrate FortiAuthenticator in FortiAnalyzer
Description
This article describes how to integrate FortiAuthenticator to see logs in FortiAnalyzer .
Scope
FortiAuthenticator and FortiAnalyzer.
Solution
Check if the version and FortiAuthenticator model are supported in these related documents:
Make sure there is no connectivity issue between both, and that port UDP 514 is open if there is a device in between:

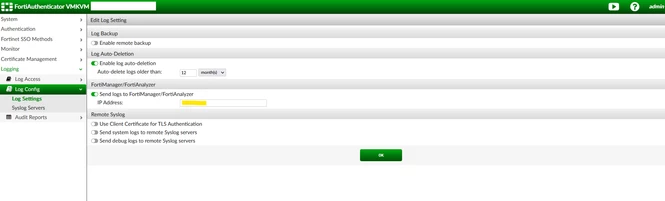

Set the IP of FortiAnalyzer/FortiManager in Log Settings:
The IP Address field also fqdn.
In case a fqdn is configured, it is necessary to verify that the DNS configured for the FortiAuthenticator can resolve that FQDN.
How to change the DNS configuration: System -> Network -> DNS.

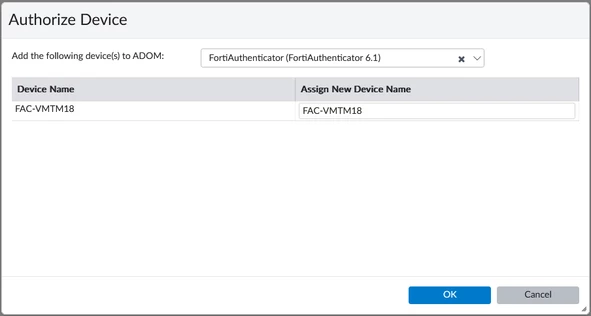

Authorized the device in FortiAnalyzer, and select FortiAuthenticator ADOM (need to enable ADOM).

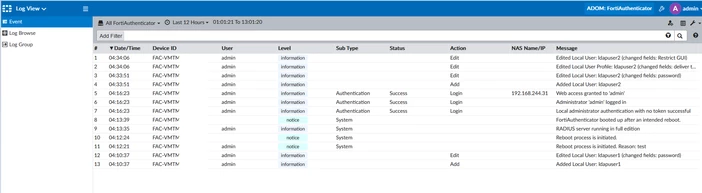

FortiAuthenticator only generates Event type logs and will send them to FortiAnalyzer the same.
