Technical Tip: How to delete a VDOM from FortiAnalyzer

Description

This article describe how it is necessary to delete a VDOM from a FortiAnalyzer using the CLI and not the GUI.

Solution

# conf vdom

(vdom)delete test

(vdom)end

deleted.

# exec log device vdom list 1500D

Device name:1500D.

|-------id:0, name:root  (*** can not be deleted ***)

|-------id:1, name:tester1

|-------id:2, name:tester2

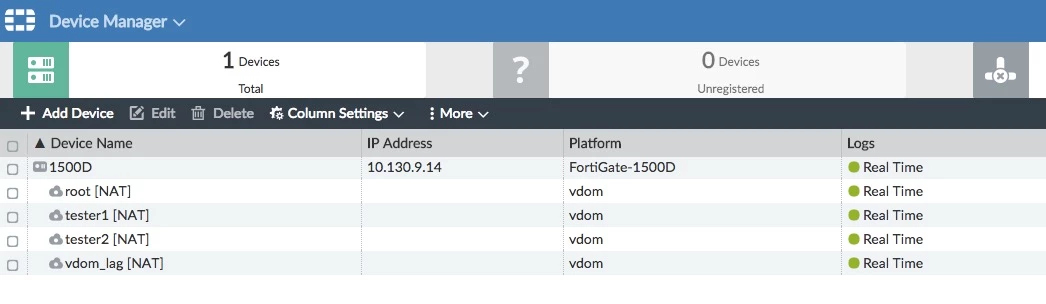

|-------id:3, name:vdom_lag                <----- 'Test' is gone.

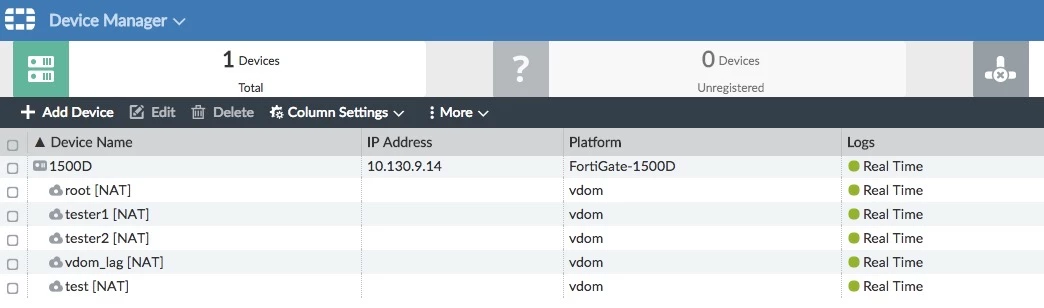

But the VDOM reappears minutes later.

This is as designed because the underlying logs still exist.

# exec log device vdom list 1500D

Device name:1500D.

|-------id:0, name:root  (*** can not be deleted ***)

|-------id:1, name:tester1

|-------id:2, name:tester2

|-------id:3, name:vdom_lag

|-------id:4, name:test                     <----- Reappeared.

Solution: Delete the VDOM from the CLI.

Deleting the VDOM from the CLI (starting in FortiAnalyzer 5.4.3 & 5.6.0) will also delete the log files associated with that VDOM.

execute below command to delete log files uploaded from VDOM 'test'.

# exec log device vdom delete 1500D test                    <----- '1500D' is unitname,and 'test' is VDOM name.

This command will delete Vdom:'test' and its log files from device '1500D'.

Do you want to continue? (y/n)y

Vdom:'test' and its log files were deleted from unit 'FG1K5D3I15-----3' successfully.



Result: VDOM "test" doesn't reappear again.

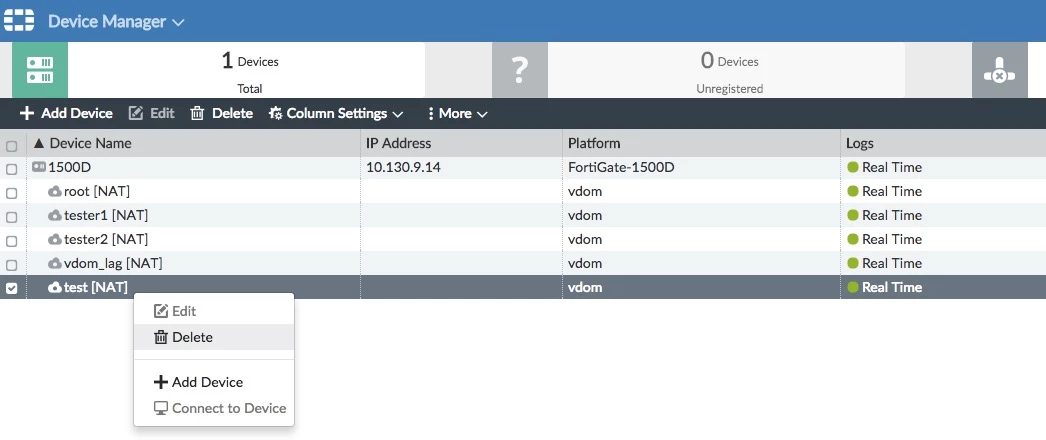

Starting from firmware 6.0.5 onwards, deletion of VDOM has been implemented to support GUI.
