Technical Tip: How to create Sankey chart
Description
This article describes how to create Sankey chart on FortiAnalyzer.
Solution
The 6.4 version of FortiAnalyzer introduced a feature of Sankey chart report which can be obtained based on the data Fortianalyzer receives.
It generates the report and represent in Sankey chart.
To use a Sankey Chart in FortiAnalyzer reports.

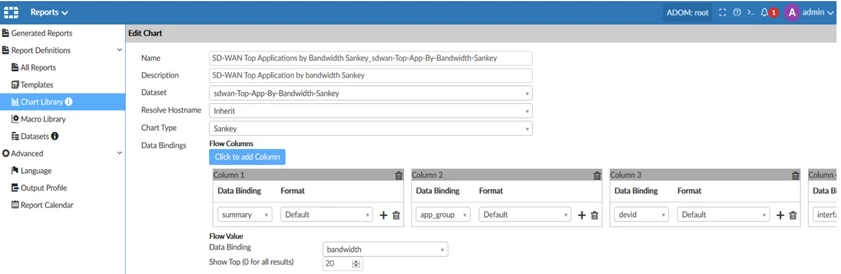

1) Go to Reports -> Report Definitions -> Chart Library.
2) Select 'Create New' to create a new Sankey chart or select an existing Sankey chart to edit.
3) In the Chart Type field, select 'Sankey'. Configure the remaining settings for the chart and select 'OK'.
This article describes how to create Sankey chart on FortiAnalyzer.
Solution
The 6.4 version of FortiAnalyzer introduced a feature of Sankey chart report which can be obtained based on the data Fortianalyzer receives.
It generates the report and represent in Sankey chart.
To use a Sankey Chart in FortiAnalyzer reports.
1) Go to Reports -> Report Definitions -> Chart Library.
2) Select 'Create New' to create a new Sankey chart or select an existing Sankey chart to edit.
3) In the Chart Type field, select 'Sankey'. Configure the remaining settings for the chart and select 'OK'.
Now, run the report to view the generated Sankey chart.
It is presented as below.
