Technical Tip: How to configure FortiWeb to send logs to FortiAnalyzer

Description

Scope

Solution:

1. Configure FortiWeb with a FortiAnalyzer IP.

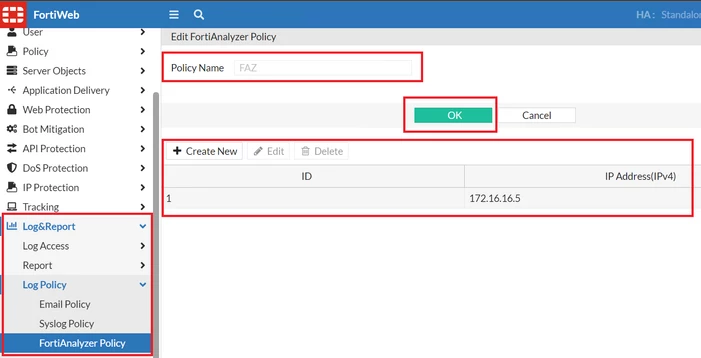

• Go to Log & Report -> Log Policy -> FortiAnalyzer Policy.
• Create a new policy.

• Set Name.
• Set FortiAnalyzer IP.
• Select 'OK'.



• Using the FortiWeb CLI:



config log fortianalyzer-policy
    edit "0"
        set ip-address <FortiAnalyzer-IP>
    next
end



2. Configure FortiAnalyzer log settings.

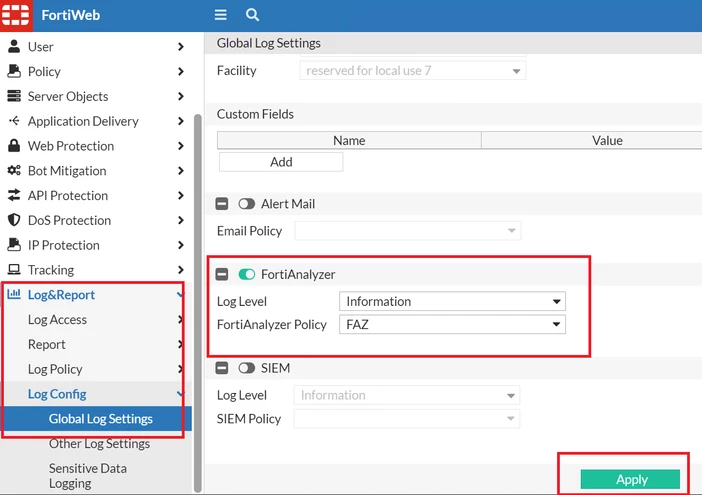

• Go to Log & Report -> Log Config -> Global Log Settings.
• Enable the FortiAnalyzer checkbox.
• Specify 'Log Level' as 'Information'.

• Specify 'FortiAnalyzer Policy' as 'FortiAnalyzer' (the name of the FortiAnalyzer policy created in the previous step).
• Select 'Apply'.





• Using the CLI:



config log forti-analyzer
    set severity debug
    set fortianalyzer-policy 0
end



On the FortiAnalyzer:

1. ADOM Configuration.

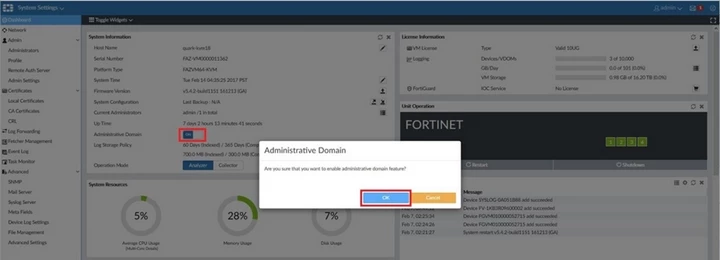

• Enable the ADOM, either from the Dashboard or from System Settings -> ADOMs.



2. Device registration.

• Go to Root-ADOM -> Device Manager -> Unregistered device.



• After selecting 'OK', the device will be added, verified, and 'CLOSE' will be selected.

• Log in to the FortiWeb ADOM:

There is another option to integrate FortiWeb with FortiAnalyzer.

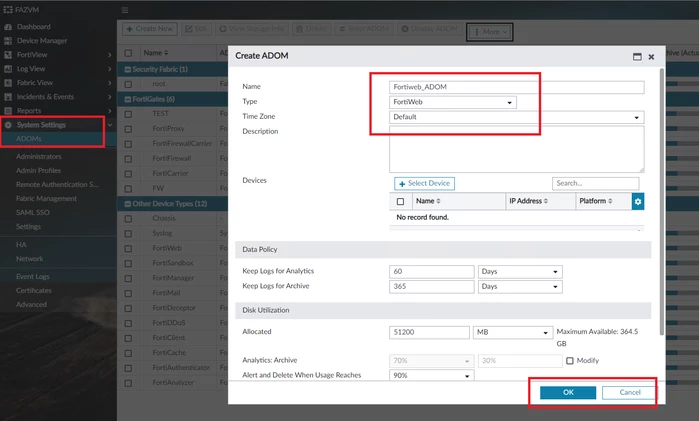

1. Creating New ADOM.

• Go to System Settings -> ADOMs -> Create New.
• Set Name.
• Select 'FortiWeb' as the type.
• Keep all other settings with default values.
• Select 'OK'.

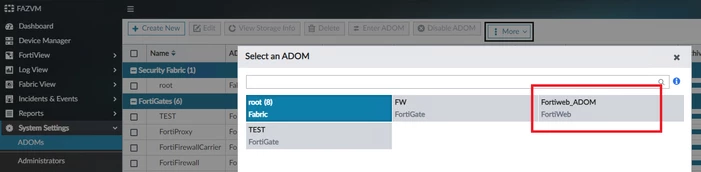

2. Change to the New FortiWeb ADOM to integrate FortiWeb.

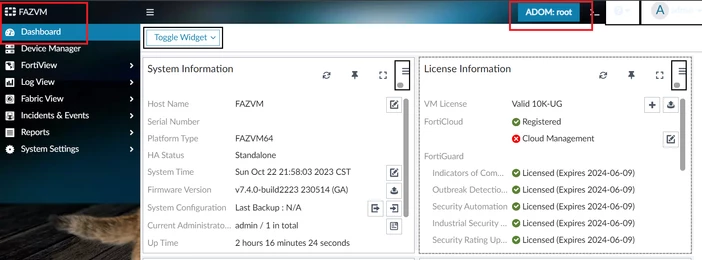

   • Go to Dashboard -> Select the ADOM Button.




   • Select the new FortiWeb ADOM created.

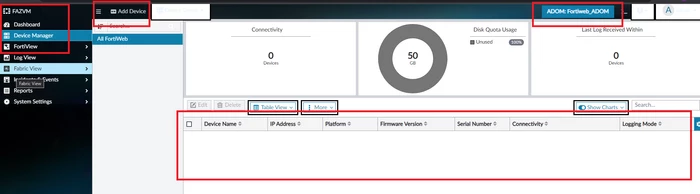

3. Configure FortiWeb in FortiAnalyzer -> Device Manager.

   • Go to Device Manager.

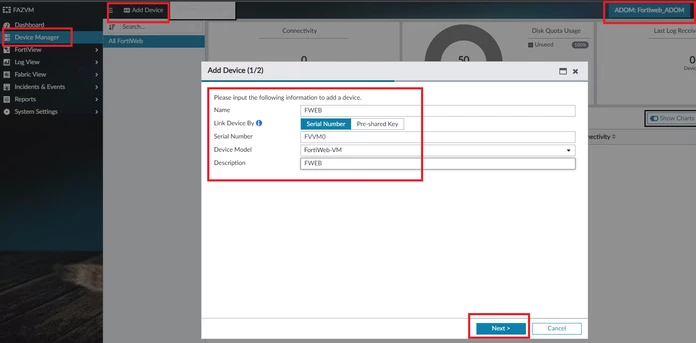

   • Select Add Device.







   • Set Name.
   • Select Link Device by: Serial Number.
   • Set FortiWeb Serial Number.
   • Select FortiWeb Device Model.
   • Select 'Next'.

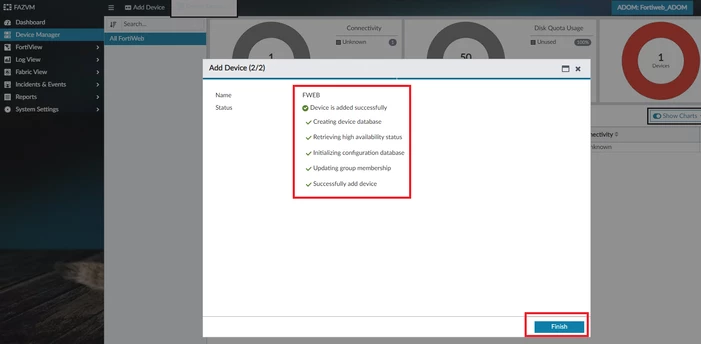

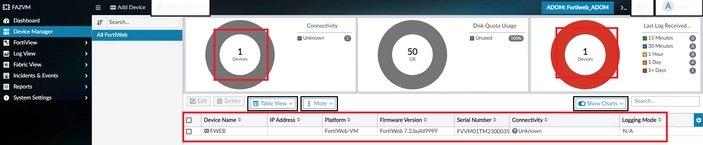

   • A New Database is created, and FortiWeb will be integrated.
   • Select 'Next' to finish.







   • It is possible to see the wrong Version and Model; it is normal, as FortiAnalyzer and FortiWeb need to complete the synchronization.

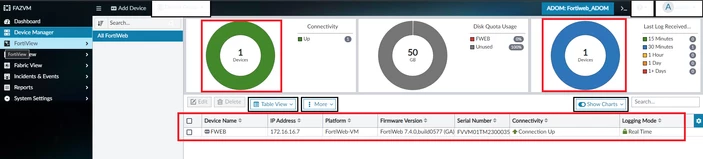

   • Complete the configuration on FortiWeb (as mentioned in step 1). Then, after a few seconds, the FortiWeb connects to FortiAnalyzer and the correct information is visible.





Related documents:

• Logging
• Adding Devices
