Technical Tip: How to check the units supported by FortiManager and FortiAnalyzer
Description
This article is a list of units supported by FortiAnalyzer and FortiManager is documented in the release notes.
Alternatively, there is a CLI command that can be used to obtain this information.
Scope
FortiManager and FortiAnalyzer.
Solution
- Open the CLI console in FortiAnalyzer or FortiManager and run the following command:
diag dvm supported-platforms list
…
FortiGate-600D FGT6HD FGT6HD v6.0/6.2/6.4/7.0
FortiGate-600E FG6H0E FG6H0E v6.0/6.2/6.4/7.0
FortiGate-601E FG6H1E FG6H1E v6.0/6.2/6.4/7.0
....
Example:
- FortiWeb device and version: FV-1KD-7.20-FW-build0311-221216.
- FortiAnalyzer device and version.
- Running in FortiAnalyzer: 'get system status'.
Platform Type : FAZ400E
Version : v7.2.2-build1334 230201 (GA)
- To check Supported Platform, run diagnose command in FortiAnalyzer:
diag dvm supported-platforms list
- Filtered by FortiWeb information:
FortiWeb:
Supported Versions:
FortiWeb-1000D FV1000D FV1000D v5.0/5.2/5.3/5.4/5.5/5.6/5.7/5.8/5.9/6.0/6.1/6.2/6.3/6.4/7.0
- In this case, FortiAnalyzer 7.2.2 does not support FortiWeb 7.2.0.
- The last version supported by FortiAnalyzer to FortiWeb 1000D is 7.0.x.

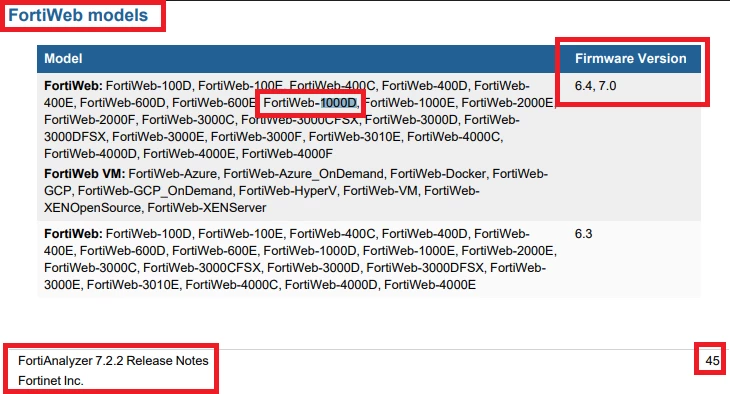

- Also, it is possible to check FortiAnalyzer Release Notes.
- To this example:
Note.
- The output is quite long, consider running this in a putty session and log the output as described in the related article.
- Afterwards, check the output for the unit to reach, in this saved file.
