Technical Tip: FortiView Secure SD-WAN Monitor

Description

This article describes the configuration needed to display data in FortiAnalyzer secure SD-WAN monitor.

Scope

FortiAnalyzer.

Solution

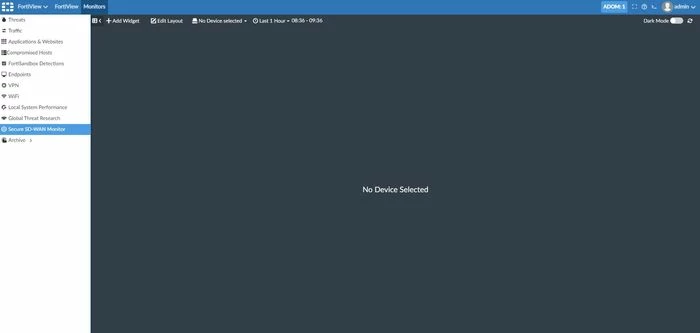

1. A 'No Device Selected' message will appear if FortiAnalyzer does not receive the necessary SD-WAN logs.

2. To display data in a secure SD-WAN monitor, the following requirements need to be fulfilled.

3. SD-WAN rule needs to have a specify source address together with protocol number/internet service/application.

4. SLA logging needs to be enabled on FortiGate health check and applied to SD-WAN Rules.

Sample configuration in FortiOS 6.4:

config system sdwan
    config health-check
        edit "ping"
            set sla-fail-log-period 30
            set sla-pass-log-period 60
        next
    end
end

5. SD-WAN interface members should have configured with the 'WAN' role and 'Estimated bandwidth'.

6. The firewall policy with the SD-WAN interface needs to log all sessions.

7. Ensure that traffic is passing through the SD-WAN rules. Verify this with the FortiGate SD-WAN rules hit count.

8. Ensure that FortiAnalyzer is receiving health check SLA status logs under Logview -> Event -> SD-WAN.

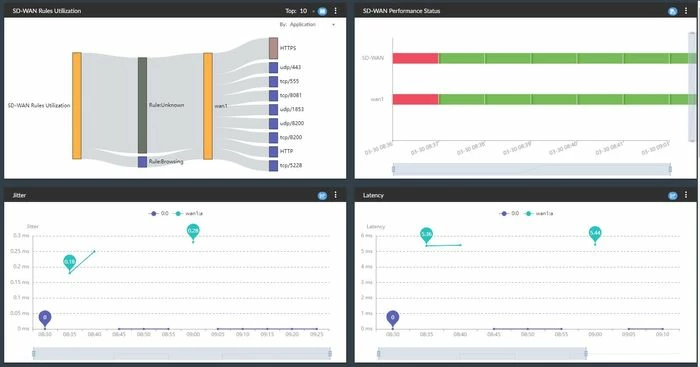

9. Once FortiAnalyzer receives the logs, the Secure SD-WAN monitor will provide the device list with data present in each widget.

Notes:

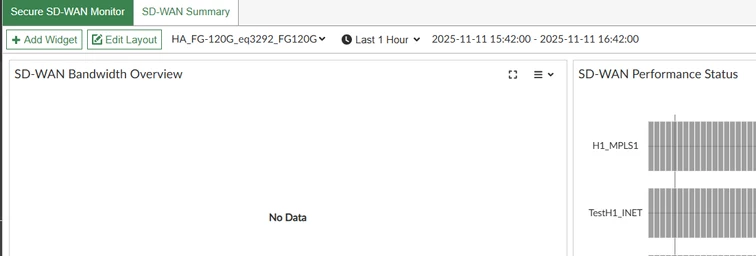

• As of FortiAnalyzer version 7.4.7, the only configuration required in FortiGates to populate the devices under Secure SD-WAN Monitor is to have health-checks enabled alongside logging:

config system sdwan
    config health-check
        edit "HC_HUB"
            set sla-fail-log-period 30
            set sla-pass-log-period 60
