Technical Tip: FortiSwitch logs present under FortiAnalyzer
Description
This article describes the steps to review the FortiSwitch logs under FortiAnalyzer.
Scope
FortiAnalyzer 7.4.2 and above.
Solution
Prerequisite:
FortiGate 7.4.2 and above.
FortiSwitch connected to the FortiGate through the FortiLink.
On the FortiGate side:
config log fortianalyzer filter
set severity information
set forti-switch enable <----
end

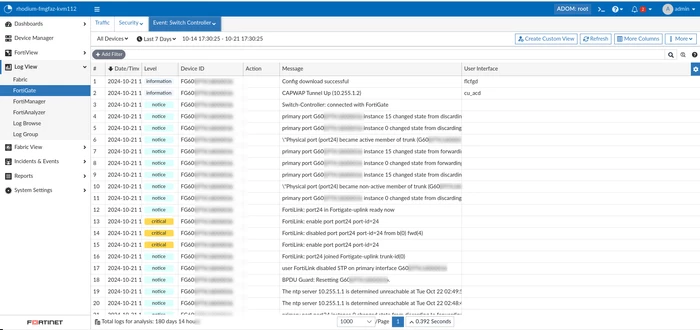

On FortiAnalyzer, the FortiSwitch logs can be found under LogView -> FortiGate -> Event -> Switch Controller.
Example log:
date=2023-12-19 time=09:42:49 eventtime=1703007768578137210 tz="-0800" logid="2300056001" type="fsw" subtype="fsw-flow" level="information" vd="vdom1" switchid="S224DF3xxx" ftlkintf="fortilink" srcip=198.162.199.186 dstip=2.2.2.2 proto=6 rcvdpkt=30 rcvdbyte=40201 duration=33
Troubleshooting:
Troubleshooting Tip: FortiGate to FortiAnalyzer connectivity
FortiGate:
FGT-A-LOG (vdom1) # execute log filter category 23
FGT-A-LOG (vdom1) # execute log filter dump
category: forti-switch <-----------------------
device: disk
start-line: 1
view-lines: 10
max-checklines: 0
HA member:
log search mode: on-demand
pre-fetch-pages: 2
Oftp search string:
FGT-A-LOG (vdom1) (Interim)# execute log display
1 logs found.
1 logs returned.
