Technical Tip: FortiAnalyzer uses webhook to send alert to Webhook site

Description

This article describes how to send an alert message from FortiAnalyzer to a Webhook site.

Scope

FortiAnalyzer.

Solution

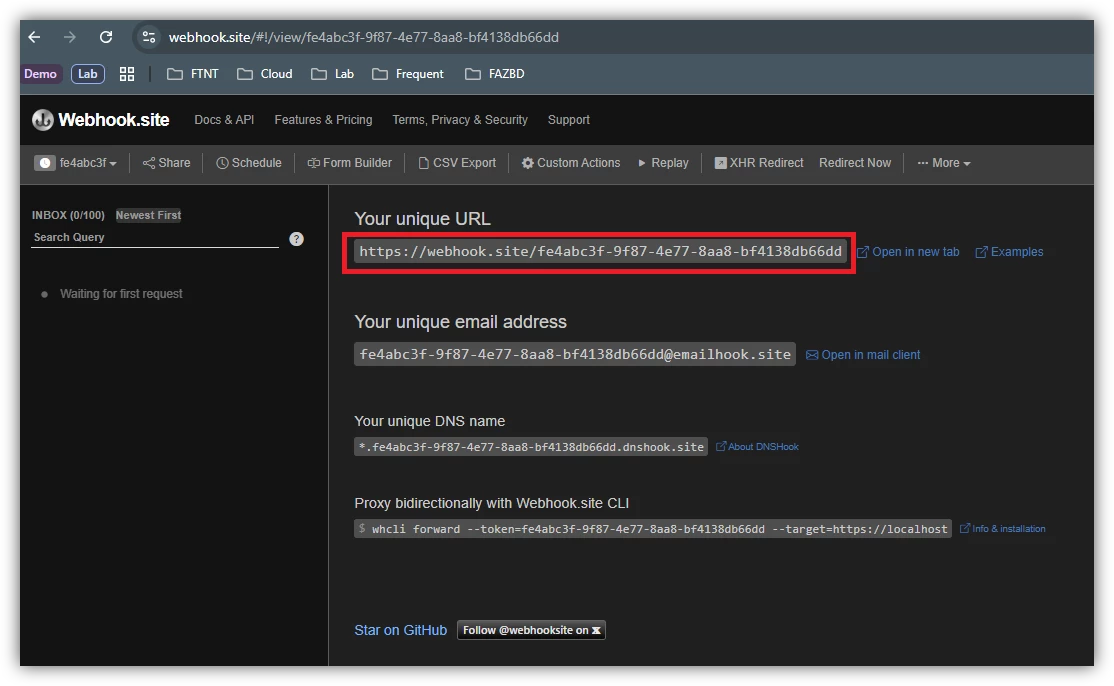

When accessing the webhook site, it will generate a unique URL, as is generally the case.

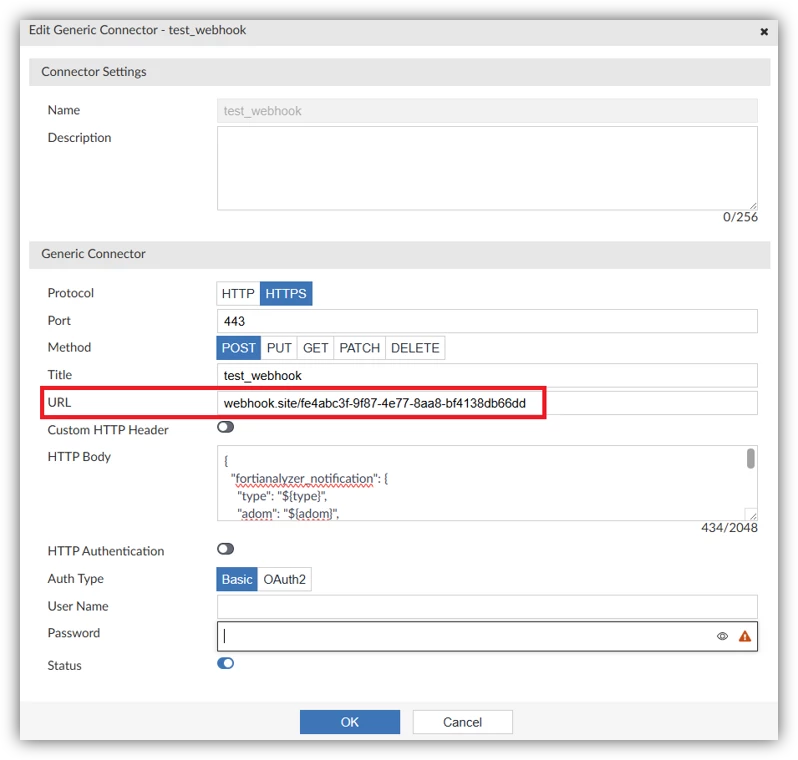

1. Use the unique URL to put in under the Generic Connector URL value:

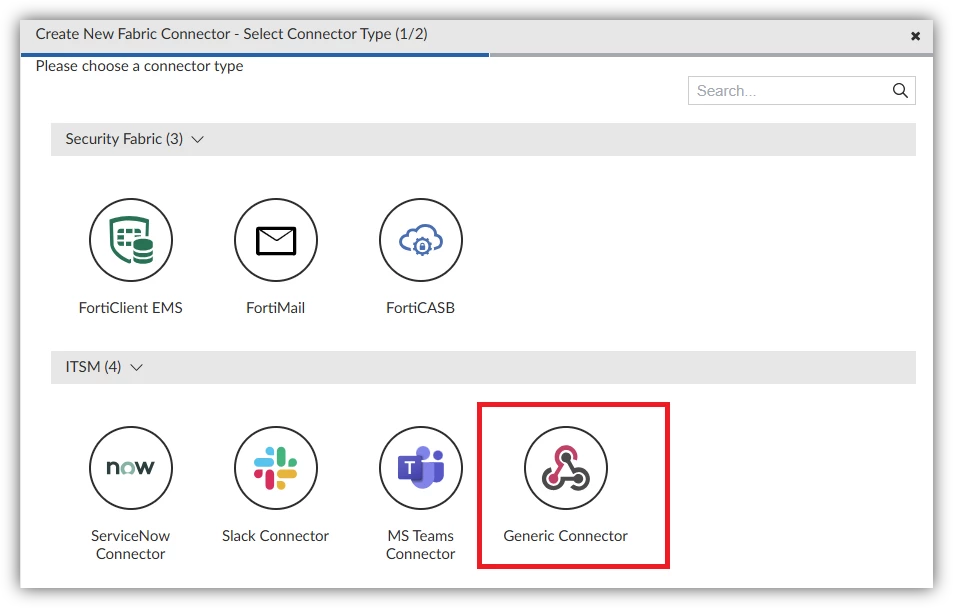

• In v7.4.x, go to Fabric View -> Fabric Connectors  -> Create New -> Generic Connector.

• In v7.6.x, go to Incidents & Events -> Automation -> Active Connectors -> Create New -> Generic Connector.

Other than the URL value, it is only mandatory to put in the following value:

Authentication is not necessary for this setup and can be ignored, as HTTP bodies are optional for a meaningful message display in the alert.

The text output for the ${} sign can be replaced using other Configuring ITSM connectors in (Supported macros for the MS Teams Connector).

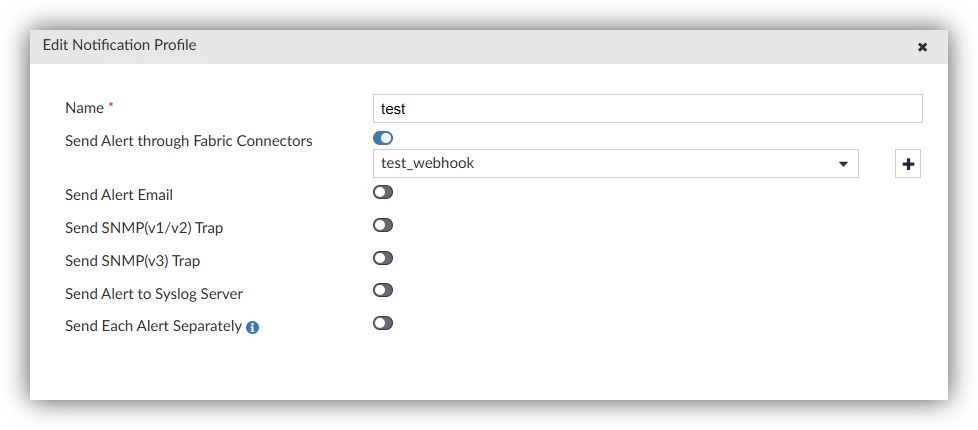

2. Add the created webhook to the Notification Profile.

• In v7.4.x, go to Incidents & Events -> Handlers -> Notification Profiles -> Create New.

• In v7.6.x, go to Incidents & Events -> Event Handlers -> Notification Profiles -> Create New.

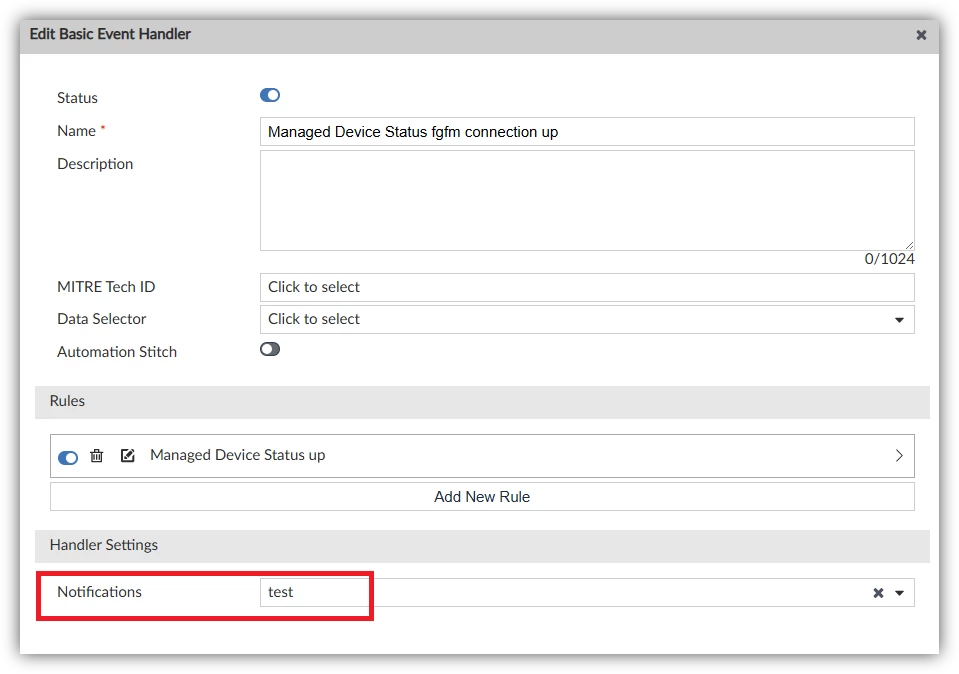

3. Create an event and add the notifications profile to it.

• In v7.4.x, go to Incidents & Events -> Handlers -> Basic Handlers -> Create New.

• In v7.6.x, go to Incidents & Events -> Event Handlers -> Event Handlers -> Create New.

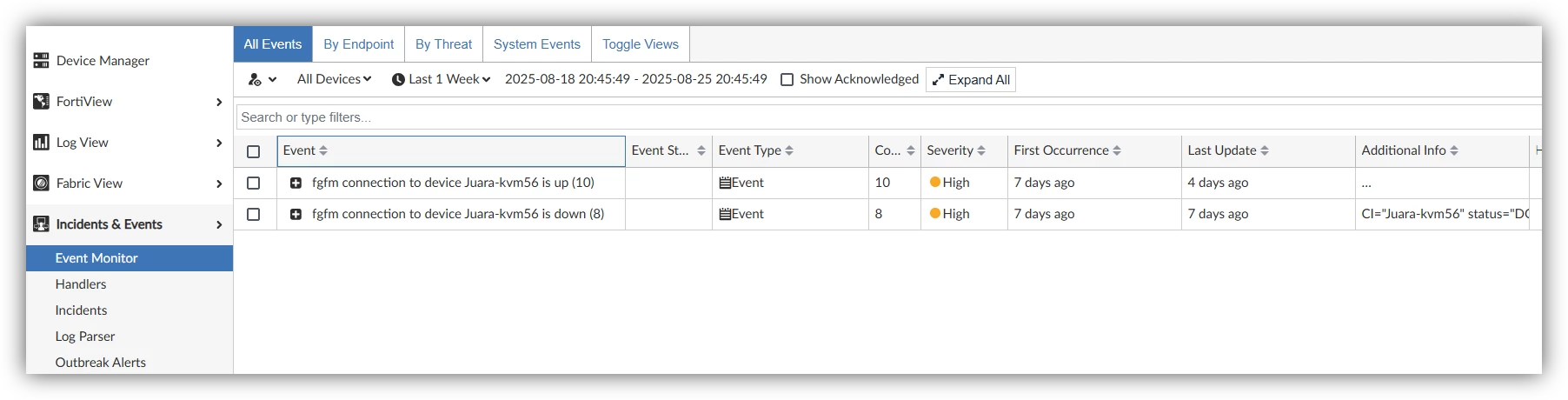

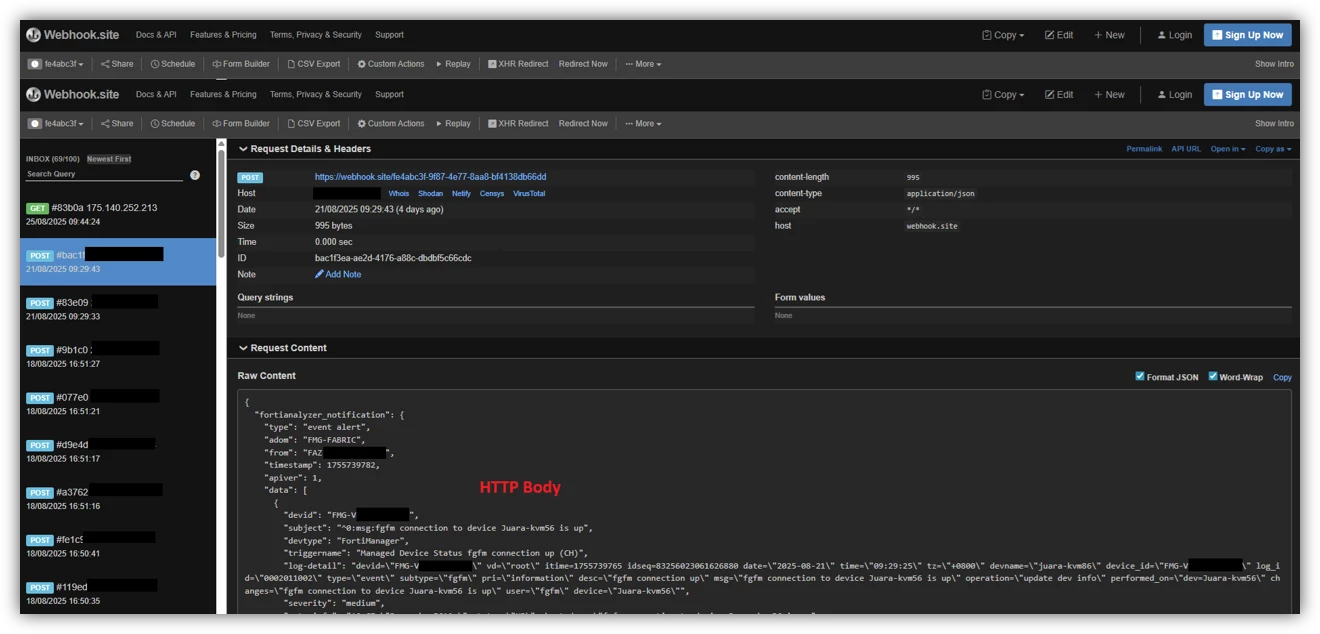

4. Trigger the event and check if it is present in the Event Monitor and the webhook site.

Notice: Alerts sent in JSON format using ITSM Connectors.

Debug to see the output from the FortiAnalyzer to the connector after configuration:

diagnose debug enable
diagnose debug timestamp enable
diagnose debug application fazsvcd 255
diagnose debug application faznotify 8

To disable the debugging:

diagnose debug disable

If the connection to the Webhook site is flapping, run these debug commands for 30 to 45 minutes and share the results with Support:

diagnose debug application faznotify 8
diagnose debug timestamp enable
diagnose debug enable

Afterwards, obtain the RC code:

diagnose debug application faznotify 0

To disable the debug process:

diagnose debug disable

After disabling the debug processes, capture the output of the following:

diagnose test application faznotify 2
diagnose test application faznotify 3 * *
diagnose test application faznotify 1 (show the daemon info)
diagnose test application faznotify 2 (show faznotify statistics)
diagnose test application faznotify 20 (show the count of active channels at that moment)
diagnose test application faznotify 3 <adom> <webhook-name> (show statistics of the specific connector)

Attach the debug output to a new ticket through the support portal: Ticketing.
