Description

This article shows the guide to apply local certificate in multiple scenarios for FortiManager and FortiAnalyzer.

Scope

FortiManager/FortiAnalyzer.

Solution

Users can import custom certificate as local certificate in FortiManager and FortiAnalyzer.

The local certificate can be applied in multiple scenarios and require configuration to apply the changes. In order to apply local certificate for scenario below, CA certificate have to be imported into FortiManager/FortiAnalyzer. Examples are provided below for each application:

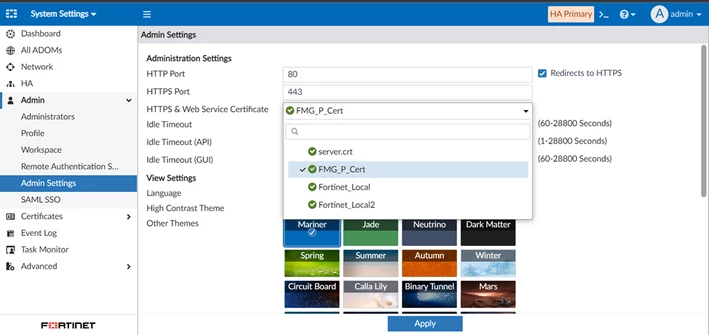

Admin GUI: Login to FortiManager/FortiAnalyzer -> System Setting -> Admin -> Admin Setting and change the certificate to local certificate.

Or configure from CLI:

config system admin

Set admin-server-cert <Local Certificate>

End

FortiManager fgfm-tunnel: Configure the following in FortiManager CLI:

config system global

set fgfm-ca-cert <CA Certificate>

set fgfm-local-cert <Local Certificate>

end

Configure the following in FortiGate CLI:

# config system central-management

set ca-cert <CA Certificate>

set local-cert <Local Certificate>

end

FortiAnalyzer oftp tunnel ( Logging). Configure the following in FortiAnalyzer CLI:

config system certificate oftp

set mode local

set local <Local Certificate>

end

Configure the following in FortiGate CLI:

config log fortianalyzer setting

Set certificate <Local Certificate>

end

FortiManager HA. Note that the CN of the certificate must be the Serial Numberof the FortiManager itself.

FortiManager Primary:

config system ha

Set local-cert <Local Certificate>

end

FortiManager Secondary:

config system ha

Set local-cert <Local Certificate>

end

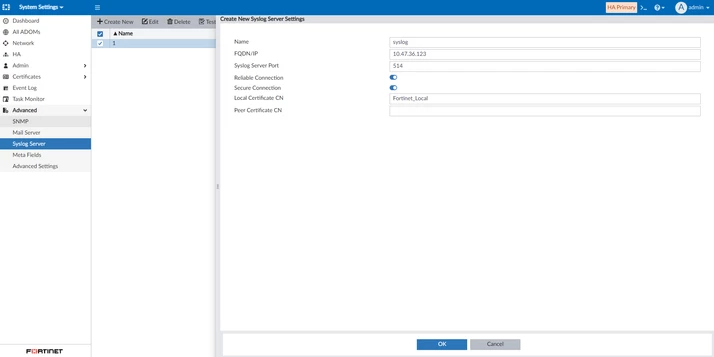

FortiManager/FortiAnalyzer Syslog server.

Or configure from CLI:

config system syslog

Set reliable enable

Set secure connection enable

Set local-cert <Local Certificate>

end

FortiManager/FortiAnalyzer Mail Server. Note that the local certificate is only applicable for SMTPS and STARTTLS with port 587 only. Hence, additional configurations are required as shown below:

config system mail

Set port 587

Set secure-option <smtps | starttls>

Set auth-type certificate

Set local-cert <Local Certificate>

end
