Technical Tip: Configure FortiAnalyzer HA in AWS when no internet access on instances
Description
This article describes how to configure an HA cluster in AWS when EC2 instances are in a private network and do not have a public IP address or internet access.
Scope
FortiAnalyzer, AWS.
Solution
- Follow the first 7 steps from Technical Tip: Configuring FortiManager HA in AWS with VRRP and no internet access, as they are the same for FortiAnalyzer.

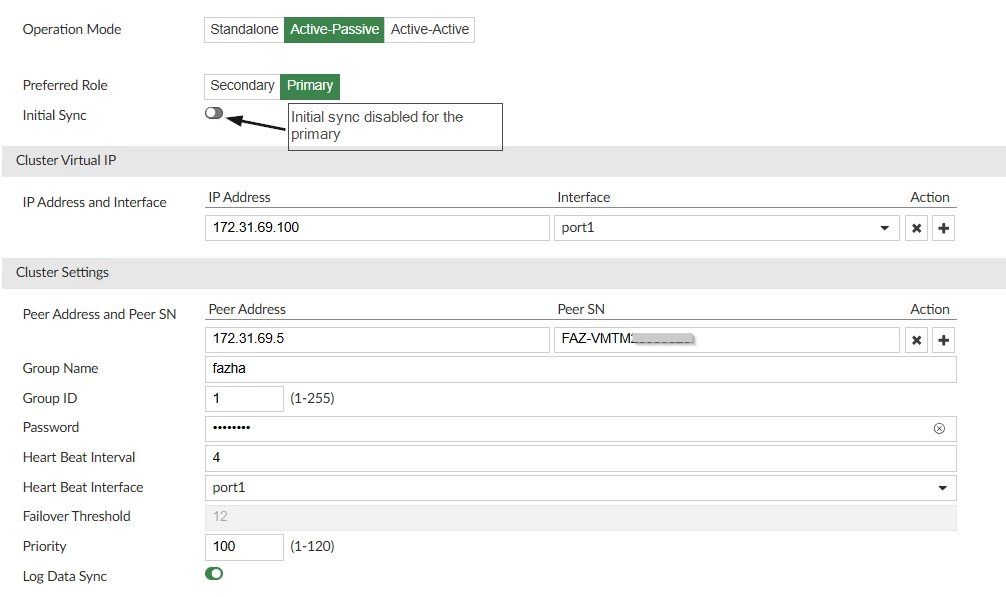

- Configure HA settings on both FortiAnalyzer instances. Make sure 'initial sync' is disabled for the instance intended to be primary and is enabled for the other.
Note:
When the HA Cluster is formed, the secondary will perform a reboot and rebuild the log database. Wait for a few minutes.
- Upload all the AWS Root CA certs to the Primary. Certificates can be downloaded from Amazontrust_repository. When HA failover happens, the private IP set as VIP will be transferred to the new primary FortiAnalyzer automatically.
Related document:
