Troubleshooting Tip: How to troubleshoot missing Application Data in FortiAIOps

FortiAIOps keeps collecting data from the FortiGate via the REST API and the Syslog protocols.

To integrate the FortiGate Firewall with FortiAIOps, refer to the user guide: Adding and Managing FortiGates.

The Applications page provides information about the applications used by clients on the wireless network. This page consists of three widgets: Apps by usage, Apps by risk, and Users by usage.

This page can be accessed under Wireless -> Applications.

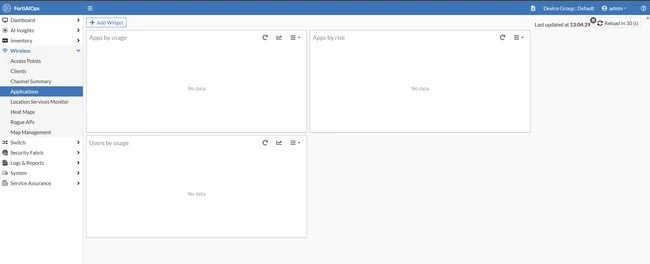

If the application dashboard does not show any details, as shown below, check the following configurations on the FortiGate firewall.

FortiGate config checks:

1. Check if the FortiGate Firewall is reporting the applications usage:

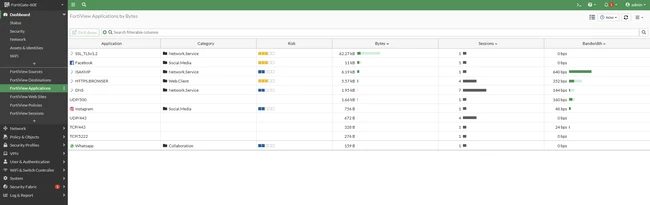

• The application usage can be seen under the 'FortiView Applications by Bytes' options present under the FortiGate Dashboard options.
•  For the FortiGate to detect applications, the following conditions are necessary:
  • The 'Application Control default' profile must be enabled on the Firewall policy.
  • Make sure that the FortiGate unit contains a valid FortiGuard subscription and can reach the FortiGuard server.
• Once these conditions are satisfied, the application category will be visible on the 'FortiView Applications by Bytes' Dashboard.

2. Make sure that the FortiAIOps is added as the syslog server on the FortiGate Firewall:

• To add the ForiAIOps as the syslog server, browse to Log & Report -> Log Settings -> Global Settings.
• Enable 'syslog logging' option and provide the FortiAIOps management IP address.

config log syslogd setting

set status enable

set server "a.b.c.d"

set mode udp

set port 514

end

Note: To configure multiple syslog servers, see Technical Tip: Configuring multiple Syslog servers.

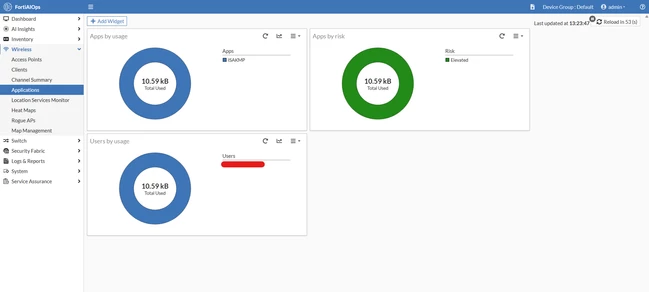

Once both these settings are done, the FortiAIOps will start populating the application details as expected.
