Troubleshooting Tip: Integration between FortiADC and FortiSandbox Cloud is not working

  • January 28, 2025
  • 0 replies
  • 222 views
Description This article describes how to troubleshoot the connection between FortiADC and FortiSandbox Cloud.
Scope FortiADC.
Solution

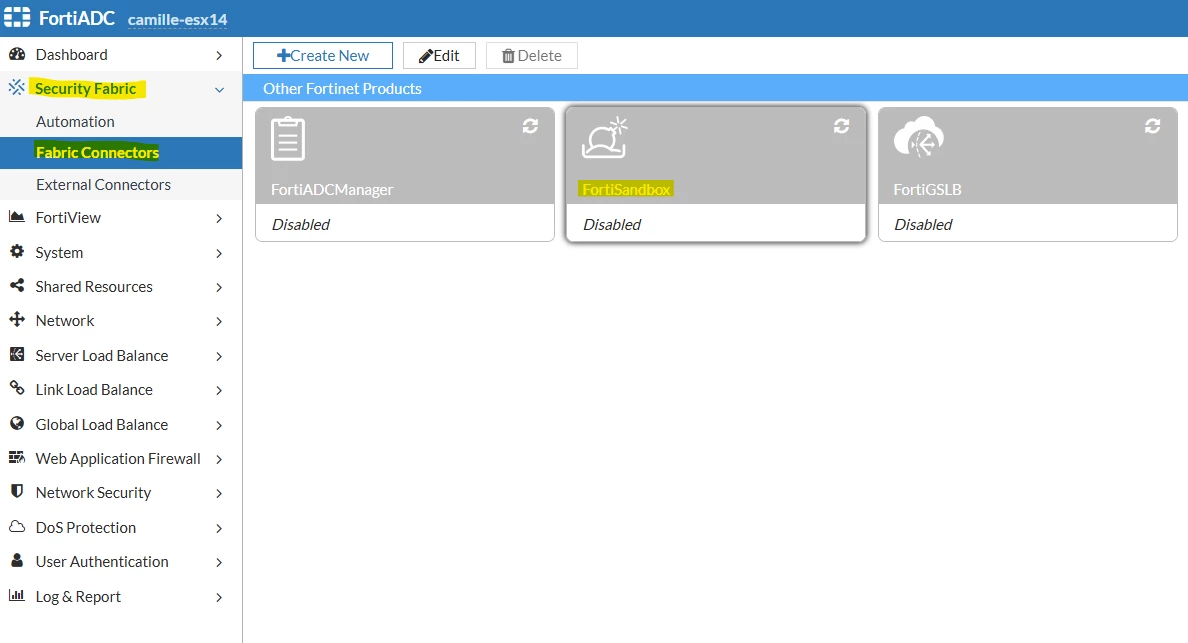

  1. Integrate FortiADC with FortiSandbox Cloud: go to Security Fabric -> Fabric Connectors -> FortiSandbox.

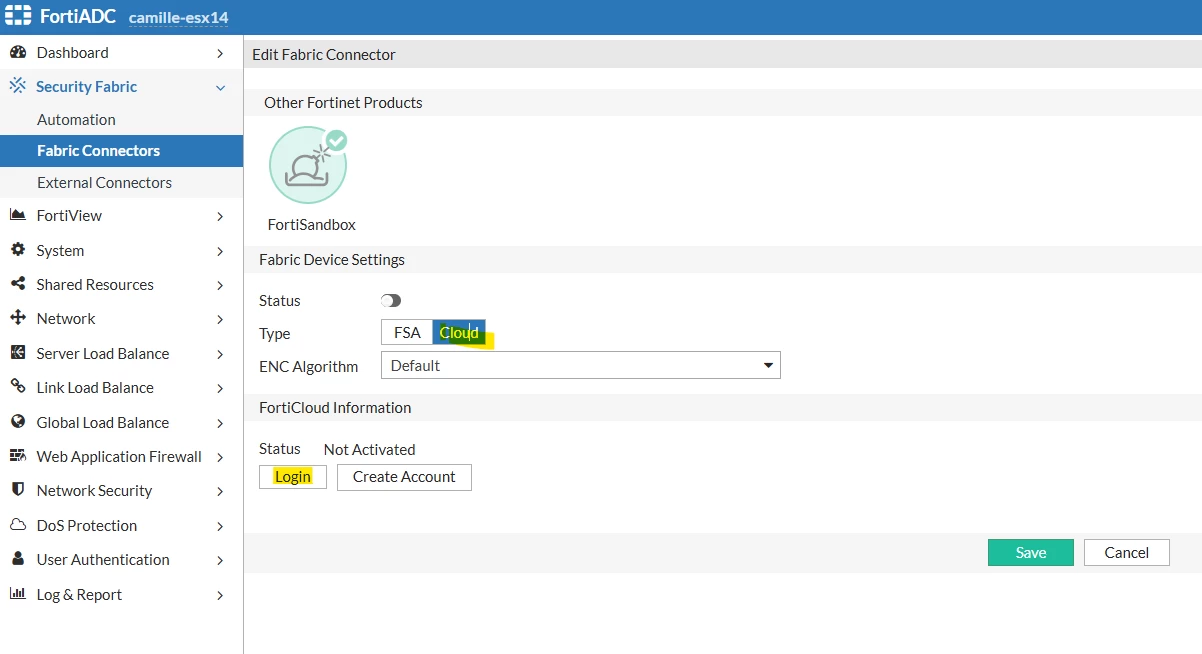

Select 'Cloud' then 'Login':



Sandbox login.png

  1. Integration is not working:
  • Check the connectivity between FortiADC and FortiSandbox Cloud:

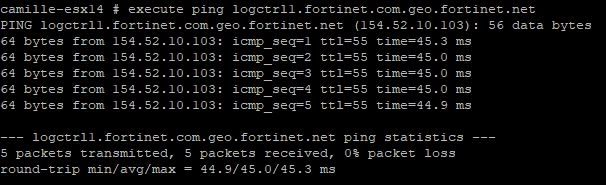

execute ping logctrl1.fortinet.com.geo.fortinet.net



ping to cloud.png

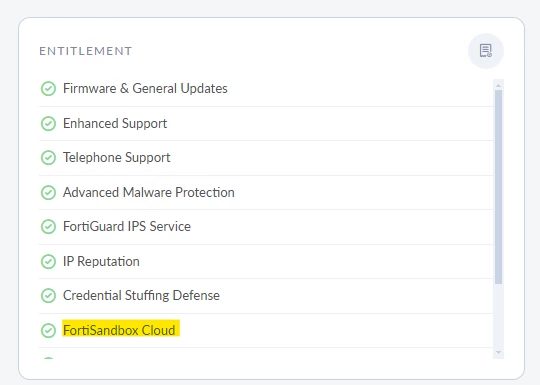

  • Login to Fortinet support website -> Service -> Asset management and verify that the subscription is active:






  • Debug the connection between FortiADC and FortiSandbox Cloud:



diagnose debug module forticldd all
diagnose debug enable


Then log in at Security Fabric -> Fabric Connectors -> FortiSandbox -> Cloud to initiate the connection and generate the logs.
