Technical Tip: How to check if the FortiADC Antivirus RAM Disk size configured is already applied to the FortiADC

  • January 27, 2025
  • 0 replies
  • 281 views
Description This article describes how to check if the FortiADC Antivirus RAM Disk size configured is already applied to the FortiADC.
It may be necessary to preconfigure other respective AntiVirus setups and refer to the documentation at the end of this article for more information on the respective configurations.
Scope FortiADC and FortiADC VM.
Solution

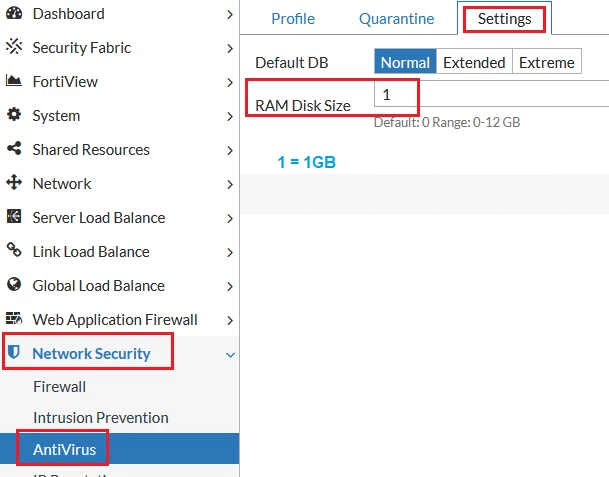

The FortiADC RAM Disk option can be enabled and configured at Network Security -> Antivirus -> Settings tab:

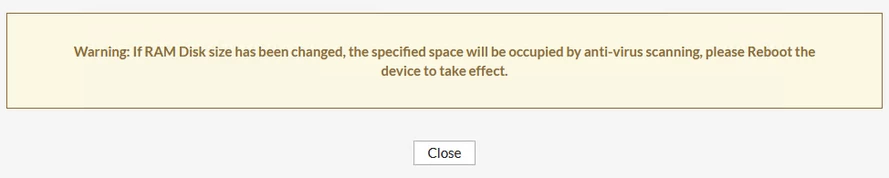

A warning message will appear after saving the configuration. The configuration changes will take effect after ma anual reboot of the FortiADC:





After the FortiADC successfully rebooted, run the CLI command below to check the RAM Disk availability and the current size.



fnsysctl df -h



Example:

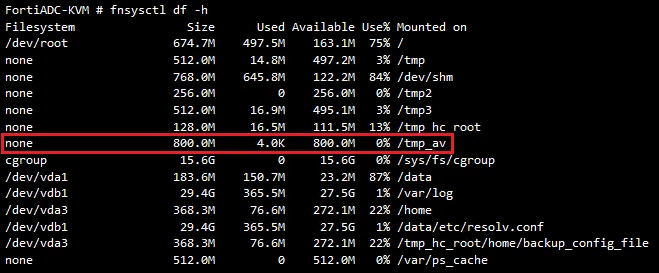

Before enabling the RAM Disk option:

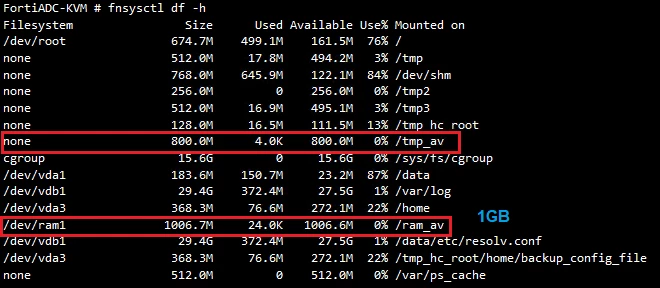

After enabling the RAM Disk option with 1 GB size:





Related documents:
AntiVirus

Setting the AV service level
