Technical Tip: FortiADC SLB L7 Content Routing

  • October 6, 2016
  • 0 replies
  • 5793 views
Description This article describes how to control sending HTTP traffic to a specific backend server based on:
  • HTTP Host.
  • HTTP Referer.
  • HTTP Request URL.
  • SNI.
  • Source IP address.



For example: Requests for HTTP Request URL in the /mail path should go to the mail server 10.10.10.10 and requests for traffic in the /finance path should go to the finance server 10.10.10.11.
Scope FortiADC.
Solution
  1. Go to Server Load Balance -> Real Server Pool.
  2. Create 2 real server pools, one for each backend server:

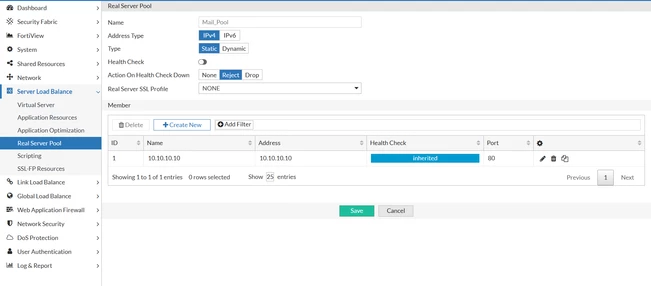

    1. Mail real server pool:

      mail server pool.PNG

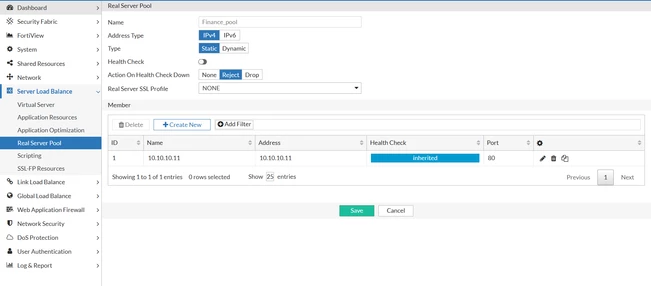

    2. Finance real server pool:

      finance server pool.PNG
  3. Go to Server Load Balance -> Virtual Server.
  4. Select the Content Routing tab.
  5. Create an entry for each traffic criterion and specify the real server pool to be used:

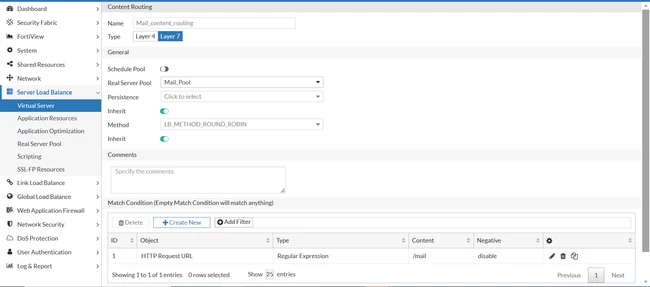

    1. Mail content route:

      mail content route.PNG

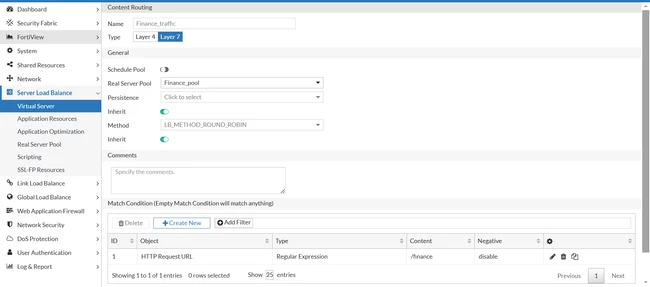

    2. Finance content route:

      finance content route.PNG

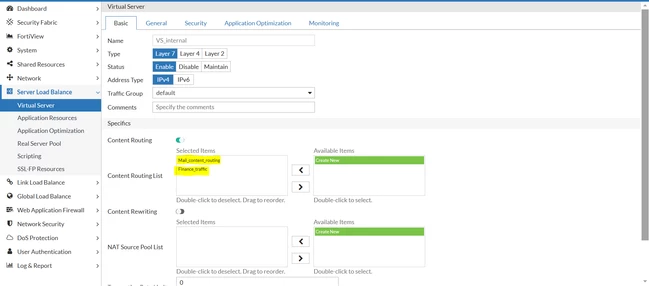

  6. When configuring the virtual server at Server Load Balance -> Virtual Server, enable content routing and choose the 2 content routes:

    Virtual server.PNG

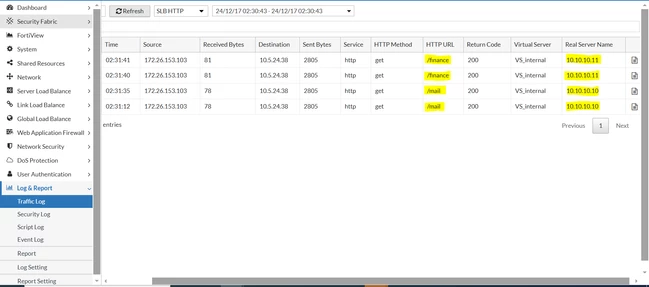

  7. Traffic will be sent to the intended backend server based on the URL:


test results.PNG
See the FortiADC administration guide for more information.
