Technical Tip: FortiADC image for Proxmox VE

  • March 8, 2026
  • 0 replies
  • 156 views
Description This article describes which FortiADC virtual image to choose for deploying on Proxmox.
Scope FortiADC, Proxmox VE.
Solution

In order to deploy FortiADC VM on Proxmox, the image can be downloaded from the Support portal.

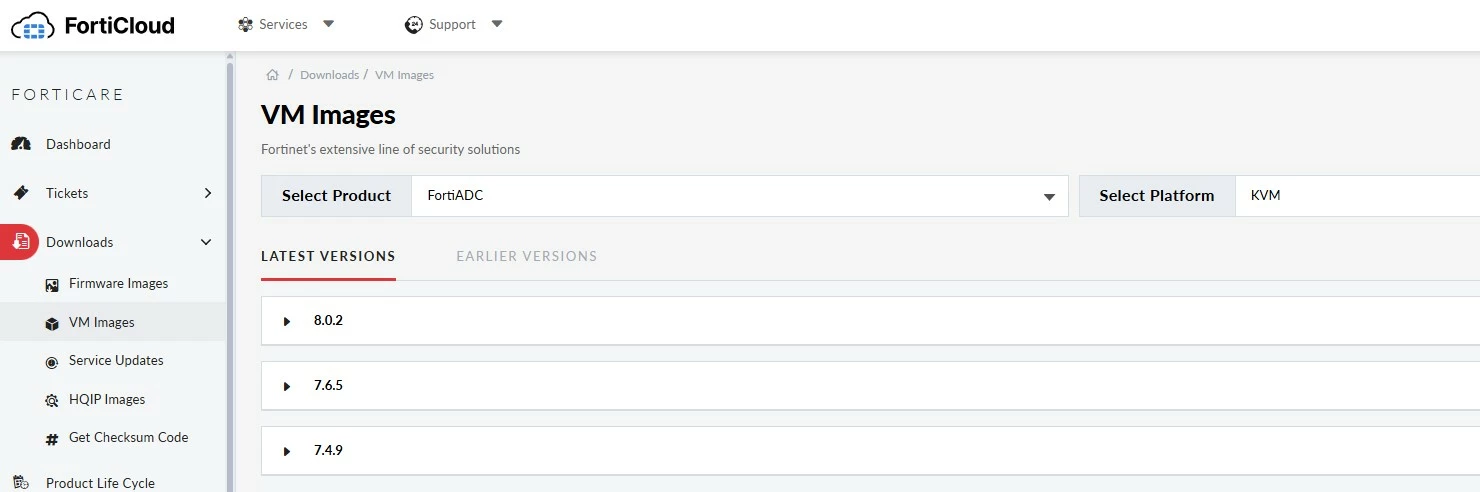

  1. Navigate to Downloads on the left pane, select the product as FortiADC and Platform as KVM.

    Note: For Proxmox VE, only supported images can be downloaded from KVM. Other platforms' images cannot be used.

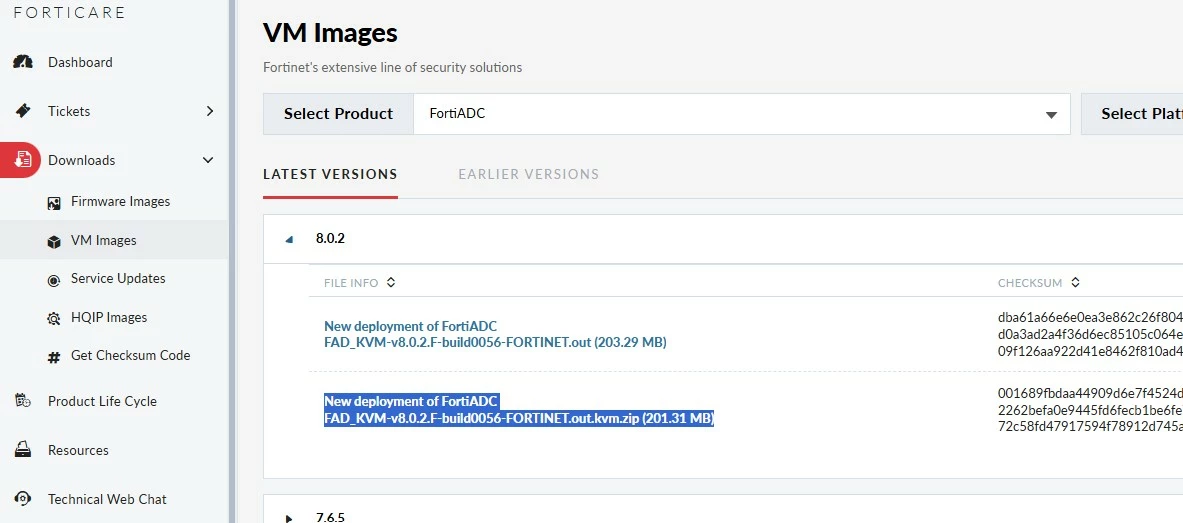

  2. Select the version and choose the image with the .out.kvm.zip extension.

  3. After downloading, extract the files. The file inside the folder that will be used is with the extension .qcow2.


Only these extensions will be used during the deployment of FortiADC on Proxmox.
