Other ways to protect your cloud-native application workloads in AWS

Forum|Forum|10 months ago
July 24, 2025
0 replies
3725 views

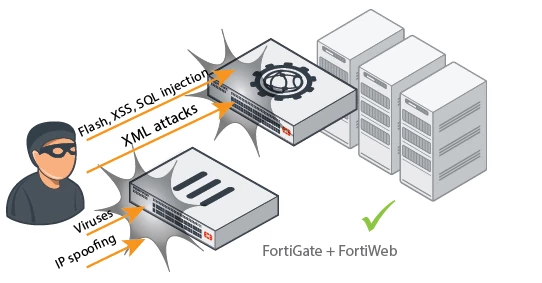

While AWS provides a strong foundation of native security tools, organizations often seek additional layers of protection to meet specific compliance, visibility, or threat prevention needs. This is where FortiGate and FortiWeb solutions come into play. FortiGate is Fortinet’s flagship Next-Generation Firewall (NGFW) solution, designed to provide comprehensive, intelligent, and high-performance security for network whether on-premises, in the cloud, or across hybrid environments like AWS, offers advanced threat protection, secure VPN access, and deep traffic inspection, making it ideal for securing VPCs and hybrid cloud environments, for this scenario securing network traffic to and from fargate tasks by inspecting traffic at the VPC level, enforcing segmentation, and blocking malicious activity through deep packet inspection and threat intelligence. Meanwhile, FortiWeb is a specialized web application firewall (WAF) designed to protect web applications such as Fargate-hosted APIs and web services or applications from known and unknown threats, including OWASP Top 10 vulnerabilities, bot attacks, and zero-day exploits. Both solutions integrate seamlessly with AWS infrastructure, offering auto-scaling, centralized management, and support for automation via AWS CloudFormation and Terraform. By incorporating FortiGate and FortiWeb into your cloud-native architecture, you can significantly enhance your security posture and ensure consistent protection across your workloads.

This article is the initial part of a broader blog series focused on securing diverse workloads in AWS using Fortinet solutions. Each post in the series explores how FortiGate and FortiWeb can be applied to different AWS services and architectures from traditional EC2 instances to serverless functions (lambda) and containers (ECS and Fargate). Whether you're running microservices on Fargate, APIs on Lambda, or Kubernetes clusters on EKS, this series provides practical insights and architectural guidance to help you build a consistent and resilient security posture across your cloud environment.

The following diagrams are the proposed infrastructure to completely protect your ECS fargate application

Use case 1

This diagram illustrates the recommended security architecture for applications that include file upload functionality. To ensure robust protection against potential threats, it is advised to deploy a FortiGate firewall at the network perimeter, positioned in front of the internet-facing interface. This setup acts as the first line of defense, including deep inspection of uploaded files, preventing attacks using file-based exploits targeted to application servers or containers, filtering and inspecting incoming traffic before it reaches the FortiWeb web application firewall. FortiWeb then provides specialized protection for web applications, to safeguard against web-based attacks such as malware injection, cross-site scripting (XSS), botnet protection and SQL injection. Together, FortiGate and FortiWeb form a layered security approach that significantly enhances the resilience of applications handling file uploads.

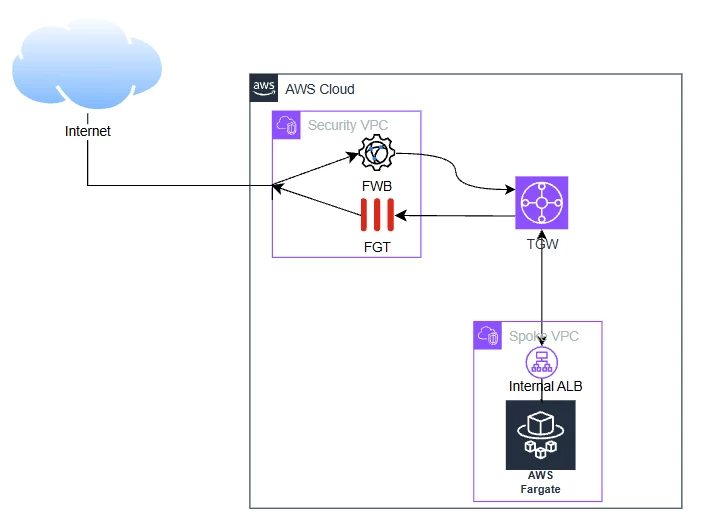

Use case 2

Below diagram presents a use case focused on securing both outbound and inbound traffic in a containerized environment using AWS Fargate. For outbound traffic originating from Fargate containers to the internet, FortiGate is deployed to provide advanced threat protection, traffic filtering, and policy enforcement, ensuring that only safe and authorized communications are allowed to specific URLs. Simultaneously, for inbound traffic targeting web applications, FortiWeb is positioned to deliver specialized web application firewall (WAF) capabilities. It inspects and protects against common web threats as said earlier such as SQL injection, cross-site scripting (XSS), and other OWASP Top 10 vulnerabilities. This dual-layered approach ensures comprehensive security coverage for both egress and ingress traffic in modern cloud-native application architectures.

The previously discussed use cases are all built upon a foundational architecture that aligns with industry best practices for securing modern applications. This approach emphasizes layered security, combining FortiGate for network-level protection and FortiWeb for application-layer defense. By following this model, organizations can significantly reduce their exposure to both known and emerging threats.

The following steps are for reference only:

Deploy your Fargate application: Creating an application using AWS Fargate involves several steps, typically within the context of Amazon ECS (Elastic Container Service) or Amazon EKS (Elastic Kubernetes Service). Here's a high-level overview of the steps using Amazon ECS with Fargate, which is the most common approach:
- Develop your application and containerize it using Docker.
  - Clone the example repo using github desktop or via cli git clone https://github.com/docker/welcome-to-docker

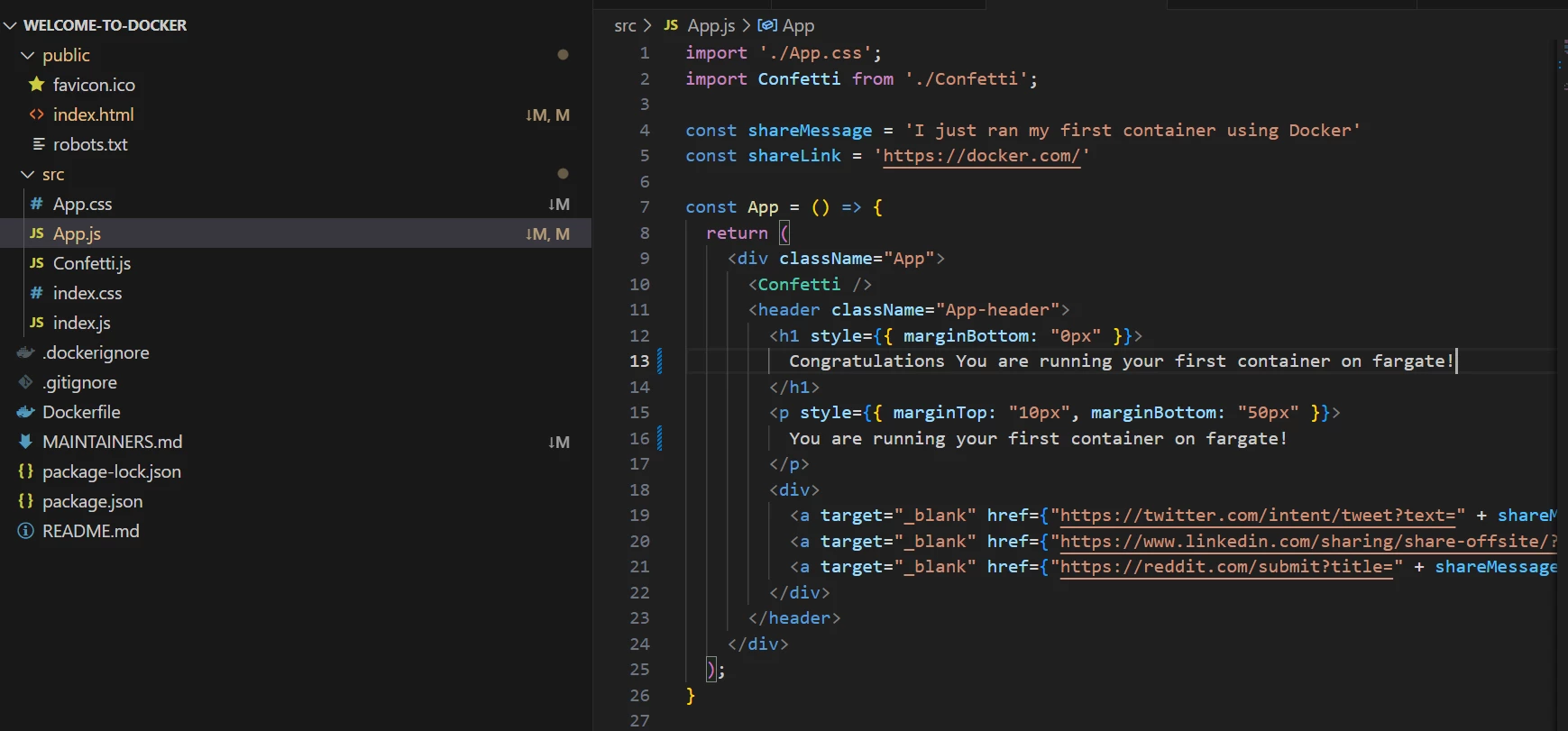

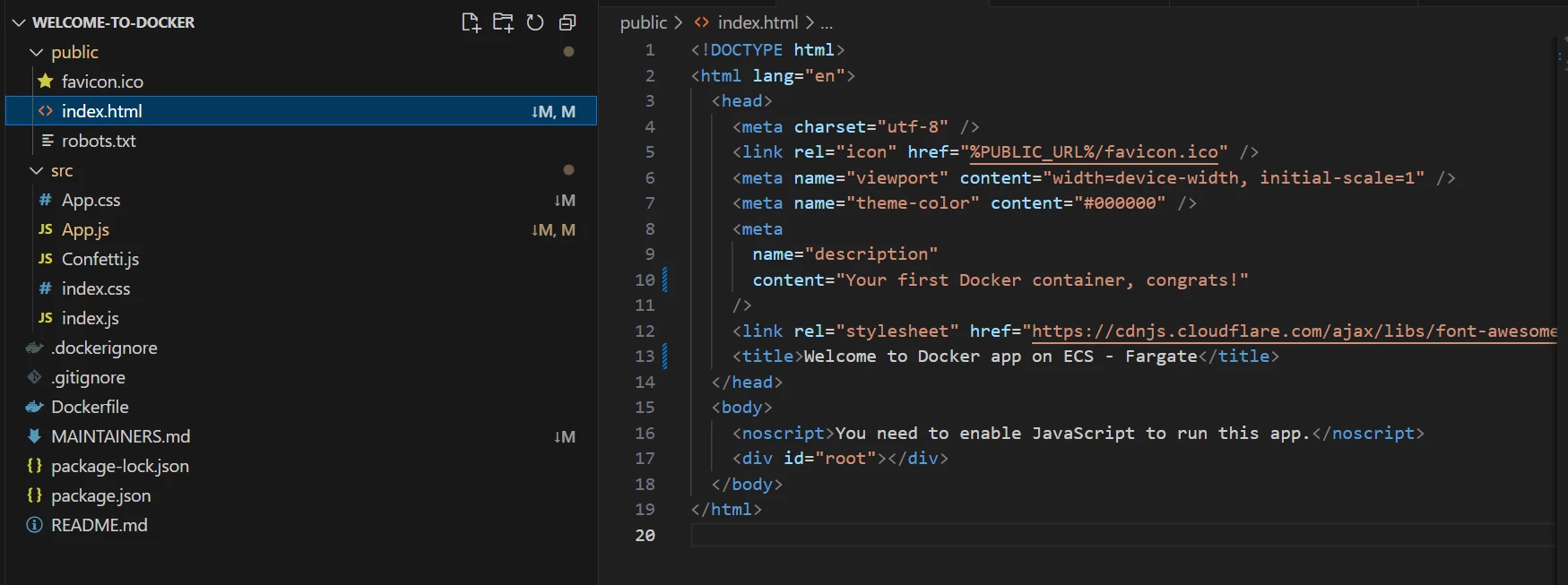

  - Open in Visual Studio Code and modify index.html and scr/App.js files

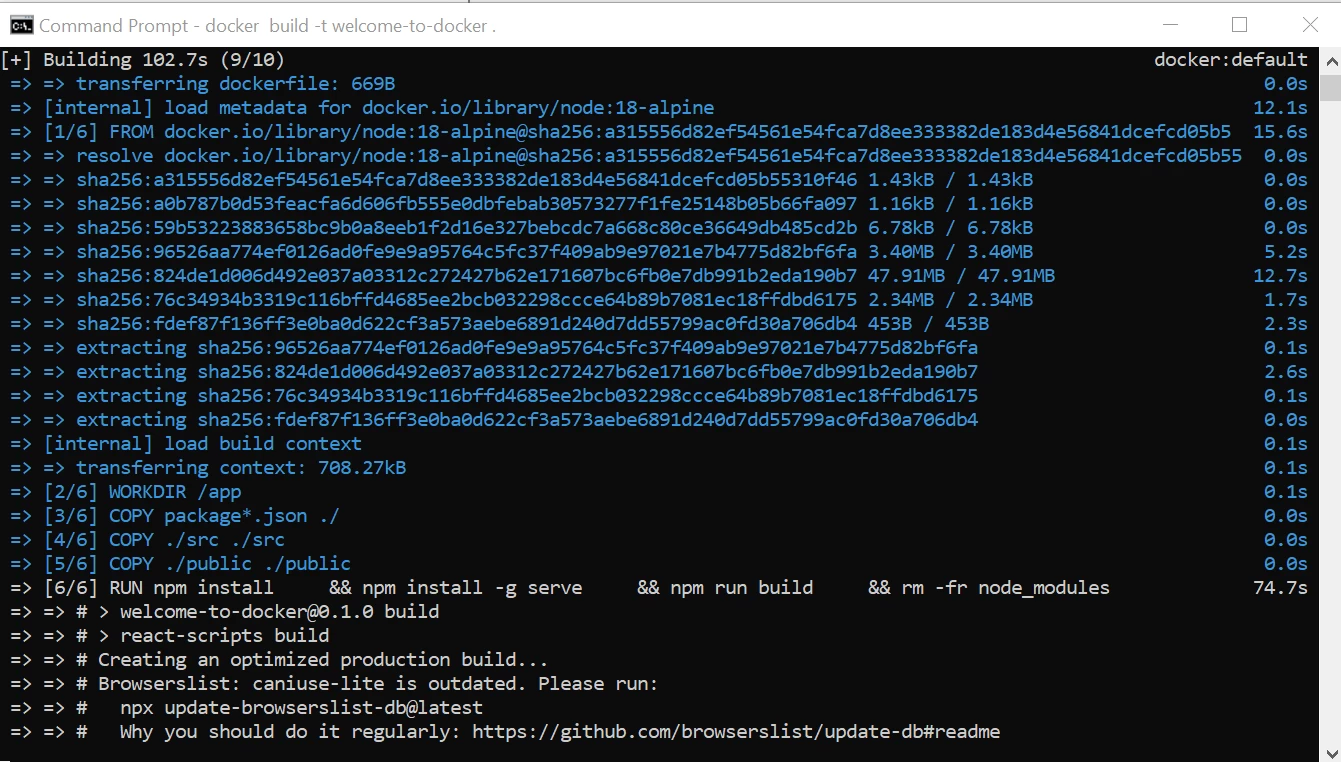

Now build your tailored image using below command:
docker build -t welcome-to-docker .

Next run it and check the frontend application using below command:

docker run -d -p 8088:3000 --name welcome-to-docker welcome-to-docker

Push the image to a container registry like Amazon Elastic Container Registry (ECR)

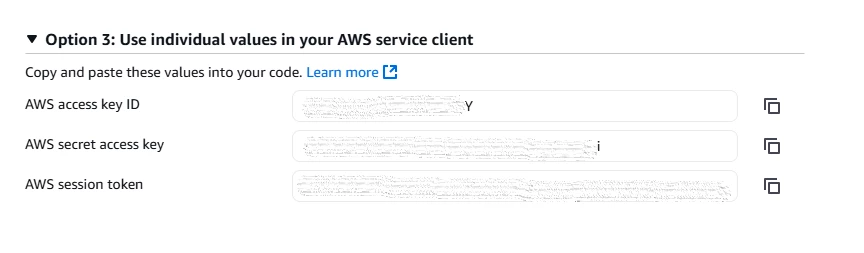

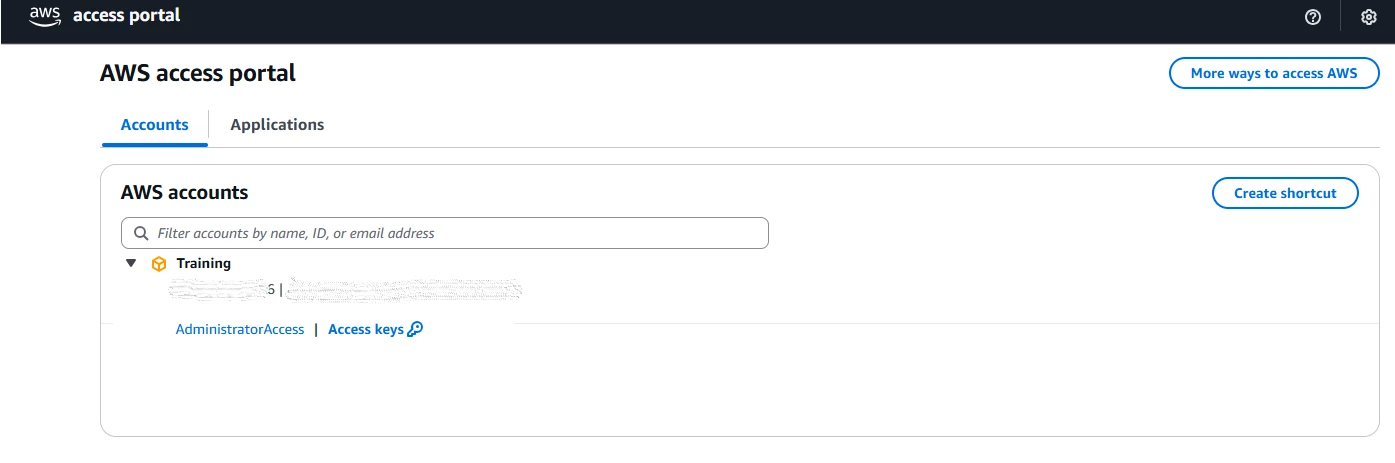

Get credentials for temporary AdministratorAccess

Copy Values the access key and secret access key to configure later

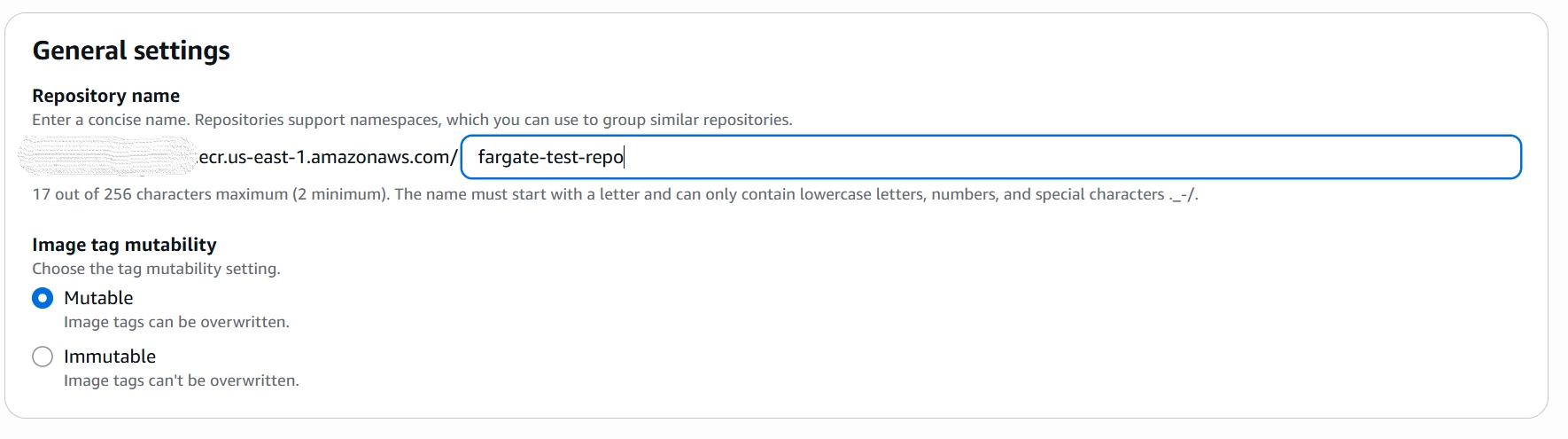

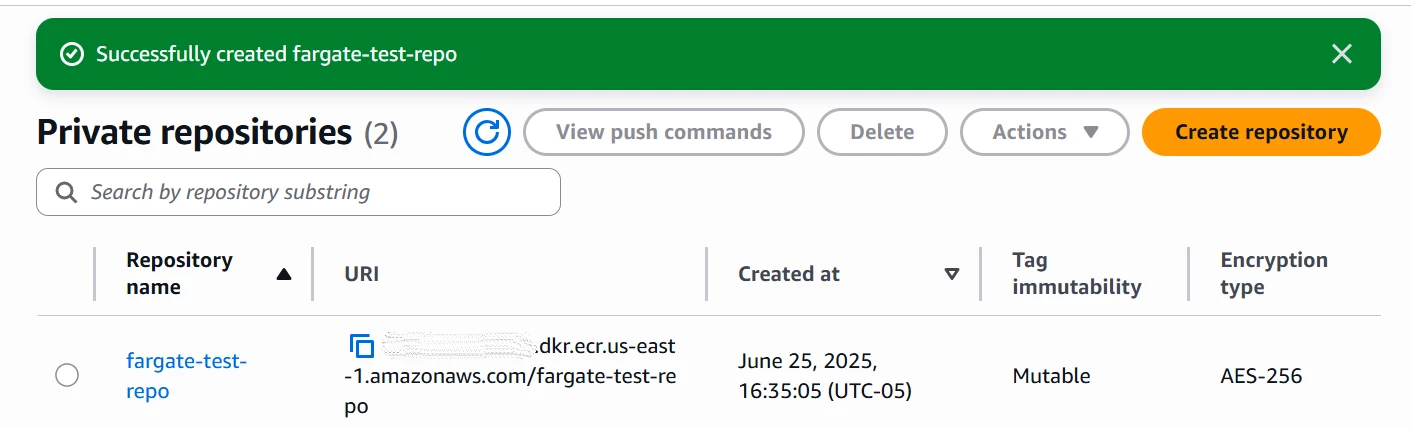

Create a repository

Use on your local machine the following command: aws configure and paste the values as require the configure command

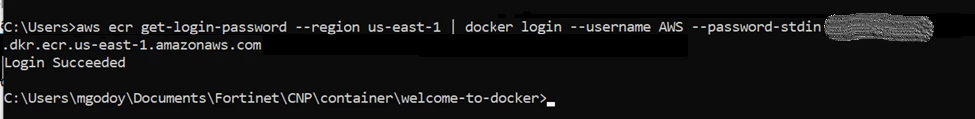

Next, use the following command:
aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin XXXXXXXXXXXX.dkr.ecr.us-east-1.amazonaws.com

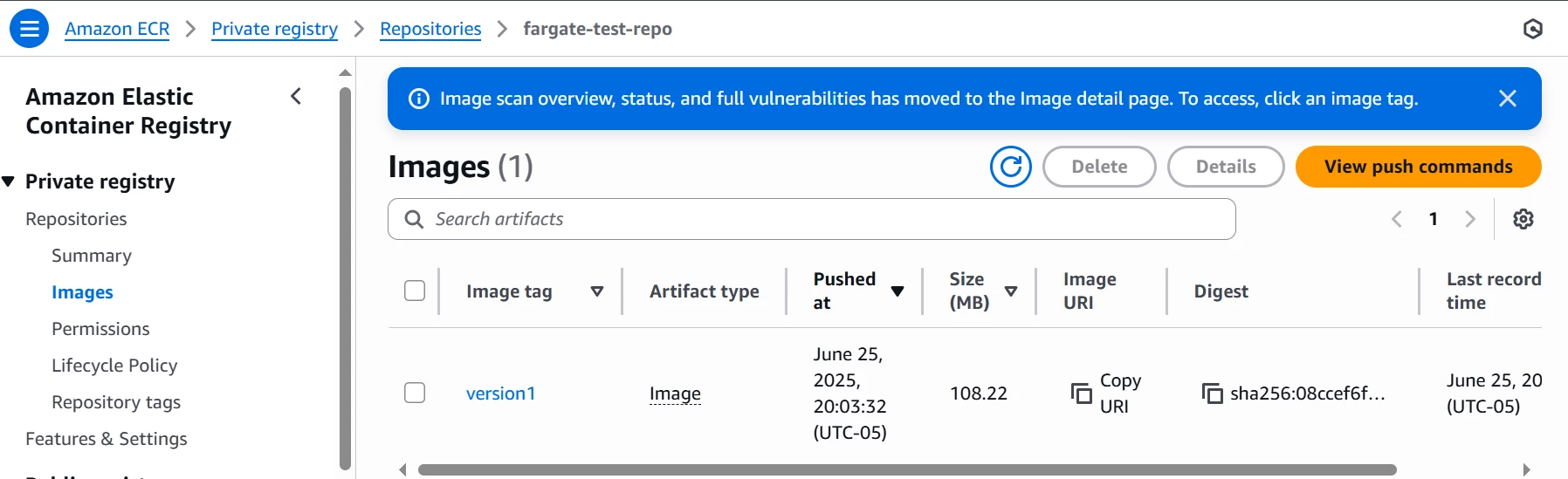

Push the image you have created before, using this command:

docker images

docker tag <tag-id> XXXXXXXXXXXX.dkr.ecr.us-east-1.amazonaws.com/fargate-test-repo:version1

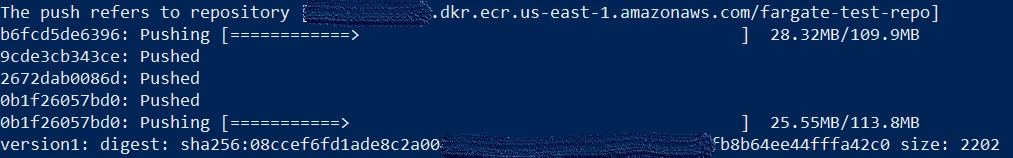

docker push XXXXXXXXXXXX.dkr.ecr.us-east-1.amazonaws.com/fargate-test-repo:version1

Create an ECS cluster and create a Fargate ECS application

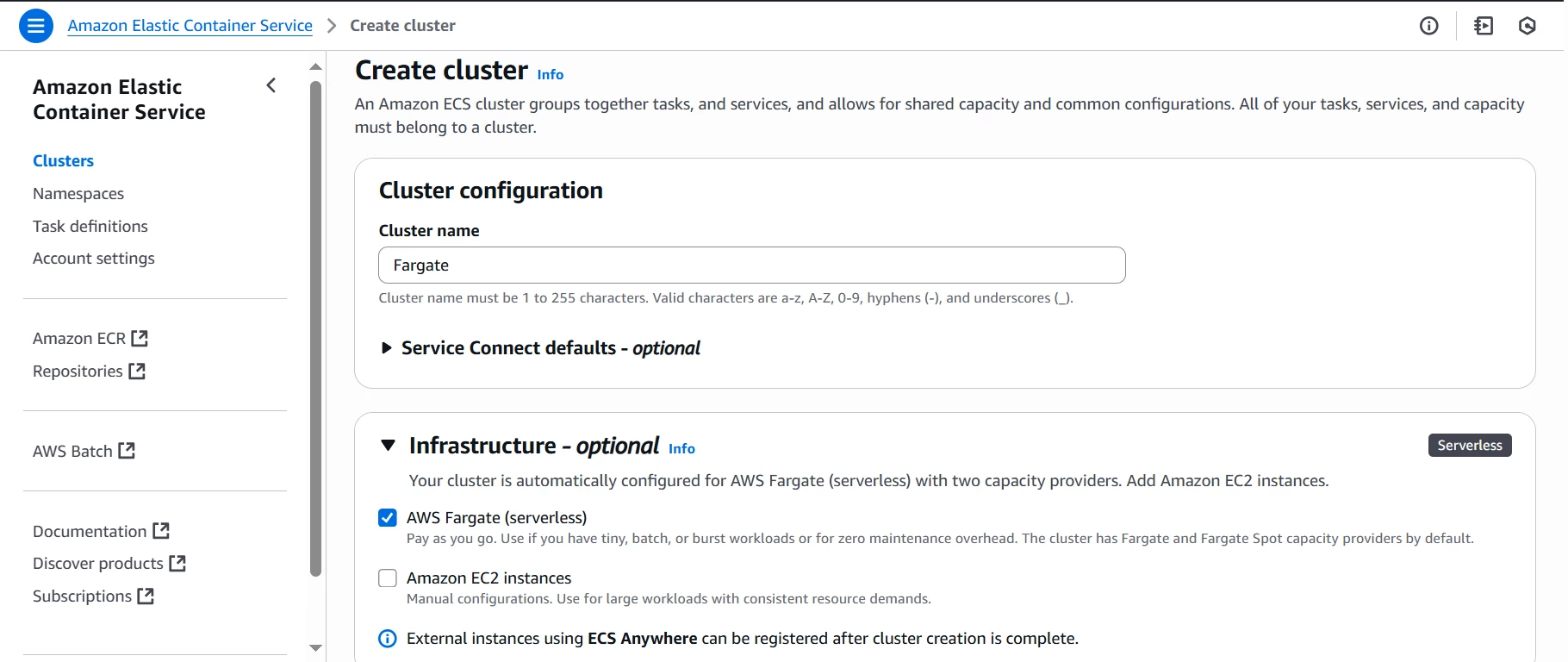

Create an ECS Cluster

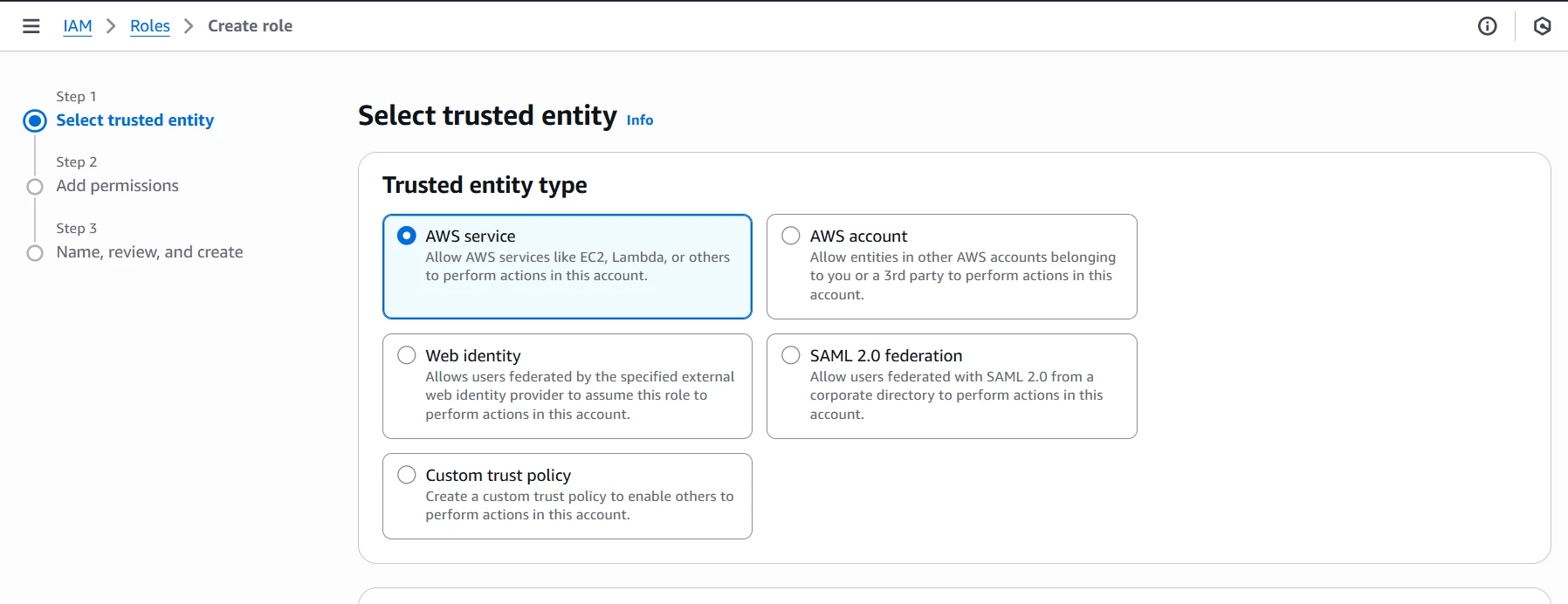

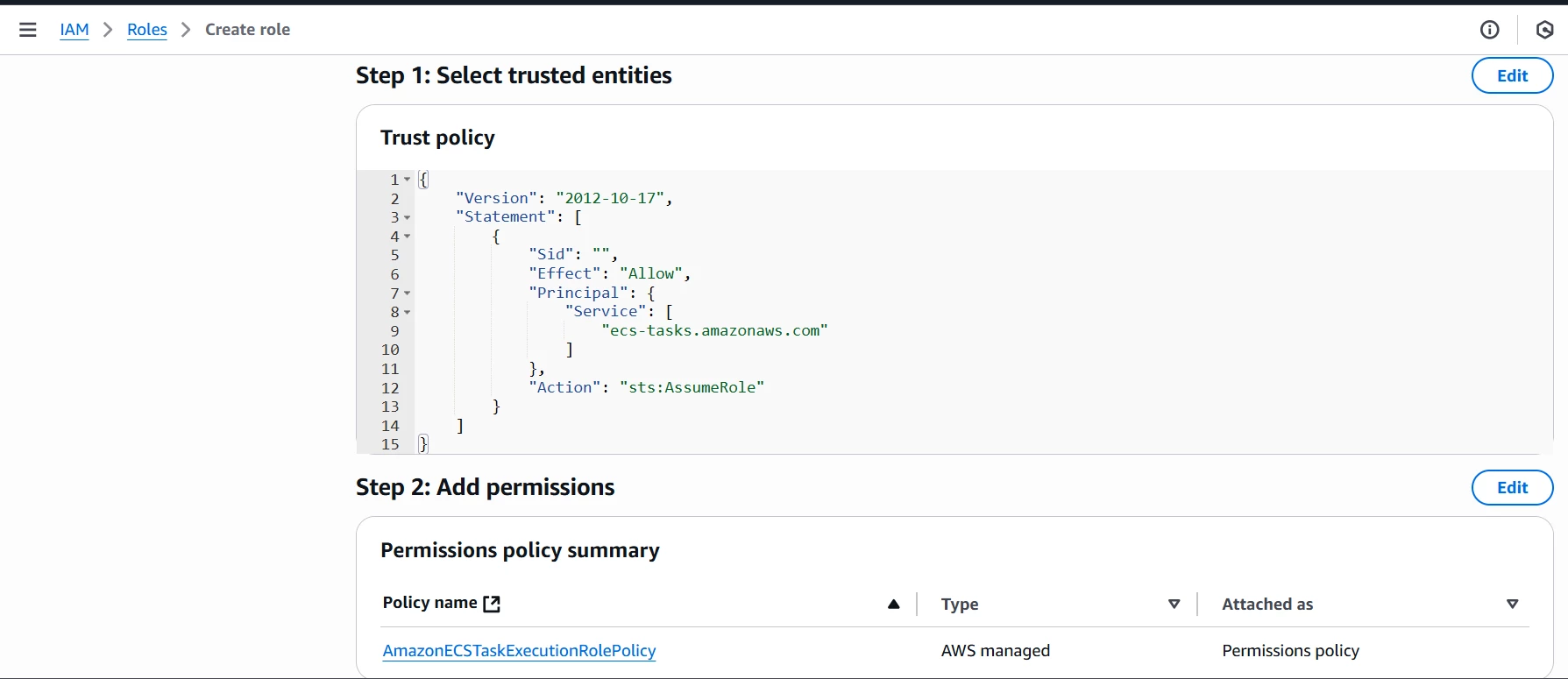

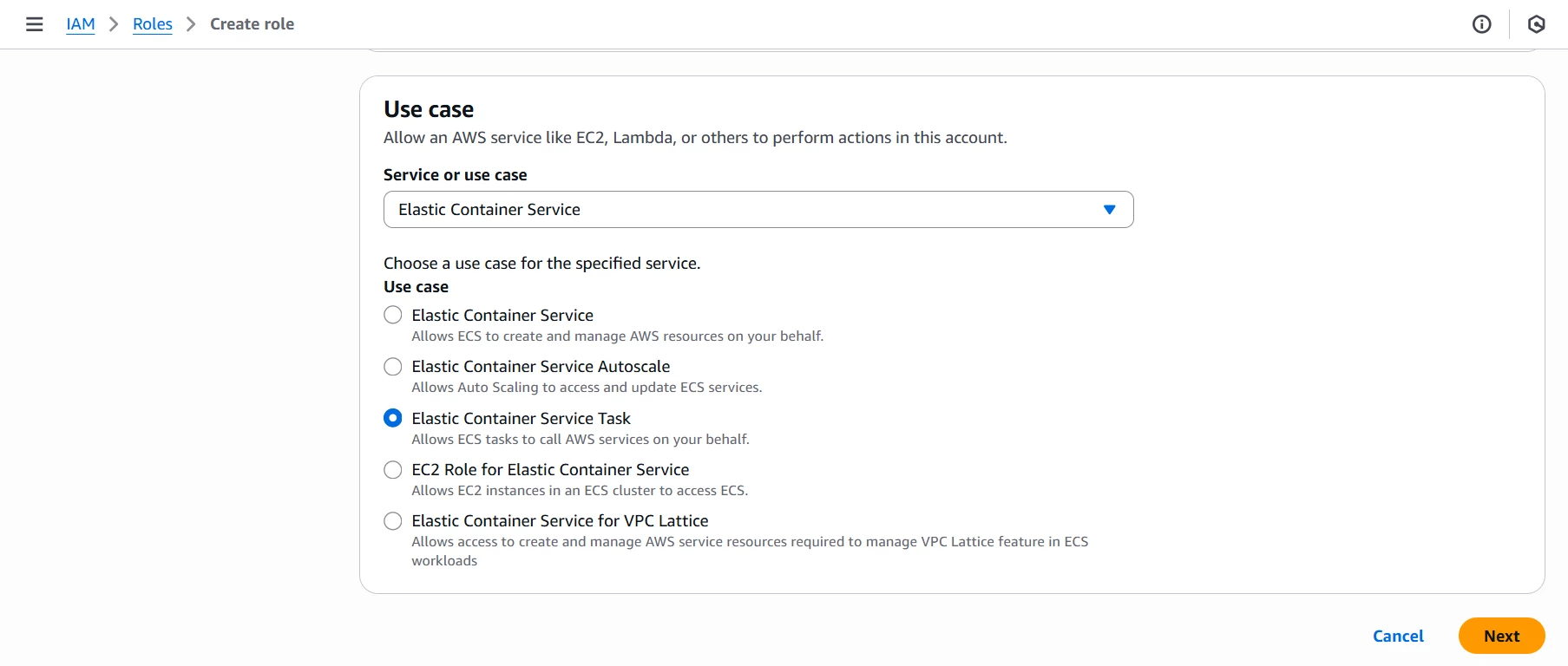

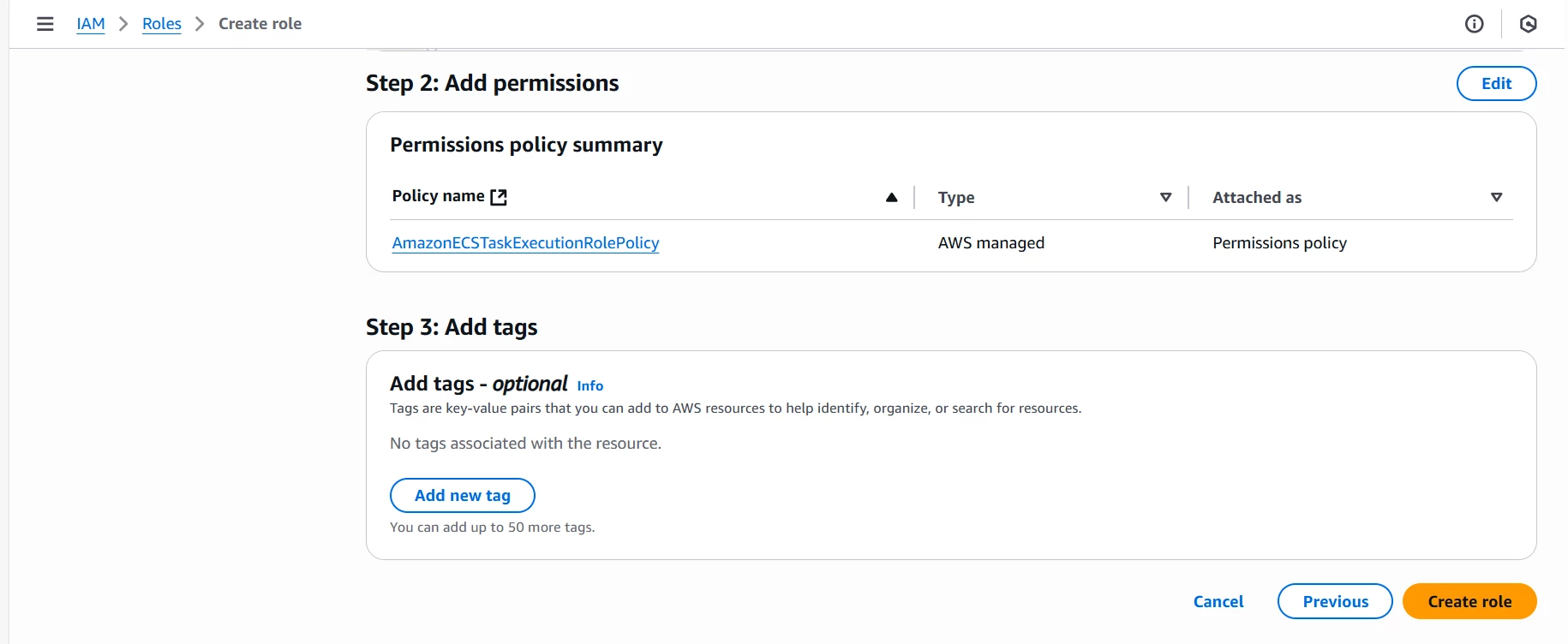

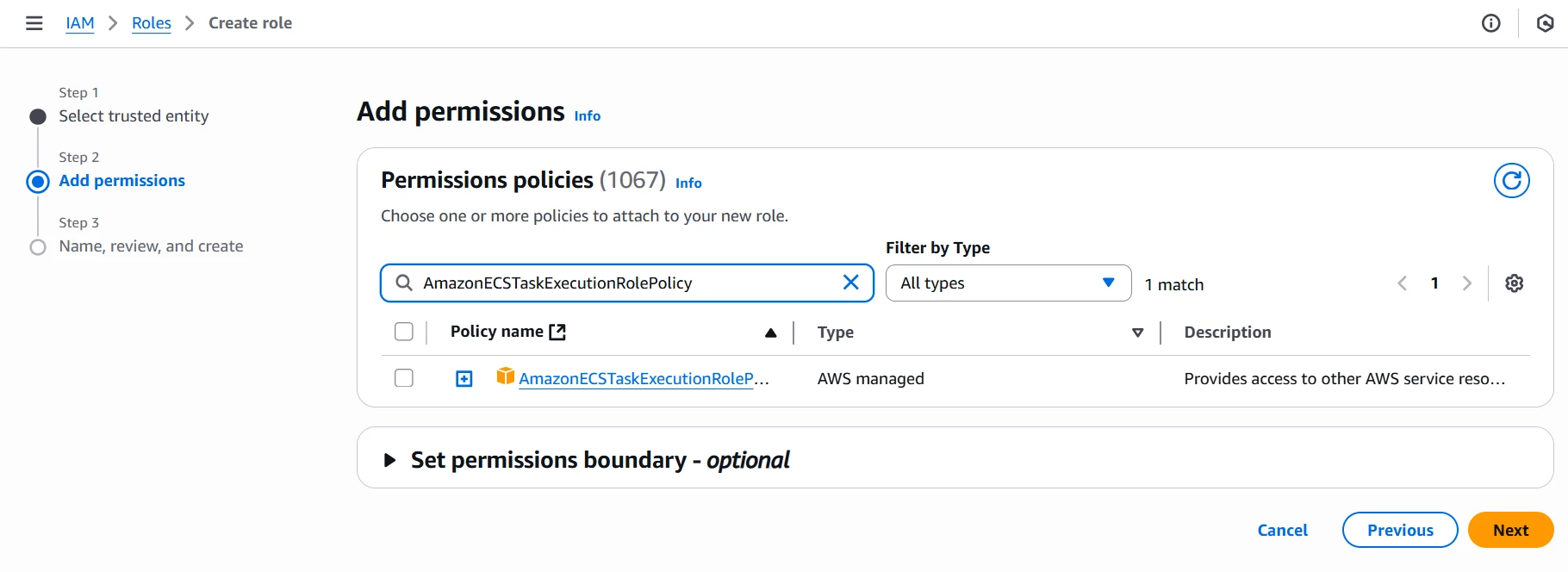

Create a Task Role

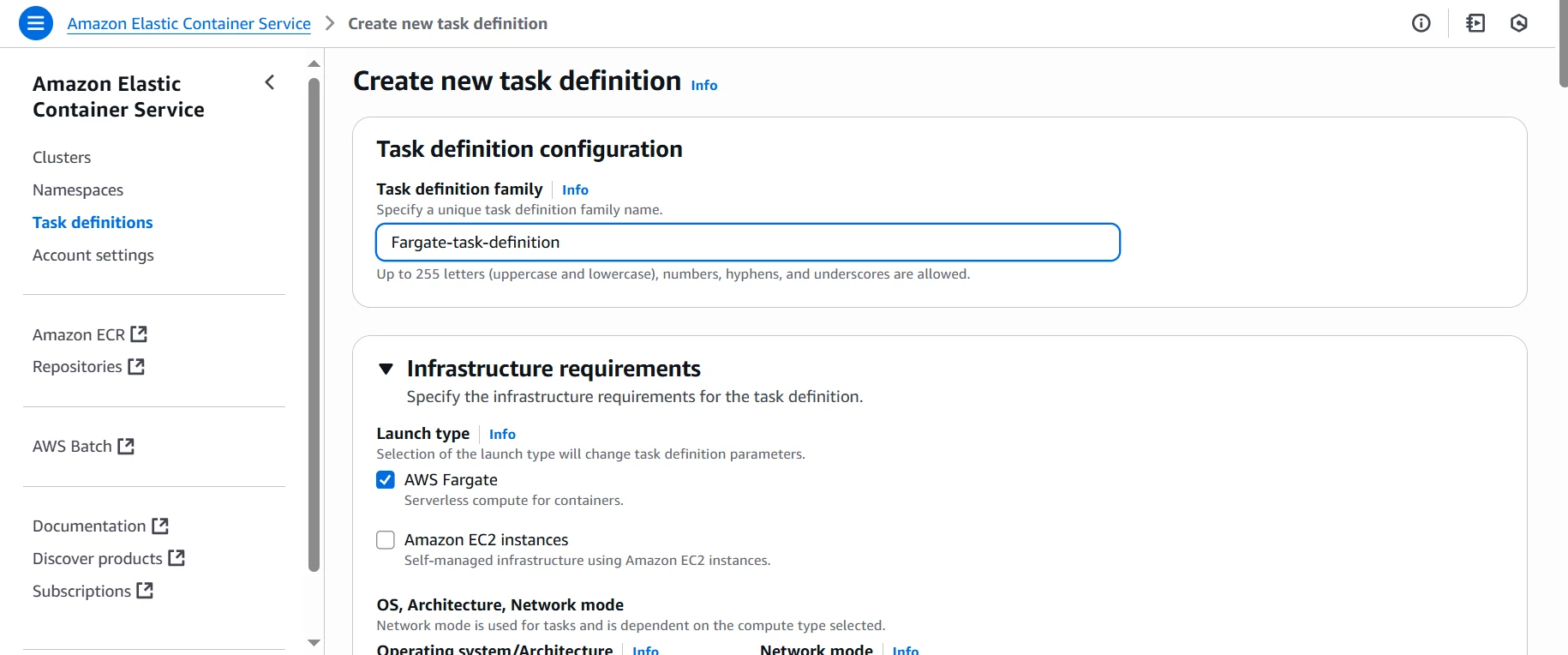

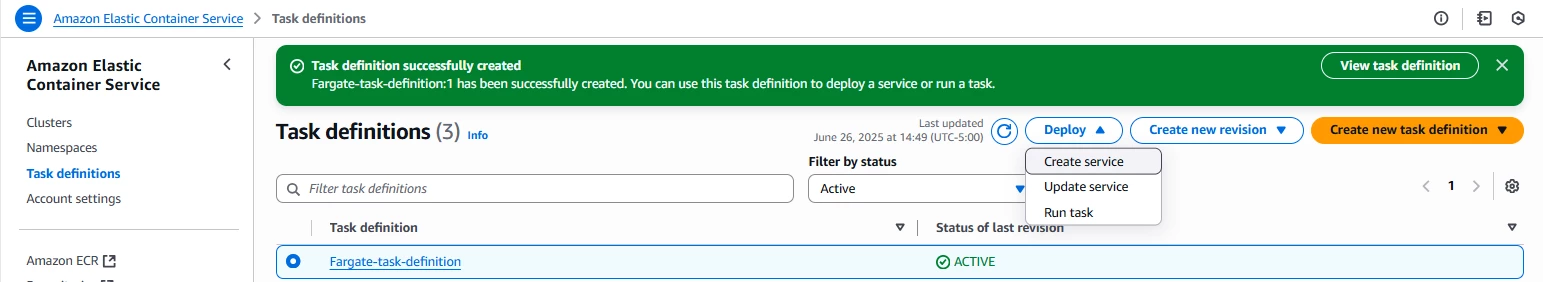

Create a Task Definition

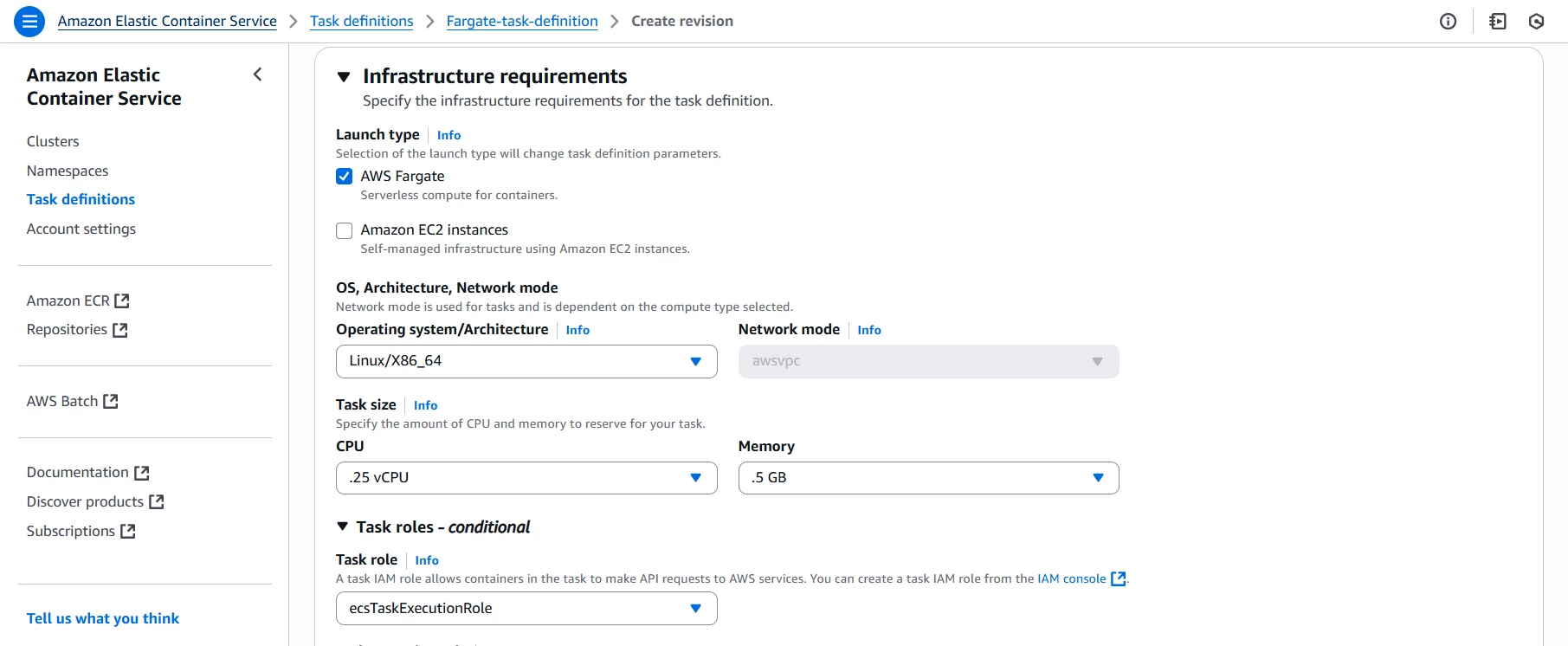

Set Linux/X86_64

Set CPU = .25 vCPU and .5 GB to Memory

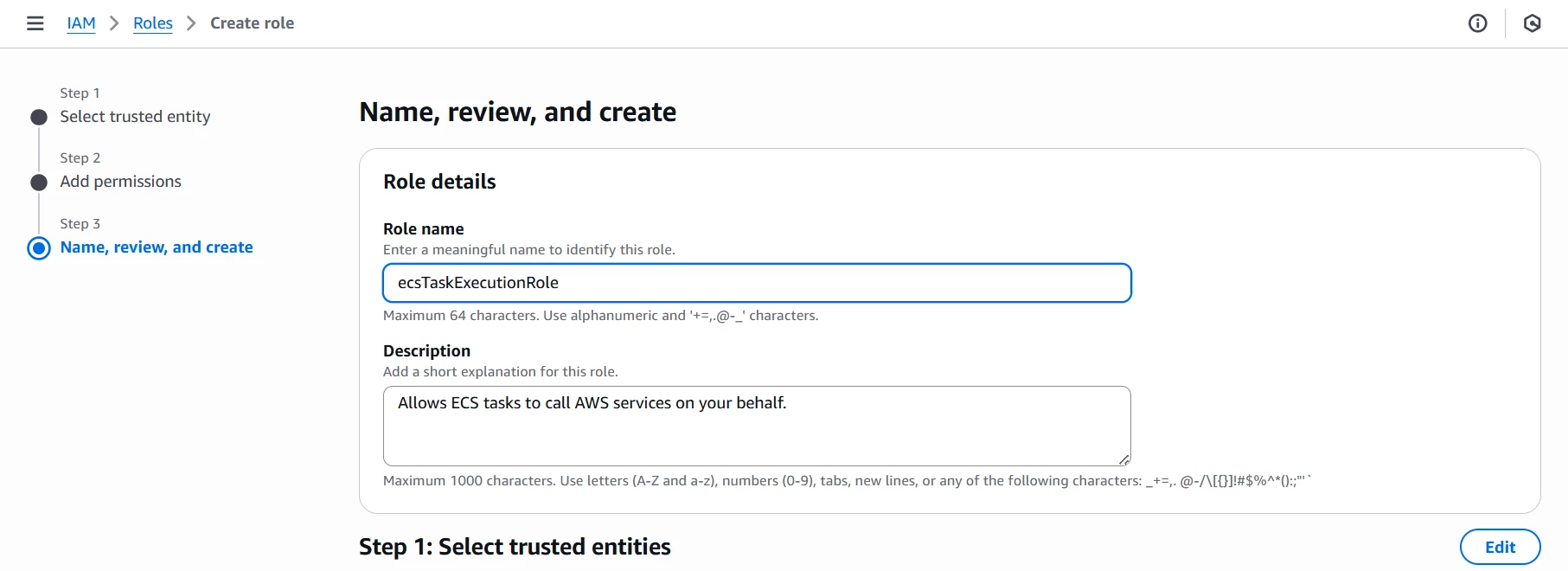

Use ecsTaskExecutionRole

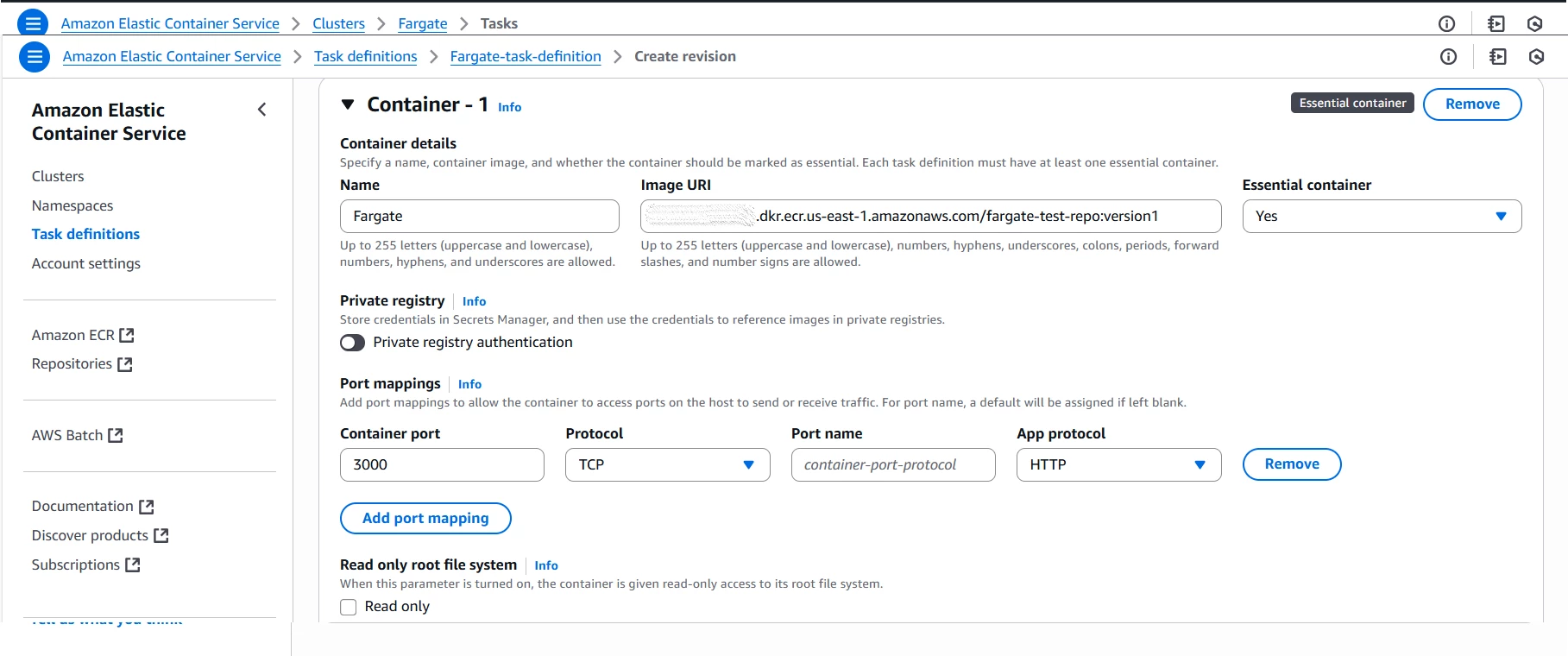

Use image URI XXXXXXXXXXXX.dkr.ecr.us-east-1.amazonaws.com/fargate-test-repo:version1 where XXXXXXXXXX must be replaced by your own account number

Use container port 3000

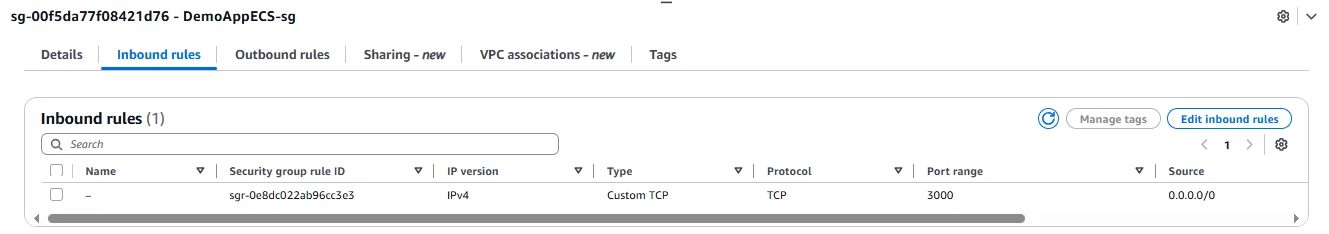

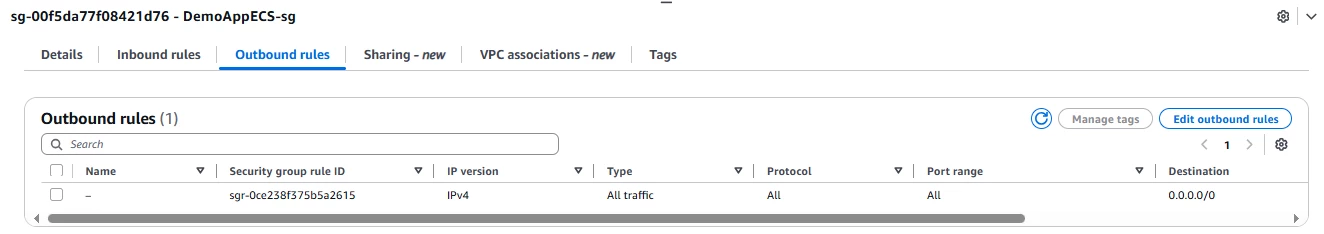

Create security group (named DemoAppECS-sg) allowing TCP 3000 traffic for inbound and all traffic for outbound

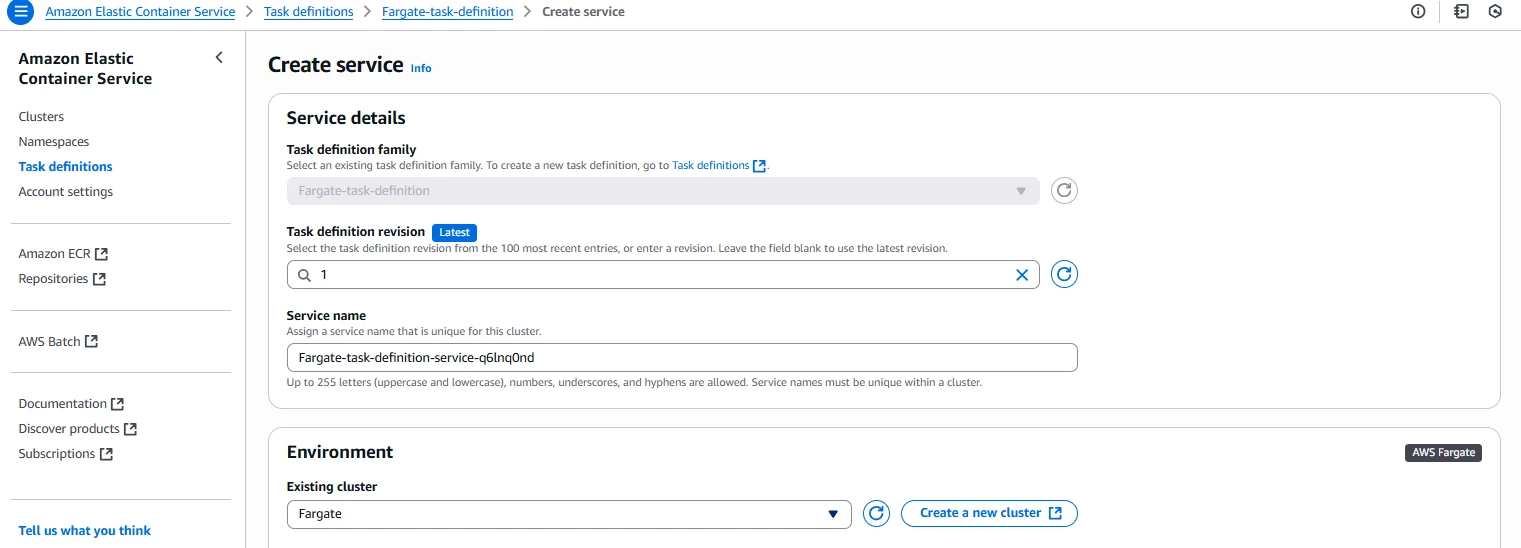

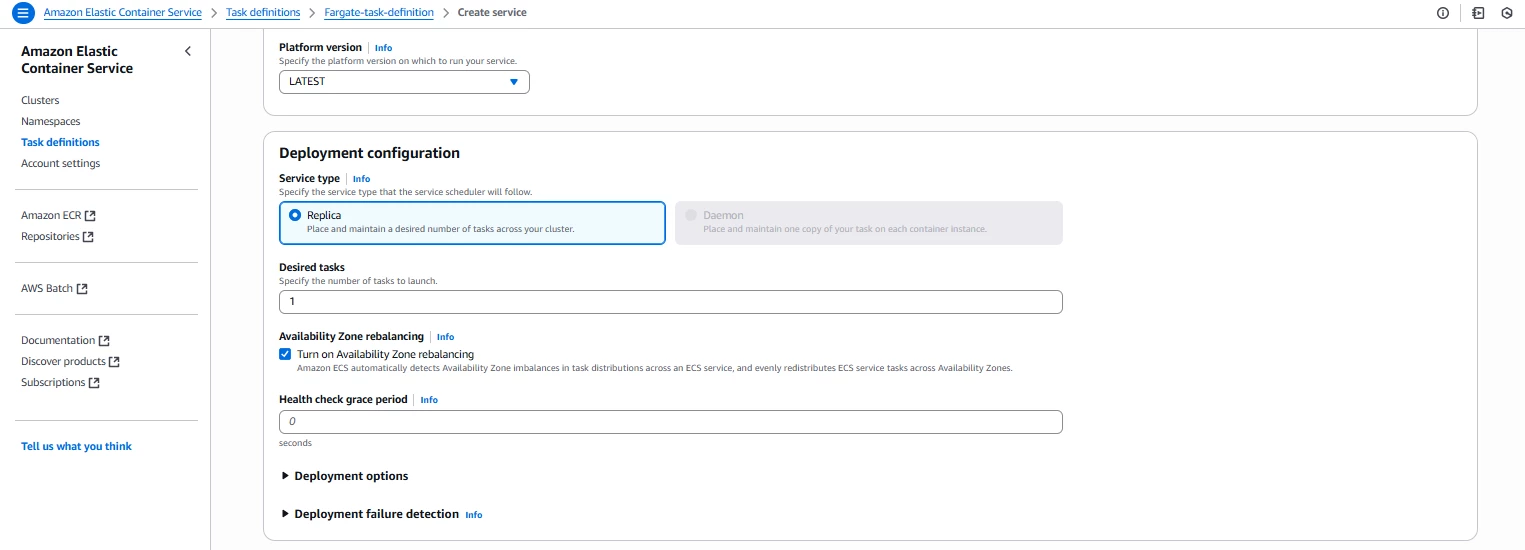

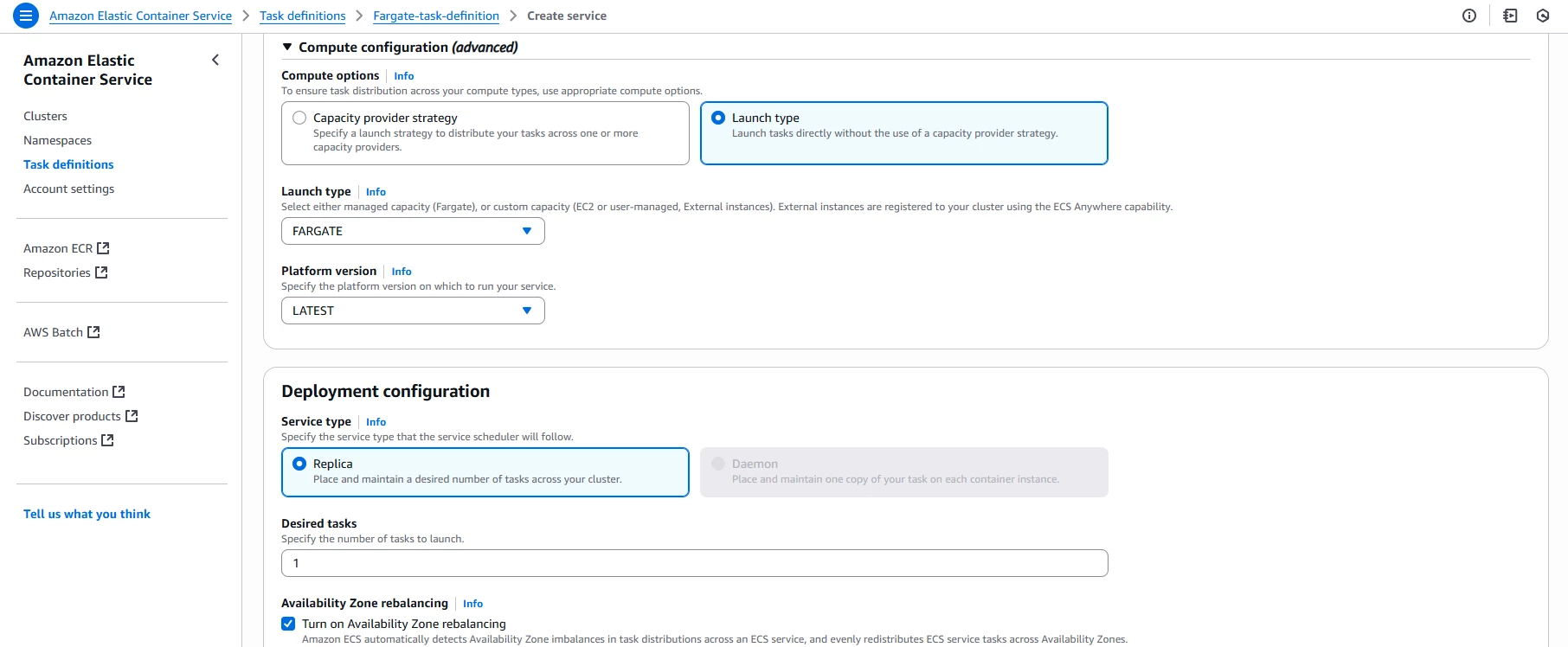

Create a Public service application

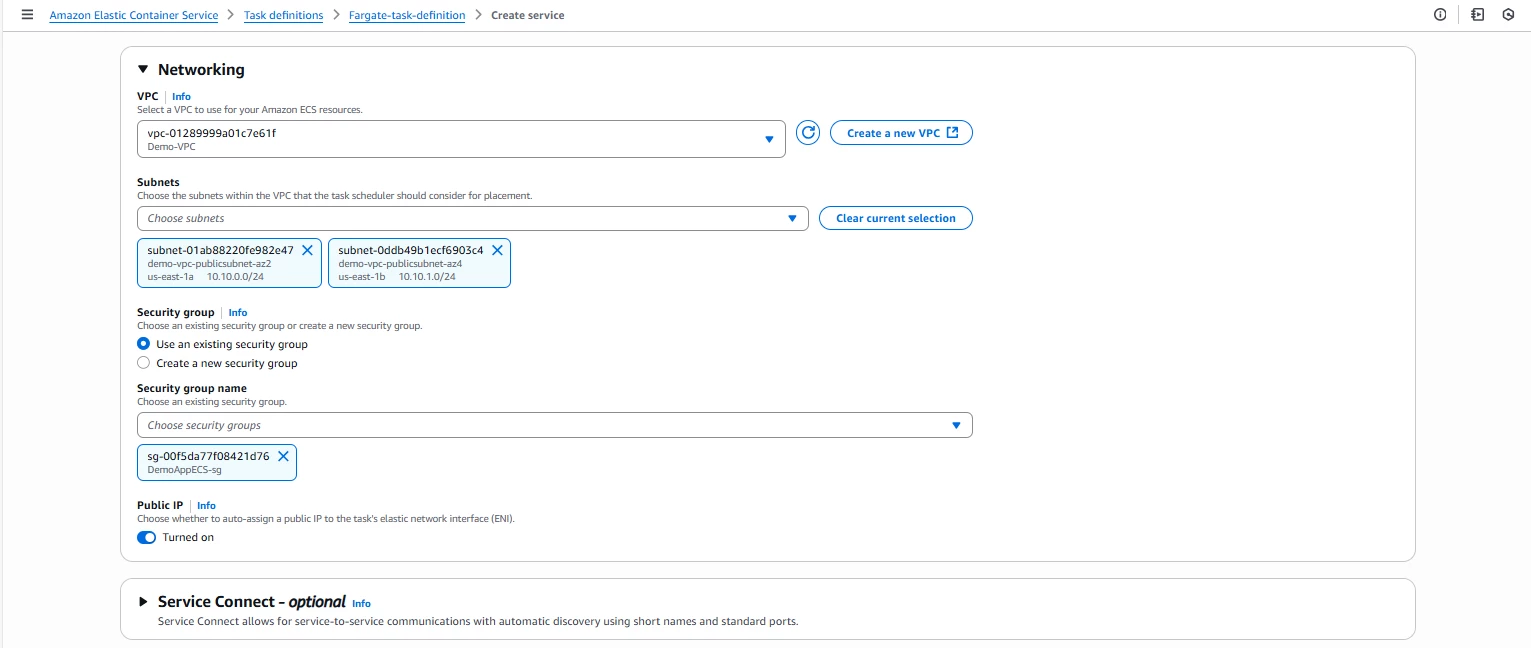

Set the VPC and public subnets, segurity group created previously and turn ON public IP

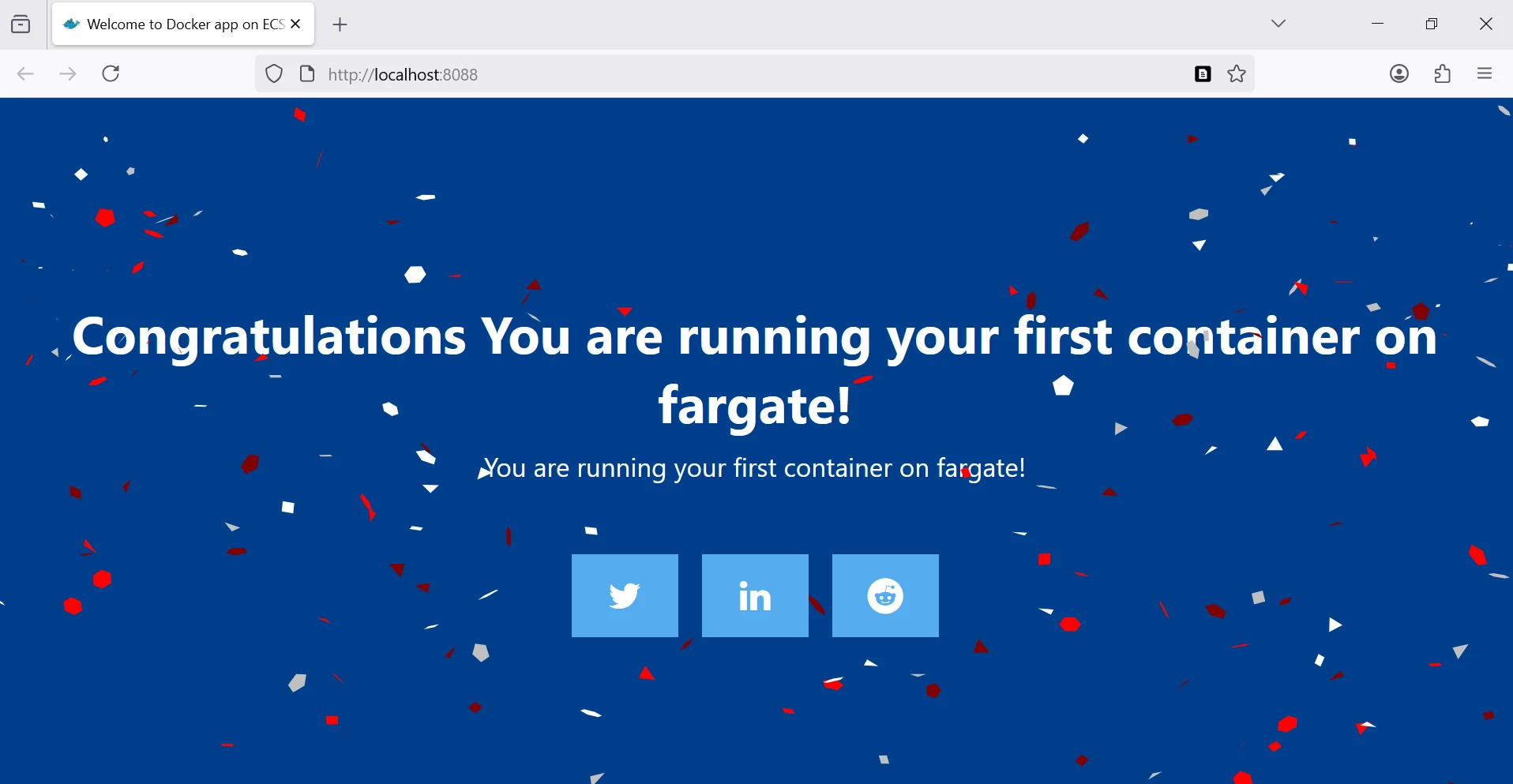

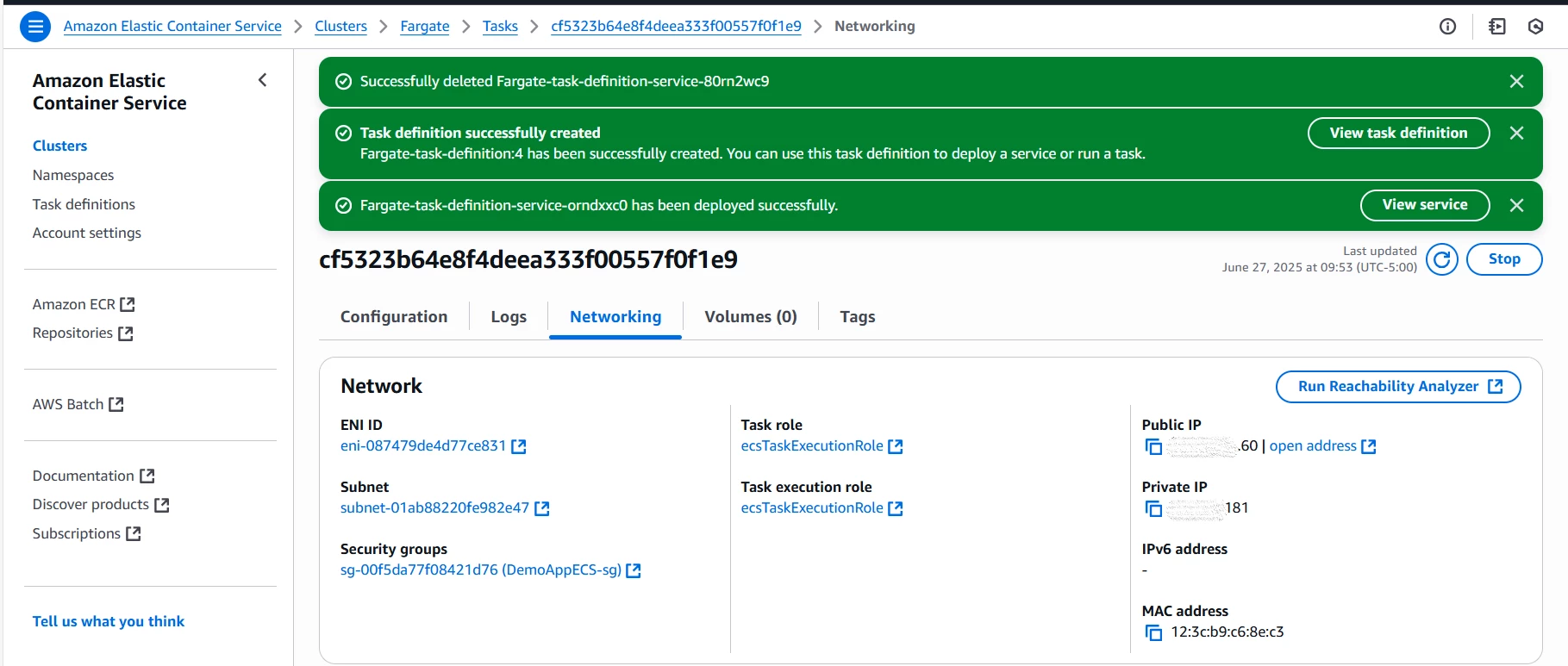

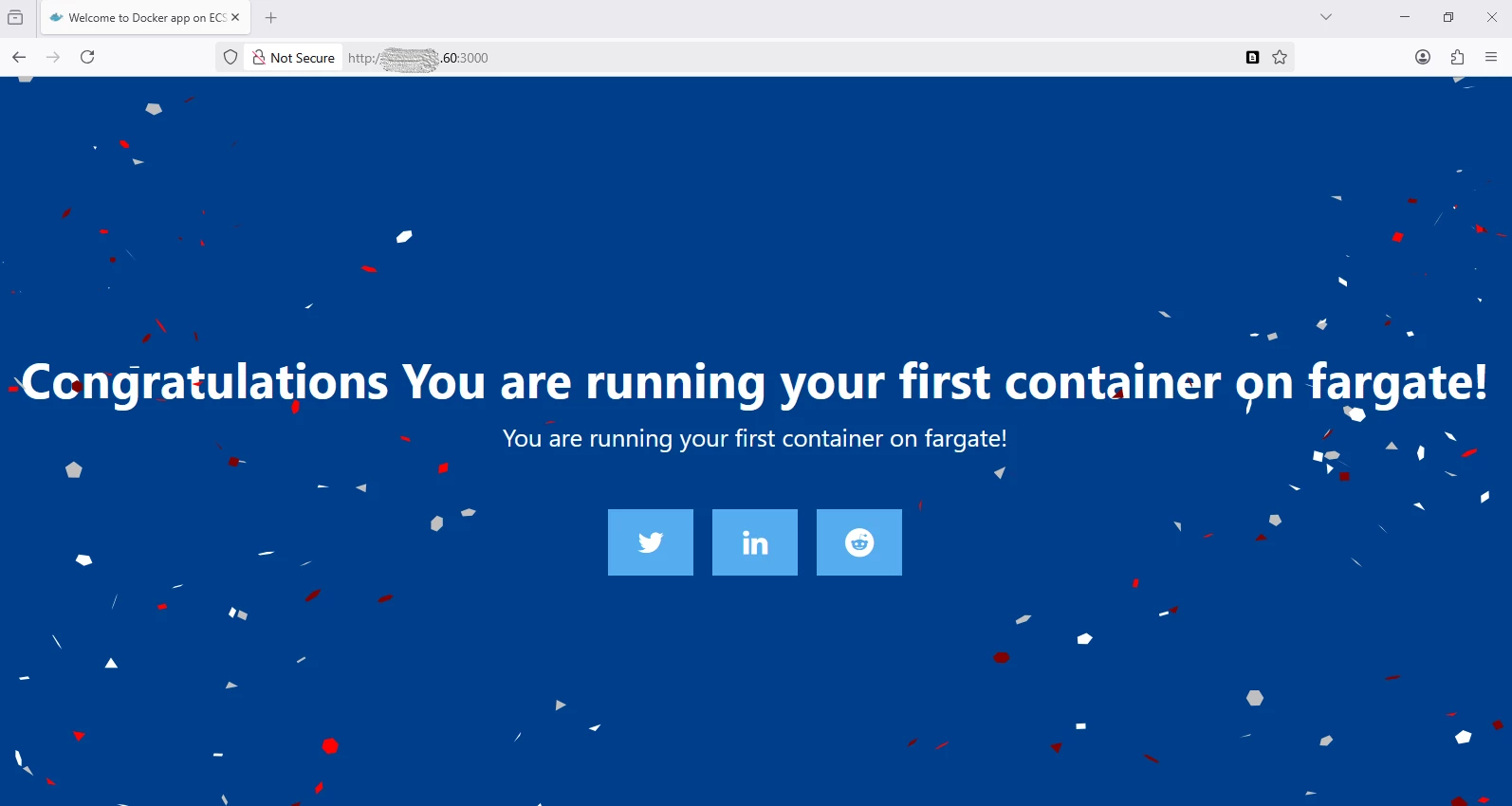

Test Application on your browser (this is public for application checking only, later will be deleted)

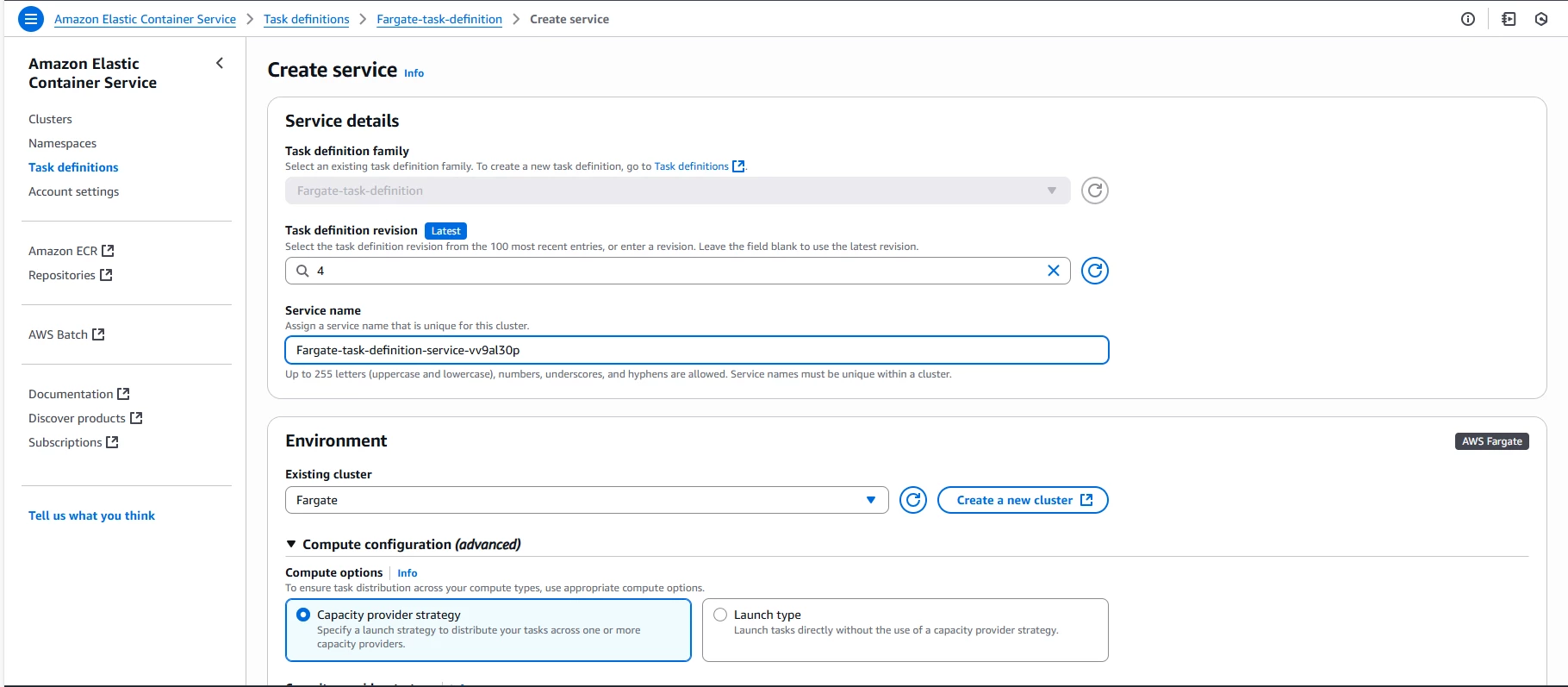

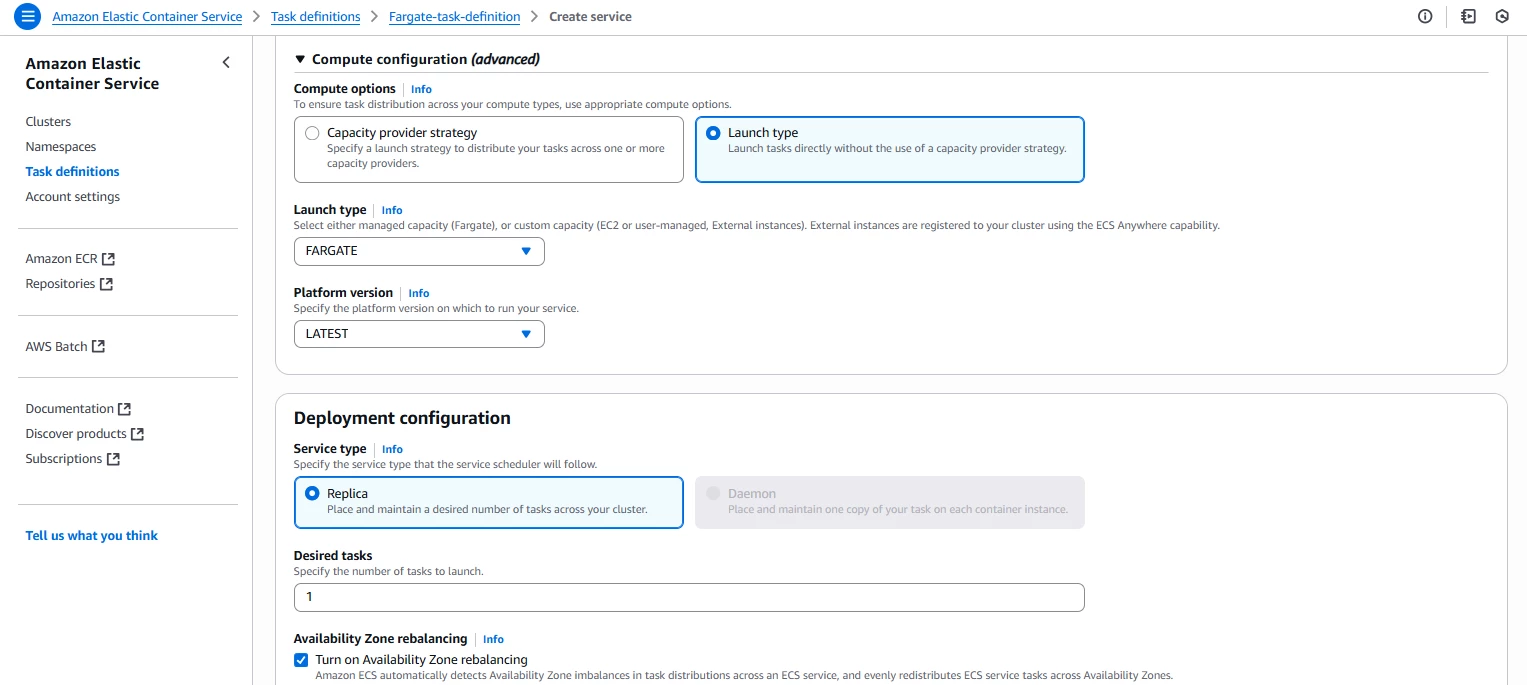

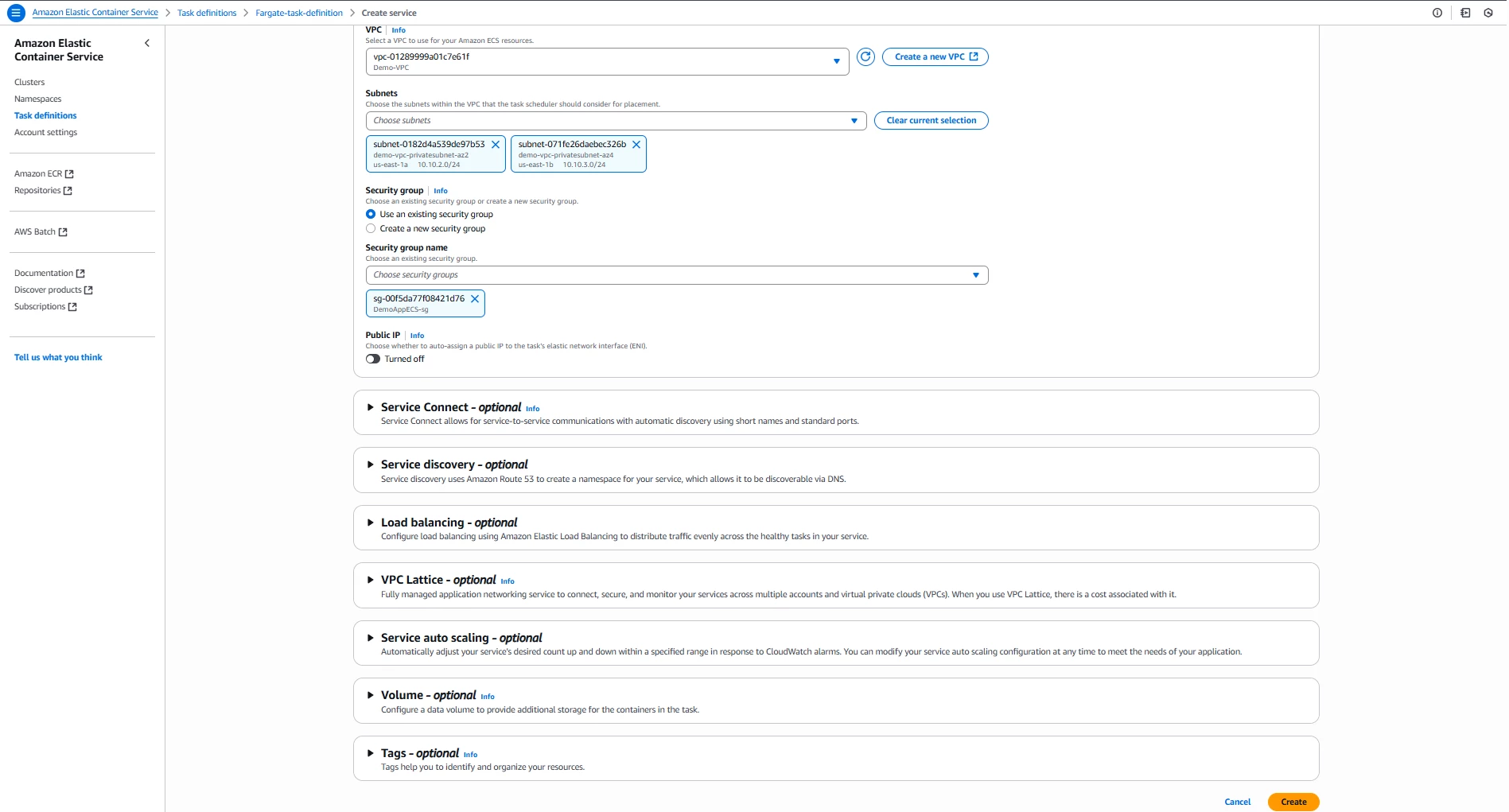

Create a private service application

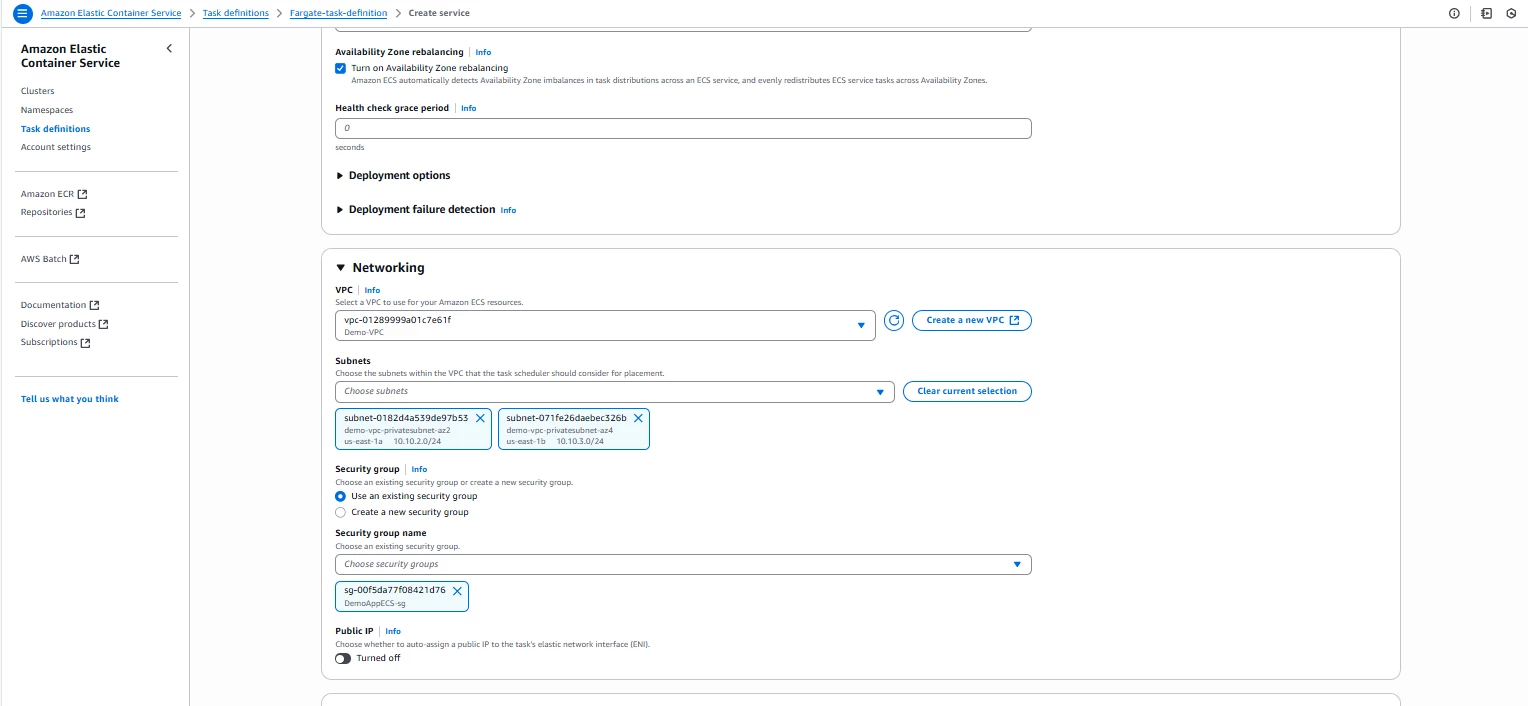

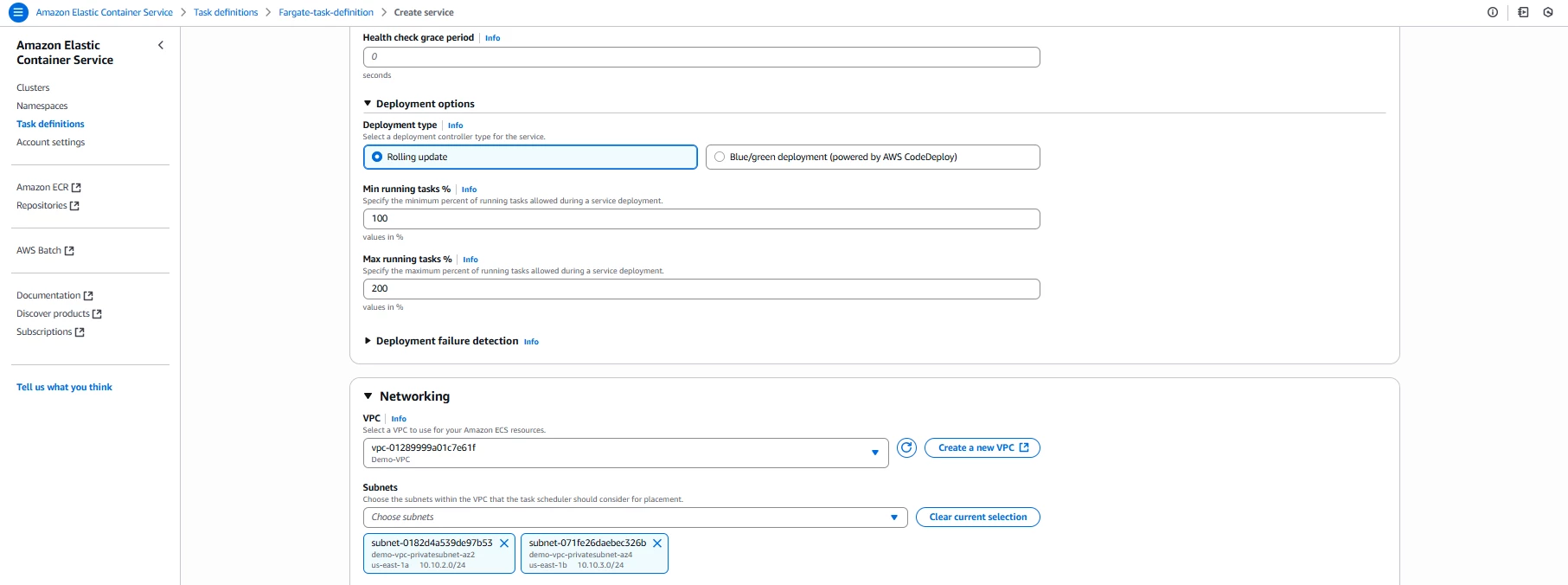

Set the VPC and private subnets, segurity group created previously and turn OFF public IP (for this step you must warranty internet access to private subnets)

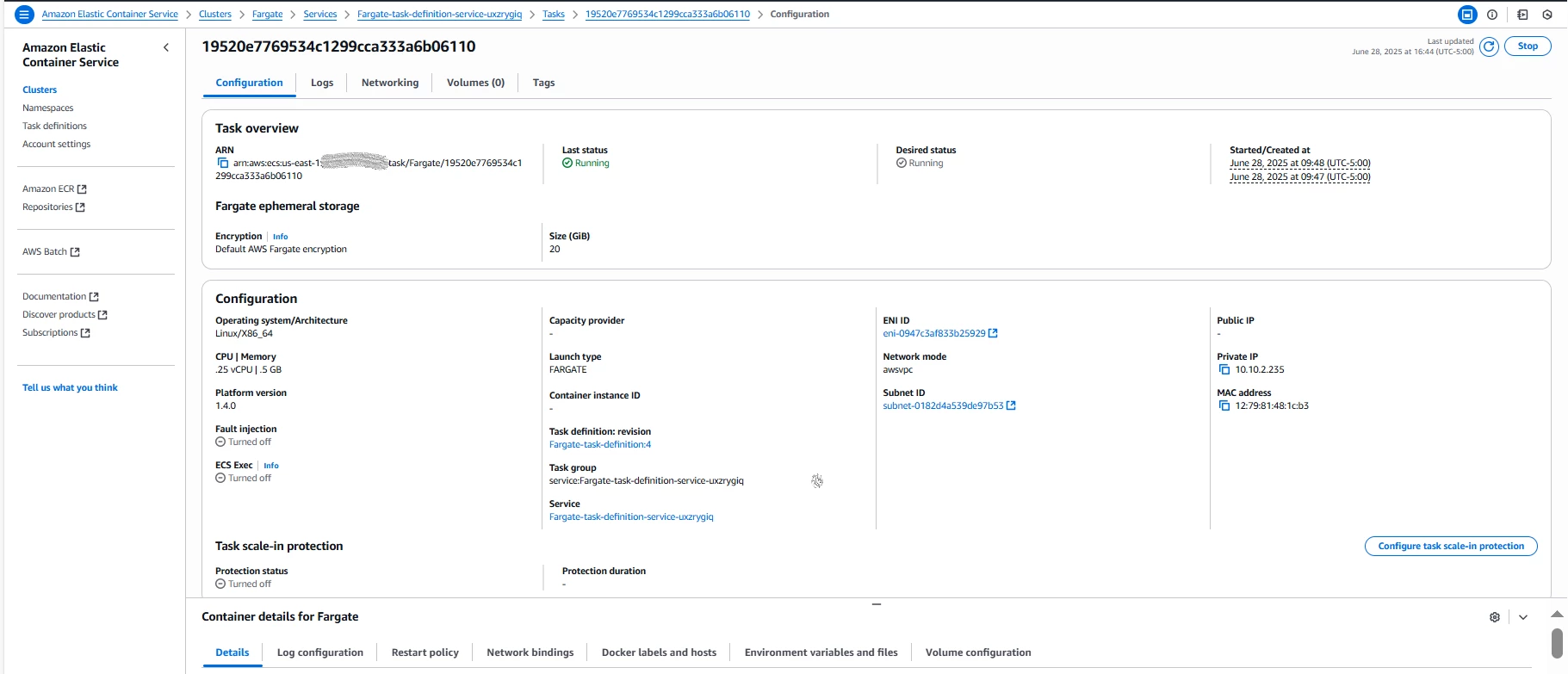

After successful deployment, gather the IP of created container

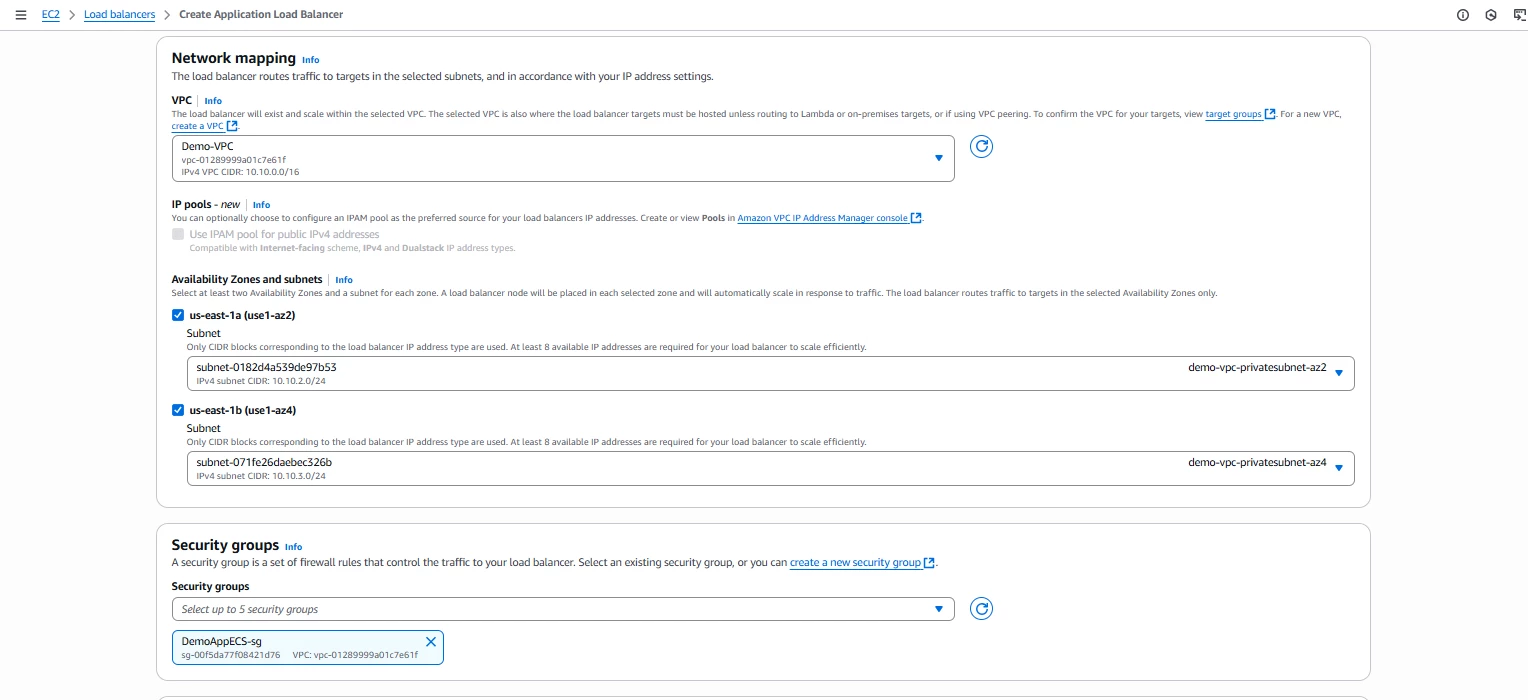

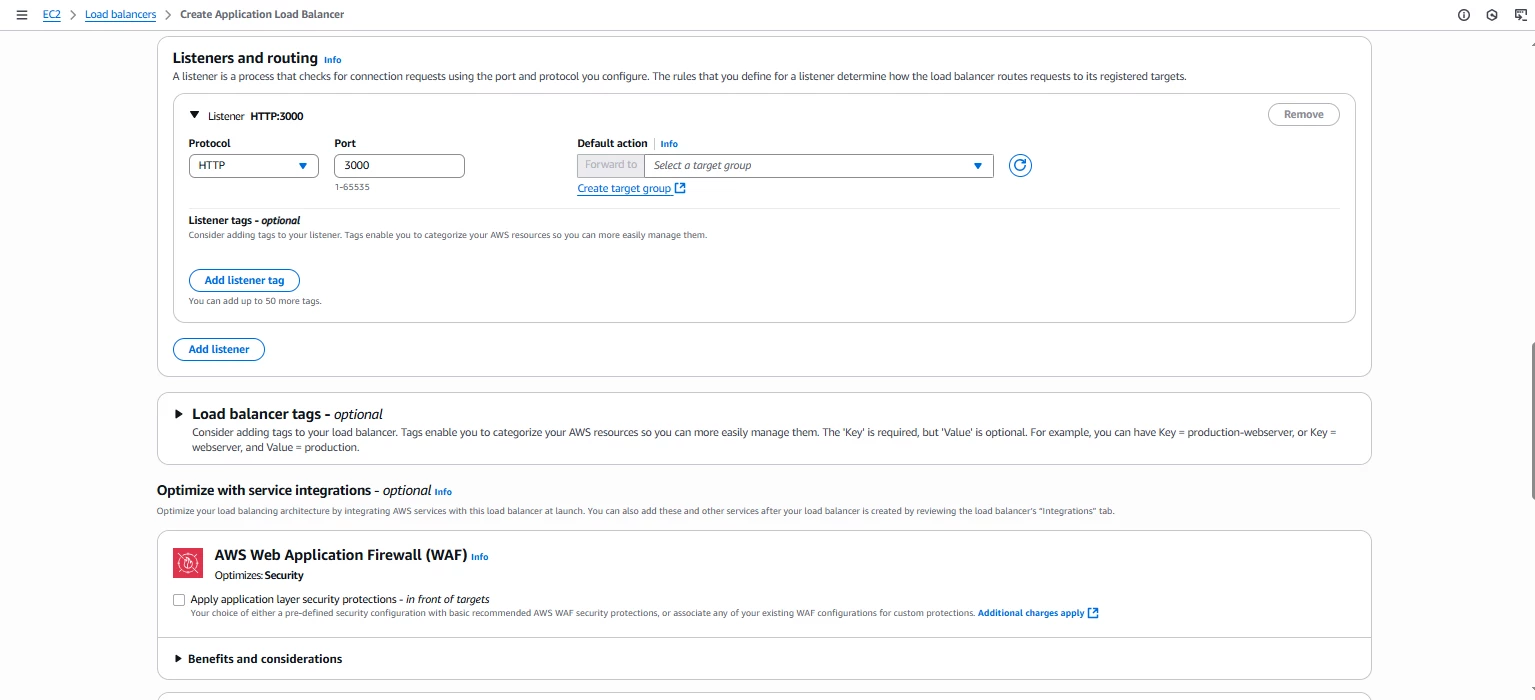

Deploy an application load balancer within VPC and private subnets

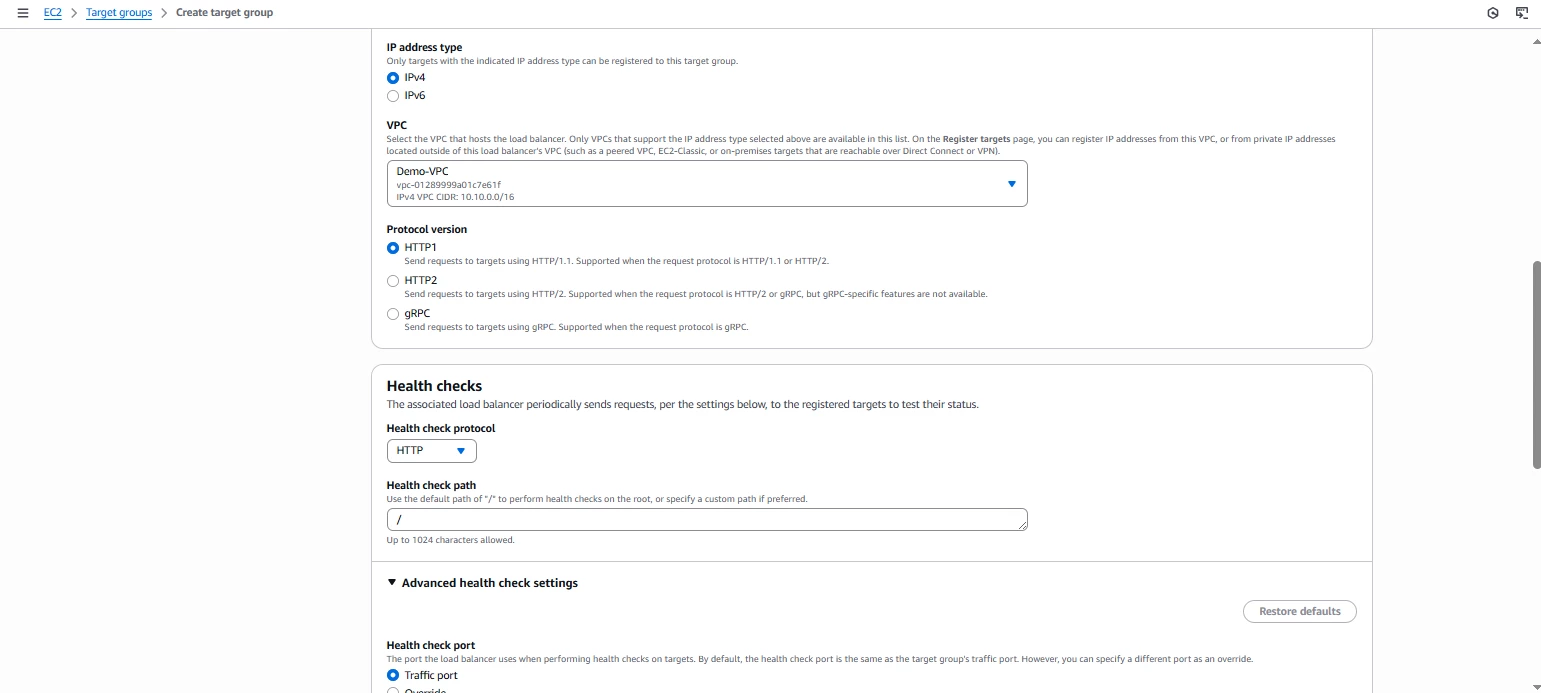

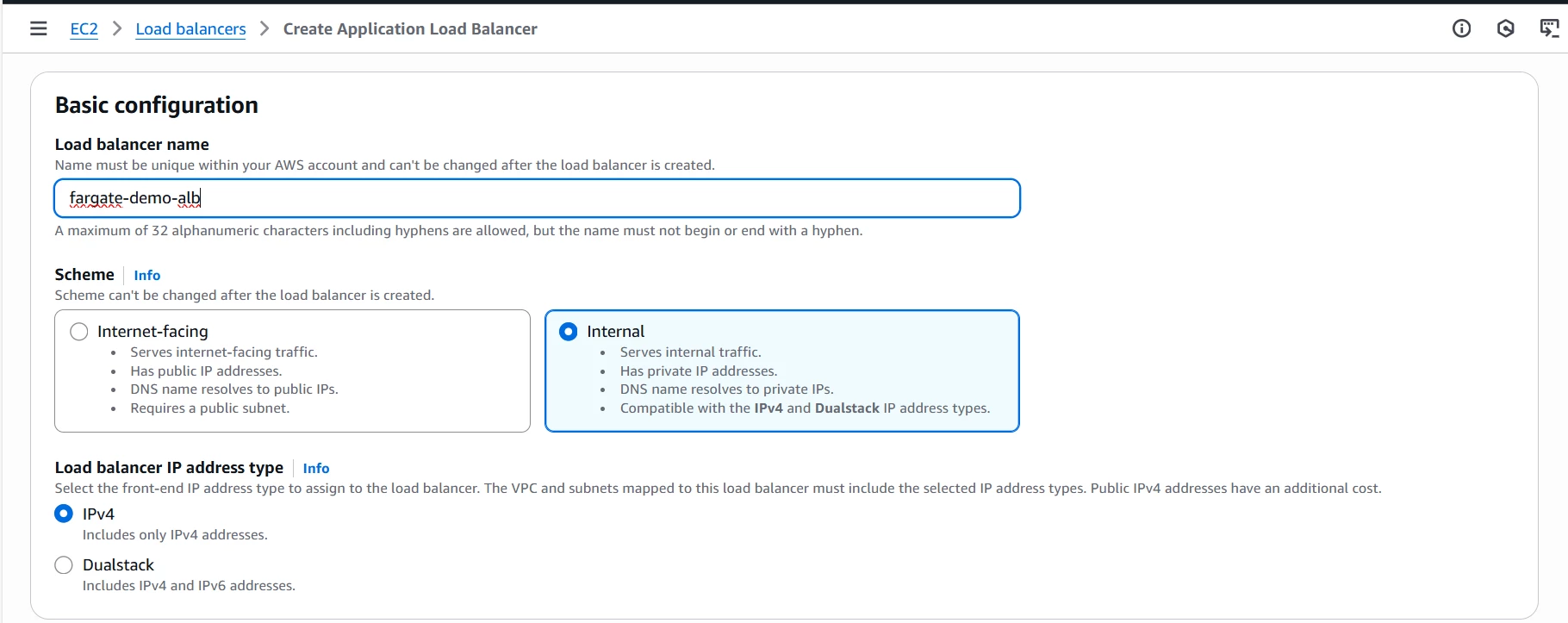

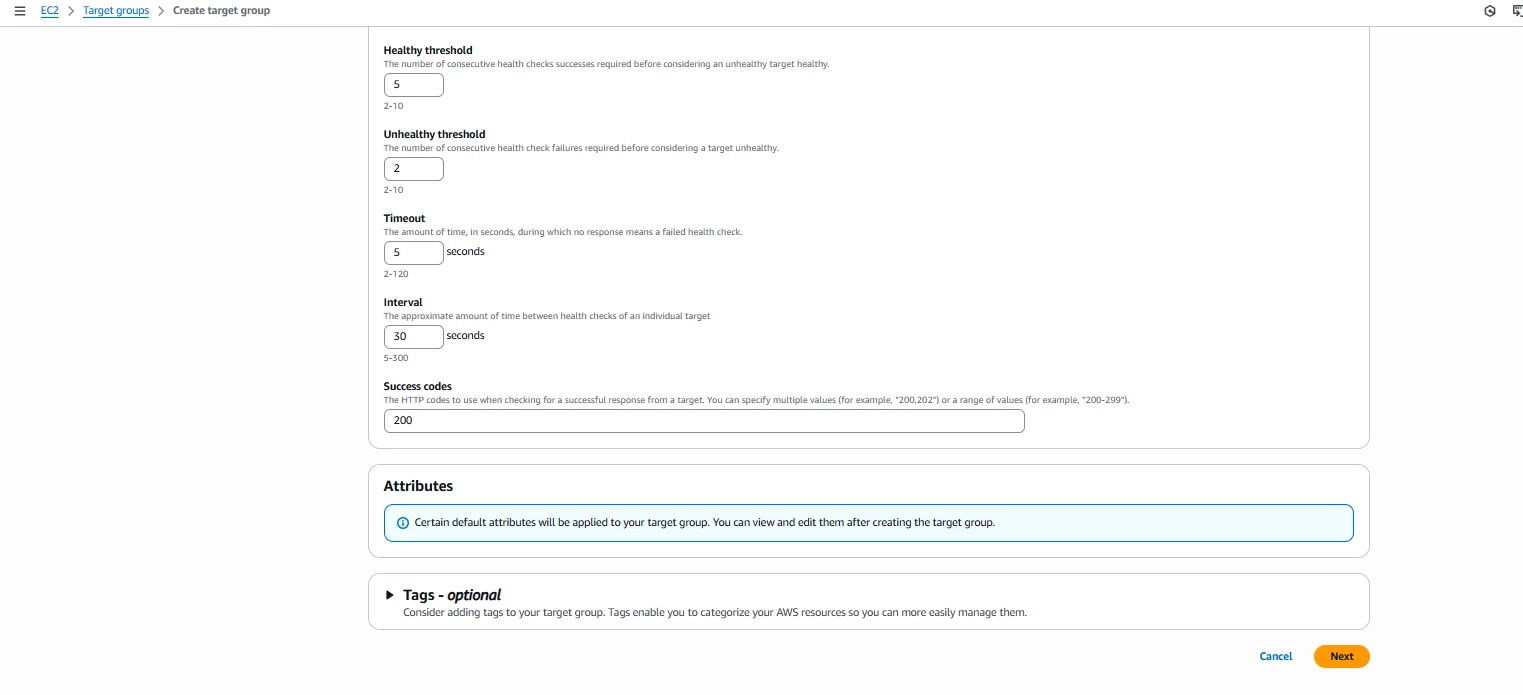

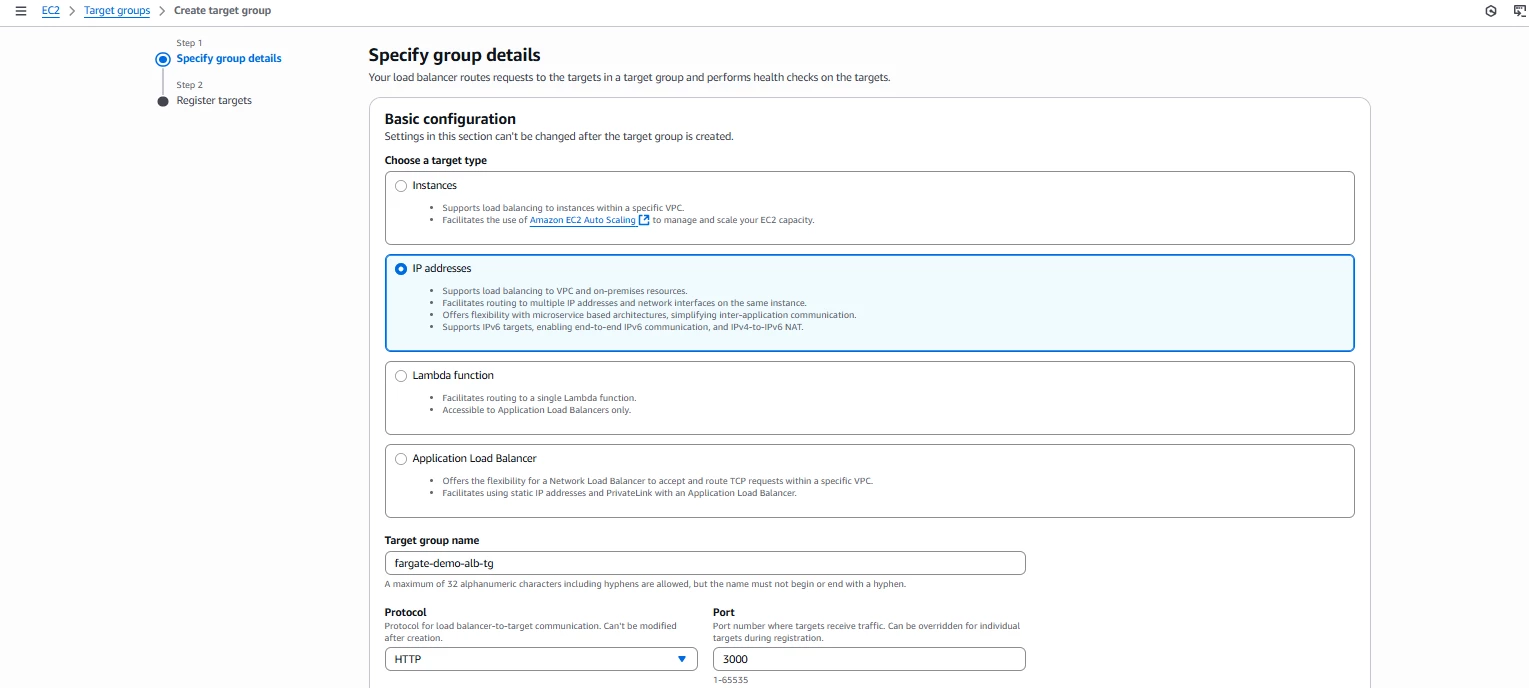

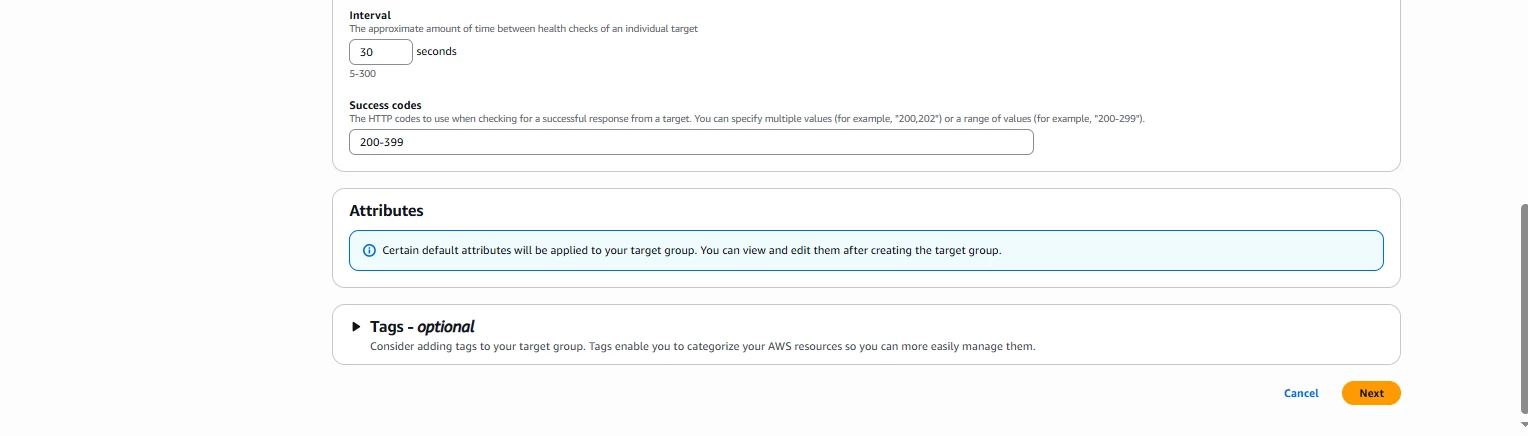

Create an internal ALB and target group

Note: In some cases if customer doesn’t have FortiWeb VM deployed in your AWS environment you can strengthen your cloud security with Fortinet managed rules, for more information please check below links:

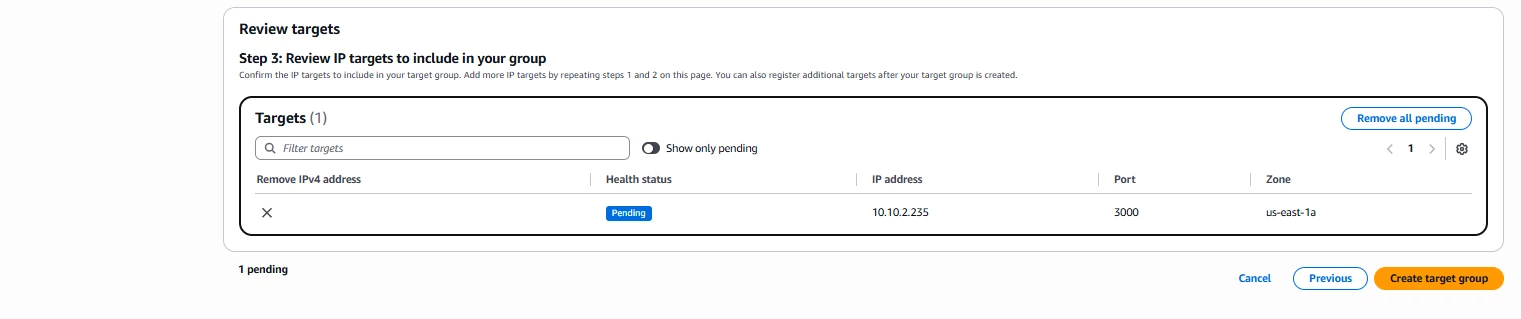

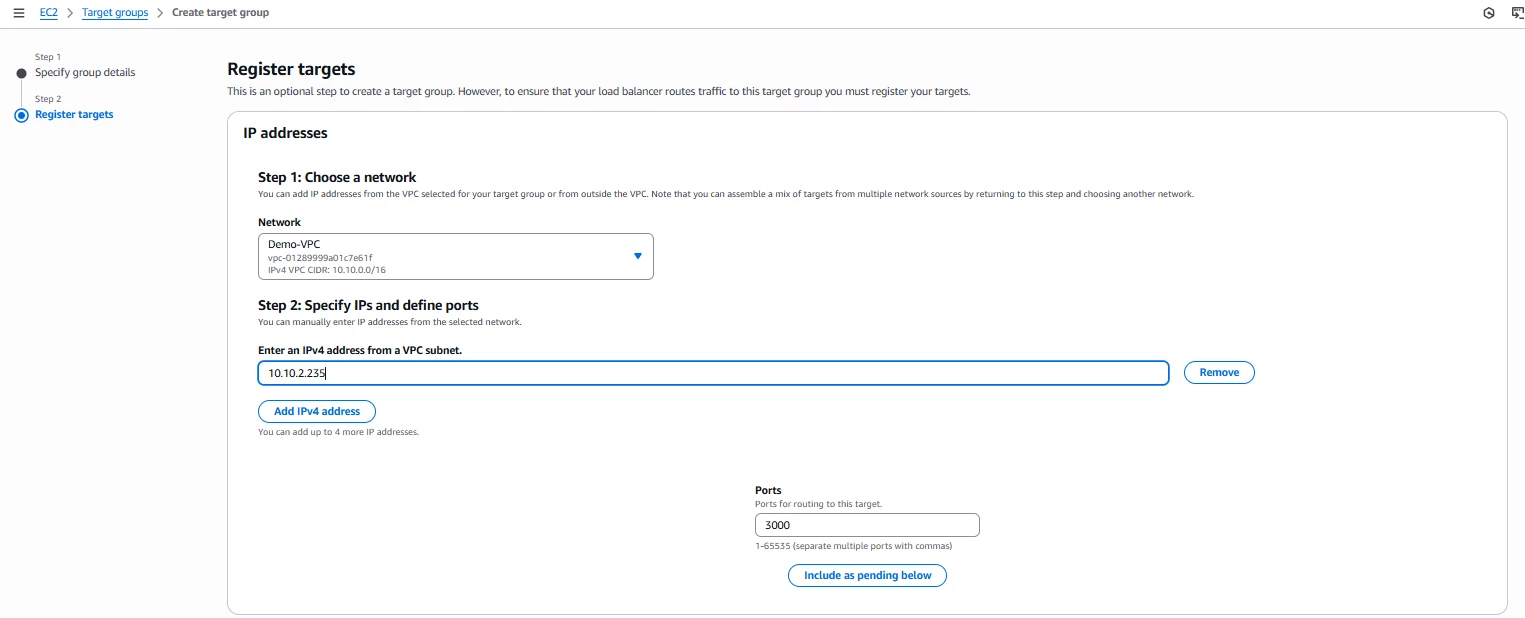

Register target IP gathered from previous step and click on “include as pending below”

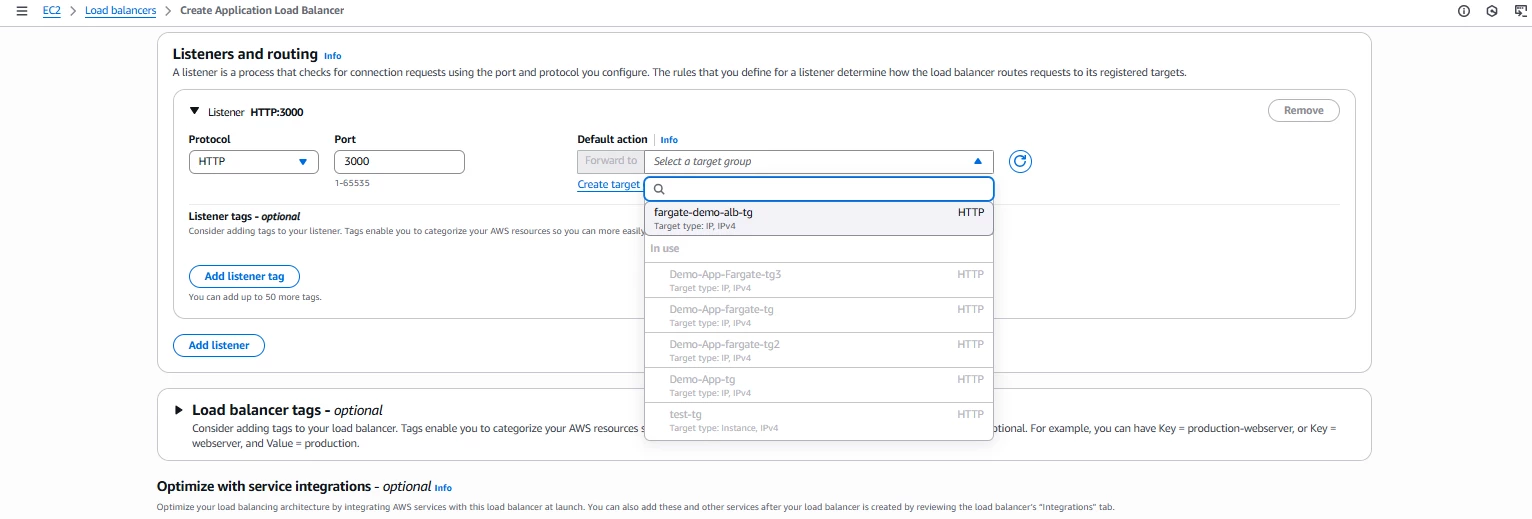

Come back to ALB page wizard and set the previously created target group

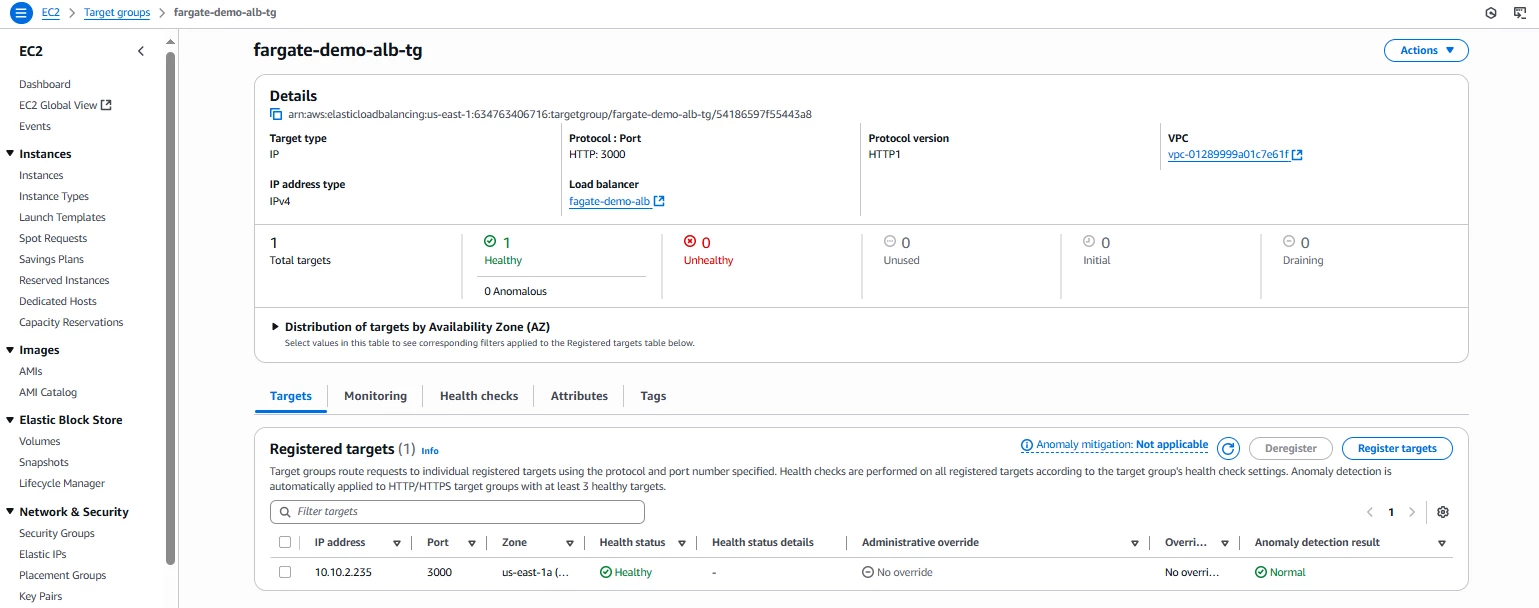

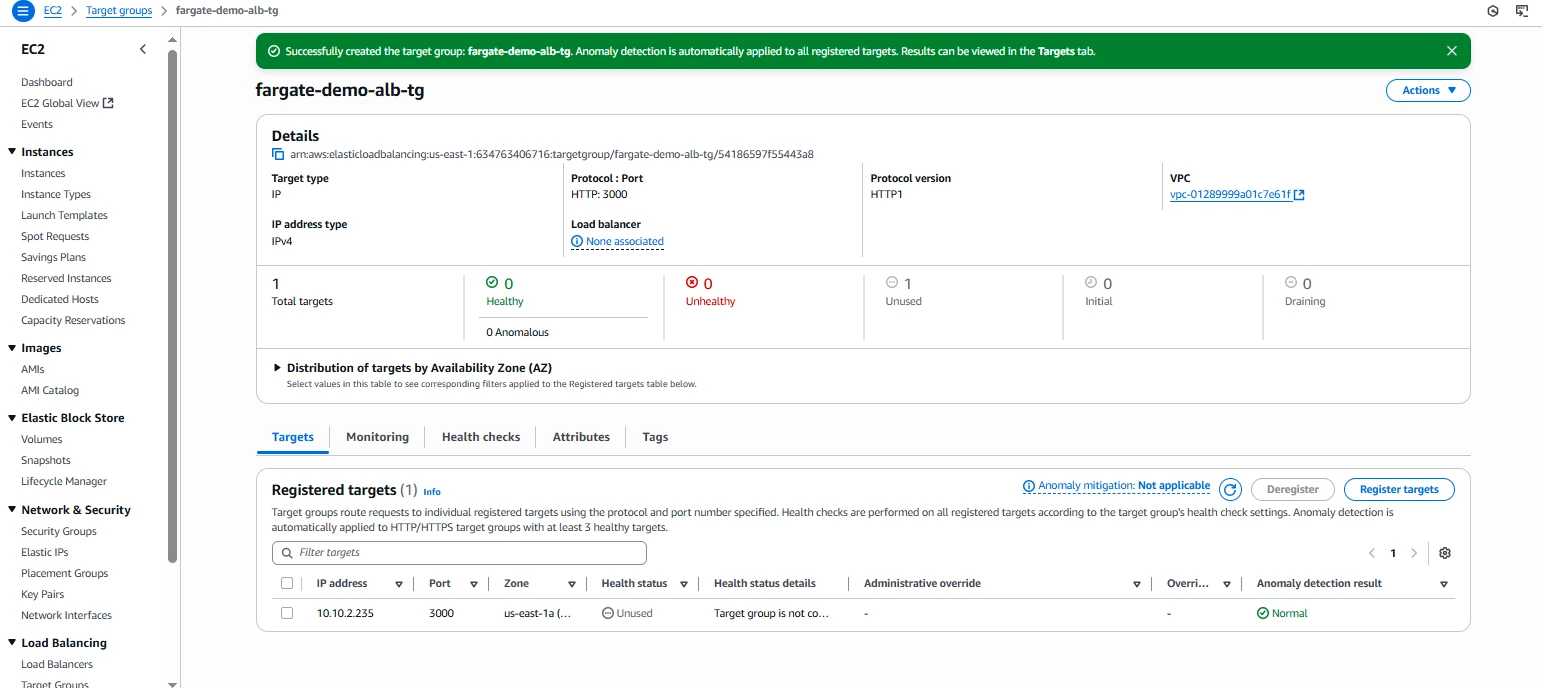

Wait until target group becomes healthy

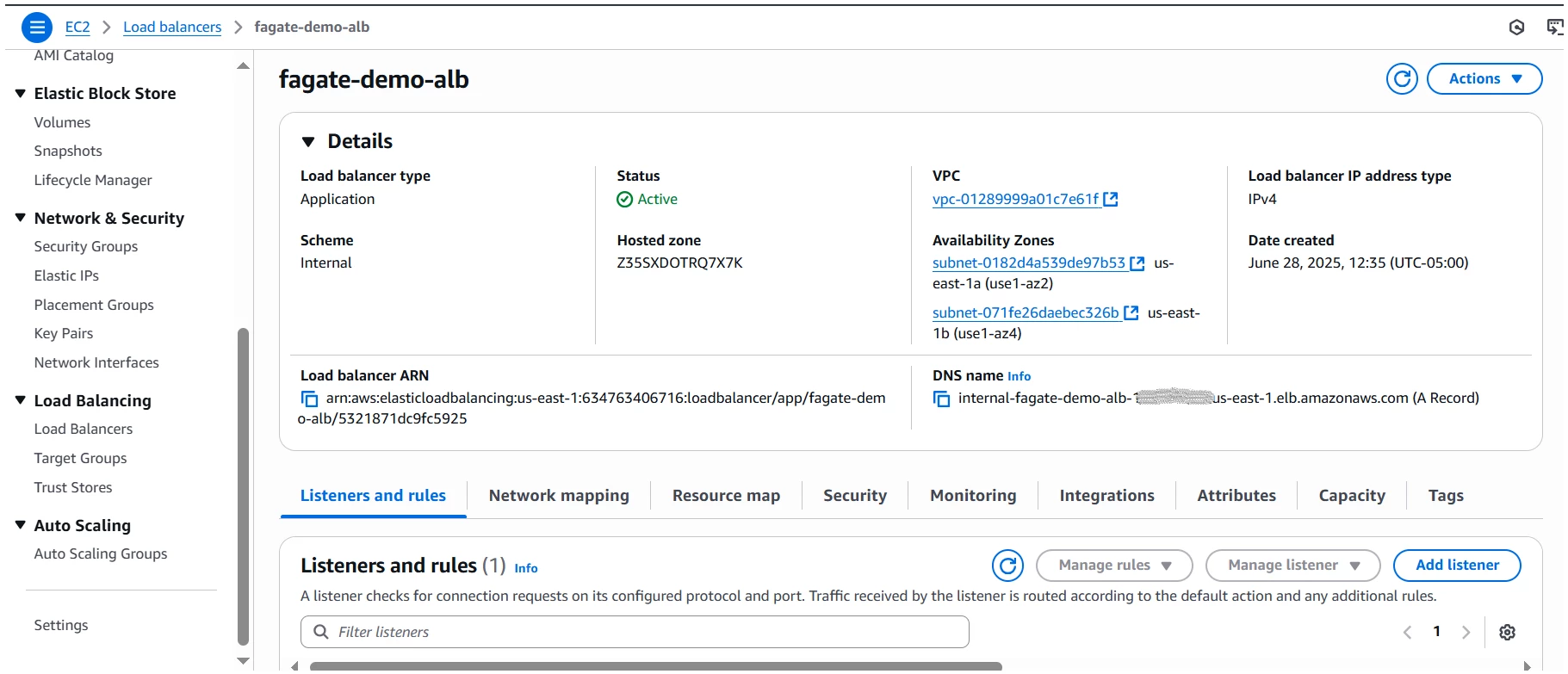

Gather DNS name of application load balancer

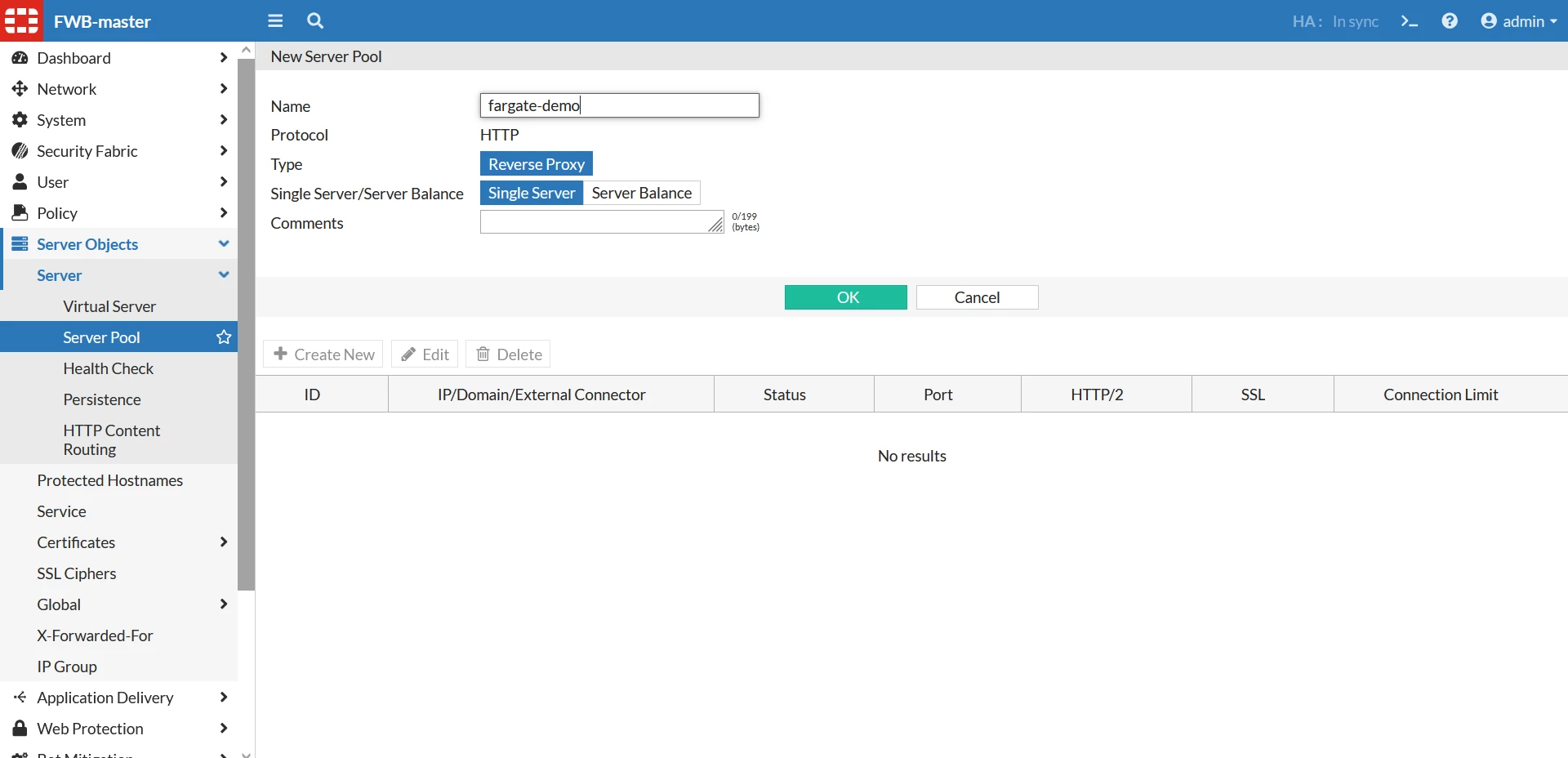

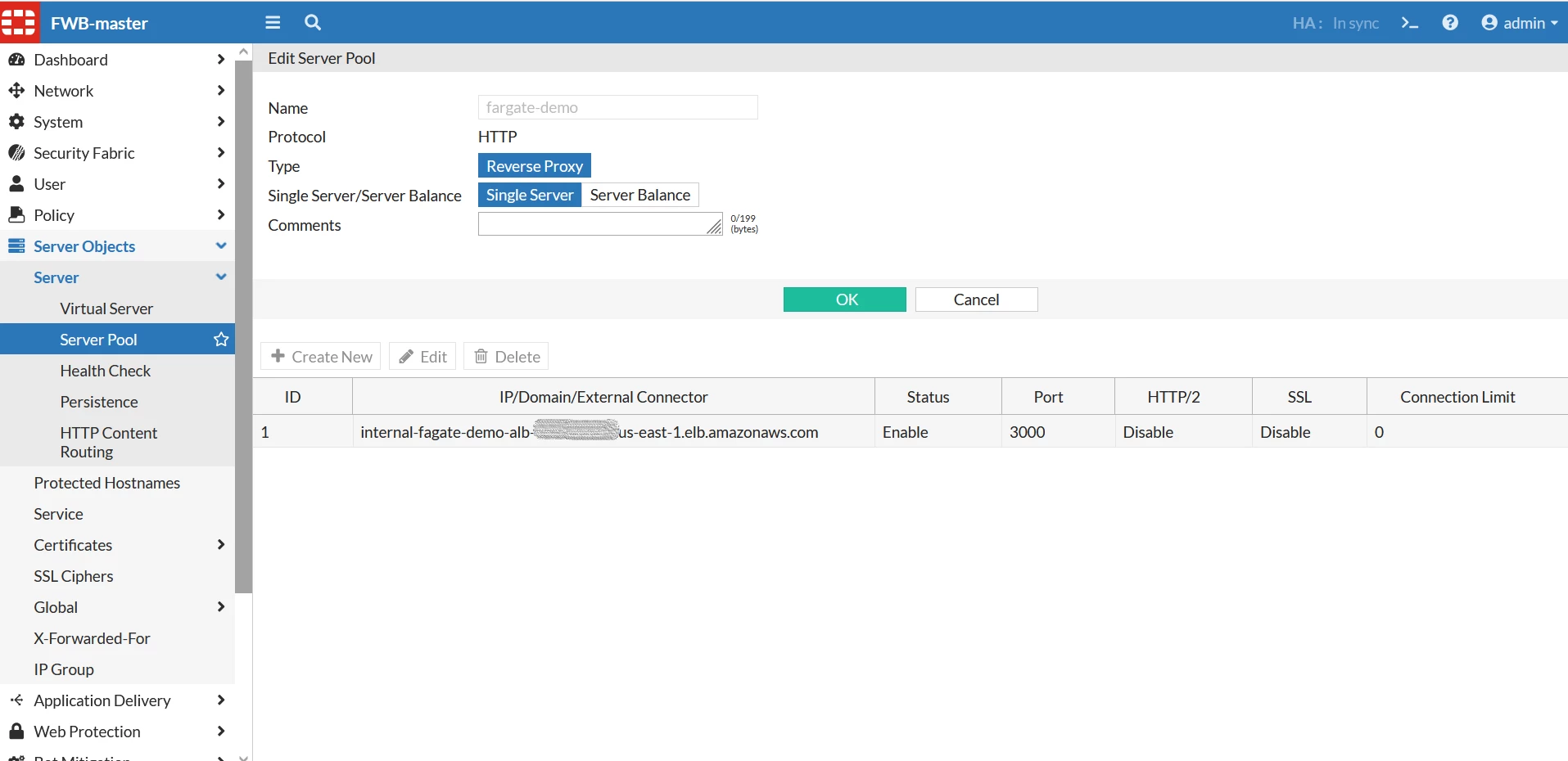

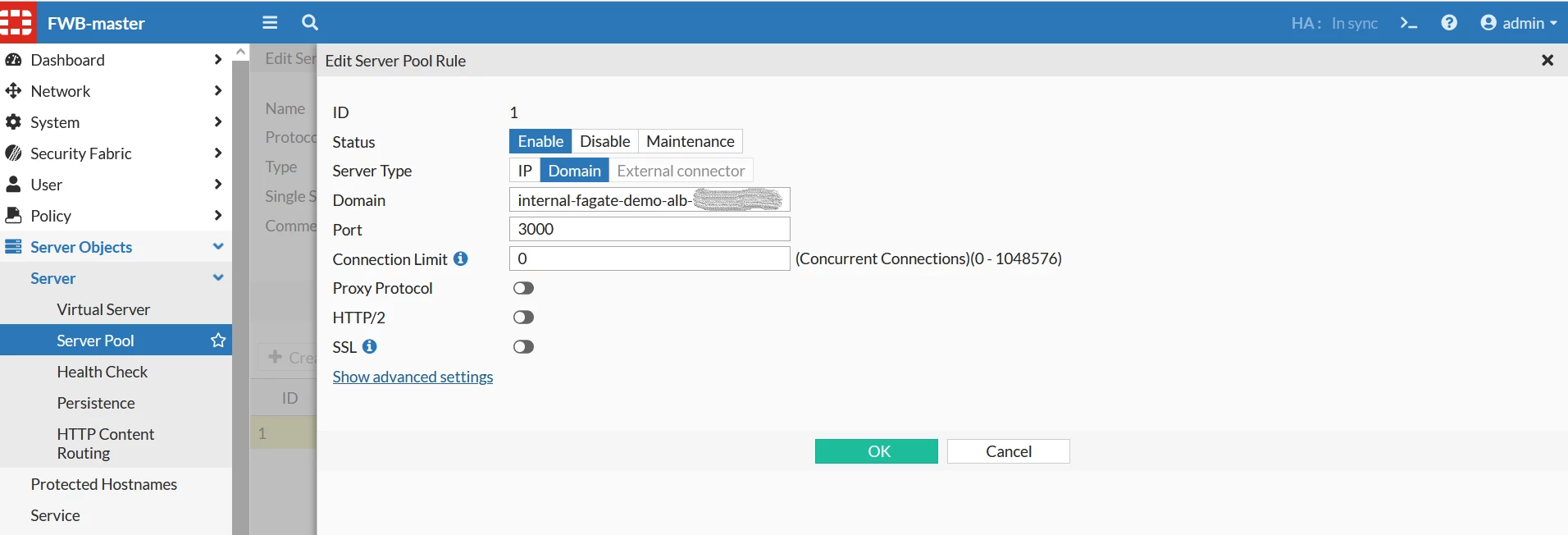

Open your FortiWeb console and register the new Fargate application load balancer DNS name on a new server pool
Check connectivity from Fortiweb to gathered container IP

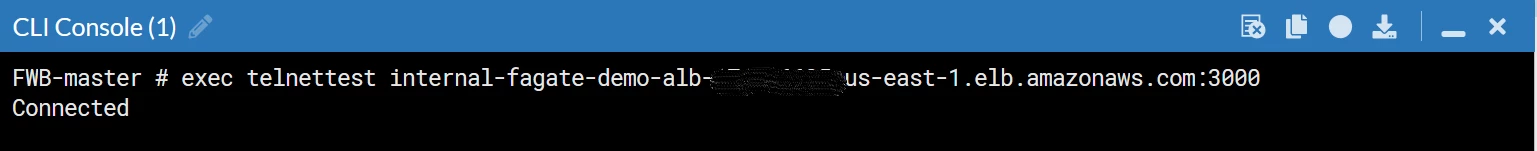

Check connectivity from Fortiweb to load balancer DNS as well

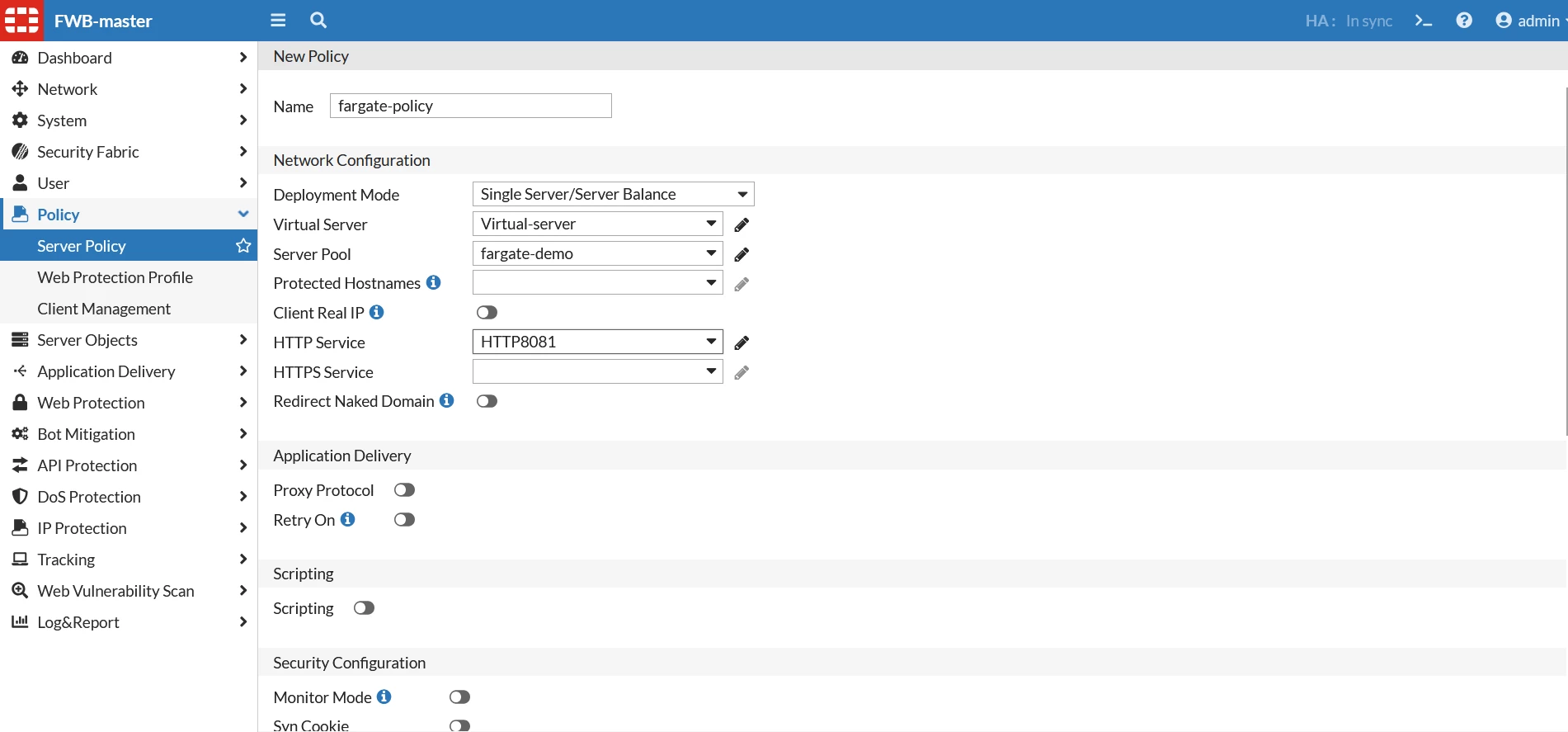

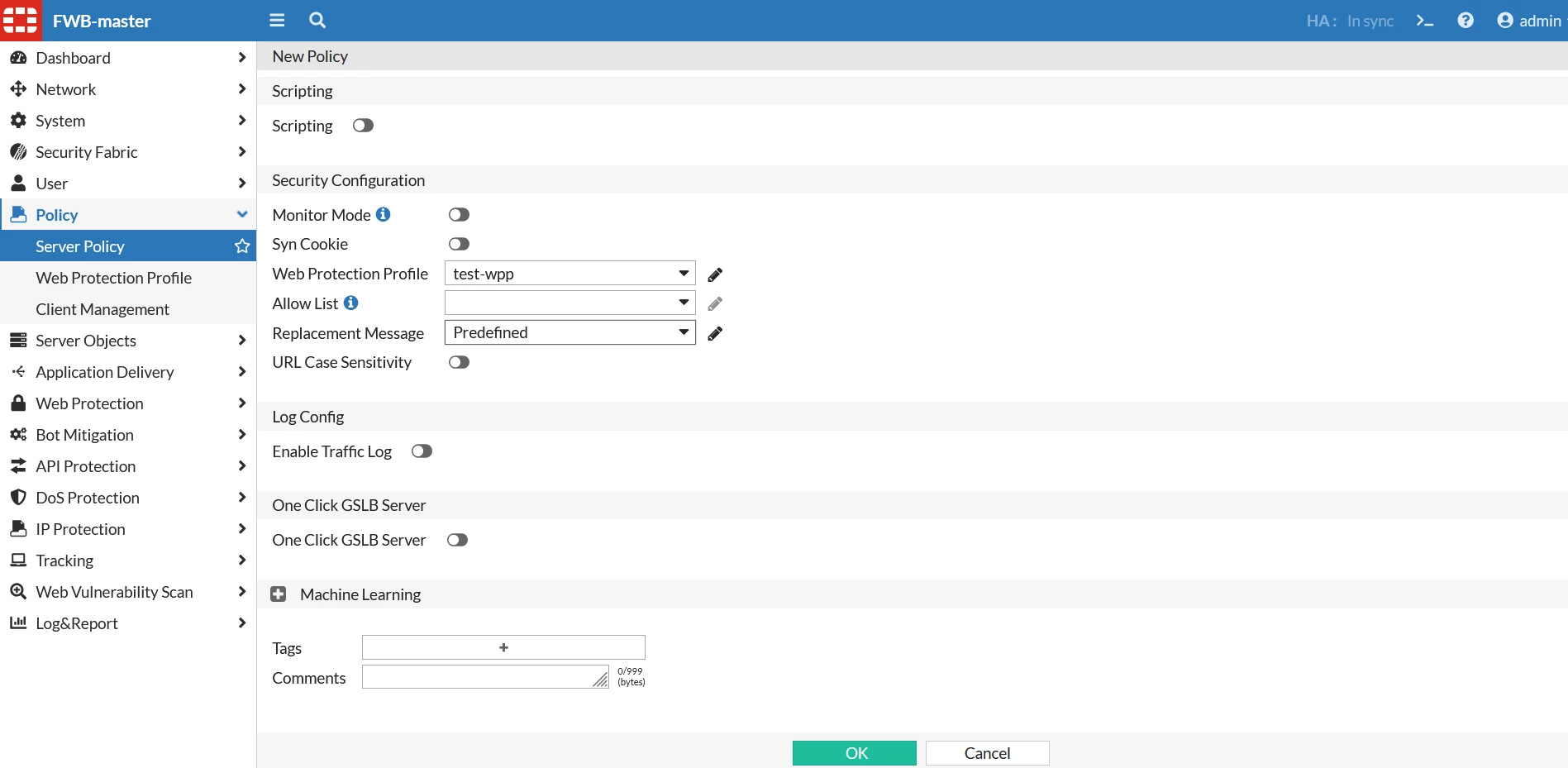

Create a server policy changing port number if desired

Set a proper web protection profile according to application and security needs and select from policy

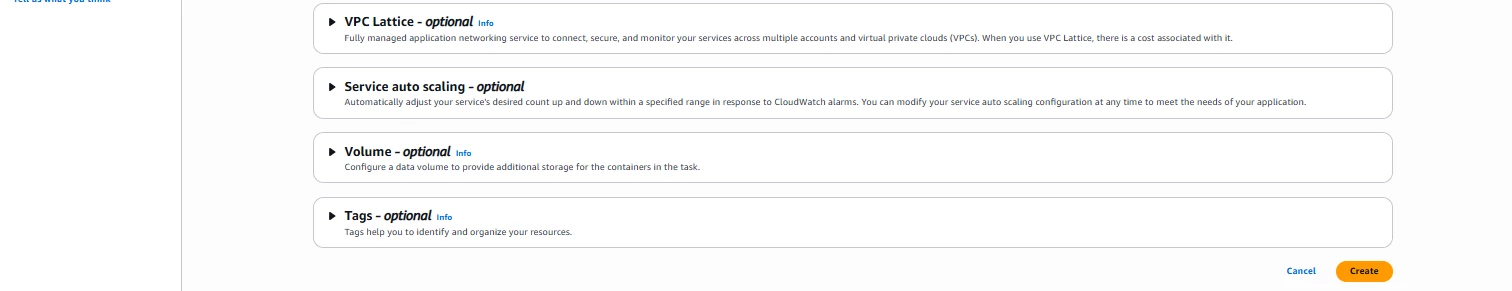

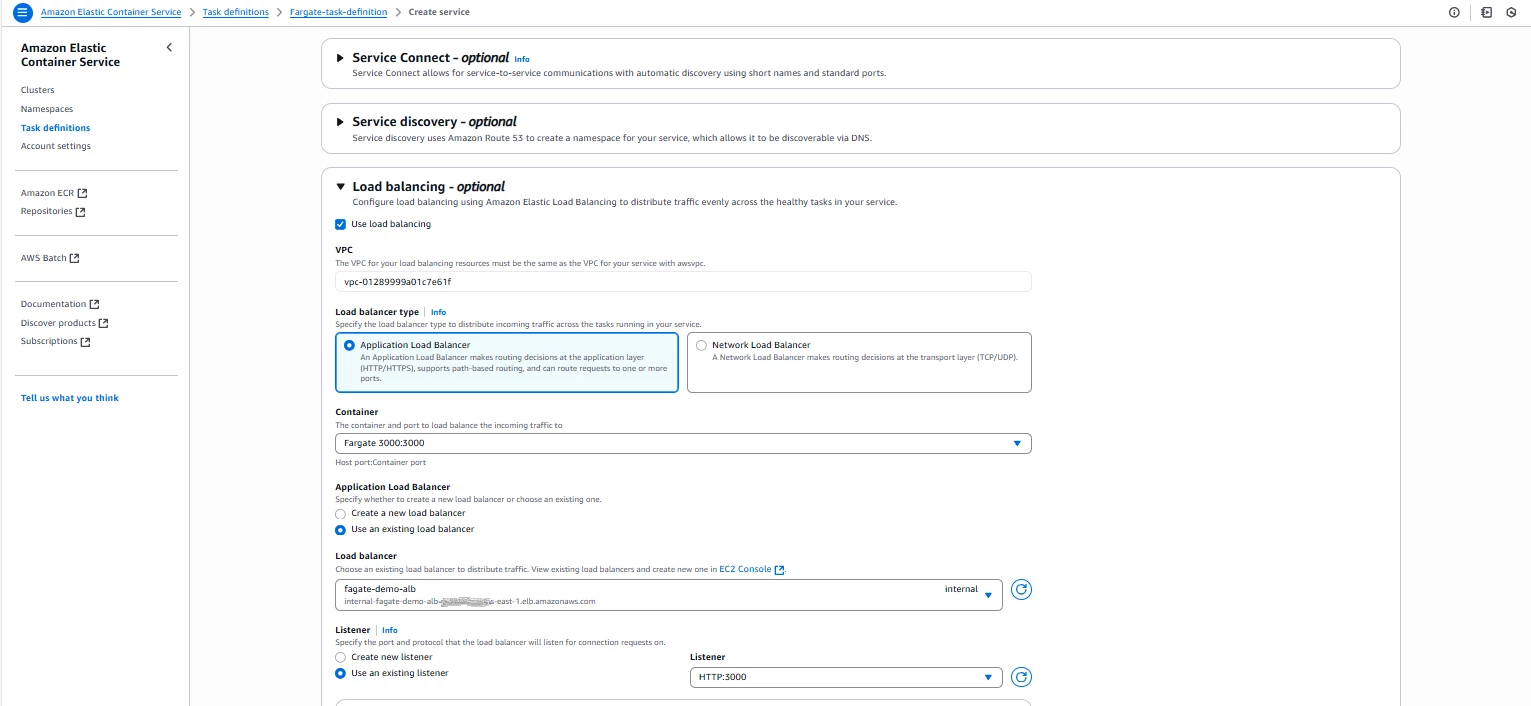

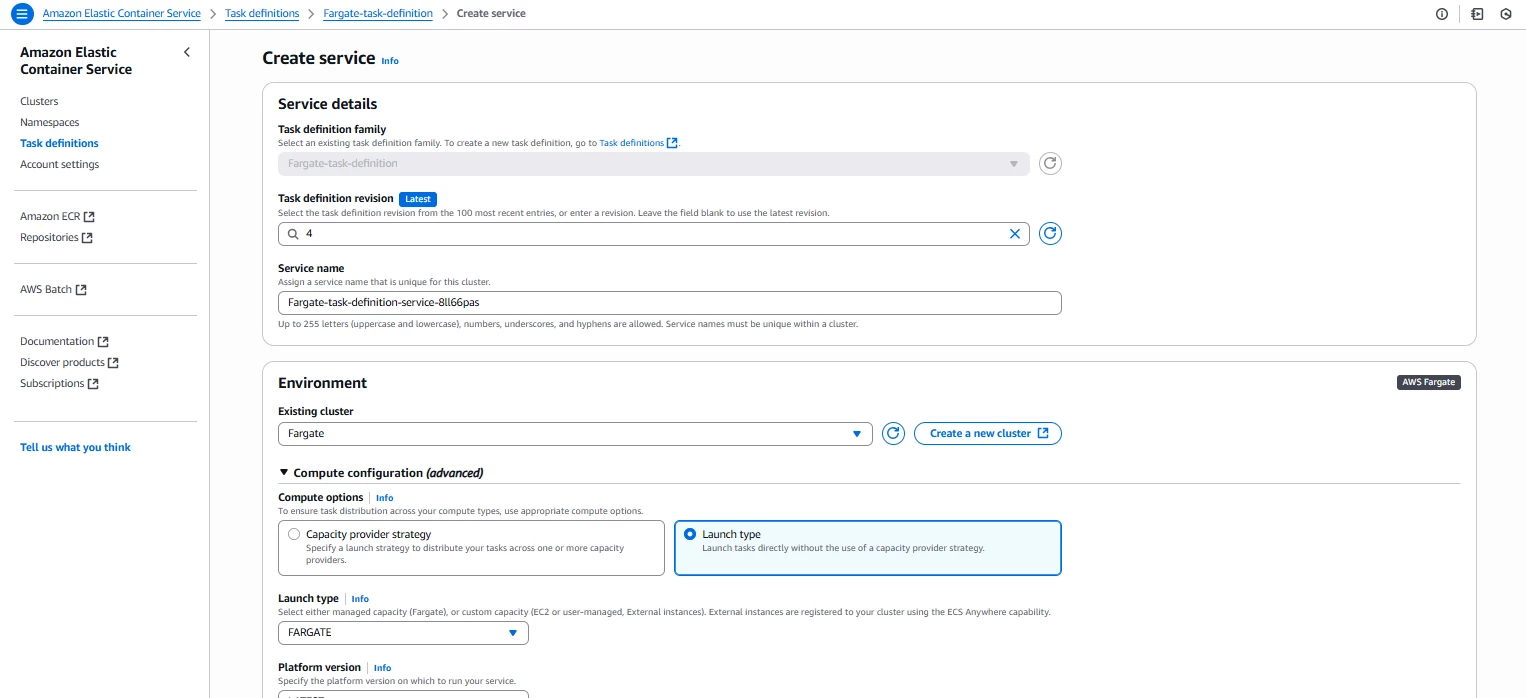

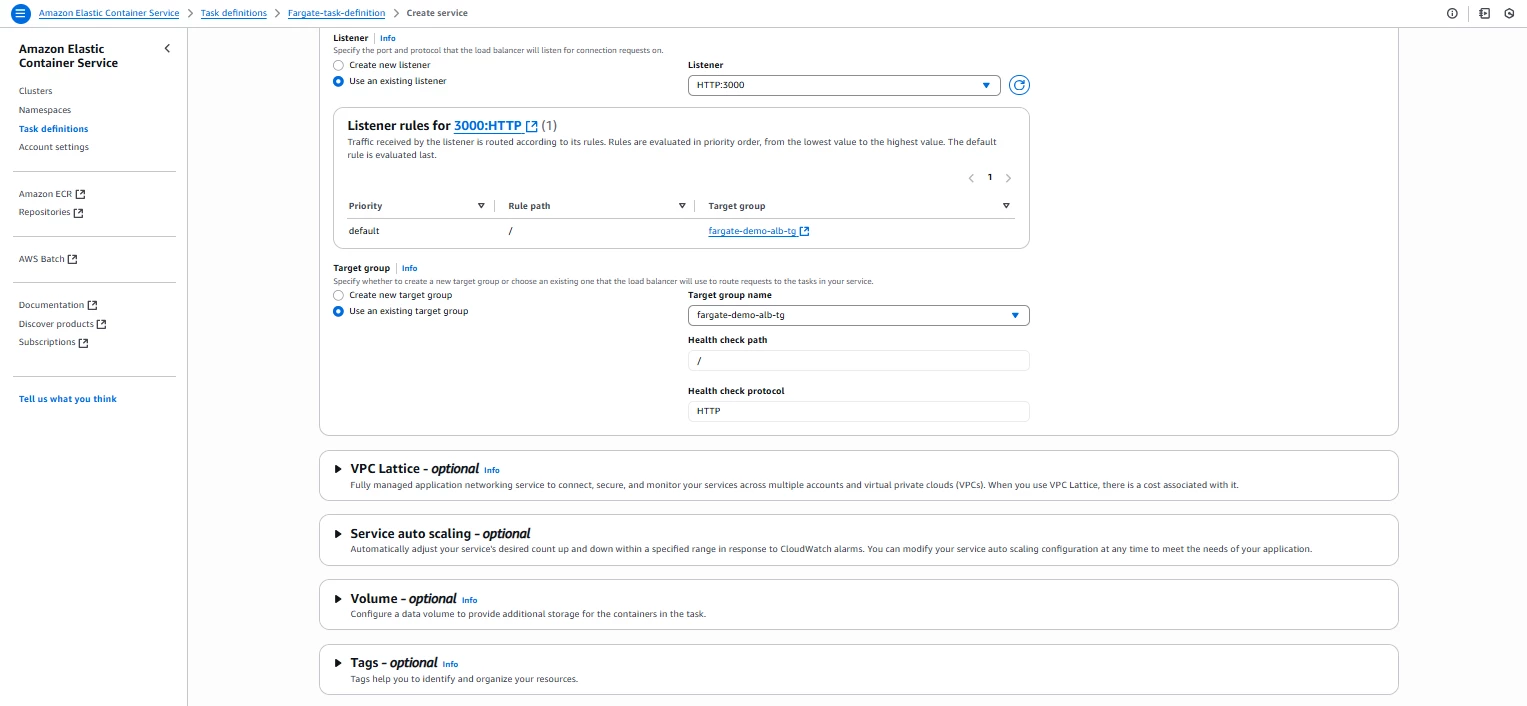

Create a new fargate application service but now selecting all private subnets and without public IP, and associating the created load balancer for new containers being registered automatically on target group
Create a new task definition now pointing to private subnets of your desired VPC

From FortiGate create a VIP for external Fortiweb IP using port TCP 8081

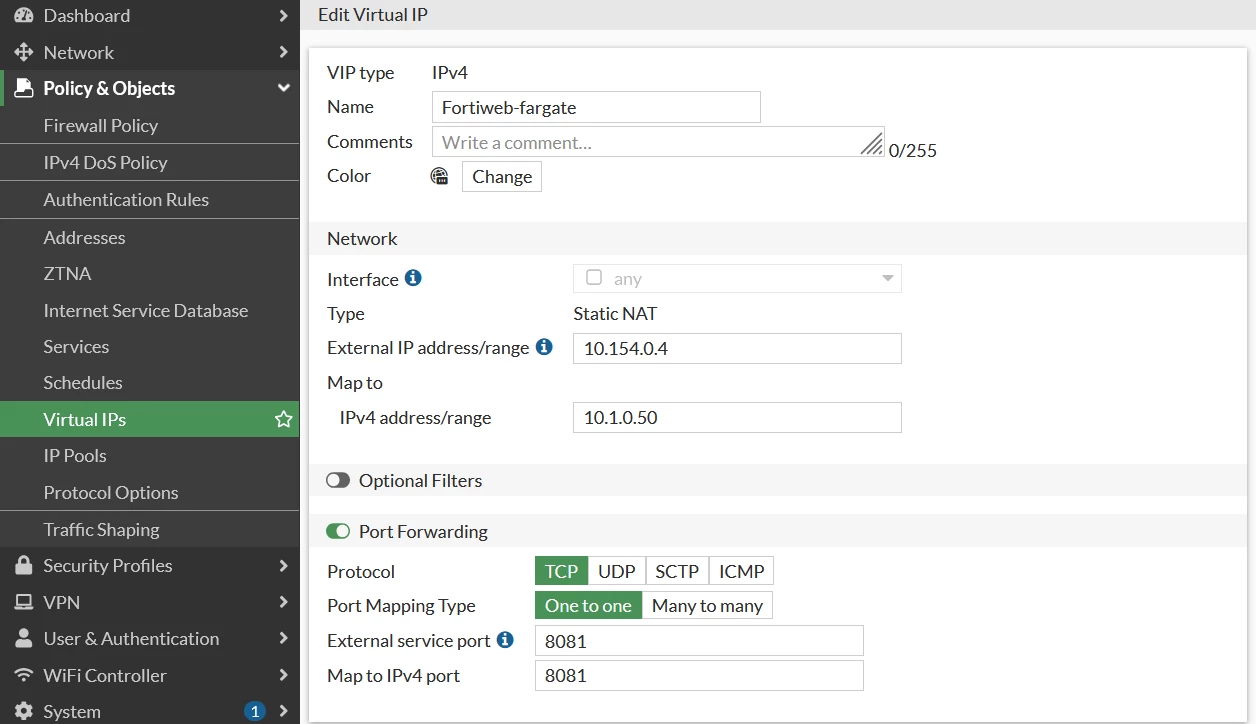

Create VIP for Fortiweb

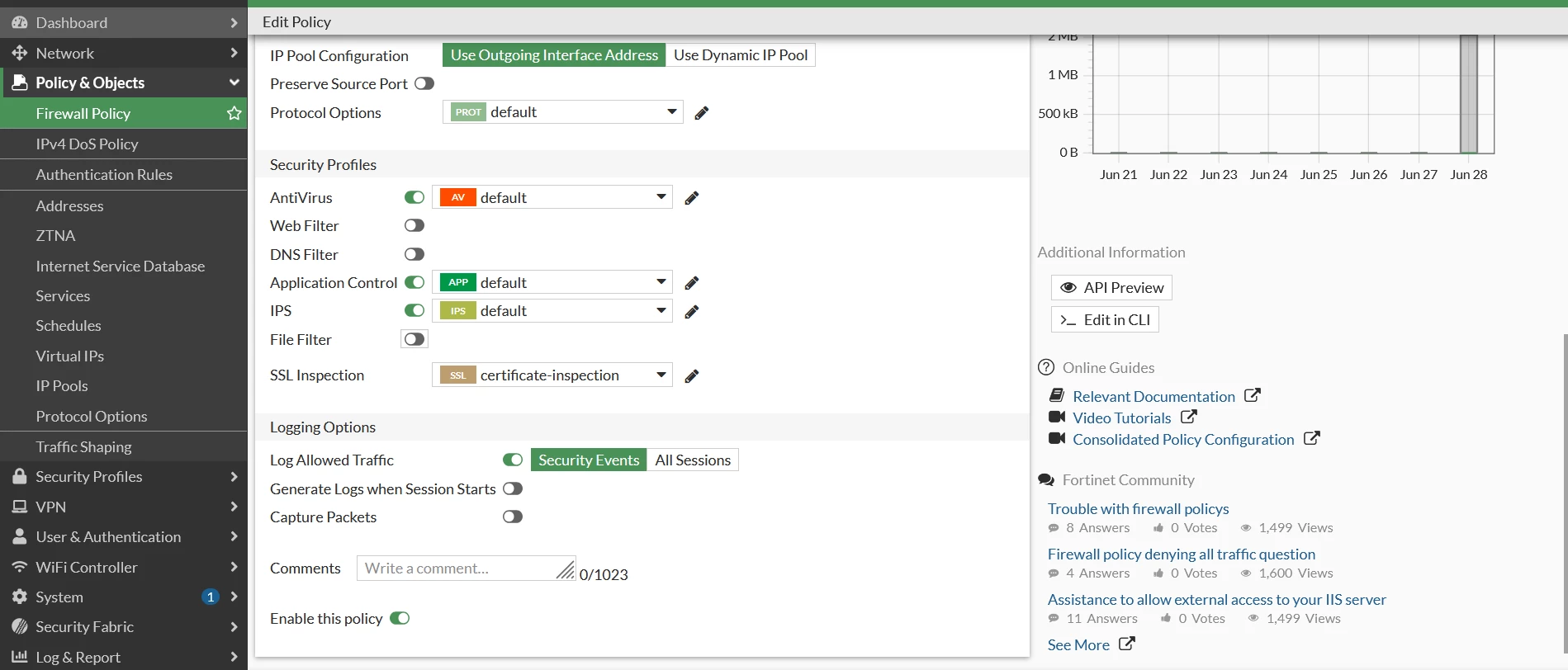

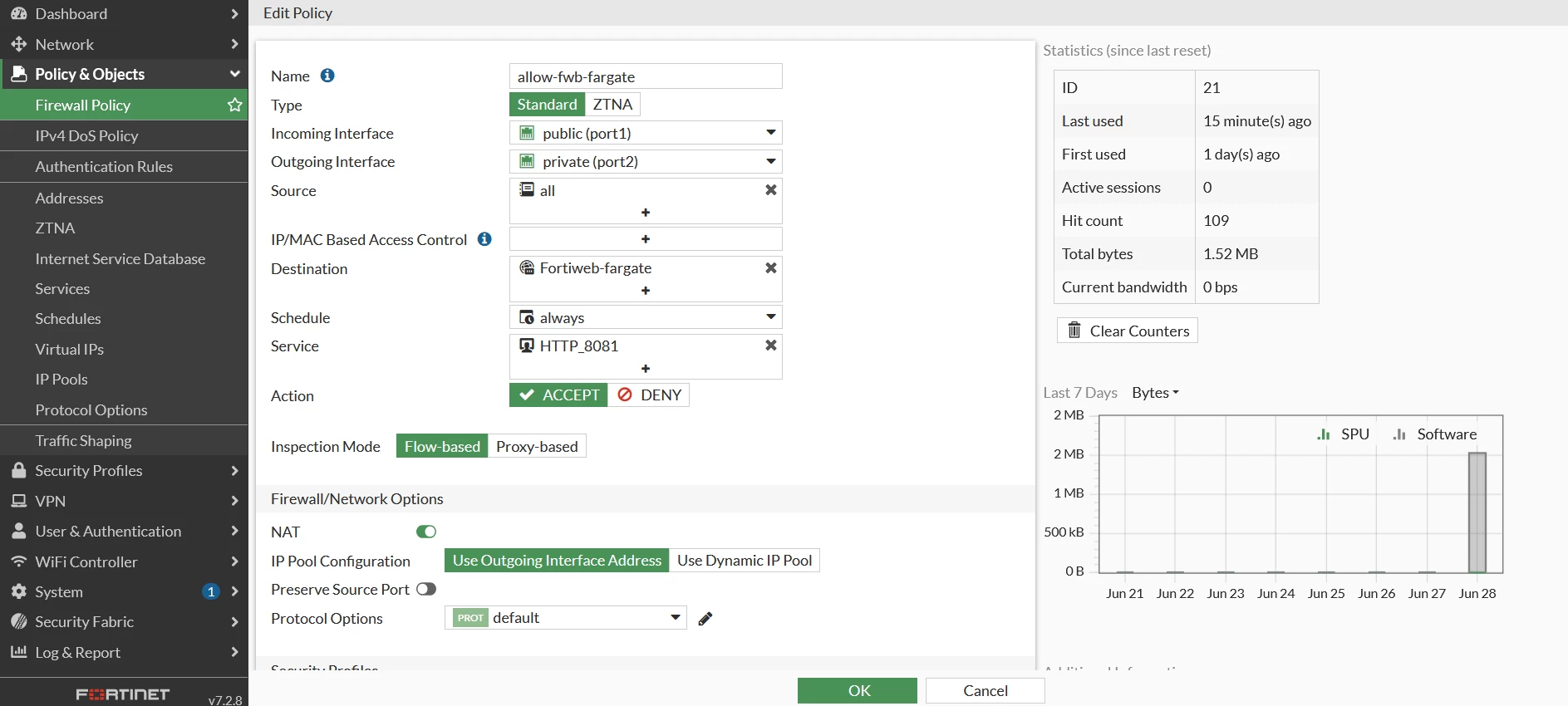

Create Firewall Rule for FortiWeb public access through FortiGate

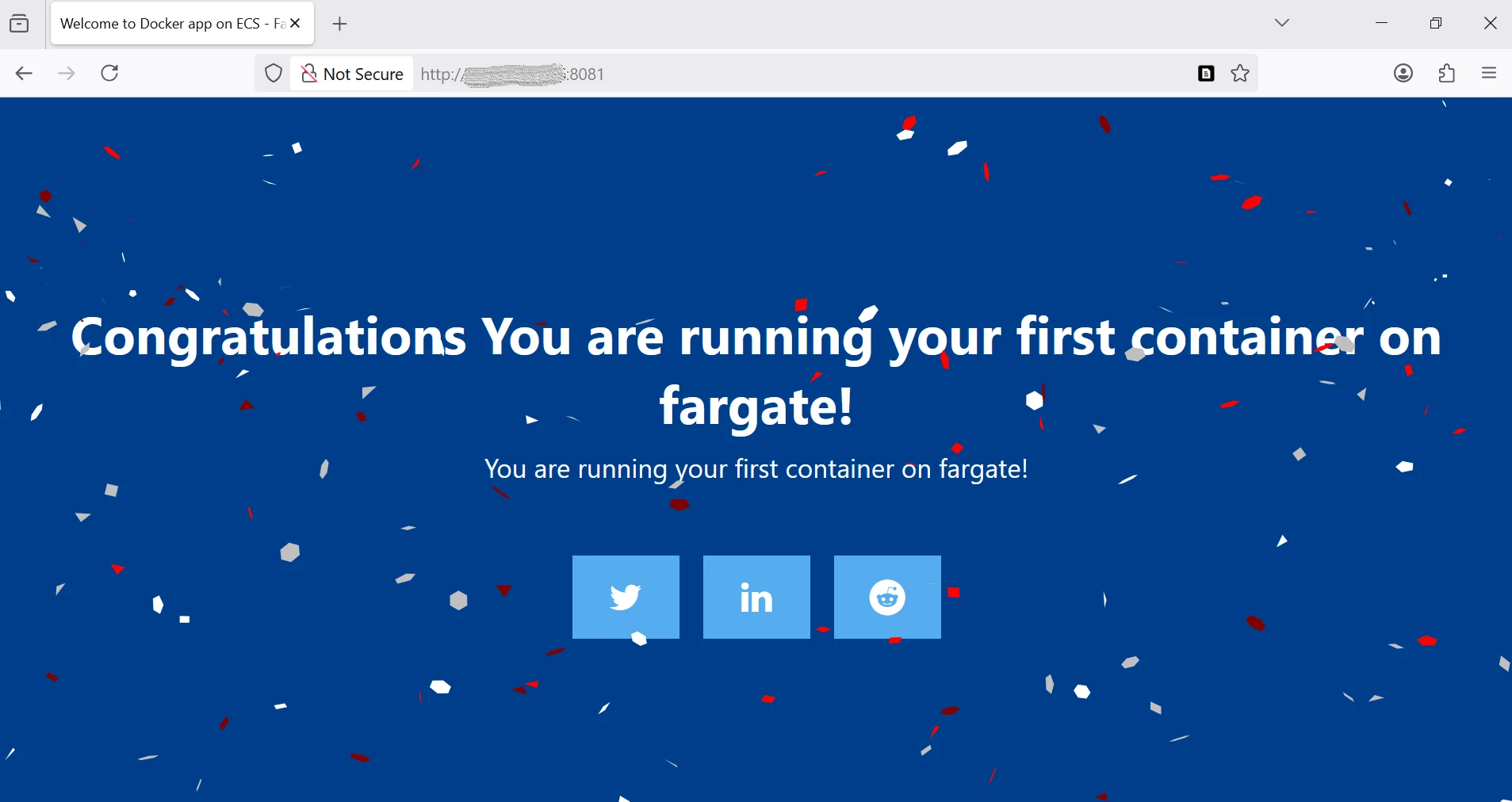

Test your application from browser

Check traffic logs on FortiGate and FortiWeb consoles to ensure traffic is being inspected

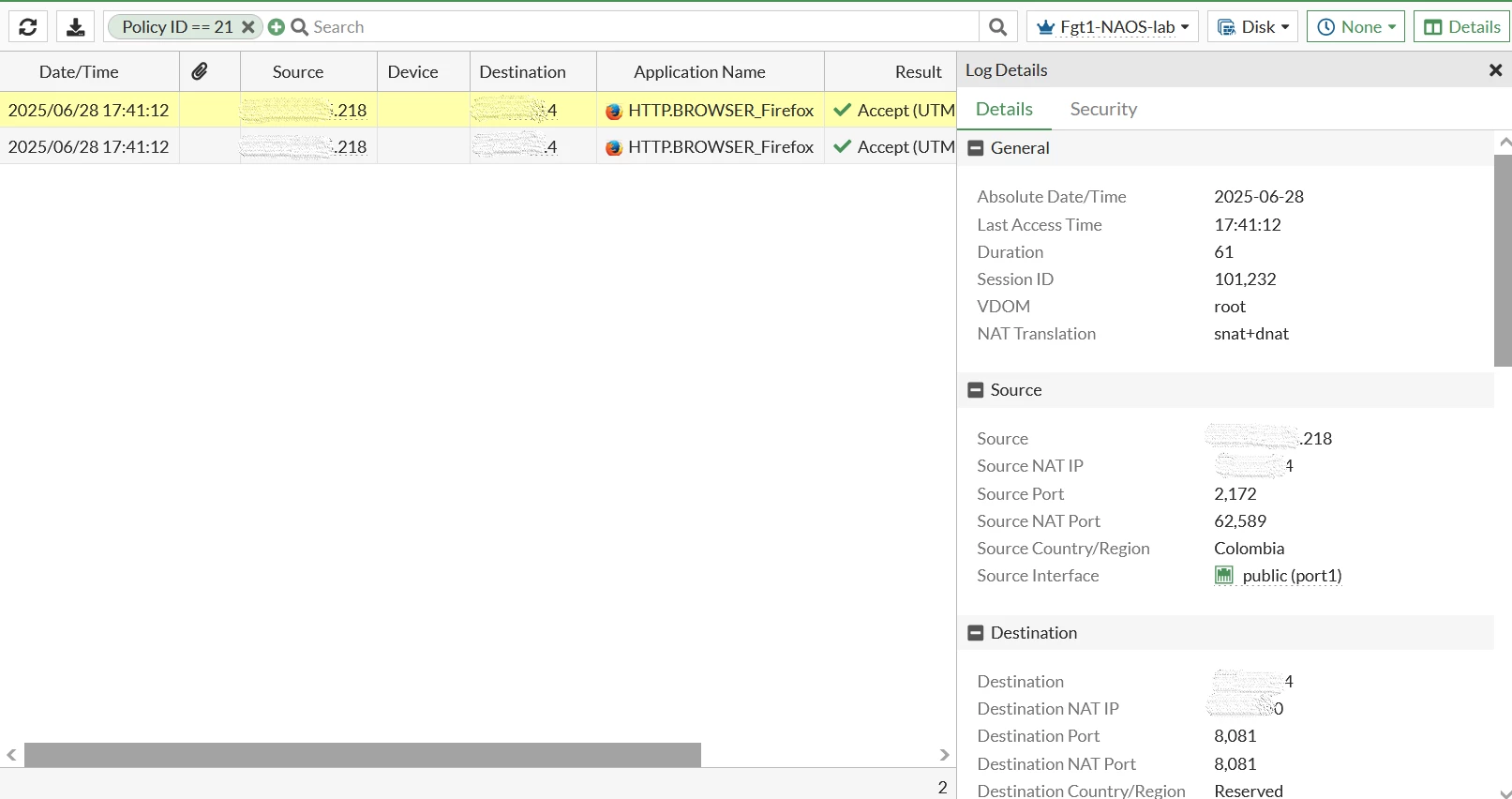

FortiGate traffic logs

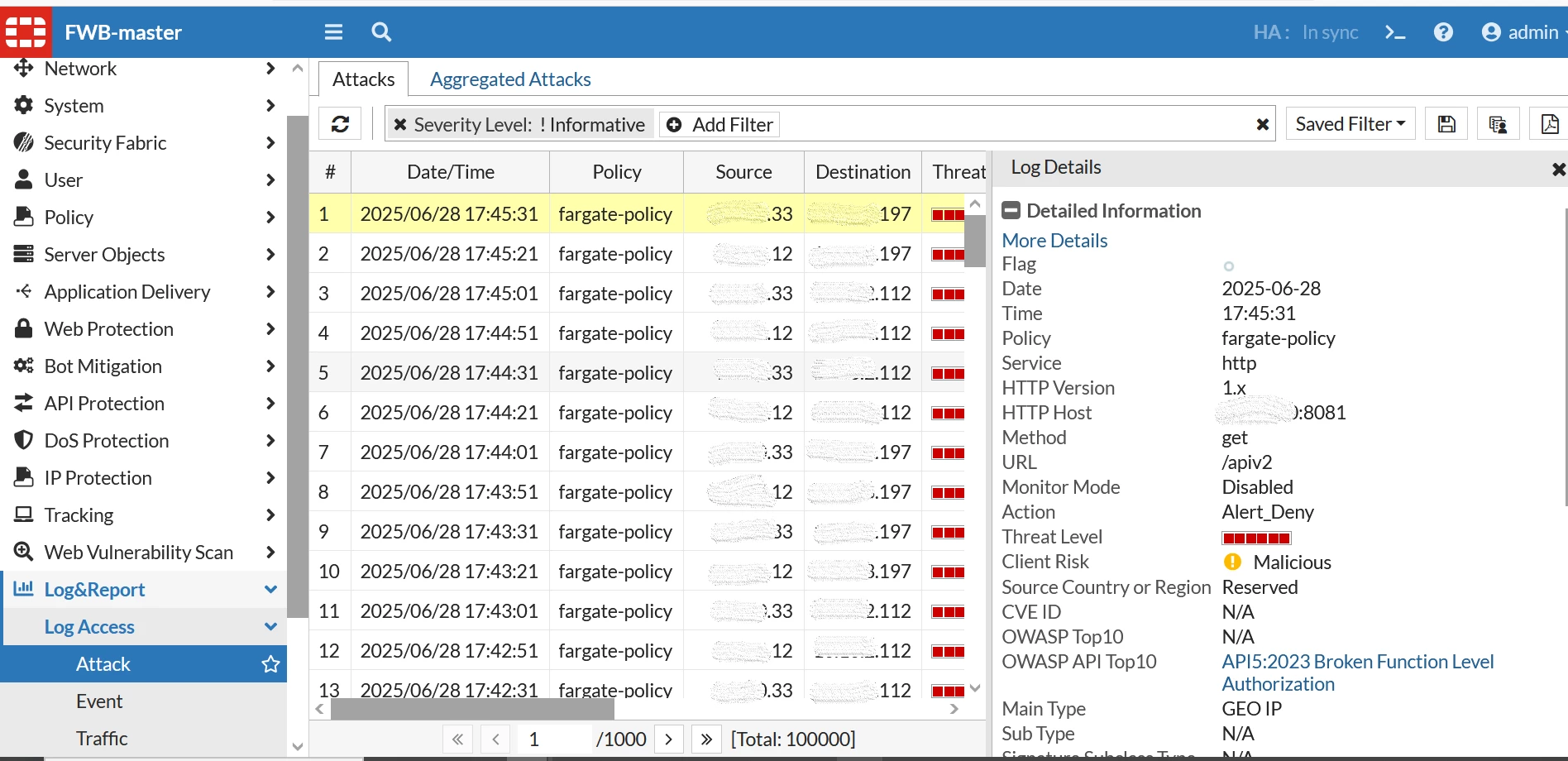

FortiWeb attack logs

Do some Tunning on FortiWeb console according to your application behavior (if needed)
Go Live changing your application DNS pointing to FortiGate public IP address.
Delete Fargate public service created on previous step

Takeaways:

Layered Security Architecture is Essential

Deploying FortiGate and FortiWeb in tandem provides a comprehensive security posture:

FortiGate acts as the first line of defense, filtering and inspecting both inbound and outbound traffic at the network level.
FortiWeb offers deep application-layer protection, especially critical for features like file uploads and web interfaces.

Cloud-Native Environments Require Tailored Protection:

In containerized environments like AWS Fargate, it's crucial to:

Secure outbound traffic from containers using FortiGate to prevent data exfiltration or malicious communication.
Protect inbound application traffic with FortiWeb to mitigate layer 7 web-based threats.

Follow Best Practices and Official Guidance:

Please note that this blog outlines several design options intended solely for validation and conceptual understanding. These examples are not meant for direct use in production environments. For real-world deployments, we strongly recommend that customers engage with our cloud consulting services team to ensure proper design, configuration, and security alignment with organizational requirements and best practices. For more information you can check out the link below link:

https://www.fortinet.com/resources/security-consulting-services

Referencies:

AWS Fargate: https://aws.amazon.com/es/blogs/compute/building-deploying-and-operating-containerized-applications-with-aws-fargate/
AWS ECR: https://docs.aws.amazon.com/AmazonECR/latest/userguide/repository-create.html

AWS Image push: https://docs.aws.amazon.com/AmazonECR/latest/userguide/image-push.html

FortiWeb admin guide: https://docs.fortinet.com/document/fortiweb/7.4.8/administration-guide/60895/introduction

FortiGate admin guide: https://docs.fortinet.com/document/fortigate/7.4.8/administration-guide/954635/getting-started
